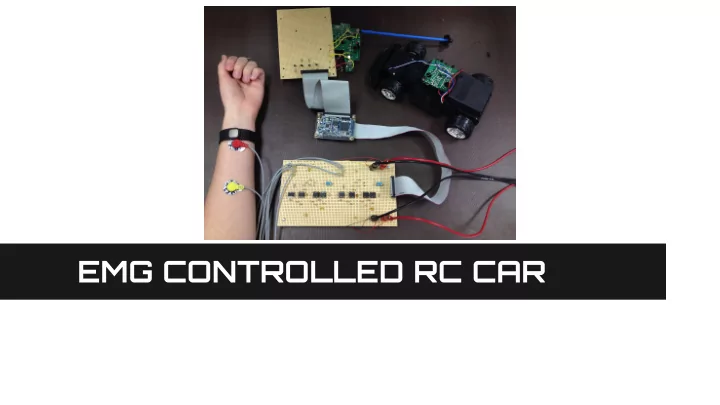

EMG CONTROLLED RC CAR Who German R. Gomez Urbina. Grant Hunter. Jessica Matthews. Emil Jafarli. What Controlling an RC car with gestures from the users arms. What How: EMG How: EMG Full Wave Rectifier Inverting Amplifier Active Low-Pass
SLIDE 2
SLIDE 3
What
Controlling an RC car with gestures from the user’s arms.
SLIDE 4
What
SLIDE 5
How: EMG
SLIDE 6
How: EMG
Differential Amplifier Inverting Amplifier Full Wave Rectifier Active Low-Pass Filter, Inverting Amplifier
SLIDE 7
How: EMG
Forward and Right Turn commands Stop Command Reverse and Left Turn commands
SLIDE 8
How: Control
Use adaptive thresholding to determine the beginning of a pattern Collect samples continuously on the rising edge of the signal
SLIDE 9
SLIDE 10
How: Transmitter
SLIDE 11
How: Transmitter
Movement Turning Foward 1 Backward 1 Left 1 Right 1
SLIDE 12
How: Transmitter
Left Button (9V) DE0 nano (3.3V)
SLIDE 13
Why
Interesting Challenge Software + Hardware + Digital + Analog
SLIDE 14
Why
Potential of the technology Prosthetics Computer-human interface Disability assistance
https://www.thalmic.com/en/myo/ http://www.rehab.research.va.gov/jour/11/486/page643.html
