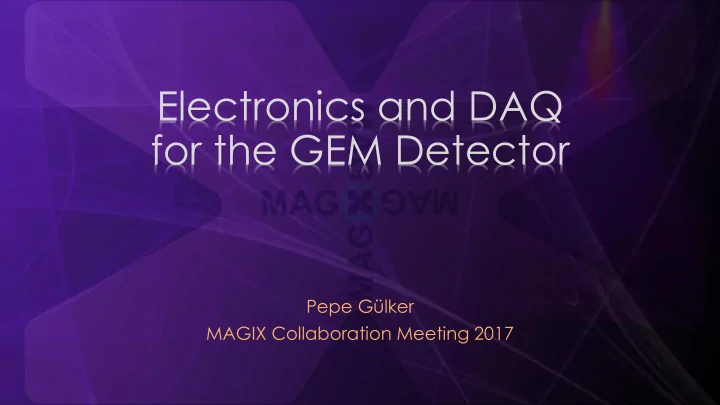

Electronics and DAQ for the GEM Detector

Pepe Gülker MAGIX Collaboration Meeting 2017

slide-2
SLIDE 2

2

slide-3
SLIDE 3

Electronics Periphery

HV Power Supply

  • Need 7 channels per module or voltage divider
  • Up to 4 kV
  • Trip control
  • Current monitoring ~50pA

Gas-Flow and -Quality Control

  • Flowmeter
  • Moisture and oxygen sensors

Current Control

  • Measure leakage current with a pico

amperemeter

3 Mirco Christmann Diploma Thesis 2016

slide-4
SLIDE 4

Electronics Periphery

  • Accurate distance

measurement

  • ~ 1.8 x 0.8 m2
  • Quality control of

stretching Profile Laser

4 Mirco Christmann Diploma Thesis 2016

slide-5
SLIDE 5

Trigger

5

slide-6
SLIDE 6

Signals

slide-7
SLIDE 7

SRS – Scalable Readout System

7 hans.muller@cern.ch

slide-8
SLIDE 8

APV25 – Frontend Card

8 hans.muller@cern.ch

slide-9
SLIDE 9

APV25 – Frontend Chip

9

128 Channels 40 MHz 192 steps data matrix No trigger

slide-10
SLIDE 10

APV25 – Problems

  • Waveforms -> Nice for R&D
  • Not capable of required rates
  • Highest rate achieved ~7 kHz
  • We need O(MHz)
  • > new frontend chip VMM

10

slide-11
SLIDE 11

VMM3

11 hans.muller@cern.ch

slide-12
SLIDE 12

Final Detector Requirements

12

1 section

  • 1500 channels
  • 12 APVs/VMMs

1 module

  • 8 sections
  • 10 k channels
  • 96 APVs/VMMs
slide-13
SLIDE 13

13

slide-14
SLIDE 14

SRS - Configuration

14

  • Scalable Detector Control
  • Developed at NTUA

SRS SDC

  • Set baseline
  • Set gain
  • Set latency

APV

  • Set active APVs
  • Set trigger mode

FEC

  • Include to our slow control
  • > Stefan L.

TODO

slide-15
SLIDE 15

DAQ – mmdaq2

  • Developed for

Micromegas

  • Based on root
  • Load pedestals for

APVs

  • Monitor analog

input

  • Nice online statistics

15

slide-16
SLIDE 16

Working Setup

  • We have a fully working DAQ
  • Now:
  • Write own slow control
  • Set up own DAQ
  • Get hands on VMMs

16

slide-17
SLIDE 17

THANK YOU FOR YOUR ATTENTION!

http://magix.kph.uni-mainz.de

slide-18
SLIDE 18

Backup

18

slide-19
SLIDE 19

APV - VMM

19
