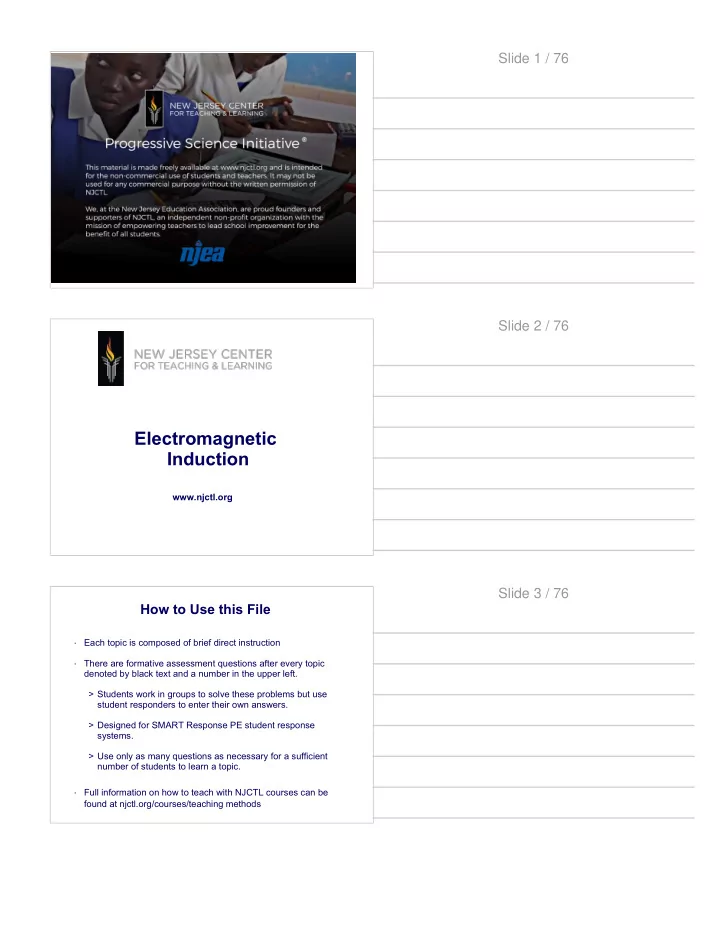

Electromagnetic Induction www.njctl.org Slide 3 / 76 How to Use - - PDF document

Slide 1 / 76

www.njctl.org

Electromagnetic Induction

Slide 2 / 76 How to Use this File

· Each topic is composed of brief direct instruction · There are formative assessment questions after every topic denoted by black text and a number in the upper left. > Students work in groups to solve these problems but use student responders to enter their own answers. > Designed for SMART Response PE student response systems. > Use only as many questions as necessary for a sufficient number of students to learn a topic. · Full information on how to teach with NJCTL courses can be found at njctl.org/courses/teaching methods

Slide 3 / 76

Table of Contents

· Induced EMF (Electromotive Force)

Click on the topic to go to that section

· Faraday's Law of Induction · Lenz's Law · EMF induced in a moving conductor · Magnetic Flux · Electromagnetic Induction Applications

Slide 4 / 76

Induced EMF (Electromotive Force)

Return to Table

• f Contents

Slide 5 / 76 Electromotive Force (EMF)

Electromotive Force is actually a potential difference between two points that is measured in Volts. It is NOT a force, but it is an historical term that has not gone away. Because it is an unfortunate name, it is frequently just referred to as EMF or . It represents the voltage developed by a battery. This chapter will show a way that a voltage can be developed in a conducting wire that is not connected to a battery.

Slide 6 / 76

Induced EMF

In the Magnetism chapter, it was shown, due to the work of Oersted and Ampere, that a current will generate a magnetic field. After this discovery, physicists looked to see if the reverse could be true

• whether a magnetic field could generate a current.

Michael Faraday was able to make this connection in 1831 - with a modification involving a changing magnetic field or a changing area through which a constant magnetic field operates. In America, Joseph Henry performed a similar experiment at the same time, but did not publish it. This happens a lot in Mathematics and Physics - Newton (in the U.K.) and Leibniz (in Germany) developed related forms of Calculus at the same time, independent of each other.

Slide 7 / 76 Induced EMF

Michael Faraday connected a battery to a metal coil via insulated wires (the coil increased the magnetic field) and found that a current would be induced in the current loop on the right when the switch on the left side was closed and opened. There would be zero current on the right side when the current on the left side was steady.

These are insulated wires, and any current present in them is NOT passing through the metal coil. There is zero current present in the coil at all times.

Slide 8 / 76

Faraday's Disk Generator - by spinning the metal disk between the poles of the U shaped magnet (A), the changing magnetic field will induce an EMF, and hence, a current in the disk (D), which will flow out of the machine via terminals B and B'. A bar magnet that moves towards or away from a loop of wire will generate an EMF, and then a current in the loop.

Induced EMF Slide 9 / 76

Induced EMF

This now provided evidence that a magnetic field could generate a

• current. But, there is a difference.

A steady current will generate a magnetic field. But, a steady magnetic field and a non moving, constant area loop

• f wire will NOT result in a current in the wire.

A constant magnetic field and a moving loop of wire will result in a

• current. A changing magnetic field and a stationary loop of wire

will result in a current. A constant magnetic field and a changing area of the loop of wire will result in a current. We need to define Magnetic Flux before we can fully understand this phenomenon.

Slide 10 / 76

1 A bar magnet is moved towards a circular conducting loop. As this

• ccurs:

A The magnetic field in the loop decreases, and no current flows in the loop. B The magnetic field in the loop decreases, and a current flows in the loop. C The magnetic field in the loop increases, and a current flows in the loop. D The magnetic field in the loop increases, and no current flows in the loop.

Slide 11 / 76

1 A bar magnet is moved towards a circular conducting loop. As this

• ccurs:

A The magnetic field in the loop decreases, and no current flows in the loop. B The magnetic field in the loop decreases, and a current flows in the loop. C The magnetic field in the loop increases, and a current flows in the loop. D The magnetic field in the loop increases, and no current flows in the loop.

[This object is a pull tab]

Answer C

Slide 11 (Answer) / 76

2 The units of EMF are: A Joules B Volts C Newtons D Coulombs

Slide 12 / 76

2 The units of EMF are: A Joules B Volts C Newtons D Coulombs

[This object is a pull tab]

Answer B

Slide 12 (Answer) / 76

3 Which of the following cases will generate an EMF (and a current) in a conducting loop? Select two answers. A A powerful magnet sits outside the loop. B A magnet moves towards a loop. C A magnet is stationary relative to a loop of wire, and the loop expands in area. D A magnet moves to the right, towards a loop, and the loop is also moving to the right at the same velocity.

Slide 13 / 76

3 Which of the following cases will generate an EMF (and a current) in a conducting loop? Select two answers. A A powerful magnet sits outside the loop. B A magnet moves towards a loop. C A magnet is stationary relative to a loop of wire, and the loop expands in area. D A magnet moves to the right, towards a loop, and the loop is also moving to the right at the same velocity.

[This object is a pull tab]

Answer B, C

Slide 13 (Answer) / 76

Magnetic Flux

Return to Table

• f Contents

Slide 14 / 76 Magnetic Flux

# B # B#A # is the Greek letter "phi" and stands for flux or flow. Adding the subscript "B" makes it Magnetic Flux. The unit of Magnetic Flux is the weber, Wb, where 1 Wb = 1Tm2 Magnetic Flux describes the quantity of Magnetic Field lines that pass in a perpendicular direction through a given surface area and is represented by: The concept of "normal" is also used here. The normal is a line that is perpendicular to the surface at the point of interest. The Magnetic Flux would be at a maximum at a point on the surface where it is parallel to the normal. Field lines perpendicular to surface Field lines parallel to normal to surface. Maximum Flux:

Slide 15 / 76

Magnetic Flux

The unit is named after German Professor and Physicist, Wilhelm Eduard Weber, who stressed the importance of experiments for students learning physics. He also worked and published with Carl Friedrich Gauss and together, they developed the first electromagnetic telegraph . He was dismissed from one of his university teaching positions as he became involved in politics against the King of Hanover.

"Wilhelm Eduard Weber II" by Rudolph Hoffmann - Transferred from en.wikipedia. Originally from de.wikipedia. Licensed under Public Domain via Wikimedia Commons - https://commons.wikimedia.org/wiki/ File:Wilhelm_Eduard_Weber_II.jpg#/media/File:Wilhelm_Eduard_Weber_II.jpg

Slide 16 / 76

Normal line Normal line

The Magnetic Field (blue) is perpendicular to the plane of the loop of wire (orange) and parallel to its normal (red) so the Magnetic Flux is at a maximum and is given by # B= BA.

Magnetic Flux Slide 17 / 76

The Magnetic Field (blue) is parallel to the plane of the loop of wire (orange) and perpendicular to its normal (red) so the Magnetic Flux is at a minimum and is given by # B= 0. An easy way of looking at this, is if there are no Magnetic Field lines going through the plane of the loop

• f wire, then there is zero flux.

Magnetic Flux Slide 18 / 76

The Magnetic Flux is proportional to the total number of Magnetic Field lines passing through the loop. Here is a constant Magnetic Field directed to the right with the same loop in three different positions where is the angle between the Magnetic Field lines and the normal to the surface of the loop. The black lines are the normal lines to the loop. By convention, all angles are measured relative to the Normal.

Magnetic Flux Slide 19 / 76

The Magnetic Flux is proportional to the total number of Magnetic Field lines passing through the loop. The Magnetic Flux is at a minimum when the field lines make an angle of zero with the

• normal. Physically - you can

see that no lines go through the loop. The flux increases as the loop is turned, as more field lines pass through the loop, and reaches a maximum when the field lines are parallel with the normal.

Magnetic Flux Slide 20 / 76

4 What is the magnetic flux through a loop of wire of cross sectional area 5.0 m2 if a magnetic field of 0.40 T is perpendicular to the area (and parallel to the normal)?

Slide 21 / 76

4 What is the magnetic flux through a loop of wire of cross sectional area 5.0 m2 if a magnetic field of 0.40 T is perpendicular to the area (and parallel to the normal)?

[This object is a pull tab]

Answer

Slide 21 (Answer) / 76

5 What is the magnetic flux through a circular loop of wire of radius 2.0 m if a magnetic field of 0.30 T is perpendicular to the area (and parallel to the normal)?

Slide 22 / 76

5 What is the magnetic flux through a circular loop of wire of radius 2.0 m if a magnetic field of 0.30 T is perpendicular to the area (and parallel to the normal)?

[This object is a pull tab]

Answer

Slide 22 (Answer) / 76

6 What is the magnetic flux through the loop of wire shown below? The magnetic field is 1.0 T and the area of the loop is 5.0 m2. B N N

Slide 23 / 76

6 What is the magnetic flux through the loop of wire shown below? The magnetic field is 1.0 T and the area of the loop is 5.0 m2. B N N

[This object is a pull tab]

Answer

Slide 23 (Answer) / 76

Faraday's Law of Induction

Return to Table

• f Contents

Slide 24 / 76

Faraday’s Law of Induction

Michael Faraday and Joseph Henry showed that a changing current will induce an EMF which creates an electric current in a second loop. Their initial experiments showed that a changing current generates a changing magnetic field which develops an EMF and current. What is actually changing is the Magnetic Flux. Faraday's Law of Induction states that the induced EMF in a wire loop is proportional to the rate of change of Magnetic Flux through the loop:

Slide 25 / 76 Michael Faraday

Michael Faraday made some of the greatest contributions to physics in history, focusing on electricity and magnetism and their interactions. Albert Einstein kept a picture of him, along with pictures of Sir Isaac Newton and James Clerk Maxwell, in his study. He only had a basic education, and no mathematical training beyond basic trigonometry. He had fantastic vision and scientific creativity and was a superb experimentalist. It remained for Maxwell to put a mathematical formalism behind Faraday's concepts. He was responsible for creating field theory which was then used extensively by physicists in the 20th Century and today.

"Faraday-Millikan-Gale-1913" by Probably albumen carte-de-visite by John Watkins - Opposite p. 290 of Millikan and Gale's Practical Physics (1922). Licensed under Public Domain via Wikimedia Commons - https:// commons.wikimedia.org/wiki/File:Faraday-Millikan-Gale-1913.jpg#/media/ File:Faraday-Millikan-Gale-1913.jpg

Slide 26 / 76 Slide 27 / 76

Slide 28 / 76 Slide 29 / 76 Slide 30 / 76

7 What is the magnitude of the induced EMF in a single loop of wire with a cross sectional area, A = 2.0m

2, if it is perpendicular to a

0.50 T magnetic field that decreases to zero over a time interval of 4.0 s?

Slide 31 / 76

7 What is the magnitude of the induced EMF in a single loop of wire with a cross sectional area, A = 2.0m

2, if it is perpendicular to a

0.50 T magnetic field that decreases to zero over a time interval of 4.0 s?

[This object is a pull tab]

Answer

Slide 31 (Answer) / 76

8 What is the magnitude of the induced EMF in a ten loop of wire with a cross sectional area, A = 2.0m

2, if it is perpendicular to a

0.30 T magnetic field that increases to 1.5 T over a time interval of 4.0 s?

Slide 32 / 76

8 What is the magnitude of the induced EMF in a ten loop of wire with a cross sectional area, A = 2.0m

2, if it is perpendicular to a

0.30 T magnetic field that increases to 1.5 T over a time interval of 4.0 s?

[This object is a pull tab]

Answer

Slide 32 (Answer) / 76

So far, we've dealt with the magnetic flux changing due to the magnetic field increasing or decreasing. But how does the area

• f a loop change? Consider the case below where a mechanical

force (somebody's hands) acts on the wire loop.

Faraday’s Law of Induction Slide 33 / 76

Magnetic flux will also change if the angle between the loop and the field changes. The loop below is rotated from being perpendicular to the field, to parallel to the field. This will be covered in more detail in AP Physics C when intermediate angles are analyzed.

Faraday’s Law of Induction Slide 34 / 76

9 A 4.0 m2 single loop of wire is initially perpendicular to a 0.60 T magnetic field. It is then rotated so that it becomes parallel to the magnetic field 2.0 s later. Find the magnitude of the induced EMF.

Slide 35 / 76

9 A 4.0 m2 single loop of wire is initially perpendicular to a 0.60 T magnetic field. It is then rotated so that it becomes parallel to the magnetic field 2.0 s later. Find the magnitude of the induced EMF.

[This object is a pull tab]

Answer

Slide 35 (Answer) / 76

10 A coil consisting of 50 loops of wire is perpendicular to a 1.2 T magnetic field. The area of the coil is increased from 0.40 m2 to 1.2 m2 in 5.0 s. Find the magnitude of the induced EMF.

Slide 36 / 76

10 A coil consisting of 50 loops of wire is perpendicular to a 1.2 T magnetic field. The area of the coil is increased from 0.40 m2 to 1.2 m2 in 5.0 s. Find the magnitude of the induced EMF.

[This object is a pull tab]

Answer

Slide 36 (Answer) / 76

Lenz's Law

Return to Table

• f Contents

Slide 37 / 76

Now it's time to explain the minus sign in Faraday's Law. It's so important that it has its own law! The minus sign tells us that the direction of the induced EMF in a current loop is such that the resulting current produces a magnetic field that resists the change of flux through the loop. This is a direct result of the Law of the Conservation of Energy . If the external field gets weaker, the induced current tries to replace the "missing" external field. If the external field gets stronger, the induced current opposes the "extra" external field. Only the Magnetic Field within the loop counts ; disregard the Magnetic Field outside.

Lenz’s Law Slide 38 / 76

. . . . . . . . . . . . . . . . . . . . Initial External Field (red) Final External Field Start with a magnetic field out of the page that decreases to zero. . . . . . . . . . . . . . . . . . . . . This induced current creates a field out of the page to

• ppose the decrease in the

external field. The changing magnetic field will induce an EMF in the loop that will generate a current in the counterclockwise direction. Field due to Induced Current (blue)

Lenz’s Law Slide 39 / 76

. . . . . . . . . . . . . . . . . . . . Initial External Field (red) Final External Field (red) Start with no magnetic field that increases to a magnetic field out of the page. . . . . . . . . . . . . . . . . . . . .

x x x x x x x x x x x x x x x x x x x x

Field due to Induced Current (blue) and External Field This current creates a field into the page to oppose the increase in the external field. The changing magnetic field will induce an EMF in the loop that will generate a current in the clockwise direction.

Lenz’s Law Slide 40 / 76

There are many other situations that can be analyzed with Lenz's Law, by using the following instructions. The Magnetic Field due to the induced current:

• 1. Points in the opposite direction to the external Magnetic Field if the

external Magnetic Flux is increasing.

• 2. Points in the original direction of the external Magnetic Field if it is

decreasing.

• 3. Is zero if the flux is not changing (it is zero because of Faraday's

Law - there is no induced EMF if the Magnetic Flux is constant). Remember that the external Magnetic Field and the Magnetic Field due to the induced current are different.

Lenz’s Law Slide 41 / 76

Have you ever noticed that when you unplug an appliance that is running, there is a spark that jumps between the wall socket and the plug? This is explained by Lenz's Law. As the plug is pulled out, the current decreases, collapsing its Magnetic

• Field. The change in magnetic field

induces an EMF which produces a current which is seen as a spark. This is one reason why you should always turn off appliances before you unplug them.

Lenz’s Law

The energy that was stored in the magnetic field transformed into the electrical energy of the spark.

Slide 42 / 76

11 A magnetic field is pointing straight up through a coil of wire. The field is switched off. What is the direction of the induced current in the wire loop? A Out of the page. B Into the page. C Clockwise. D Counter-clockwise. E There is no induced current.

Slide 43 / 76

11 A magnetic field is pointing straight up through a coil of wire. The field is switched off. What is the direction of the induced current in the wire loop? A Out of the page. B Into the page. C Clockwise. D Counter-clockwise. E There is no induced current.

[This object is a pull tab]

Answer D

Slide 43 (Answer) / 76

12 A magnetic field is pointing straight up through a coil of wire. The field is doubled in magnitude. What is the direction of the induced current in the wire loop? A Out of the page. B Into the page. C Clockwise . D Counter-clockwise. E There is no induced current.

Slide 44 / 76

12 A magnetic field is pointing straight up through a coil of wire. The field is doubled in magnitude. What is the direction of the induced current in the wire loop? A Out of the page. B Into the page. C Clockwise . D Counter-clockwise. E There is no induced current. [This object is a pull tab] Answer C

Slide 44 (Answer) / 76

13 A coil of wire is sitting on a table top. A magnet is held above it with its North Pole pointing downwards. What is the direction of the induced current in the coil of wire? A Out of the page. B Into the page. C Clockwise. D Counter-clockwise. E There is no induced current.

Slide 45 / 76

13 A coil of wire is sitting on a table top. A magnet is held above it with its North Pole pointing downwards. What is the direction of the induced current in the coil of wire? A Out of the page. B Into the page. C Clockwise. D Counter-clockwise. E There is no induced current.

[This object is a pull tab]

Answer E

Slide 45 (Answer) / 76

14 A coil of wire is sitting on a table top. A magnet is held above it with its North Pole pointing downwards and is then pushed down towards the coil. What is the direction of the induced current in the coil of wire? A Out of the page. B Into the page. C Clockwise. D Counter-clockwise. E There is no induced current.

Slide 46 / 76

14 A coil of wire is sitting on a table top. A magnet is held above it with its North Pole pointing downwards and is then pushed down towards the coil. What is the direction of the induced current in the coil of wire? A Out of the page. B Into the page. C Clockwise. D Counter-clockwise. E There is no induced current.

[This object is a pull tab]

Answer D

Slide 46 (Answer) / 76

EMF induced in a moving conductor

Return to Table

• f Contents

Slide 47 / 76 EMF Induced in a Moving Conductor

Either a changing Magnetic Field or the area covered by the field will cause a change in Magnetic Flux, and induce an EMF. Fext A bar is pushed by an external force and slides to the right on a conducting rail in a constant Magnetic Field as shown. The area covered by the bar/rail combination increases as:

Slide 48 / 76 Slide 49 / 76

EMF Induced in a Moving Conductor

This direction of the induced EMF is necessary to be in agreement with the Law of the Conservation of Energy. If the current flowed in the counter-clockwise direction, it would generate a Magnetic Field that adds to the increasing Magnetic Flux due to the area covered by the expanding loop. This would increase the force due to the Magnetic Field which would result in an increasing acceleration - which violates the Law

• f Conservation of Energy.

However, in the real case, a constant force would need to be applied to the sliding bar to keep it moving and generating an EMF. The next few slides will show the force derivation of the EMF.

Slide 50 / 76 EMF Induced in a Moving Conductor

Magnetic Force Electric Force

The rod is pushed to the right. Using the right hand rule, there is a Magnetic Force on the positive charges in the downward

• direction. This now separates the charges in the rod (positive on

the bottom, negative on the top) which creates an Electric Field, and hence force from bottom to top. If the rod is moving at a constant v, and the charges are at equilibrium, then we have by Newton's Second Law:

Slide 51 / 76 EMF Induced in a Moving Conductor

Magnetic Force Electric Force

L Continuing the derivation: The two ends of the bar produce a constant Electric Field so Making the substitution:

Slide 52 / 76

EMF Induced in a Moving Conductor

I

Now to find the direction of the induced current in the loop. The bar has a net positive charge at the bottom and a net negative charge at the top. When the two rails are connected by the vertical wire, current will flow through this wire in a clockwise direction. This is the same result we obtained with Faraday's Law.

Slide 53 / 76

15 What is the magnitude of the induced EMF between the ends of a 1.0 m rod traveling at 4.0 m/s perpendicularly to a 5.0x10-4 T magnetic field?

Slide 54 / 76

15 What is the magnitude of the induced EMF between the ends of a 1.0 m rod traveling at 4.0 m/s perpendicularly to a 5.0x10-4 T magnetic field?

[This object is a pull tab]

Answer

Slide 54 (Answer) / 76

16 What is the magnitude of the current in a loop containing a 100 Ω resistor and consisting of two conducting rails with a sliding 1.0 m rod traveling at 4.0 m/s perpendicularly to a 5.0x10-4 T magnetic field?

Slide 55 / 76 Slide 55 (Answer) / 76

Electromagnetic Induction Applications

Return to Table

• f Contents

Slide 56 / 76

Electromagnetic Induction Applications

In the Magnetism chapter, we showed the beginnings of an electric motor and asked you to look up what the plan for a real motor might look like. On the left is our picture and on the right is a more realistic plan for a simple electric motor.

https://commons.wikimedia.org/wiki/File:Electric_motor_cycle_2.png

Discuss why the motor diagram on the right is better.

Slide 57 / 76 Electromagnetic Induction Applications

The plan on the left only allows for the wire loop to go up until it is out of the magnetic field, and then the magnetic force drops to zero, and gravity pulls the loop back down. The motor on the right allows for a continuous rotation of the rotor (yes, that's its name), so the rotor can drive wheels, pulleys, turntables, CD players, vacuum cleaners, and any

• ther device that can be attached.

https://commons.wikimedia.org/wiki/File:Electric_motor_cycle_2.png

Slide 58 / 76 Electromagnetic Induction Applications

https://commons.wikimedia.org/wiki/File:Electric_motor_cycle_2.png

We'll discuss two applications of Electromagnetic Induction. The Generator - which looks like a motor, but is run "backwards." Ground Fault Circuit Interrupter -

By FISkizze.JPG: de:User:Elchriso derivative work: Markus Matern (FISkizze.JPG) [GFDL (http://www.gnu.org/copyleft/fdl.html) or CC-BY-SA-3.0 (http://creativecommons.org/licenses/by-sa/3.0/)], via Wikimedia Commons https://upload.wikimedia.org/wikipedia/commons/2/22/ NEMA_5-20RA_GFCI_Tamper_Resistant_Receptacle.jpg

Slide 59 / 76

Generator

https://commons.wikimedia.org/wiki/File:Electric_motor_cycle_2.png https://upload.wikimedia.org/wikipedia/commons/c/cc/ PSM_V56_D0335_Diagram_of_the_electric_motor_principle.png

Rotor Stator (permanent magnet

• r electromagnet)

Current input

• r output

Here's the picture we used for a motor - along with a schematic drawing from Popular Science Monthly, volume 56, 1899. Motors and Generators have been around a long time.

Slide 60 / 76 Generator

https://commons.wikimedia.org/wiki/File:Electric_motor_cycle_2.png https://upload.wikimedia.org/wikipedia/commons/c/cc/ PSM_V56_D0335_Diagram_of_the_electric_motor_principle.png

Rotor Stator (permanent magnet

• r electromagnet)

Current input

• r output

Please take a moment to review how a motor operated. Where was the current flowing? How did it interact with the magnetic field to cause a rotation?

Slide 61 / 76 Generator

https://commons.wikimedia.org/wiki/File:Electric_motor_cycle_2.png https://upload.wikimedia.org/wikipedia/commons/c/cc/ PSM_V56_D0335_Diagram_of_the_electric_motor_principle.png

Rotor Stator (permanent magnet

• r electromagnet)

Current input

• r output

What if we had an outside force that would spin the rotor? The area of the rotor perpendicular to the applied magnetic field would change. Thus, the flux would change and a current would be induced in the wires, based on Faraday's Law! The rotor can be spun by water hitting turbine blades attached to the

• rotor. Or by steam

hitting the blades. The steam can be generated by boiling water from burning fossil fuels, or from the heat of a nuclear reactor. Discuss what types of energy are being transformed into electrical energy.

Slide 62 / 76

17 What are two key components of a motor that are shared with a generator? Select two answers. A A magnetic field. B A gravitational field. C Conducting wire. D Non frictional surfaces.

Slide 63 / 76

17 What are two key components of a motor that are shared with a generator? Select two answers. A A magnetic field. B A gravitational field. C Conducting wire. D Non frictional surfaces.

[This object is a pull tab]

Answer A, C

Slide 63 (Answer) / 76

18 Explain how a motor and a generator use similar components, but in one case a rotation is generated, and in the second case, electric current is generated.

Students type their answers here

Slide 64 / 76

18 Explain how a motor and a generator use similar components, but in one case a rotation is generated, and in the second case, electric current is generated.

Students type their answers here

[This object is a pull tab]

Answer In a motor, a rotating shaft (rotor) is placed within a magnetic field that is provided by a permanent magnet or an electromagnet. The rotor is wound with conducting wire. Current is provided to this wire which generates a magnetic field that interacts with the stator, creating a force that rotates the rotor. In a generator, an external force rotates the rotor, causing a flux change, which induces an EMF and current in the wires encircling the rotor.

Slide 64 (Answer) / 76

19 Which of the following can drive the rotor in a generator so that electricty can be produced? A Nuclear Reactor B Hydroelectric Dam C Coal burning power plant D All of the above

Slide 65 / 76

19 Which of the following can drive the rotor in a generator so that electricty can be produced? A Nuclear Reactor B Hydroelectric Dam C Coal burning power plant D All of the above

[This object is a pull tab]

Answer D

Slide 65 (Answer) / 76

Ground Fault Circuit Interrupter

https://upload.wikimedia.org/wikipedia/commons/2/22/ NEMA_5-20RA_GFCI_Tamper_Resistant_Receptacle.jpg

You may have seen these in your kitchen or bathroom if your power

• utlets have been changed in the

last couple of decades. There are circuit breakers in your house's circuit breaker box which is typically located in a basement

• r out of the way area. They
• pen up a circuit if it has somehow

shorted which would put electricity through your body, or start a fire in the walls. But, they don't act quickly enough to stop the current flow to provide maximum safety.

Slide 66 / 76 Ground Fault Circuit Interrupter

https://upload.wikimedia.org/wikipedia/commons/2/22/ NEMA_5-20RA_GFCI_Tamper_Resistant_Receptacle.jpg

Ground Fault Circuit Interrupters (GFCI) were created to provide better safety for electrical outlets near sources of water in the home such as kitchen and bathroom faucets - and are now required by Electrical Code for all new installations. They detect a possible short circuit and act much more quickly then a circuit breaker to stop the current flow through a person

• r wire insulation (which starts fires).

They take advantage of Electromagnetic Induction to perform their life saving role.

Slide 67 / 76 Ground Fault Circuit Interrupter

By FISkizze.JPG: de:User:Elchriso derivative work: Markus Matern (FISkizze.JPG) [GFDL (http://www.gnu.org/copyleft/fdl.html) or CC-BY-SA-3.0 (http://creativecommons.org/licenses/by-sa/3.0/)], via Wikimedia Commons

Legal information An electromechanical switch, that when supplied with current from the secondary circuit loop 2, will open the primary circuit (L, N), and stop the current flow to the outlet. Two prong outlet for your electrical equipment, such as a hair dryer or electric shaver. 2 Wire circuit (line and neutral) that provides electric current from your electric company to your outlets. Test switch Secondary circuit - wires wrapped around metal core - acts to sense current change in the primary circuit. Metal core

Here's a simplified schematic of the GFCI. Let's label the parts.

Slide 68 / 76

Ground Fault Circuit Interrupter

By FISkizze.JPG: de:User:Elchriso derivative work: Markus Matern (FISkizze.JPG) [GFDL (http://www.gnu.org/copyleft/fdl.html) or CC-BY-SA-3.0 (http://creativecommons.org/licenses/by-sa/3.0/)], via Wikimedia Commons

The functions of the different components of the GFCI: L and N are the two household wires that provide a supply and return path for the current from the power utility. #1 is an electromechanical device that will open the switches (near the dotted line) when a current flows in the secondary circuit loop #2 to the device. #3 is the core that contains and amplifies the magnetic field created by the household wires. #4 is a switch to test the

• peration of the device.

Slide 69 / 76 Ground Fault Circuit Interrupter

By FISkizze.JPG: de:User:Elchriso derivative work: Markus Matern (FISkizze.JPG) [GFDL (http://www.gnu.org/copyleft/fdl.html) or CC-BY-SA-3.0 (http://creativecommons.org/licenses/by-sa/3.0/)], via Wikimedia Commons

If current is flowing normally to a hair dryer (connected at the bottom of the L and N wires, will a magnetic field be created in the core (#3); which would then generate a current in the secondary loop (#2)? Think about the direction of the magnetic field about a current carrying wire before you answer.

Slide 70 / 76 Ground Fault Circuit Interrupter

By FISkizze.JPG: de:User:Elchriso derivative work: Markus Matern (FISkizze.JPG) [GFDL (http://www.gnu.org/copyleft/fdl.html) or CC-BY-SA-3.0 (http://creativecommons.org/licenses/by-sa/3.0/)], via Wikimedia Commons

No! An equal amount of current is flowing in the L wire down through the core as is flowing up in the N wire. Hence their magnetic fields cancel out (one is clockwise and the other counter - clockwise). This is the normal situation when everything is working right. What if you cut the L wire by mistake, or if you douse the outlet with water providing an easy path to ground?

Slide 71 / 76

Ground Fault Circuit Interrupter

By FISkizze.JPG: de:User:Elchriso derivative work: Markus Matern (FISkizze.JPG) [GFDL (http://www.gnu.org/copyleft/fdl.html) or CC-BY-SA-3.0 (http://creativecommons.org/licenses/by-sa/3.0/)], via Wikimedia Commons

The current will continue to flow in the L wire, but no current will flow in the N wire. What happens to the magnetic field within the core #3?

Slide 72 / 76 Ground Fault Circuit Interrupter

By FISkizze.JPG: de:User:Elchriso derivative work: Markus Matern (FISkizze.JPG) [GFDL (http://www.gnu.org/copyleft/fdl.html) or CC-BY-SA-3.0 (http://creativecommons.org/licenses/by-sa/3.0/)], via Wikimedia Commons

There is no magnetic field created by the N wire, but the L wire is still creating a magnetic field. This changing magnetic flux (magnetic field went from zero to a value) induces a current in the secondary circuit #2. The current activates the electromechanical device #1, the switch is opened, and the current stops flowing. This protects life and property!

Slide 73 / 76

20 What is the purpose of a Ground Fault Circuit Interupter? A Energy efficiency B Reduce the carbon footprint C Cost savings D Electrical Safety

Slide 74 / 76

20 What is the purpose of a Ground Fault Circuit Interupter? A Energy efficiency B Reduce the carbon footprint C Cost savings D Electrical Safety

[This object is a pull tab]

Answer D

Slide 74 (Answer) / 76

21 Which law is best used to describe the operation of a Ground Fault Circuit Interupter? A Ohm's Law B Faraday's Law of Induction C Lenz's Law D Ampere's Law

Slide 75 / 76

21 Which law is best used to describe the operation of a Ground Fault Circuit Interupter? A Ohm's Law B Faraday's Law of Induction C Lenz's Law D Ampere's Law

[This object is a pull tab]

Answer B

Slide 75 (Answer) / 76

22 What causes a current to be generated in the secondary loop when an electric hair dryer plugged into the outlet has a fault, and primary current flows to the surface of the hair dryer, and through the person holding it?

Students type their answers here

Slide 76 / 76

22 What causes a current to be generated in the secondary loop when an electric hair dryer plugged into the outlet has a fault, and primary current flows to the surface of the hair dryer, and through the person holding it?

Students type their answers here

[This object is a pull tab]

Answer When the circuit is acting properly, and the current to the hair dryer flows back to the neutral wire, the magnetic fields of the supply and neutral wire cancel out as they are in opposite

• directions. If not all the current

returns to the neutral wire, a magnetic field now exists within the core. This change in flux generates a current in the secondary loop which operates an electromechanical device that opens the circuit, stopping the flow of primary current.

Slide 76 (Answer) / 76
