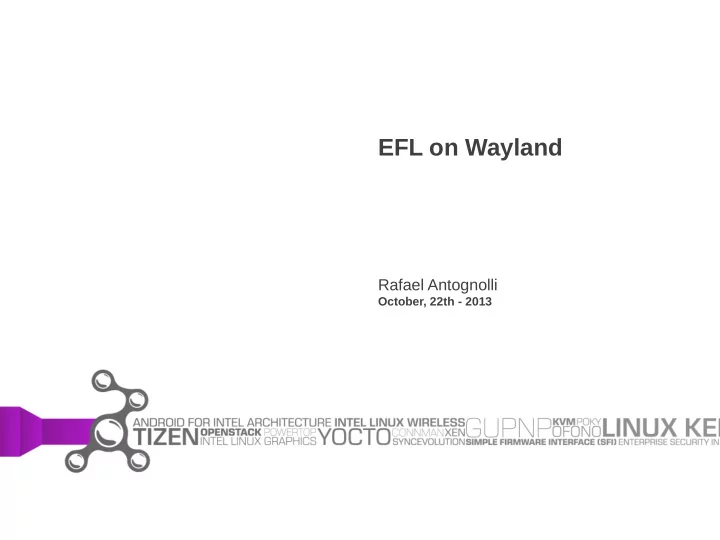

EFL on Wayland

Rafael Antognolli

October, 22th - 2013

Wayland

• Simpler replacement for X
• Core protocol + extensions
• Weston is the reference compositor
• Toolkits (EFL, Qt, GTK) implement the client API

EFL – Enlightenment Foundation Libraries

• Base libraries of Enlightenment 0.17 (soon 0.18)
• Yet another toolkit library, just like Qt and GTK
• Split among several libraries/modules:
• Evas
• Ecore
• Elementary
• Edje, Eina, Emotion...

What's a Wayland Backend?

• In other words, why we need a Wayland backend? We need it to:
• Create Wayland windows
• Draw widgets into those windows
• Expose Wayland-specific APIs
• In summary: it allows us to run EFL applications on Wayland

EFL – Wayland Architecture

Work against a moving target

• Wayland started in 2008
• Became freedesktop.org project in October, 2010
• EFL backend started in 2011
• Initial SHM backend in December, 14th 2011
• First Wayland release (0.85) in February, 2012
• Wayland 1.0 released in October, 2012

Frame sync

• Frame callback from Wayland
• Avoid unnecessary repaints
• Avoid blocking the mainloop
• Avoid tearing, sync with display update
• Implemented in SHM backend first, EGL backend a few months later

SHM triple-buffering

• Wayland_SHM engine rewrite
• Buffer management moved to Evas engine
• Better organization: swapper, buffer and engine

Client-side decorations: introduction

• Client renders title bar, buttons and borders
• Content must be shifted
• Decorations and content cannot overlap

Client-side decorations: first solution

• Objects moved by an offset
• Master clipper for client area
• Window decorations added

1

Client-side decorations: Elementary layouts

• Several bugs related to CSD
• Fix one case, breaks another one
• Elementary will handle all of that for us

2

Client-side decorations: Elementary layouts

• Several bugs related to CSD
• Fix one case, breaks another one
• Elementary will handle all of that for us
• Breaks non-elementary apps

3

Client-side decorations: crazy proposal

• Using an Ecore_Evas inside another Ecore_Evas
• Would fix non-elementary apps
• Fix all the problems in the world

4

Client-side decorations: render offset and no clipper

• New proposal: put offsets down in the render tree
• Affects every Evas object
• Needs changes to input coordinates
• Needs changes to window decorations

5

Client-side decorations: render offset and no clipper

• New proposal: put offsets down in the render tree
• Affects every Evas object
• Needs changes to input coordinates
• Needs changes to window decorations
• Ended up bringing back the clipper

6

Multi-touch

• Code was there already, not tested
• Bugs were found after testing
• Needed hardware
• Developed with ssh + borrowed laptop

7

Input Methods

• Openismus added Input Method support on Wayland
• Submitted patches for EFL and IBus too
• Eduardo (Etrunko) polished and integrated them

8

Window/Surface Rotation

• Simply were not implemented
• Copy & paste code from X11 backends
• Not using buffer transforms yet

9

Surfaces

• Just like “windows” in X11
• Rectangular area, with position, size and pixel contents
• Managed by the compositor
• Support different types of rendering:
• Rendered in a SHM buffer
• Directly with EGL

Subsurfaces

• Always placed relatively to the main surface
• Can be updated in sync with the main surface
• Uses:
• Faster video decoding
• Offload compositing work from clients to compositor
• Allows to pass buffer (YUV) processing to dedicated overlay hardware
• Popups
• Surface is not limited to the main surface area

1

Subsurfaces – main features

• Sharing API with X11 backends
• Video_Surface API
• Auto-detection/usage of subsurfaces
• API exposed – highly customizable use

2

Subsurfaces - autodetection

• For a specific image object, use subsurfaces “when possible”
• Some checks are done on the image:
• The image is not being clipped
• The image is not being scaled
• The image remains inside the main surface area
• Other conditions might be specified or relaxed later
• If conditions are not met, use a pixel buffer as fallback
• Seamless transition to/from subsurface

3

Drag'n Drop and Copy'n Paste

• CnP fully functional
• DnD functional inside the same window
• Still needs a common API for Wayland and X

4

Future Plans

• Need more common APIs:
• DnD, CnP, window handling
• More subsurface features as they become available
• A common “surface layer” that abstracts the underlying backend
• Video backends of Emotion (video library) must use subsurfaces

5

Questions?

• Contact:
• IRC: #wayland-efl @ freenode
• https://lists.sourceforge.net/lists/listinfo/enlightenment-devel
• http://www.enlightenment.org/
• rafael.antognolli@intel.com
