E ff ect handlers in OCaml KC Sivaramakrishnan 1 & Stephen Dolan 1 Leo White 2 , Jeremy Yallop 1,3 , Armal Guneau 4 , Anil Madhavapeddy 1,3 1 2 3 4 Concurrency Parallelism Concurrency Programming technique Overlapped

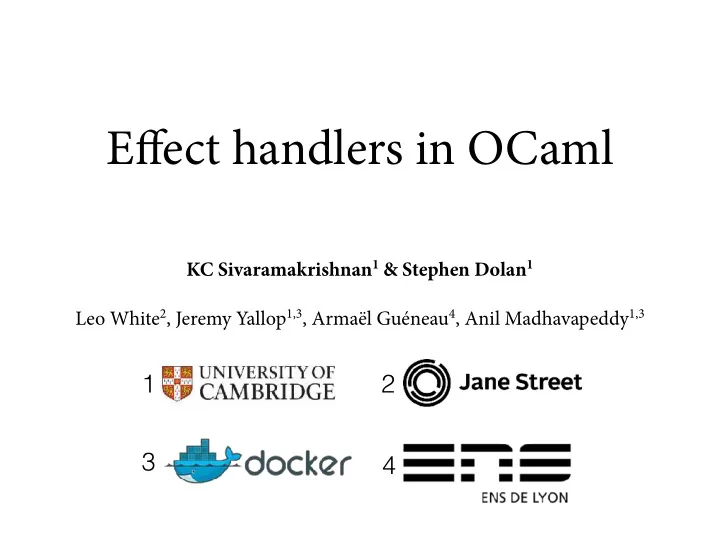

SLIDE 1

Effect handlers in OCaml

KC Sivaramakrishnan1 & Stephen Dolan1 Leo White2, Jeremy Yallop1,3, Armaël Guéneau4, Anil Madhavapeddy1,3

1 2 3 4

SLIDE 2

Concurrency ≠ Parallelism

Concurrency
Programming technique
Overlapped execution of processes
Parallelism
(Extreme) Performance hack
Simultaneous execution of computations

Concurrency ∩ Parallelism ➔ Scalable Concurrency (Fibers) (Domains)

SLIDE 3

Schedulers

Multiplexing fjbers over domain(s)
Bake scheduler into the runtime system (GHC)
Allow programmers to describe schedulers!
Parallel search —> LIFO work-stealing
Web-server —> FIFO runqueue
Data parallel —> Gang scheduling
Algebraic Effects and Handlers

SLIDE 4

Algebraic Effects: Example

effect Foo : int -> int let f () = (perform (Foo 3)) (* 3 + 1 *) + (perform (Foo 3)) (* 3 + 1 *) let r = try f () with effect (Foo i) k -> continue k (i + 1)

val r : int = 8

SLIDE 5

Dynamic wind

let dynamic_wind before_thunk thunk after_thunk = before_thunk (); let res = match thunk () with | v -> v | exception e -> after_thunk (); raise e | effect e k -> after_thunk (); let res' = perform e in before_thunk (); continue k res' in after_thunk (); res

SLIDE 6

Effect systems and modularity

Right now, we type effects like ML exceptions
(we're in the market for an effect system, if anyone has one

lying around...)

We need modularity, because effects can:
be local, dynamic and fresh
be abstracted, renamed and reuse
We don't know statically whether two effects are the same

SLIDE 7

Scheduler Demo1

[1] https://github.com/kayceesrk/ocaml15-eff/tree/master/chameneos-redux

SLIDE 8

Generator from Iterator1

[1] https://github.com/kayceesrk/ocaml15-eff/blob/master/generator.ml

(* val to_gen : 'a t -> (unit -> 'a option) *) let to_gen (type a) (t : a t) = let module M = struct effect Next : a -> unit end in let open M in let step = ref (fun () -> assert false) in let first_step () = try iter (fun x -> perform (Next x)) t; None with effect (Next v) k -> step := continue k; Some v in step := first_step; fun () -> !step () let rec iter f = function | Leaf -> () | Node (l, x, r) -> iter f l; f x; iter f r type 'a t = | Leaf | Node of 'a t * 'a * 'a t

SLIDE 9

Fibers: Heap allocated, dynamically resized stacks
~10s of bytes
No unnecessary closure allocation costs unlike CPS
One-shot delimited continuations
Simplifjes reasoning about resources - sockets, locks, etc.
Handlers —> Linked-list of fjbers

Implementation

handle / continue

handler sp

call chain reference

SLIDE 10

Implementation

handle / continue handle / continue

sp handler

call chain reference

Fibers: Heap allocated, dynamically resized stacks
~10s of bytes
No unnecessary closure allocation costs unlike CPS
One-shot delimited continuations
Simplifjes reasoning about resources - sockets, locks, etc.
Handlers —> Linked-list of fjbers

SLIDE 11

perform

handle / continue

Implementation

handler

call chain reference

Fibers: Heap allocated, dynamically resized stacks
~10s of bytes
No unnecessary closure allocation costs unlike CPS
One-shot delimited continuations
Simplifjes reasoning about resources - sockets, locks, etc.
Handlers —> Linked-list of fjbers

SLIDE 12

Native-code fjbers — Vanilla

OCaml start program C call OCaml callback C call OCaml callback

C OCaml C OCaml C OCaml

SLIDE 13

system stack

Native-code fjbers — Effects

OCaml heap

OCaml start program C call handle OCaml callback C call

C C

1. Stack overfmow checks for OCaml functions
Simple static analysis eliminates many checks
2. FFI calls are more expensive due to stack switching
Specialise for calls which {allocate / pass arguments on stack / do neither}

SLIDE 14

Performance : Vanilla OCaml

Normalised time (lower is better)

Effects ~0.9% slower

0.25 0.5 0.75 1 ae--add_times_nsec_sum_higher_ sequence-cps ae--04124___why_e36d6b_int-T- ae--04298___why_7ae35b_p4_3_ numal-k-means ae--Automaton_i_part2-B_transla ae--01192___why_98479f_p4_3_ ae--fill_assert_39_Ae- ae--00076___why_f2468a_Site_ce ae--00344___why_fb54b2_Foncti numal-fft chameneos-async ae--00224___why_c6049d_p9_17- ae--00020___why_bf6246_euler00 ae--00329___why_265778_p4_25 numal-lu-decomposition numal-levinson-durbin ae--08033___why_bebe52_p4_3_ numal-rnd_access ae--00145___why_0a8ac0_p9_15 ae--00195___fib__package-T-WP ae--02802___step_function_test__ ae--02362___why_be93d3_p4_3_ cpdf-squeeze ae--02182___why_3f7a7d_inverse_ ae--01201___flight_manager__pack thread-ring-async-pipe ae--00222___fib__package-T-WP_ chameneos-lwt ae--00893___why_b3d830_euler001 sequence async_echo_merge setrip thread-sleep-async ae--01012___p__package-T-WP_p thread-ring-lwt-mvar setrip-smallbuf numal-qr-decomposition numal-durand-kerner-aberth cpdf-transform valet-async lexifi-g2pp almabench numal-naive-multilayer jsontrip-sample async_rpc cohttp-lwt cohttp-async frama-c-idct sauvola-contrast cpdf-reformat chameneos-th minilight valet-lwt menhir-fancy js_of_ocaml menhir-standard bdd numal-simple_access cpdf-merge kb patdiff core_micro kb-no-exc ydump-sample frama-c-deflate menhir-sql ae--00115___why_b6d80d_relabel thread-ring-lwt-stream thread-sleep-lwt chameneos-evtchn

Effects Vanilla

SLIDE 15

Performance : Chameneos-Redux

Time (S) 0.45 0.9 1.35 1.8 Iterations (X100,000) 1 2 3 4 5 6 7 8 9 10

Lwt Concurrency Monad GHC Fibers

SLIDE 16

Performance : Generator

Time (S) 1 2 3 4 Binary tree depth 15 16 17 18 19 20 21 22 23 24 25

Iterator Fiber Generator H/W Generator

SLIDE 17

Javascript backend

js_of_ocaml
OCaml bytecode —> Javascript
js_of_ocaml compiler pass
Whole-program selective CPS transformation
Work-in-progress!
Selective CPS translation

SLIDE 18

fjn.

Examples: https://github.com/kayceesrk/ocaml-eff-example Multicore OCaml: https://github.com/ocamllabs/ocaml-multicore
