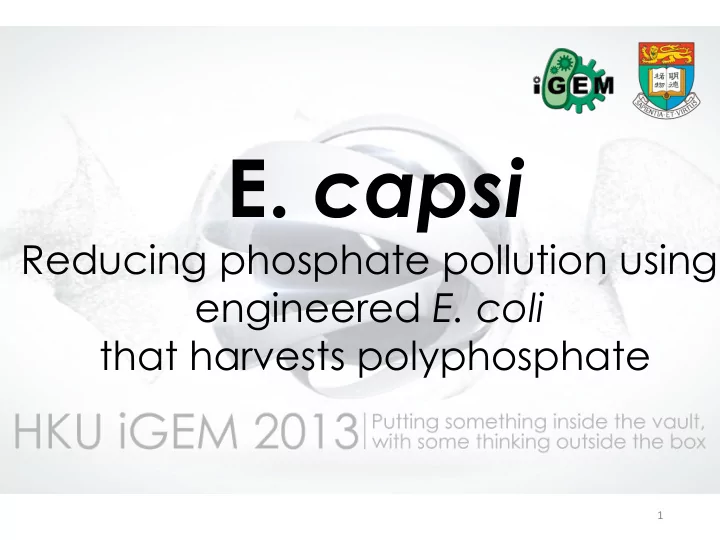

  • E. capsi

Reducing phosphate pollution using engineered E. coli that harvests polyphosphate

1

slide-2
SLIDE 2

2

  • 1. Our Focus : Phosphate Pollution
  • 2. Our Strategy : E. capsi
  • 3. Our Achievement : Results and Future
  • 4. Our General Public : Human Practice
slide-3
SLIDE 3

Water Pollution in China

  • 1/3 of the industrial

waste water

  • 90 percent of

household sewage in China is released into rivers and lakes without being treated.

  • Accounts for half of

the $69 billion Chinese economy loses every year.

Phosphate Pollution

Eutrophication Algal Bloom “Dead Zone”

3

slide-4
SLIDE 4

Chemical Precipitation Enhanced Biological Phosphorous Removal (EBPR) Process

Phosphate Removal

Ca2+ Al3+ Fe3+

Phosphate accumulating organisms

PAOs

4

slide-5
SLIDE 5

Chemical precipitation | EBPR process

PAOs: Phosphate accumulating organisms

5

slide-6
SLIDE 6

How to enhance phosphate uptake efficiencies?

Synthetic Biology

Natural existing PAOs

  • r

Engineer new microbes ?

6

slide-7
SLIDE 7

Brainstorming

Overview of Phosphate Uptake and Poly-P Synthesis

P transport system Poly-P Synthesis

7

↑PO4

3- uptake

↑Poly-P

→

slide-8
SLIDE 8

How to increase Poly-P Synthesis?

Brainstorming

8

  • 1. Increase Poly-P synthesis rate and effectiveness
  • 2. Decrease Poly-P degradation rate

Poly-Pn + ATP → Poly-Pn+1 + ADP

Polyphosphate Kinase 1 (PPK1) (EC 2.7.4.1)

Increase PPK1 expression

slide-9
SLIDE 9

How to increase Poly-P Synthesis?

Brainstorming

9

  • 2. Decrease Poly-P degradation rate

“Enemies” against Poly-P Synthesis

Exopolyphosphatase PPX (EC 3.6.1.11)

Poly-Pn + H2O → Poly-Pn-1 + Pi

Pi Poly-Pn Poly-Pn+1 PPK PPX

Eukaryotic cell

Compartmentalization

  • f

Poly-P Synthesis?

Bacterial Microcompartment

PPK1

slide-10
SLIDE 10

Bacterial Microcompartment MCP

A Nano-Bioreactor inside the Bacterial Cell

  • Protein-based polyhedral microcompartment
  • 20-200 nm in diameter
  • Sequester functionally related enzymes
  • Regulate substrate, small metabolites access

Brainstorming

10

slide-11
SLIDE 11

General Assembly of MCP

Brainstorming

11

slide-12
SLIDE 12

3 Choices of Bacterial MCP

Which One?

eric

Brainstorming

12

slide-13
SLIDE 13

Eut MCP expression in E.coli

  • iGEM 2010 University of Minnesota
  • Eut Micrompartment genes

from Salmonella enterica serovar Typhimurium LT2

  • BBa_K311004

http://2010.igem.org/Team:Minnesota

Eut S, M, N, L, K

(2012) Engineered Protein Nano-Compartments for Targeted Enzyme

  • Localization. PLoS ONE 7(3): e33342. doi:10.1371/journal.pone.0033342

Native MCP

Eut S

Discovered in 2012

Simple MCP

Brainstorming

13

No Biobrick

slide-14
SLIDE 14

Localize PPK1 into Eut MCP

Localization Signal peptide

N terminal 19 aa of EutC enzyme: MDQKQIEEIVRSVMASMGQ

(2012) Engineered Protein Nano-Compartments for Targeted Enzyme Localization. PLoS ONE 7(3): e33342. doi:10.1371/journal.pone.0033342

Brainstorming

14

Originally present in Eut MCP

slide-15
SLIDE 15

Strategy

  • E. Capsi

15

slide-16
SLIDE 16

Strategy – E. capsi

  • E. Capsi Model

MCP PPK PO4

3-

PO4

3-

PO4

3-

ATP ATP Poly-Pn Poly-Pn+1 ADP PPX

A Sink for PO4

Native MCP/ Simple MCP

16

slide-17
SLIDE 17

Achievements

17

slide-18
SLIDE 18

Avoid EcoRI, XbaI, SpeI, PstI sites

PPK1 gene ~ 80 kDa ~ 2100 bp compactible with assembly standard

Searching

Organism EcoRI XbaI SpeI PstI

Tannerella forsythia ATCC 43037 Kingella oralis ATCC 51147 Escherichia coli K12 1 Helicobacter pylori J99 1 Mycobacterium smegmatis mc2155 1 1 Mycobacterium tuberculosis CDC1551 1 Neisseria lactamica ATCC 23970 1 Neisseria mucosa ATCC 25996 1 Porphyromonas gingivalis ATCC 33277 2 Porphyromonas gingivalis W83 2 Selenomonas sputigena ATCC 35185 2 Veillonella parvula ATCC 17745 1 1 Vibrio cholerae N16961 1 Vibrio parahaemolyticus 1 2 Zymomonas mobilis ATCC 29191 1

Organism EcoRI XbaI SpeI PstI

Tannerella forsythia ATCC 43037 Kingella oralis ATCC 51147 Escherichia coli K12 1 Helicobacter pylori J99 1 Mycobacterium smegmatis mc2155 1 1 Mycobacterium tuberculosis CDC1551 1 Neisseria lactamica ATCC 23970 1 Neisseria mucosa ATCC 25996 1 Porphyromonas gingivalis ATCC 33277 2 Porphyromonas gingivalis W83 2 Selenomonas sputigena ATCC 35185 2 Veillonella parvula ATCC 17745 1 1 Vibrio cholerae N16961 1 Vibrio parahaemolyticus 1 2 Zymomonas mobilis ATCC 29191 1

18

slide-19
SLIDE 19

Achievements

PPK1 Constructs

Kingella oralis (BBa_K1217003) Tanneralla forsythia (BBa_K1217000)

Kingella oralis Tanneralla forsythia

ppk1

Sequence Signal

(BBa_K1217004) (BBa_K1217005)

19

slide-20
SLIDE 20

PPK1 Constructs

Expression

  • K. oralis ~ 77kDa
  • T. forsythia ~ 78kDa

Soluble Expression

Achievements

20

slide-21
SLIDE 21

PPK1 Constructs

Expression

  • K. oralis PPK1

higher expression Sequence has no mutations Chosen for further development

Achievements

21

slide-22
SLIDE 22

MCP Constructs

Eut S, M, N, L, K

Native MCP

Eut S

Discovered in 2012

Simple MCP Bba_K311004

Eut S BBa_K1217016

Expression

EutS = 11 kDa

Achievements

22

slide-23
SLIDE 23

PPK1 BBa_K1217003

PPK1 in native MCP

BBa_K1217008

PPK1 in simple MCP

BBa_K1217010

PPK1 BBa_K1217003

PPK1 in native MCP

BBa_K1217008

PPK1 in simple MCP

BBa_K1217010

Characterization 3 functional constructs

Achievements

23

  • 1. Poly-P synthesis
  • 2. Phosphate uptake

medium phosphate level intracellular poly-P level

slide-24
SLIDE 24

Characterization

Procedure

Induce Expression Time: 0 hr Time: 3 hr Time: 6 hr PPK1 Wild type PPK1 in native MCP PPK1 in simple MCP blank

Achievements

24

slide-25
SLIDE 25

Characterization intracellular poly-P level

Cell pellet Poly-P extraction DAPI fluorescence measurement Excitation: 415nm Emssion: 550nm

Achievements

25

Fluorescent probe interacts with DNA and poly-P

PolyP Standard in DAPI Assay

500 1000 1500 5 10 15 20

P45 (ng) A550nm

y = 0.0178x R2 = 0.994

slide-26
SLIDE 26

Characterization intracellular poly-P level

All 3 constructs have higher poly-P amount accumulated.

Achievements

26

Poly-P synthesis

slide-27
SLIDE 27

Characterization Phosphate level in the medium

Culture medium Malachite green colorimetric assay Absorbance: 620 nm

y = 0.0075x R2 = 0.9987

Achievements

27

malachite Green molybdate free orthophosphate green complex

PO4

3- standard

0.0 0.5 1.0 1.5 2.0 2.5 0.0 0.1 0.2 0.3 0.4

PO4

3- (nmol)

A620nm

slide-28
SLIDE 28

Characterization Medium phosphate level

Achievements

28

Medium phosphate level

2 4 6 8 2.0 2.2 2.4 2.6

Wild Type PPK1 PPK1 in Native MCP Medium Time (hr) phosphate (mM)

Basal PO4 uptake More PO4 removed!

slide-29
SLIDE 29

Quick Summary

Polyphosphate synthesis

PPK1 BBa_K1217003

PPK1 in native MCP

BBa_K1217008

PPK1 in simple MCP

BBa_K1217010

Phosphate removal

29

slide-30
SLIDE 30

Future Directions

 Engineer suitable environmental strains  Apply into waste water treatment plant

30

 More Experiments (of course…)  Refine the system design: e.g. Phosphate-induced PPK1 expression

So stay tuned!

slide-31
SLIDE 31

Human Practice !
