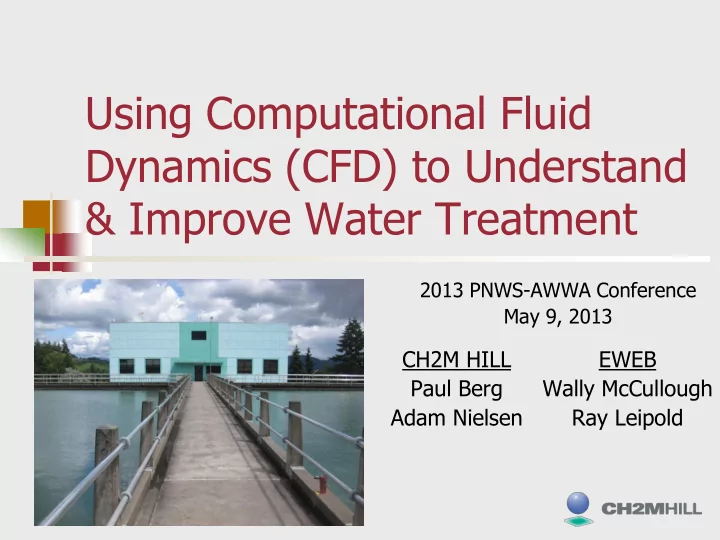

SLIDE 1
2013 PNWS-AWWA Conference May 9, 2013
Using Computational Fluid Dynamics (CFD) to Understand & Improve Water Treatment
CH2M HILL Paul Berg Adam Nielsen EWEB Wally McCullough Ray Leipold
Dynamics (CFD) to Understand & Improve Water Treatment 2013 - - PowerPoint PPT Presentation
Dynamics (CFD) to Understand & Improve Water Treatment 2013 - - PowerPoint PPT Presentation
Using Computational Fluid Dynamics (CFD) to Understand & Improve Water Treatment 2013 PNWS-AWWA Conference May 9, 2013 CH2M HILL EWEB Paul Berg Wally McCullough Adam Nielsen Ray Leipold EWEB Hayden Bridge Filtration Plant Filters
SLIDE 2
SLIDE 3
Flow Path
Raw water inlets Inlet distribution channel Baffle walls Settling Basins Intermediate collection channel Filters Outlet distribution channel
SLIDE 4
Observed short circuiting
SLIDE 5
North Settling Basin Intermediate collection channel Filters Inlet distribution channel Baffle walls
SLIDE 6
SLIDE 7
SLIDE 8
SLIDE 9
STARTING POINT—
MODEL EXISTING PLANT
SLIDE 10
Low High
SLIDE 11
2 feet below the surface
SLIDE 12
1 hour
Tracer results
Old New
SLIDE 13
2 hours
SLIDE 14
4 hours
SLIDE 15
6 hours
SLIDE 16
Findings
- 1. Uneven distribution into the 3 basins
- 2. Short-circuiting within basins
SLIDE 17
No. 1 23% 33% 45% 2 59% 10% 31% 3 40% 20% 39% 4 55% 15% 30% 5 60% 19% 21% South Center
Existing Plant Modeling Results
North
SLIDE 18
What’s the answer?
SLIDE 19
#1 – Close N. Basin side outlet
12 feet below the surface Option #1 Original
SLIDE 20
#2 – Close baffle openings
Original 12 feet below the surface Option #2
SLIDE 21
#3 – Reduce channel inlet size
Original 12 feet below the surface Option #3
SLIDE 22
#3 – Reduce channel inlet size
2 feet below the surface
SLIDE 23
Lessons
What you see on the surface doesn’t tell
the whole story
Right angles are not part of water
vocabulary
You don’t solve hydraulic problems by
guessing
SLIDE 24
You can’t cheat the headloss troll
