DNS and DNSSEC Management and Monitoring Changes Required During A Transition To DNSSEC Wes Hardaker <wes.hardaker@parsons.com> Overview Business Model Changes Relationship Requirements Relationship with your DNS parent

slide-1
SLIDE 1

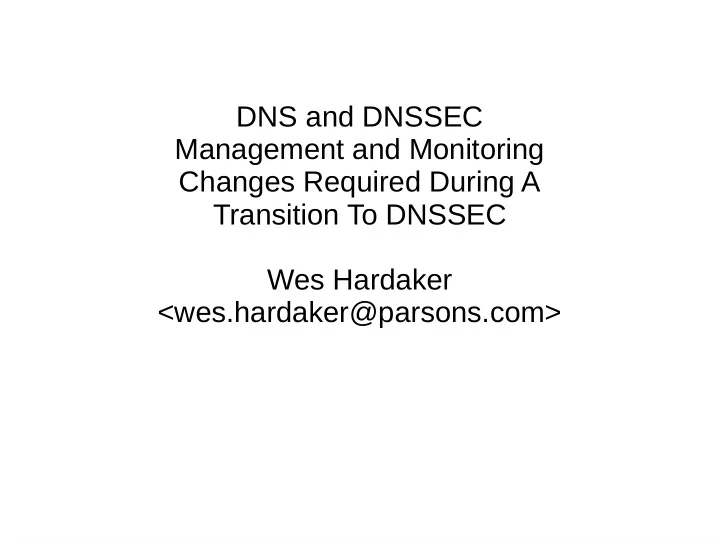

DNS and DNSSEC Management and Monitoring Changes Required During A Transition To DNSSEC Wes Hardaker <wes.hardaker@parsons.com>

slide-2
SLIDE 2

Overview

  • Business Model Changes
  • Relationship Requirements

– Relationship with your DNS parent – Relationships with your children

  • Timeline Changes
slide-3
SLIDE 3

Business Model Changes

Creating a New Domain

  • With DNS

– Purchase your name, win an auction, ... – Use recent compliant DNS software – Attach to your parent

  • Business or other relationship

– TLD

→ ICANN / IANA

– Enterprise, etc → Registrar

  • Use their interface to update your NS/Glue

example.com com root

NS A AAAA NS A AAAA

slide-4
SLIDE 4

Business Model Changes

Creating a New Domain

  • With DNS

– Purchase your name, win an auction, ... – Attach to your parent

  • Business relationship or contract

– TLD

→ ICANN / IANA

– Enterprise, etc → Registrar

  • Use their interface to update your NS/Glue
  • DNSSEC Adds

– Need to update DS records – Parent and interface must be DNSSEC compliant!

  • This may affect your buying and attachment decision

example.com com root

NS A AAAA DS NS A AAAA DS

slide-5
SLIDE 5

Relationship Changes

Relationships: With Your Parent

  • With DNS

– Maintain data synchronization with your parent

  • NS
  • Glue (A and AAAA)

– Frequently while changing infrastructure

  • Likely the only time your parent data changes
  • Make sure to tell your parent

– New or removed NS records – Changing A and AAAA records

  • People tend to “know” these are important

– Because they're rare!

– IETF's CSYNC draft automates this

example.com com

NS A AAAA

slide-6
SLIDE 6

Business Model Changes

Relationships: With Your Parent

  • DNSSEC adds:

– Maintain data synchronization with your parent

  • DS Records

– When your key changes

  • When you roll your keys: tell your parent!
  • If you plan on a regular schedule

– Make sure it's in the todo list! – People forget things that are periodic

– IETF's RFC7344 (CDS) automates this

example.com com

NS A AAAA DS

slide-7
SLIDE 7

Relationship Changes

Maintaining a Domain: Testing!

  • With DNS

– Do your parent and your NS/glue records match? – What tools are you using?

  • Monitoring service?
  • Software?
  • Self-monitoring scripts?

– EG: “dig example.com NS” vs “dig @parent example.com NS”

– Are you going to monitor this frequently?

slide-8
SLIDE 8

Relationship Changes

Maintaining a Domain: Testing!

  • With DNS

– Do your parent and your NS/glue records match? – What tools are you using?

  • Monitoring service?
  • Software?
  • Self-monitoring scripts?

– EG: “dig example.com NS” vs “dig @parent example.com NS”

– Are you going to monitor this frequently?

  • DNSSEC Additions

– Monitor the DS record too

  • Does your monitoring service or tool support it?
slide-9
SLIDE 9

Relationship Changes

Maintaining a Domain: Testing!

  • Example DS record checking using “getds”
  • -- DS records generated from querying example.com:

EXAMPLE.COM. 3600 IN DS 51605 8 2 (918... EXAMPLE.COM. 3600 IN DS 51605 8 1 (E74... EXAMPLE.COM. 3600 IN DS 31589 8 2 (CDE... EXAMPLE.COM. 3600 IN DS 31589 8 1 (349...

  • -- DS records pulled from the parent of example.com:

EXAMPLE.COM. 86400 IN DS 31589 8 2 (CD0... EXAMPLE.COM. 86400 IN DS 31589 8 1 (349...

Quiz!!!

slide-10
SLIDE 10

Relationship Changes

Maintaining a Domain: Testing!

  • Example DS record checking using “getds”
  • -- DS records generated from querying example.com:

EXAMPLE.COM. 3600 IN DS 51605 8 2 (918... EXAMPLE.COM. 3600 IN DS 51605 8 1 (E74... EXAMPLE.COM. 3600 IN DS 31589 8 2 (CDE... EXAMPLE.COM. 3600 IN DS 31589 8 1 (349...

  • -- DS records pulled from the parent of example.com:

EXAMPLE.COM. 86400 IN DS 31589 8 2 (CD0... EXAMPLE.COM. 86400 IN DS 31589 8 1 (349... ERRORS (2): 1) The following DS record is not published in parent: EXAMPLE.COM. 3600 IN DS 51605 8 1 (E74... 2) The following DS record is not published in parent: EXAMPLE.COM. 3600 IN DS 51605 8 2 (918...

Quiz!!!

slide-11
SLIDE 11

Relationship Changes

Maintaining a Domain: Testing!

  • Example DS record checking using “getds”
  • -- DS records generated from querying example.com:

EXAMPLE.COM. 3600 IN DS 51605 8 2 (918... EXAMPLE.COM. 3600 IN DS 51605 8 1 (E74... EXAMPLE.COM. 3600 IN DS 31589 8 2 (CDE... EXAMPLE.COM. 3600 IN DS 31589 8 1 (349...

  • -- DS records pulled from the parent of example.com:

EXAMPLE.COM. 86400 IN DS 31589 8 2 (CD0... EXAMPLE.COM. 86400 IN DS 31589 8 1 (349... ERRORS (2): 1) The following DS record is not published in parent: EXAMPLE.COM. 3600 IN DS 51605 8 1 (E74... 2) The following DS record is not published in parent: EXAMPLE.COM. 3600 IN DS 51605 8 2 (918...

slide-12
SLIDE 12

Relationship Changes

Maintaining a Domain: Testing!

  • Example DS record checking using “getds”
  • -- DS records generated from querying example.com:

EXAMPLE.COM. 3600 IN DS 51605 8 2 (918... EXAMPLE.COM. 3600 IN DS 51605 8 1 (E74... EXAMPLE.COM. 3600 IN DS 31589 8 2 (CDE... EXAMPLE.COM. 3600 IN DS 31589 8 1 (349...

  • -- DS records pulled from the parent of example.com:

EXAMPLE.COM. 86400 IN DS 31589 8 2 (CD0... EXAMPLE.COM. 86400 IN DS 31589 8 1 (349... ERRORS (2): 1) The following DS record is not published in parent: EXAMPLE.COM. 3600 IN DS 51605 8 1 (E74... 2) The following DS record is not published in parent: EXAMPLE.COM. 3600 IN DS 51605 8 2 (918...

New? Old?

slide-13
SLIDE 13

Relationship Changes

Relationships: With Your Parent – Testing

  • Testing DNS

– Does your parent mirror your real data?

  • How often do you check?
  • Testing DNSSEC

– Is your parent's published DS for you correct?

  • How often do you check?

– Are you testing end-to-end validation?

  • How often?
slide-14
SLIDE 14

Relationship Changes

Relationships: With Your Children

  • A parent is clearly the inverse of being a child
  • A few important points though...
slide-15
SLIDE 15

Relationship Changes

Relationships: With Your Children

  • With DNS (if you're a parent or registrar)

– You likely have an API for children to use

  • Unless you have a very small number of children

– Lets them:

  • Add and remove NS records
  • Add and remove A glue records
  • Add and remove AAAA records

– Possibly perform transfers – Advertise support for and use CSYNC?

slide-16
SLIDE 16

Relationship Changes

Relationships: With Your Children

  • DNSSEC Adds:

– API:

  • Add and remove DS records

– How to transfer the new data?

  • Paste an entire DS record?
  • Fill-in form with DS parameters?
  • Paste an entire DNSKEY?
  • Fill-in form with DNSKEY record parts?
  • Who picks the DS algorithms used?

– Advertise support for and use CDS?

  • ADVERTISE YOUR SUPPORT!!!
slide-17
SLIDE 17

Timeline Changes

  • With DNS:

– Data is frequently static

  • Addresses, mail records, etc

– Sometimes it is automated:

  • Round robin records
  • Load based records
  • Generated records

– Client or child based records – DNS blacklists – Etc

  • All of these are “Fire and Forget”

– Once served or running, little maintenance needed

Add A record Change MX record

slide-18
SLIDE 18

Timeline Changes

  • With DNSSEC:

– Signature records have a life time – DNSKEYs may require periodic rotation

  • No longer “Fire and Forget”

– Operational procedures must change! – Every X period of time: resign! – Every Y period of time: roll keys

  • Which itself is a long process, typically months
slide-19
SLIDE 19

Timeline Changes

Add A record Change MX record

Previous Data Changes

slide-20
SLIDE 20

Timeline Changes

Add A record Change MX record

Resign and Republish ... Previous Data Changes (Now with resigning too)

slide-21
SLIDE 21

Timeline Changes

Add A record Change MX record

Resign and Republish ... Rekeying events A d d N e w S w a p D e l e t e O l d Previous Data Changes (Now with resigning too)

slide-22
SLIDE 22

Timeline Changes

Signature Periods

  • How often to resign?

– Depends on signature length – Good rule of thumb: at least every: length / 2 – 1 month signature → at least every 1/2 month

  • Provide room for slippage
  • Test and monitor your infrastructure!
  • If you fail to resign, will you notice?
  • Grace periods don't help if you don't check
slide-23
SLIDE 23

Timeline Changes

Key Rolling Periods

  • What are the reasons for rolling keys?

– Key strengths – Good operational practice – Tests parent/child relationships

  • So, how often should you roll keys?

– Very situation dependent – Common guidances heard:

  • Roll zone-signing-keys every 3 months
  • Roll the key-signing-key annually
  • Do you have a plan in place?
slide-24
SLIDE 24

Timeline Changes DANE TLS Record Changes

  • Are you using DANE to secure?

– SMTP – SIP – XMPP – HTTPS

  • When your TLS certificate changes:

– Will you remember to change your TLSA record? – Will you notice if you forget and they don't match?

slide-25
SLIDE 25

Questions?

Wes Hardaker <wes.hardaker@parsons.com>

ICANN 52 ICANN 52 Los Angeles Los Angeles
