DIY Medium Data Analysis: NYC Taxi Trips and Beyond Todd Schneider - - PowerPoint PPT Presentation

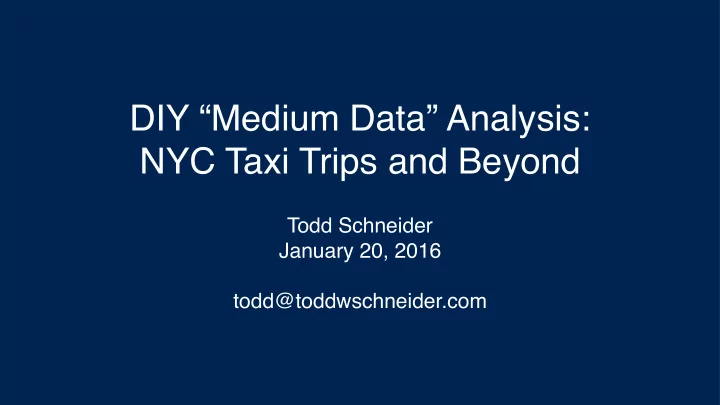

DIY “Medium Data” Analysis: NYC Taxi Trips and Beyond

Todd Schneider January 20, 2016 todd@toddwschneider.com

Where to find me

toddwschneider.com github.com/toddwschneider @todd_schneider toddsnyder

Things I’ll talk about

• Taxi and Uber data
• Live coding demo
• Medium data analysis tips

Taxi and Uber Data

http://toddwschneider.com/posts/analyzing-1-1-billion-nyc-taxi-and-uber-trips-with-a-vengeance/

Citi Bike Data

http://toddwschneider.com/posts/a-tale-of-twenty-two-million-citi-bikes-analyzing-the-nyc-bike-share-system/

NYC Taxi and Uber Data

• Taxi & Limousine Commission released

public, trip-level data for over 1.1 billion taxi rides 2009–2015

• Some public Uber data available as

well, thanks to a FOIL request by FiveThirtyEight

• Lots of great work by lots of people

http://www.nyc.gov/html/tlc/html/about/trip_record_data.shtml

Why analyze taxi data?

• “Because it’s there”
• More precisely: it’s fun, it’s interesting, and

it’s computationally feasible on a commodity laptop

(Taxi) Analysis Overview

• 1. Get raw data
• 2. Write code to process raw data into

something more useful

• 3. Analyze data
• 4. Write about what you found out

Taxi Analysis Tools

• PostgreSQL
• PostGIS
• R
• Command line

https://github.com/toddwschneider/nyc-taxi-data

Raw data processing goals

• Load flat files of varying file formats into a unified,

persistent PostgreSQL database that we can use to answer questions about the data

• Do some one-time calculations to augment the raw

data

• For taxi data in particular, we want to answer

neighborhood-based questions, so we’ll map latitude/longitude coordinates to NYC census tracts

• trips table will contain
• ne row for each taxi/Uber

trip record*

• Most fields come from raw

data, with some renaming

• Add fields for census tracts,

which we know we’re going to use

trips table schema

Processing raw data: The reality

• Often messy, raw data can require massaging
• Not fun, takes a while, but is essential
• Specifically: we have to plan ahead a bit,

anticipate usage patterns, questions we’re going to ask, then decide on schema

Quick peek at some raw data…

Specific issues encountered with raw taxi data

• Some files contain empty lines and unquoted carriage

returns 😑

• Raw data files have different formats even within the

same cab type 😖

• Some files contain extra columns in every row 😡
• Some files contain extra columns in only some rows 😢

How do we load all of these files into the database?

• One at a time!
• Bash script loops through each raw data file, for

each file it executes code to process data and insert records into trips table

https://github.com/toddwschneider/nyc-taxi-data/blob/master/import_trip_data.sh

How do we map latitude and longitude to census tracts?

• PostGIS!
• Geographic information system (GIS) for

PostgreSQL

• Can do calculations of the form, “is a point inside a

polygon?”

• Every pickup/drop off is a point, NYC’s census

tracts are polygons

NYC Census Tracts

• 2,166 tracts
• 196 neighborhood

tabulation areas (NTAs)

Shapefiles

• Shapefile format describes geometries like points,

lines, polygons

• Many shapefiles publicly available, e.g. NYC

provides a shapefile that contains definitions for all census tracts and NTAs

• PostGIS includes functionality to import shapefiles

Quick peek at imported shapefile…

PostGIS: ST_Within()

• ST_Within(geom A, geom B) function returns

true if and only if A is entirely within B

• A = pickup or drop off point
• B = NYC census tract polygon

ST_Within() Usage

SELECT raw_trips.id AS trip_id, nyct2010.gid AS pickup_tract_id FROM raw_trips, nyct2010 WHERE ST_Within( raw_trips.pickup, nyct2010.geom );

Spatial Indexes

• Problem: determining whether a point is inside an

arbitrary polygon is computationally intensive and slow

• PostGIS spatial indexes to the rescue!

Spatial indexes in a nutshell bounding box

Bounding box Census tract

Spatial Indexes

• Determining whether a point is inside a rectangle is easy!
• Spatial indexes store rectangular bounding boxes for

polygons, then when determining if a point is inside a polygon, calculate in 2 steps:

• 1. Is the point inside the polygon’s bounding box?
• 2. If so, is the point inside the polygon itself?
• Most of the time the cheap first check will be false, then

we can skip the expensive second step

Putting it all together

• Download NYC census tracts shapefile, import

into database, create spatial index

• Download raw taxi/Uber data files and loop

through them, one file at a time

• For each file: fix data issues, load into database,

calculate census tracts with ST_Within()

• Wait 3 days and voila!

Analysis, a.k.a.“the fun part”

• Ask fun and interesting

questions

• Try to answer them
• Rinse and repeat

Taxi maps

• Question: what does a map of every taxi pickup

and drop off look like?

• Each trip has a pickup and drop off location, plot a

bunch of dots at those locations

• Made entirely in R using ggplot2

Taxi maps

Taxi maps preprocess

• Problem: R can’t fit 1.1 billion rows
• Solution: preprocess data by rounding

lat/long to 4 decimal places (~10 meters), count number of trips at each aggregated point

https://github.com/toddwschneider/nyc-taxi-data/blob/master/analysis/prepare_analysis.sql#L194-L215

Render maps in R

https://github.com/toddwschneider/nyc-taxi-data/blob/master/analysis/analysis.R

Data reliability

Every other comment on reddit:

Airport traffic

• Question: how long does it take to get to the airport?
• LGA, JFK, and EWR are each their own census

tracts

• Get all trips that dropped off in one of those tracts
• Calculate travel times from neighborhoods to airports

Airport traffic preprocess

CREATE TABLE airport_trips AS SELECT …, CASE dropoff_nyct2010_gid WHEN 1840 THEN 'LGA' WHEN 2056 THEN 'JFK' WHEN 2167 THEN 'EWR' END AS airport_code, EXTRACT(HOUR FROM pickup_datetime) AS hour FROM trips WHERE dropoff_nyct2010_gid IN (1840, 2056, 2167) AND EXTRACT(DOW FROM pickup_datetime) NOT IN (0, 6);

https://github.com/toddwschneider/nyc-taxi-data/blob/master/analysis/prepare_analysis.sql#L242-L269

Airport traffic summary

CREATE TABLE airport_trips_summary AS SELECT n.ntacode, airport_code, hour, COUNT(*) AS trips_count, percentile_cont(0.1) WITHIN GROUP (ORDER BY duration_in_minutes) AS pct10, percentile_cont(0.25) WITHIN GROUP (ORDER BY duration_in_minutes) AS pct25, percentile_cont(0.5) WITHIN GROUP (ORDER BY duration_in_minutes) AS pct50, percentile_cont(0.75) WITHIN GROUP (ORDER BY duration_in_minutes) AS pct75, percentile_cont(0.9) WITHIN GROUP (ORDER BY duration_in_minutes) AS pct90 FROM airport_trips t INNER JOIN nyct2010 n ON t.pickup_nyct2010_gid = n.gid WHERE duration_in_minutes IS NOT NULL GROUP BY airport_code, n.ntacode, hour;

https://github.com/toddwschneider/nyc-taxi-data/blob/master/analysis/prepare_analysis.sql#L273-L292

Airport traffic

Bridge & Tunnel analysis

• Where does B&T crowd hang out?
• Look at taxi pickups around Penn

Station on Saturday evenings, see where they go (Murray Hill)

• Use R’s ggmap package to plot

data overlaid on Google Maps

https://github.com/toddwschneider/nyc-taxi-data/blob/master/analysis/analysis.R#L425-L460

How popular is Uber?

What census tract has the most growth in taxi activity?

http://toddwschneider.com/data/taxi/northside_animation.gif

More fun stuff in the full post

• On the realism of Die Hard 3
• Relationship between the weather and taxi/Uber

usage

• Neighborhoods with most nightlife according to

taxi activity

• East Hampton privacy concerns
• What time do investment bankers arrive at work?

Live coding interlude

Question: what happens to taxi activity during the Super Bowl?

Medium data analysis tips

What is “medium” data?

No clear answer, but my rough thinking:

• Tiny: fits in spreadsheet
• Small: doesn’t fit in spreadsheet, but fits in RAM
• Medium: too big for RAM, but fits on local hard disk
• Big: too big for local disk, has to be distributed across

many nodes

Personal experience with medium-sized datasets

• Wedding Crunchers: New York Times weddings section
• Rap Stats: corpus of rap lyrics
• Gambletron 2000: realtime betting data for sports and politics
• Loan level mortgage data from Fannie Mae and Freddie Mac
• Taxi/Uber data
• Citi Bike data

Use the right tool for the job

My personal toolkit (yours may vary!):

• PostgreSQL for storing and aggregating data. Geospatial

calculations with PostGIS extension

• R for modeling and plotting
• Command line tools for looping through files, loading data,

text processing on input data with sed, awk, etc.

• Ruby for making API calls, scraping websites, running web

servers, and sometimes using local rails apps to organize relational data

R + PostgresSQL

• The R ↔ Postgres link is invaluable! Use R and

Postgres for the things they’re respectively best at

• Postgres: persisting data in tables, rote number

crunching

• R: calibrating models, plotting
• RPostgreSQL package allows querying Postgres

from within R

Postgres tips

• COPY command is your friend for reading in

raw data from text files

• Favor creating new tables over updating large

tables

• Create indexes after importing data

Tip: pre-aggregate

• Think about how you’re going to access the data, and

consider creating intermediate aggregated tables which can be used as building blocks for later analysis

• Example: number of taxi trips grouped by pickup

census tract and date/time truncated to the hour

• Resulting table is only 30 million rows, easier to work

with than full trips table, and can still answer lots of interesting questions

Pre-aggregating example

CREATE TABLE hourly_pickups AS SELECT date_trunc('hour', pickup_datetime) AS pickup_hour, cab_type_id, pickup_nyct2010_gid, COUNT(*) FROM trips WHERE pickup_nyct2010_gid IS NOT NULL GROUP BY pickup_hour, cab_type_id, pickup_nyct2010_gid;

https://github.com/toddwschneider/nyc-taxi-data/blob/master/analysis/prepare_analysis.sql#L30-L38

Miscellany

• Start small, e.g. make sure your loading process runs on a

loop of 2 files before looping through all files

• Add an auto-incrementing primary key with Postgres

serial data type

• Get an external hard drive for raw data
• Use pg_dump to create a compressed version of full

dataset, save it on an external drive and/or S3 for easy restore

• The wheel was invented on Stack Overflow

But wait, there’s more!

“Content marketing”

• Sounds really lame, but is important
• “The default state of the internet is that no one

cares” —Priceonomics

How to get people to read your work

• It has to be interesting. If you’re not excited,

probably nobody else is either

• Most people are distracted, and they read things in

“fast scroll” mode. Optimize for them

• The questions you ask are more important than

the methods you use to answer them

Specific tips

• Write in short paragraphs with straightforward

language

• Use plenty of section headers
• Good ratio of pictures to text
• Avoid the dreaded “wall of text”

More tips

• It’s not a mystery novel, don’t bury the lede: the best

thing should go at the beginning

• If you do include technical detail, assume that a large

portion of your audience will bail when they see it, so probably put it toward the end

• Make sure everything looks okay on mobile devices
• Learn a bit of web development (HTML, CSS,

Javascript), it can be very helpful with design and interactivity

Promote yourself

• Nobody will do it for you
• Email a bunch of people (journalists, bloggers,

friends) you think might be interested in your work

• Aggregator sites like Hacker News and reddit can

generate lots of traffic

• Find and post in other forums related to your work
• Try to have at least one shareable “nugget”

Above all…

• Have fun!
• Keep an inquisitive mind.

Observe stuff happening around you, ask questions about it, try to answer those questions

“Increasingly, the limiting factor of data analysis is not computational horsepower, but human curiosity and creativity” —me

Thanks!

todd@toddwschneider.com
