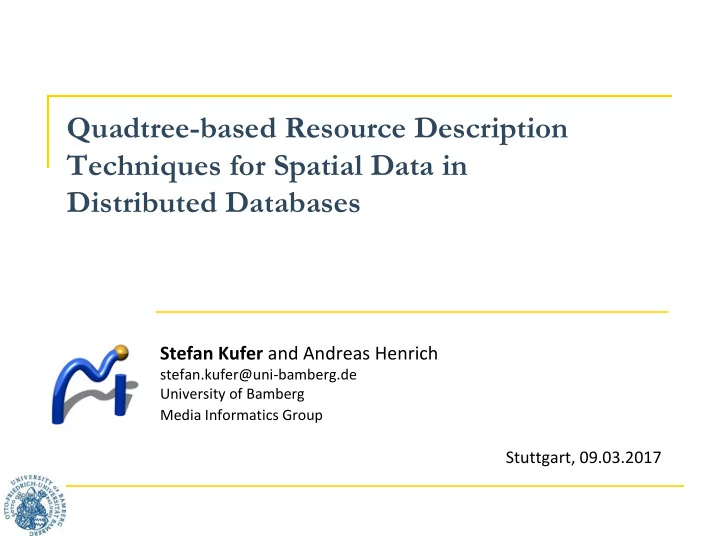

Quadtree-based Resource Description Techniques for Spatial Data in Distributed Databases

Stefan Kufer and Andreas Henrich

stefan.kufer@uni-bamberg.de University of Bamberg Media Informatics Group

Stuttgart, 09.03.2017

Quadtree-based Resource Description Techniques for Spatial Data in Distributed Databases (p. 2) Stefan Kufer and Andreas Henrich − BTW 2017 in Stuttgart, March 09, 2017

 age of social media: creation and distribution of media items

→ maintained in (personal) media archives

 large, heterogeneous distributed database of various

resources (= nodes in the network) → adequate indexing techniques are needed

Motivation

heterogeneous resources in the distributed database

…

Quadtree-based Resource Description Techniques for Spatial Data in Distributed Databases (p. 3) Stefan Kufer and Andreas Henrich − BTW 2017 in Stuttgart, March 09, 2017

 search criteria to be adressed:

 text  timestamps  content features  geographic information

 retrieval tasks in a distributed environment

 resource description problem  resource selection problem  (result merging)

Problem Description

Quadtree-based Resource Description Techniques for Spatial Data in Distributed Databases (p. 4) Stefan Kufer and Andreas Henrich − BTW 2017 in Stuttgart, March 09, 2017

 general preliminaries:

 set of resources  each resource maintains a set of

geotagged media items

 plate-carrée projection

 lat/lon coordinates = y/x coordinates in

a 2-dimensional plane

 more general spatial data scenario  summaries of the spatial content of a

resource

 query routing based on summaries

Search Scenario

resource A

[lat/y=48.22, lon/x=11.62] [lat/y=-33.86, lon/x=151.22]

resource description summarize

Quadtree-based Resource Description Techniques for Spatial Data in Distributed Databases (p. 5) Stefan Kufer and Andreas Henrich − BTW 2017 in Stuttgart, March 09, 2017

Search Scenario

C A B

resource description resource selection

1. C 2. A 3. B

summarize summarize summarize

= resource data point (database object) similarity query criterion: d(q,o)

d = Euclidean distance q = query object

• = database
• bject

= query object

Quadtree-based Resource Description Techniques for Spatial Data in Distributed Databases (p. 6) Stefan Kufer and Andreas Henrich − BTW 2017 in Stuttgart, March 09, 2017

 objective: encoding sets of two-dimensional data points

 effectiveness → accurate delineation (selectivity)  efficiency → compact storage (space efficiency)

 categories of resource descriptions techniques (previous

work):

 Geometric Approaches  Space Partitioning Approaches  Hybrid Approaches

Resource Descriptions

[KBH12], [KBH13], [KH14]

Quadtree-based Resource Description Techniques for Spatial Data in Distributed Databases (p. 7) Stefan Kufer and Andreas Henrich − BTW 2017 in Stuttgart, March 09, 2017

 approaches that organize the data  one | several bounding volumes (bv) to delimit the set of data

points → extents of bv described in summaries

 evaluated approaches:

 MBR (as a comparative baseline)  RecMAR

Geometric Approaches

MBR

k

RecMAR

2 k = maximum number of Minimum Area Rectangles

Quadtree-based Resource Description Techniques for Spatial Data in Distributed Databases (p. 8) Stefan Kufer and Andreas Henrich − BTW 2017 in Stuttgart, March 09, 2017

 approaches that organize the data  one | several bounding volumes (bv) to delimit the set of data

points → extents of bv described in summaries

 evaluated approaches:

 MBR (as a comparative baseline)  RecMAR

Geometric Approaches

MBR RecMAR

k 3 k = maximum number of Minimum Area Rectangles

Quadtree-based Resource Description Techniques for Spatial Data in Distributed Databases (p. 9) Stefan Kufer and Andreas Henrich − BTW 2017 in Stuttgart, March 09, 2017

 approaches that organize the data  one | several bounding volumes (bv) to delimit the set of data

points → extents of bv described in summaries

 evaluated approaches:

 MBR (as a comparative baseline)  RecMAR

Geometric Approaches

MBR RecMAR

k 6 k = maximum number of Minimum Area Rectangles

Quadtree-based Resource Description Techniques for Spatial Data in Distributed Databases (p. 10) Stefan Kufer and Andreas Henrich − BTW 2017 in Stuttgart, March 09, 2017

 approaches that organize the embedding space  decompose the space into disjoint subspaces

identify regions (not) containing data points → information about cell

• ccupancy in summaries (0 = non-occupied, 1 = occupied)

 evaluated approach:

 UFS

Space Partitioning Approaches

n n = number of sites/subspaces

• ther examples (not evaluated!)

uniform grid kd space partitioning

UFS 32

Quadtree-based Resource Description Techniques for Spatial Data in Distributed Databases (p. 11) Stefan Kufer and Andreas Henrich − BTW 2017 in Stuttgart, March 09, 2017

 global space partitioning → the same for all resources!

(summaries only need to contain information about cell occupancy)

 space partitioning must be adapted to the data distribution of

the whole data collection!

 additional tasks:

 collect information about the data distribution in the network  partition space, distribute information in the network  (update information as data collection changes)

Space Partitioning Approaches

A B C D

Quadtree-based Resource Description Techniques for Spatial Data in Distributed Databases (p. 12) Stefan Kufer and Andreas Henrich − BTW 2017 in Stuttgart, March 09, 2017

 combine properties of two arbitrary resource description

techniques

 method A: builds foundation, method B: refines foundation  evaluated approach:

 KDMBR

→ summary: binary information about cell occupancy (foundation), quantized MBR information for occupied cells (refinement)

Hybrid Approaches

n b n = number of subspaces, b = number of bits per bound (4*b for an MBR)

KDMBR

32 3

Quadtree-based Resource Description Techniques for Spatial Data in Distributed Databases (p. 13) Stefan Kufer and Andreas Henrich − BTW 2017 in Stuttgart, March 09, 2017

 quadtree: recursive division of space into four quadrants  regular decomposition (equal sized cells) → linear storage of

quadtrees possible (memory efficient representation)

 linear quadtree encoding types:

 only black nodes encoding  whole quadtree structure (all internal nodes + leaves)

Novel Quadtree-based Resource Description Techniques

• cf. paper!

[MRJ02]

Quadtree-based Resource Description Techniques for Spatial Data in Distributed Databases (p. 14) Stefan Kufer and Andreas Henrich − BTW 2017 in Stuttgart, March 09, 2017

 linear quadtrees: allow for local space partitioning

 adapted to the data distribution of the single resource

 area-driven decomposition of the space, parameters:

 c → maximum number of subspaces of the quadtree structure (storage

space oriented stopping criterion)

 a → threshold area, if undercut by all black cells: end of construction

(selectivity oriented stopping criterion)

Novel Quadtree-based Resource Description Techniques

A B C D

Quadtree-based Resource Description Techniques for Spatial Data in Distributed Databases (p. 15) Stefan Kufer and Andreas Henrich − BTW 2017 in Stuttgart, March 09, 2017

 QT

 space partitioning (sp) technique resource-individual sp (local sp)

 GridQT

 hybrid technique uniform grid (global sp) + qt-structure (local sp)

 KDQT

 hybrid technique kd-structure (global sp) + qt-structure (local sp)

Novel Quadtree-based Resource Description Techniques

c,a r c,a n c,a r = number of rows (columns = 2*r)

QT

32,0.1

GridQT

4 32,0.1

KDQT

32 32,0.1

Quadtree-based Resource Description Techniques for Spatial Data in Distributed Databases (p. 16) Stefan Kufer and Andreas Henrich − BTW 2017 in Stuttgart, March 09, 2017

 QTMBR

 hybrid technique qt structure (local sp) + quantized MBRs (bv)

 MBRQT

 hybrid technique external MBR (bv) + qt-structure (local sp)

Novel Quadtree-based Resource Description Techniques

c,a c,a b

QTMBR

32,0.1 3

MBRQT

32,0.1

Quadtree-based Resource Description Techniques for Spatial Data in Distributed Databases (p. 17) Stefan Kufer and Andreas Henrich − BTW 2017 in Stuttgart, March 09, 2017

 all techniques describe areas containing data points

→ ranking is based on minimum distance between the areas of a resource and the query point q

Resource Selection - Ranking

• cf. paper

for details!

A B

= query point q = resource data point example: mindist of the areas described by the summary of resource B < mindist of the areas described by the summary of resource A ⇒ B ranked higher than A

Quadtree-based Resource Description Techniques for Spatial Data in Distributed Databases (p. 18) Stefan Kufer and Andreas Henrich − BTW 2017 in Stuttgart, March 09, 2017

 406,450 geo-referenced images from Flickr  5,951 different users → 5,951 resources  long-tail distribution of data to resources  data space: densely populated and unpopulated areas vary

Evaluation – Data Collection

log-scaled! n=4.0 → 10 – 1 = 9.999

4

Quadtree-based Resource Description Techniques for Spatial Data in Distributed Databases (p. 19) Stefan Kufer and Andreas Henrich − BTW 2017 in Stuttgart, March 09, 2017

 50 kNN queries; k = 50  performance measures:

 avg. resource fraction contacted (rfc) → selectivity  avg. resource description size (rds) → space efficiency

 numerous parameterizations for each technique  Skyline operator for comparing the different techniques

 two dimensions: rfc and rds  find dominant parameterizations

for each technique → ‘as good or better in all dimensions and better in at least one dimension‘

Evaluation - Experimental Setting

• cf. paper

for details!

[BKS01]

Skyline of RecMAR

k

Quadtree-based Resource Description Techniques for Spatial Data in Distributed Databases (p. 20) Stefan Kufer and Andreas Henrich − BTW 2017 in Stuttgart, March 09, 2017

 all resource descriptions: bit vectors → Java gzip compression

(if beneficial)

 if summary bigger than data points themself → direct transfer

• f data points

 for quadtree-based techniques: LQ scheme | CBLQ scheme  27 byte serialization overhead + 1 extra byte (resource

description type + resource size)

Evaluation - Optimizations

Quadtree-based Resource Description Techniques for Spatial Data in Distributed Databases (p. 21) Stefan Kufer and Andreas Henrich − BTW 2017 in Stuttgart, March 09, 2017

Evaluation – Experimental Results

k

baseline: 0.0013 rfc (7.74 res.) 265.6 byte per res.

• bounding volumes: few,

exactly depicted areas described

• MBR selectivity easily

improvable

• RecMAR scales poorly

→ bounding volumes not really suited

QTMBR : 0.0087 rfc (~52) 44.04 rds

64,0.1 3

MBR: 0.0471 rfc (~280) 42.35 rds

Quadtree-based Resource Description Techniques for Spatial Data in Distributed Databases (p. 22) Stefan Kufer and Andreas Henrich − BTW 2017 in Stuttgart, March 09, 2017

Evaluation – Experimental Results

baseline: 0.0013 rfc (7.74 res.) 265.6 byte per res.

• space part./hybrid: numerous,
• approx. depicted areas described
• better scaling

→ dead space is reduced much more efficiently

Quadtree-based Resource Description Techniques for Spatial Data in Distributed Databases (p. 23) Stefan Kufer and Andreas Henrich − BTW 2017 in Stuttgart, March 09, 2017

Evaluation – Experimental Results

• most promising approaches:

QTMBR (for low rds) and KDMBR (for bigger rds)

• hybrid approaches can be beneficial
• adaptive space partitioning

(local||global) is a must → GridQT → MBRQT

c,a b b n r c,a c,a

Quadtree-based Resource Description Techniques for Spatial Data in Distributed Databases (p. 24) Stefan Kufer and Andreas Henrich − BTW 2017 in Stuttgart, March 09, 2017

 bounding volumes are not suited for the given data collection,

subpar scaling (trade-off storage space vs. gained selectivity)

 space partitioning approaches offer better performance and

scale better

 adaptive techniques required (both for global and local space

partitioning)

 hybrid approaches can improve the performance (if designed

thoughtfully → adapt. space partitioning for the foundation!)

 local space partitioning: similar performance to global space

partitioning → especially suited for ‘small‘ resources

Evaluation – Summary

Thank you for your attention!

Quadtree-based Resource Description Techniques for Spatial Data in Distributed Databases (p. 25) Stefan Kufer and Andreas Henrich − BTW 2017 in Stuttgart, March 09, 2017

Appendix

Quadtree-based Resource Description Techniques for Spatial Data in Distributed Databases (p. 26) Stefan Kufer and Andreas Henrich − BTW 2017 in Stuttgart, March 09, 2017

 evaluate techniques for a bigger data collection/different

distribution of data points to resources → robustness

 slight optimizations of existing techniques (e.g. employ

quantized MARs as a refinement for hybrid techniques, …)

 utilization of summaries in different application fields (e.g.

binary image compression for QTMBR , …)

Future Work

c,a b

Quadtree-based Resource Description Techniques for Spatial Data in Distributed Databases (p. 27) Stefan Kufer and Andreas Henrich − BTW 2017 in Stuttgart, March 09, 2017

 for good results: global space partitioning must be adjusted to

the data distribution of the whole data collection → how?

 UFS : random selection of n data points out of the data

collection

 kd-based approaches (KDMBR and KDQT ):

 space partitioning is learned from training data  random selection of training data points out of data collection  bucket-based method: one bucket at the beginning; data points

are inserted into bucket → bucket overflow → bucket is split in halves (cyclacilly altering dimensions)

 repeat until n buckets are reached

Adaption of the Global Space Partitioning Approaches

n n b n c,a

Quadtree-based Resource Description Techniques for Spatial Data in Distributed Databases (p. 28) Stefan Kufer and Andreas Henrich − BTW 2017 in Stuttgart, March 09, 2017

Cell-interior, quantized MBRs

4 bits for encoding each axis Trade-off: accuracy vs. storage space

Quadtree-based Resource Description Techniques for Spatial Data in Distributed Databases (p. 29) Stefan Kufer and Andreas Henrich − BTW 2017 in Stuttgart, March 09, 2017

 LQ code:



df-order, only black nodes → complete path for every node described



5 literals → 0|1|2|3|X (NW|NE|SW|SE|stop at non-maximum depth)



code: 13X-210-211-212-213-22X-23X, condensed: 13-21-22-23

 CBLQ code:



bf-order, all leafs and internal nodes encoding → complete quadtree structure



4 literals → 0|1|2|3 (white leaf|black leaf|internal node, 1+ descendents are

• int. node|internal node, all descendents are leafs)



code: 0320-0001-0311-1111, condensed: 0330-0001-0111

Linear Quadtree Encoding Schemes

Quadtree-based Resource Description Techniques for Spatial Data in Distributed Databases (p. 30) Stefan Kufer and Andreas Henrich − BTW 2017 in Stuttgart, March 09, 2017

• All approaches describe several areas containing data points!
• 1. ∀ resource:
• 1.1 ∀ area:
• calculate the minimum distance to query point q and the area covered
• store information in R-Entry and insert R-Entry into a queue
• 1.2 Sort queue by a) minimum distance and b) minimum area
• 2. Ranking between Resource A and Resource B
• 2.1 𝑗=1;
• 2.2 Choose 𝑗-th R-Entry for Resource A (REa ) and Resource B (REb )
• if [min. dist. REa < min. dist. REb ]
• → rank Resource A higher than Resource B
• else if [area REa < area REb ]
• → rank Resource A higher than Resource B
• else
• 𝑗++; GOTO 2.2;

Ranking Algorithm

Quadtree-based Resource Description Techniques for Spatial Data in Distributed Databases (p. 31) Stefan Kufer and Andreas Henrich − BTW 2017 in Stuttgart, March 09, 2017

 query points are chosen right out of the query collection

→ at least nearest neigbor has distance 0!

 two-step approach:

 1. random resource is selected  2. random data of this resource is selected as query point

 big and small resources have the same probability of issuing a

query

 ranking algorithm biased for big resources  harder search task

Selection of Query Points

Quadtree-based Resource Description Techniques for Spatial Data in Distributed Databases (p. 32) Stefan Kufer and Andreas Henrich − BTW 2017 in Stuttgart, March 09, 2017

kNN algorithm (precise search)

Quadtree-based Resource Description Techniques for Spatial Data in Distributed Databases (p. 33) Stefan Kufer and Andreas Henrich − BTW 2017 in Stuttgart, March 09, 2017

 Non-quadtree utilizing

 zipped summary || non-zipped summary  zipped data points || non-zipped data points

→ 4 possibilities

 Quadtree utlizing

 zipped LQ-coded || non-zipped LQ-coded  zipped CBLQ-coded || non-zipped CBLQ-coded  zipped data points || non-zipped data points

→ 6 possibilities

 1 extra byte → 3 bit for resource description type + 5 bit for

resource size (32 different sizes  quantized)

Resource Description Types

Quadtree-based Resource Description Techniques for Spatial Data in Distributed Databases (p. 34) Stefan Kufer and Andreas Henrich − BTW 2017 in Stuttgart, March 09, 2017

Resource Descriptions & Summaries

Resource Description

hypernym; contains information about the spatial features of a resource

Summary

high-level aggregation of the spatial features of a resource (geometric approach, space partitioning approach, hybrid approach)

Direct Transfer

coordinates of the data points are transferred instead of a summary

Quadtree-based Resource Description Techniques for Spatial Data in Distributed Databases (p. 35) Stefan Kufer and Andreas Henrich − BTW 2017 in Stuttgart, March 09, 2017

Parameter Variation

Quadtree-based Resource Description Techniques for Spatial Data in Distributed Databases (p. 36) Stefan Kufer and Andreas Henrich − BTW 2017 in Stuttgart, March 09, 2017

Key Figures (transfer type, resource sizes)

Quadtree-based Resource Description Techniques for Spatial Data in Distributed Databases (p. 37) Stefan Kufer and Andreas Henrich − BTW 2017 in Stuttgart, March 09, 2017

Key Figures (detailled view for QTMBR )

c,a b

Quadtree-based Resource Description Techniques for Spatial Data in Distributed Databases (p. 38) Stefan Kufer and Andreas Henrich − BTW 2017 in Stuttgart, March 09, 2017

Dead Space

MBR (44 Byte) QTMBR (46 Byte)

16,1 2

bounds are exactly delineated in all dimensions; but: a lot of dead space inside bounds are not exactly delineated in the single dimensions; but: significantly less dead space

Quadtree-based Resource Description Techniques for Spatial Data in Distributed Databases (p. 39) Stefan Kufer and Andreas Henrich − BTW 2017 in Stuttgart, March 09, 2017

[Be92] Becker, B.; Franciosa, P. G.; Gschwind, S.; Ohler, T.; Thiemt, G.; Widmayer, P.: Enclosing many boxes by an optimal pair of boxes. In: Proc. of STACS 92: 9th

• Ann. Symp. on Theor. Aspects of Comp. Sc. Cachan, France. Springer Berlin

Heidelberg, pp. 475–486, 1992. [BH12] Blank, D.; Henrich, A.: Describing and Selecting Collections of Georeferenced Media Items in Peer-to-Peer Information Retrieval Systems. In: Discovery of Geospatial Resources: Methodologies, Technologies, and Emergent Applications. Information Science Reference, pp. 1–20, 2012. [BHK16] Blank, D.; Henrich, A.; Kufer, S.: Using Summaries to Search and Visualize Distributed Resources Addressing Spatial and Multimedia Features. Datenbank- Spektrum 16/1, pp. 67–76, 2016. [BKS01] Börzsönyi, S.; Kossmann, D.; Stocker, K.: The Skyline Operator. In: Proc. of the 17th Int. Conf. on Data Engineering. IEEE Computer Society, Washington, DC, USA, pp. 421–430, 2001. [Ca00] Callan, J.: Distributed Information Retrieval. In: Advances in Information

• Retrieval. Kluwer Academic Publishers, pp. 127–150, 2000.

Literature 1/4

Quadtree-based Resource Description Techniques for Spatial Data in Distributed Databases (p. 40) Stefan Kufer and Andreas Henrich − BTW 2017 in Stuttgart, March 09, 2017

[Ca05] Caldwell, D. R.: Unlocking the Mysteries of the Bounding Box. A/2, pp. 1–20,

• Aug. 2005.

[Cu03] Cuenca-Acuna, F. M.; Peery, C.; Martin, R. P.; Nguyen, T. D.: PlanetP: Using Gossiping to Build Content Addressable Peer-to-Peer Information Sharing

• Communities. In: 12th IEEE International Symposium on High Performance

Distributed Computing (HPDC-12 ’03). IEEE Press, Seattle,Washington, pp. 1–11, 2003. [Ga82] Gargantini, I.: An EffectiveWay to Represent Quadtrees. Commun. ACM 25/12,

• pp. 905–910, Dec. 1982.

[GG98] Gaede, V.; Günther, O.: Multidimensional Access Methods. ACM Comput. Surv. 30/2, pp. 170–231, 1998. [HB10] Henrich, A.; Blank, D.: Description and Selection of Media Archives for Geographic Nearest Neighbor Queries in P2P Networks, 2010. [He09] Hetland, M. L.: The Basic Principles of Metric Indexing. In: Swarm Intelligence for Multi-objective Problems in Data Mining. Springer Berlin Heidelberg,

• pp. 199–232, 2009.

Literature 2/4

Quadtree-based Resource Description Techniques for Spatial Data in Distributed Databases (p. 41) Stefan Kufer and Andreas Henrich − BTW 2017 in Stuttgart, March 09, 2017

[KBH12] Kufer, S.; Blank, D.; Henrich, A.: Techniken der Ressourcenbeschreibung und -auswahl für das geographische Information Retrieval. In: Proc. of the IR Workshop at LWA 2012. Dortmund, Germany, pp. 1–8, 2012. [KBH13] Kufer, S.; Blank, D.; Henrich, A.: Using Hybrid Techniques for Resource Description and Selection in the Context of Distributed Geographic Information

• Retrieval. In: Advances in Spatial and Temporal Databases: 13th Intl. Symp.,

SSTD 2013, Munich, Germany. Springer Berlin Heidelberg, pp. 330–347, 2013. [KH14] Kufer, S.; Henrich, A.: Hybrid Quantized Resource Descriptions for Geospatial Source Selection. In: Proc. of the 4th Int. Workshop on Location and the Web. LocWeb ’14, ACM, Shanghai, China, pp. 17–24, 2014. [Li97] Lin, T.-W.: Set Operations on Constant Bit-length Linear Quadtrees. Pattern

• Recogn. 30/7, pp. 1239–1249, July 1997.

[MRJ02] Manouvrier, M.; Rukoz, M.; Jomier, G.: Quadtree representations for storage and manipulation of clusters of images. Im. Vis. Comp. 20/7, pp. 513–527, 2002. [Oo99] Oosterom, P.V.: Spatial Access Methods. In. Vol. 1, Geographical Information Systems, chap. 27, pp. 385–400, 1999.

Literature 3/4

Quadtree-based Resource Description Techniques for Spatial Data in Distributed Databases (p. 42) Stefan Kufer and Andreas Henrich − BTW 2017 in Stuttgart, March 09, 2017

[Sa05] Samet, H.: Foundations of Multidimensional and Metric Data Structures (The Morgan Kaufmann Series in Computer Graphics and Geometric Modeling). Morgan Kaufmann Publishers Inc., San Francisco, CA, USA, 2005. [Sa84] Samet, H.: The Quadtree and Related Hierarchical Data Structures. ACM

• Comput. Surv. 16/2, pp. 187–260, June 1984.

[SK90] Seeger, B.; Kriegel, H.-P.: The Buddy Tree: An Efficient and Robust Access Method for Spatial Data Base. In: Proc. of the Sixteenth Intl. Conf. on VLDB. Morgan Kaufmann Publishers Inc., Brisbane, Australia, pp. 590–601, 1990.

Literature 4/4
