Introduction Monotonic IDLA forest First Passage percolation Diffusion Limited Aggregation Forest Jacob J. Kagan PIMS-mPrime Probability summer school 2012 Joint work with Noam Berger (HUJI) and Eviatar B. Procaccia (WIZ) June 18, 2012 1 /

slide-1

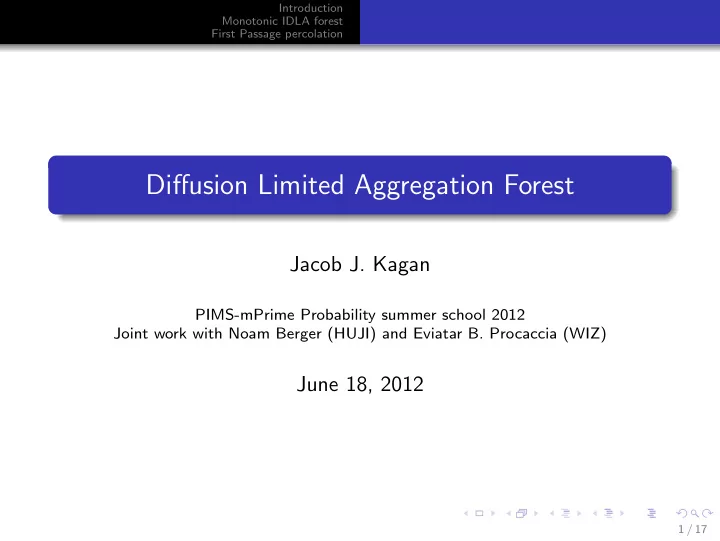

SLIDE 1

Introduction Monotonic IDLA forest First Passage percolation

Diffusion Limited Aggregation Forest

Jacob J. Kagan

PIMS-mPrime Probability summer school 2012 Joint work with Noam Berger (HUJI) and Eviatar B. Procaccia (WIZ)

June 18, 2012

1 / 17

slide-2
SLIDE 2

Introduction Monotonic IDLA forest First Passage percolation

The internal diffusion limited aggregation (IDLA) was first proposed by Meakin and Deutch (1986) to model industrial chemical processes like electropolishing, corrosion and etching.

Figure: IDLA of n = 4 × 105 points. (Jerison, Levine and Sheffield 2012)

2 / 17

slide-3
SLIDE 3

Introduction Monotonic IDLA forest First Passage percolation

The internal diffusion limited aggregation (IDLA) was first proposed by Meakin and Deutch (1986) to model industrial chemical processes like electropolishing, corrosion and etching.

Figure: IDLA of n = 4 × 105 points. (Jerison, Levine and Sheffield 2012)

2 / 17

slide-4
SLIDE 4

Introduction Monotonic IDLA forest First Passage percolation

We consider a model similar in spirit, for which we can show an interesting behavior. We call our model Monotonic IDLA Forest (MIF).

3 / 17

slide-5
SLIDE 5

Introduction Monotonic IDLA forest First Passage percolation

We consider a model similar in spirit, for which we can show an interesting behavior. We call our model Monotonic IDLA Forest (MIF).

3 / 17

slide-6
SLIDE 6

Introduction Monotonic IDLA forest First Passage percolation

the model

Consider the upper half of the Z2 rotated lattice. With every even vertex on the x axis associate an independent poisson clock.

y x

2 8

  • 2

4 6

  • 6
  • 4

2 4 6 8 10 12 14

4 / 17

slide-7
SLIDE 7

Introduction Monotonic IDLA forest First Passage percolation

the model

Consider the upper half of the Z2 rotated lattice. With every even vertex on the x axis associate an independent poisson clock.

y x

2 8

  • 2

4 6

  • 6
  • 4

2 4 6 8 10 12 14

4 / 17

slide-8
SLIDE 8

Introduction Monotonic IDLA forest First Passage percolation

When a clock of some vertex rings, start a random walk from the vertex until reaching the cluster’s boundary. If the walk tries to move to an adjacent tree or to close a loop, it dies.

y x

2 8

  • 2

4 6

  • 6
  • 4

2 4 6 8 10 12 14

5 / 17

slide-9
SLIDE 9

Introduction Monotonic IDLA forest First Passage percolation

When a clock of some vertex rings, start a random walk from the vertex until reaching the cluster’s boundary. If the walk tries to move to an adjacent tree or to close a loop, it dies.

y x

2 8

  • 2

4 6

  • 6
  • 4

2 4 6 8 10 12 14

5 / 17

slide-10
SLIDE 10

Introduction Monotonic IDLA forest First Passage percolation

When a clock of some vertex rings, start a random walk from the vertex until reaching the cluster’s boundary. If the walk tries to move to an adjacent tree or to close a loop, it dies.

y x

2 8

  • 2

4 6

  • 6
  • 4

2 4 6 8 10 12 14

5 / 17

slide-11
SLIDE 11

Introduction Monotonic IDLA forest First Passage percolation

When a clock of some vertex rings, start a random walk from the vertex until reaching the cluster’s boundary. If the walk tries to move to an adjacent tree or to close a loop, it dies.

y x

2 8

  • 2

4 6

  • 6
  • 4

2 4 6 8 10 12 14

5 / 17

slide-12
SLIDE 12

Introduction Monotonic IDLA forest First Passage percolation

When a clock of some vertex rings, start a random walk from the vertex until reaching the cluster’s boundary. If the walk tries to move to an adjacent tree or to close a loop, it dies.

y x

2 8

  • 2

4 6

  • 6
  • 4

2 4 6 8 10 12 14

5 / 17

slide-13
SLIDE 13

Introduction Monotonic IDLA forest First Passage percolation

This way we get a forest that will eventually reach every vertex.

y x

2 8

  • 2

4 6

  • 6
  • 4

2 4 6 8 10 12 14

6 / 17

slide-14
SLIDE 14

Introduction Monotonic IDLA forest First Passage percolation

Question: Are all the trees finite?

10 20 30 40 50 60 70 80 90 100 10 20 30 40 50

7 / 17

slide-15
SLIDE 15

Introduction Monotonic IDLA forest First Passage percolation

Question: Or do infinite trees exist?

10 20 30 40 50 60 70 80 90 100 10 20 30 40 50

8 / 17

slide-16
SLIDE 16

Introduction Monotonic IDLA forest First Passage percolation

First Passage percolation

First passage percolation (FPP) is a random metric on a graph. Each edge e is given a weight w(e). The distance between two vertices is the minimal sum of weights over paths connecting the vertices. dω(x, y) = min

γ:x→y

  • e∈γ

w(e) note that this definition generalizes in an obvious way to a distance between sets. dω(A, B) = min

γ:x→y

x∈A,y∈B

  • e∈γ

w(e)

9 / 17

slide-17
SLIDE 17

Introduction Monotonic IDLA forest First Passage percolation

First Passage percolation

First passage percolation (FPP) is a random metric on a graph. Each edge e is given a weight w(e). The distance between two vertices is the minimal sum of weights over paths connecting the vertices. dω(x, y) = min

γ:x→y

  • e∈γ

w(e) note that this definition generalizes in an obvious way to a distance between sets. dω(A, B) = min

γ:x→y

x∈A,y∈B

  • e∈γ

w(e)

9 / 17

slide-18
SLIDE 18

Introduction Monotonic IDLA forest First Passage percolation

First Passage percolation

First passage percolation (FPP) is a random metric on a graph. Each edge e is given a weight w(e). The distance between two vertices is the minimal sum of weights over paths connecting the vertices. dω(x, y) = min

γ:x→y

  • e∈γ

w(e) note that this definition generalizes in an obvious way to a distance between sets. dω(A, B) = min

γ:x→y

x∈A,y∈B

  • e∈γ

w(e)

9 / 17

slide-19
SLIDE 19

Introduction Monotonic IDLA forest First Passage percolation

First Passage percolation

First passage percolation (FPP) is a random metric on a graph. Each edge e is given a weight w(e). The distance between two vertices is the minimal sum of weights over paths connecting the vertices. dω(x, y) = min

γ:x→y

  • e∈γ

w(e) note that this definition generalizes in an obvious way to a distance between sets. dω(A, B) = min

γ:x→y

x∈A,y∈B

  • e∈γ

w(e)

9 / 17

slide-20
SLIDE 20

Introduction Monotonic IDLA forest First Passage percolation

the coupling

We couple the process to a FPP process with weights ∼ exp( 1

2n )

  • n level n, denoting by ˆ

T the measure on trees which are the union of geodesics from all vertices to the x axis.

y x

2 8

  • 2

4 6

  • 6
  • 4

2 4 6 8 10 12 14

w w w w w w~exp(1/4) w'~exp(1/8) w' w' w' w' w' 10 / 17

slide-21
SLIDE 21

Introduction Monotonic IDLA forest First Passage percolation

Lemma 1 There exists a coupling measure Q such that Q(∀x, T(x) = ˆ T(x)) = 1 Proof sketch. For each monotone path γ ⊆ { ˆ T(x) ∪ ∂ ˆ T(x)}, γ = (e1, . . . , el(γ)) from x we assign rings: if γ ⊂ ˆ T(x) we assign the ring l(γ)

i=1 ω(ei), and the path of

the particle will be γ. if γ ˆ T(x) we assign the ring sequence l(γ)

i=1 ω(ei),

l(γ)

i=1 ω(ei) + Poisson(el(γ)), for each ring in this sequence the

particle will be assigned the path γ. Note that in the second case, all the particles will vanish

11 / 17

slide-22
SLIDE 22

Introduction Monotonic IDLA forest First Passage percolation

Lemma 1 There exists a coupling measure Q such that Q(∀x, T(x) = ˆ T(x)) = 1 Proof sketch. For each monotone path γ ⊆ { ˆ T(x) ∪ ∂ ˆ T(x)}, γ = (e1, . . . , el(γ)) from x we assign rings: if γ ⊂ ˆ T(x) we assign the ring l(γ)

i=1 ω(ei), and the path of

the particle will be γ. if γ ˆ T(x) we assign the ring sequence l(γ)

i=1 ω(ei),

l(γ)

i=1 ω(ei) + Poisson(el(γ)), for each ring in this sequence the

particle will be assigned the path γ. Note that in the second case, all the particles will vanish

11 / 17

slide-23
SLIDE 23

Introduction Monotonic IDLA forest First Passage percolation

Lemma 1 There exists a coupling measure Q such that Q(∀x, T(x) = ˆ T(x)) = 1 Proof sketch. For each monotone path γ ⊆ { ˆ T(x) ∪ ∂ ˆ T(x)}, γ = (e1, . . . , el(γ)) from x we assign rings: if γ ⊂ ˆ T(x) we assign the ring l(γ)

i=1 ω(ei), and the path of

the particle will be γ. if γ ˆ T(x) we assign the ring sequence l(γ)

i=1 ω(ei),

l(γ)

i=1 ω(ei) + Poisson(el(γ)), for each ring in this sequence the

particle will be assigned the path γ. Note that in the second case, all the particles will vanish

11 / 17

slide-24
SLIDE 24

Introduction Monotonic IDLA forest First Passage percolation

Lemma 1 There exists a coupling measure Q such that Q(∀x, T(x) = ˆ T(x)) = 1 Proof sketch. For each monotone path γ ⊆ { ˆ T(x) ∪ ∂ ˆ T(x)}, γ = (e1, . . . , el(γ)) from x we assign rings: if γ ⊂ ˆ T(x) we assign the ring l(γ)

i=1 ω(ei), and the path of

the particle will be γ. if γ ˆ T(x) we assign the ring sequence l(γ)

i=1 ω(ei),

l(γ)

i=1 ω(ei) + Poisson(el(γ)), for each ring in this sequence the

particle will be assigned the path γ. Note that in the second case, all the particles will vanish

11 / 17

slide-25
SLIDE 25

Introduction Monotonic IDLA forest First Passage percolation

Lemma 1 There exists a coupling measure Q such that Q(∀x, T(x) = ˆ T(x)) = 1 Proof sketch. For each monotone path γ ⊆ { ˆ T(x) ∪ ∂ ˆ T(x)}, γ = (e1, . . . , el(γ)) from x we assign rings: if γ ⊂ ˆ T(x) we assign the ring l(γ)

i=1 ω(ei), and the path of

the particle will be γ. if γ ˆ T(x) we assign the ring sequence l(γ)

i=1 ω(ei),

l(γ)

i=1 ω(ei) + Poisson(el(γ)), for each ring in this sequence the

particle will be assigned the path γ. Note that in the second case, all the particles will vanish

11 / 17

slide-26
SLIDE 26

Introduction Monotonic IDLA forest First Passage percolation

Theorem 3.1 All the trees are finite almost surely. Proof sketch. Assume an infinite tree exists. Denote p = P(|T(0)| = ∞) by translational invariance we have E[|T m(0)||T(0) = ∞] ≤ 1 p we try to kill the tree at a sequence of levels where the tree has a fixed diameter. this is a sequence of independent, finite events with positive probability a Borel-Cantelli argument gives a contradiction.

12 / 17

slide-27
SLIDE 27

Introduction Monotonic IDLA forest First Passage percolation

Theorem 3.1 All the trees are finite almost surely. Proof sketch. Assume an infinite tree exists. Denote p = P(|T(0)| = ∞) by translational invariance we have E[|T m(0)||T(0) = ∞] ≤ 1 p we try to kill the tree at a sequence of levels where the tree has a fixed diameter. this is a sequence of independent, finite events with positive probability a Borel-Cantelli argument gives a contradiction.

12 / 17

slide-28
SLIDE 28

Introduction Monotonic IDLA forest First Passage percolation

Theorem 3.1 All the trees are finite almost surely. Proof sketch. Assume an infinite tree exists. Denote p = P(|T(0)| = ∞) by translational invariance we have E[|T m(0)||T(0) = ∞] ≤ 1 p we try to kill the tree at a sequence of levels where the tree has a fixed diameter. this is a sequence of independent, finite events with positive probability a Borel-Cantelli argument gives a contradiction.

12 / 17

slide-29
SLIDE 29

Introduction Monotonic IDLA forest First Passage percolation

Theorem 3.1 All the trees are finite almost surely. Proof sketch. Assume an infinite tree exists. Denote p = P(|T(0)| = ∞) by translational invariance we have E[|T m(0)||T(0) = ∞] ≤ 1 p we try to kill the tree at a sequence of levels where the tree has a fixed diameter. this is a sequence of independent, finite events with positive probability a Borel-Cantelli argument gives a contradiction.

12 / 17

slide-30
SLIDE 30

Introduction Monotonic IDLA forest First Passage percolation

Theorem 3.1 All the trees are finite almost surely. Proof sketch. Assume an infinite tree exists. Denote p = P(|T(0)| = ∞) by translational invariance we have E[|T m(0)||T(0) = ∞] ≤ 1 p we try to kill the tree at a sequence of levels where the tree has a fixed diameter. this is a sequence of independent, finite events with positive probability a Borel-Cantelli argument gives a contradiction.

12 / 17

slide-31
SLIDE 31

Introduction Monotonic IDLA forest First Passage percolation

Theorem 3.1 All the trees are finite almost surely. Proof sketch. Assume an infinite tree exists. Denote p = P(|T(0)| = ∞) by translational invariance we have E[|T m(0)||T(0) = ∞] ≤ 1 p we try to kill the tree at a sequence of levels where the tree has a fixed diameter. this is a sequence of independent, finite events with positive probability a Borel-Cantelli argument gives a contradiction.

12 / 17

slide-32
SLIDE 32

Introduction Monotonic IDLA forest First Passage percolation

y x

2 8

  • 2

4 6

  • 6
  • 4

2 4 6 8 10 12 14

13 / 17

slide-33
SLIDE 33

Introduction Monotonic IDLA forest First Passage percolation

FPP with decreasing weights

Theorem 3.2 All the trees with edge weights exp(2n) are finite almost surely.

14 / 17

slide-34
SLIDE 34

Introduction Monotonic IDLA forest First Passage percolation

20 40 60 80 100 120 140 160 180 200 10 20 30 40 50 60 70 80

15 / 17

slide-35
SLIDE 35

Introduction Monotonic IDLA forest First Passage percolation 16 / 17

slide-36
SLIDE 36

Introduction Monotonic IDLA forest First Passage percolation

Questions?

17 / 17
