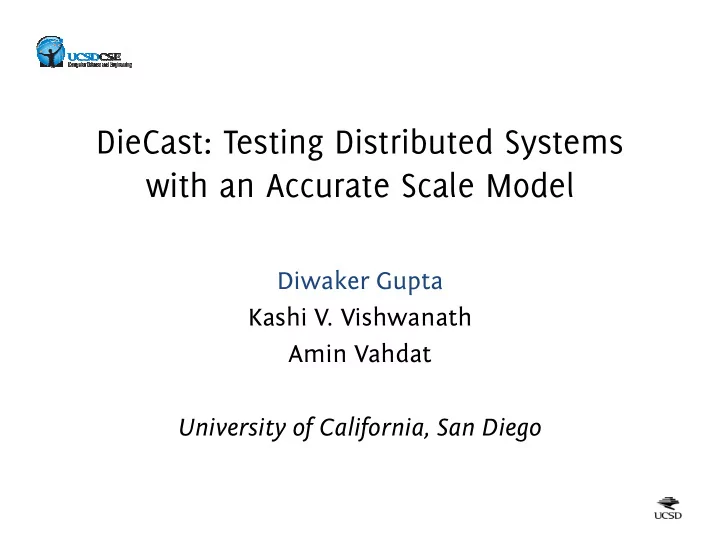

DieCast: Testing Distributed Systems with an Accurate Scale Model

Diwaker Gupta Diwaker Gupta Kashi V. Vishwanath Amin Vahdat University of California, San Diego

slide-2
SLIDE 2

High performance filesystem Alice

June 7, 2008 NSDI 2008 | DieCast 2

Limited testing infrastructure Diverse deployment environments

Use smaller infrastructure to test a much larger system

slide-3
SLIDE 3

Goals

  • Fidelity

– How closely can we replicate the target system?

  • Reproducibility
  • Reproducibility

– Can we do controlled experiments?

  • Efficiency

– Use fewer resources

June 7, 2008 NSDI 2008 | DieCast 3

DieCast can scale up a test infrastructure by an order of magnitude

slide-4
SLIDE 4

DieCast Overview

Replicate target system using fewer machines Resource equivalence: perceived CPU capacity, disk and network characteristics capacity, disk and network characteristics Preserve application performance

× Not scaled

× Physical memory: mitigating solutions × Secondary storage: cheap

June 7, 2008 NSDI 2008 | DieCast 4

slide-5
SLIDE 5

Original System

Application servers

June 7, 2008 NSDI 2008 | DieCast 5

Load balancer Web servers Database servers Switches

  • Fidelity
  • Reproducibility
  • Efficiency
slide-6
SLIDE 6

Server Consolidation (VMs)

June 7, 2008 NSDI 2008 | DieCast 6

Network emulation

  • Fidelity
  • Reproducibility
  • Efficiency
slide-7
SLIDE 7

Multiplexing Leads to Resource Partitioning

3 GHz CPU, 1 Gbps N/W, 15 Mbps disk I/O, 2 GB RAM

June 7, 2008 NSDI 2008 | DieCast 7

Split equally among 5 VMs ~ 600 MHz CPU, 200 Mbps N/W, 3 Mbps disk I/O, 400 MB RAM each

slide-8
SLIDE 8

Time Dilation [NSDI 2006]

Real time (No dilation) Events 1 sec 10 Mb

  • Slow down passage of time

within the OS

  • CPU, network, disk – all appear

faster

Key idea: time is also a resource!

June 7, 2008 NSDI 2008 | DieCast 8

Perceived bandwidth = 10 Mb/s Dilated time Events 100 msec 10 Mb Perceived bandwidth = 100 Mb/s

faster

  • Experiments take longer

Time Dilation Factor (TDF) = Real time/Virtual time In this example, TDF = 1sec/100ms = 10

slide-9
SLIDE 9

Multiplexing Under Time Dilation

3 GHz CPU, 1 Gbps N/W, 15 Mbps disk I/O, 2 GB RAM

June 7, 2008 NSDI 2008 | DieCast 9

~ 600 MHz CPU, 200 Mbps N/W, 3 Mbps disk I/O, 400-MB RAM, each ~ 3 GHz CPU, 1 Gbps N/W, 15 Mbps disk I/O?, 400 MB RAM each TDF 5

slide-10
SLIDE 10

Time Dilation: External Interactions

Dilated Time Frame

June 7, 2008 NSDI 2008 | DieCast 10

Network External systems running in the real time frame

slide-11
SLIDE 11

Disk I/O Scaling

  • Invariant: perceived disk characteristics

are preserved

– Seek time – Read/write throughput – Read/write throughput

  • Issues

– Low level functionality in firmware – Different I/O models – Per request scaling is difficult

June 7, 2008 NSDI 2008 | DieCast 11

slide-12
SLIDE 12

Implementation Details

  • Supported platforms

– Xen 2.0.7, 3.0.4, 3.1 – Can be ported to non-virtualized systems

  • Support for unmodified guest OSes
  • Support for unmodified guest OSes
  • Disk I/O scaling for different I/O models

– Fully virtualized: integration with DiskSim – Paravirtualized: scaling in device driver

June 7, 2008 NSDI 2008 | DieCast 12

slide-13
SLIDE 13

Disk I/O Scaling: Fully Virtualized VMs

ioemu disksim

VM

(Unmodified OS)

VM

(Unmodified OS)

Domain-0 Domain-0

Guest OS unaware that no real disk Request completion time in simulated disk

June 7, 2008 NSDI 2008 | DieCast 13

VM disk image ioemu Disk device driver

Xen Xen

exists Guest OS filesystem I/O emulation

slide-14
SLIDE 14

Disk I/O Scaling: Fully Virtualized VMs

ioemu disksim

VM

(Unmodified OS)

VM

(Unmodified OS)

Domain-0 Domain-0

Required perceived time: Tsim ⇒Total real time Service time in simulated disk: Tsim DiskSim running time: Tdisksim

June 7, 2008 NSDI 2008 | DieCast 14

VM disk image ioemu Disk device driver

Xen Xen

Treal = TDF*Tsim Actual time to service: Tioemu Delay: Delay

Treal = Tioemu + Delay + Tdisksim ⇒Delay = (TDF*Tsim) – Tdisksim – Tioemu

slide-15
SLIDE 15

Network I/O Scaling

Real Configuration Perceived Configuration

Invariant: Perceived network characteristics (bandwidths and latencies) must be preserved 10 Mb/s, 20ms RTT

Real Configuration Perceived Configuration

Original system (TDF 1) 10 Mb/s, 20 ms 10 Mb/s, 20 ms Time Dilation (TDF 5) 10 Mb/s, 20 ms 50 Mb/s, 4 ms DieCast (TDF 5) 2 Mb/s, 100 ms 10 Mb/s, 20 ms

June 7, 2008 NSDI 2008 | DieCast 15

Network emulation: ModelNet, Dummynet

slide-16
SLIDE 16

Recap

  • Multiplex VMs for efficiency
  • Time dilation to scale resources
  • Disk I/O scaling
  • Network I/O scaling
  • Network I/O scaling

At this point, the scaled system almost looks like original system!

June 7, 2008 NSDI 2008 | DieCast 16

  • Fidelity
  • Reproducibility
  • Efficiency
slide-17
SLIDE 17

Validation

  • How well does DieCast scaled performance

match the original system?

– Application specific metrics

  • Can a smaller system be configured to match

the resources of a larger system? the resources of a larger system?

– Resource utilization profiles

  • Applications: RUBiS, BitTorrent, Isaac
  • RUBiS

– eBay like e-Commerce service – Ships with workload generator

June 7, 2008 NSDI 2008 | DieCast 17

slide-18
SLIDE 18

RUBiS: Topology

4 DB 8 Web Servers 4 DB 8 Web Servers

Wide Area Link

June 7, 2008 NSDI 2008 | DieCast 18

16 Workload Generators Wide Area Link

slide-19
SLIDE 19

Experimental Setup

Baseline configuration: 40 physical machines DieCast scaled Configuration: 4 physical machines, 10 VMs each

  • Xen 3.1, fully virtualized VMs
  • Debian Etch, Linux 2.6.17, 256 MB RAM
  • DiskSim emulating Seagate ST3217
  • Network emulation using ModelNet

June 7, 2008 NSDI 2008 | DieCast 19

slide-20
SLIDE 20

RUBiS: Throughput

June 7, 2008 NSDI 2008 | DieCast 20

slide-21
SLIDE 21

RUBiS: Response Time

June 7, 2008 NSDI 2008 | DieCast 21

slide-22
SLIDE 22

RUBiS: Resource Usage

CPU

June 7, 2008 NSDI 2008 | DieCast 22

Memory Network

slide-23
SLIDE 23

Validation Recap

  • Evaluated

– RUBiS – BitTorrent – Isaac Many more details in the paper – Isaac

  • Demonstrated

– Match application specific metrics – Preserve resource utilization profile

June 7, 2008 NSDI 2008 | DieCast 23

slide-24
SLIDE 24

Case study: Panasas

  • Panasas builds scalable storage systems

for high performance computing

– http://www.panasas.com

  • Caters to variety of clients
  • Caters to variety of clients
  • Difficult or even impossible to replicate

deployment environment of all clients

  • Limited resources for testing

June 7, 2008 NSDI 2008 | DieCast 24

slide-25
SLIDE 25

DieCast in Panasas

  • Custom OS
  • Integrated hw/sw offering
  • Not runnable on Xen
  • Porting DieCast to non-

virtualized environments Clients

June 7, 2008 NSDI 2008 | DieCast 25

Clients run Linux, can be virtualized Dummynet for network scaling Storage cluster

slide-26
SLIDE 26

Panasas: Evaluation Summary

Baseline DieCast scaled: 1 PM, 10 VMs

  • Validation

– Two benchmarks from standard test suite: IOZone, MPI-IO; varying block sizes – Match performance metrics

June 7, 2008 NSDI 2008 | DieCast 26

Scaling: Used 100 machines to scale to 1000 clients

slide-27
SLIDE 27

Limitations

  • Memory scaling
  • Long running workloads
  • Specialized hardware appliances
  • Fine grained timing

June 7, 2008 NSDI 2008 | DieCast 27

slide-28
SLIDE 28

Summary

  • DieCast: scalable testing

– Fidelity, Reproducibility, Efficiency

  • Contributions

– Support for unmodified operating systems – Support for unmodified operating systems – Implement disk I/O scaling (DiskSim integration) – CPU scheduler enhancements for time dilation – Comprehensive evaluation, including a commercial storage system

June 7, 2008 NSDI 2008 | DieCast 28

slide-29
SLIDE 29

Thanks!

Questions? dgupta@cs.ucsd.edu
