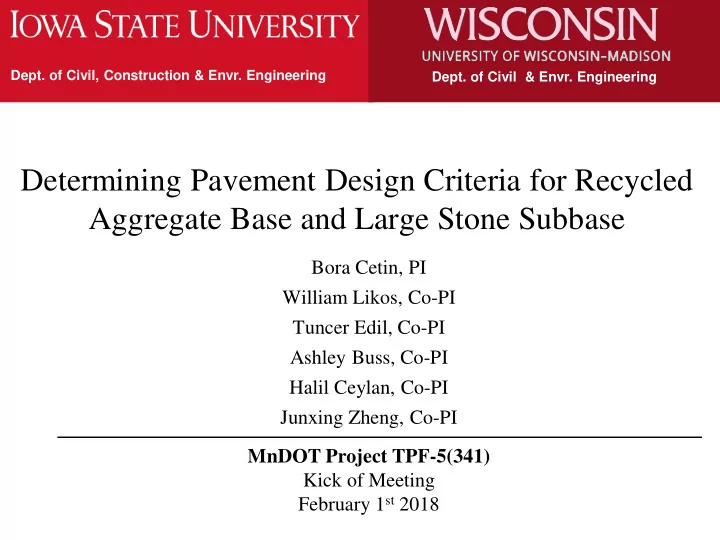

Dept. of Civil, Construction & Envr. Engineering Dept. of Civil & Envr. Engineering Determining Pavement Design Criteria for Recycled Aggregate Base and Large Stone Subbase Bora Cetin, PI William Likos, Co-PI Tuncer Edil, Co-PI

slide-1
SLIDE 1
  • Dept. of Civil, Construction & Envr. Engineering
  • Dept. of Civil & Envr. Engineering

Determining Pavement Design Criteria for Recycled Aggregate Base and Large Stone Subbase

Bora Cetin, PI William Likos, Co-PI Tuncer Edil, Co-PI Ashley Buss, Co-PI Halil Ceylan, Co-PI Junxing Zheng, Co-PI MnDOT Project TPF-5(341) Kick of Meeting February 1st 2018

slide-2
SLIDE 2

Slide 2 Iowa State University University of Wisconsin-Madison

2

RESEARCH TEAM

Iowa State University

  • Principal Investigator – Bora Cetin
  • Assistant Professor – Department of Civil, Construction & Environmental

Engineering

  • Co-Principal Investigator – Ashley Buss
  • Assistant Professor – Department of Civil & Environmental Engineering
  • Co-Principal Investigator – Halil Ceylan
  • Professor– Department of Civil, Construction & Environmental Engineering
  • Co-Principal Investigator – Junxing Zheng
  • Assistant Professor– Department of Civil, Construction & Environmental

Engineering

  • Research Personnel – Haluk Sinan Coban
  • PhD Student – Department of Civil, Construction & Environmental Engineering

University of Wisconsin-Madison

  • Co-Principal Investigator – William Likos
  • Professor – Department of Civil and Environmental Engineering
  • Co-Principal Investigator – Tuncer B. Edil
  • Professor Emeritus – Department of Civil and Environmental Engineering
slide-3
SLIDE 3

Slide 3 Iowa State University University of Wisconsin-Madison

3

  • MnDOT
  • Caltrans
  • MDOT
  • Illinois DOT
  • LRRB
  • MoDOT
  • WiscDOT

NRRA Members (Agency Partners)

slide-4
SLIDE 4

Slide 4 Iowa State University University of Wisconsin-Madison

4

  • Aggregate and Ready Mix

(Association of MN)

  • APA
  • Braun Intertec
  • CPAM
  • Diamond Surface Inc
  • Flint Hills Resources
  • IGGA
  • MIDSTATE

(Reclamation and Trucking)

  • MN Asphalt Pavement Association
  • Minnesota State University
  • NCP Tech Center
  • Road Scanners
  • University of Minnesota-Duluth
  • University of New Hampshire
  • MATHY
  • 3M
  • Paviasystems

NRRA Members (Industry Partners)

  • Michigan Tech
  • University of Minnesota
  • NCAT
  • GSE Environmental
  • HELIX
  • Ingios
  • WSB
  • Cargill
  • PITT Swanson Engineering
  • INFRASENSE
  • Collaborative Aggregates LLC
  • American Engineering Testing, Inc.
  • CTIS
  • ARRA
  • 1st
  • O-BASF
  • North Dakota State University
  • All States Materials Group
slide-5
SLIDE 5

Slide 5 Iowa State University University of Wisconsin-Madison

5

  • Problem Statement
  • Background
  • Objectives
  • Research Plan
  • Products and Deliverables
  • Agency Assistance

OUTLINE

slide-6
SLIDE 6

Slide 6 Iowa State University University of Wisconsin-Madison

6

PROBLEM STATEMENT

200 400 600 800 1000 1200 1400 1600 2006 2011 Annual Aggregate Production x 106 Years

slide-7
SLIDE 7

Slide 7 Iowa State University University of Wisconsin-Madison

7

PROBLEM STATEMENT

slide-8
SLIDE 8

Slide 8 Iowa State University University of Wisconsin-Madison

8

PROBLEM STATEMENT

slide-9
SLIDE 9

Slide 9 Iowa State University University of Wisconsin-Madison

9

PROBLEM STATEMENT

slide-10
SLIDE 10

Slide 10 Iowa State University University of Wisconsin-Madison

10

PROBLEM STATEMENT

  • 2 billion tons/year aggregate produced (FWHA 2004)
  • 200 million tons/year of RCA and 90 million tons/year
  • f RAP generated (FHWA 2011)

http://www.gratechcompanyltd.com/aggregate.htm

slide-11
SLIDE 11

Slide 11 Iowa State University University of Wisconsin-Madison

11

PROBLEM STATEMENT

RAP RCA From Edil et al. (2012) Annual Quantity Used

slide-12
SLIDE 12

Slide 12 Iowa State University University of Wisconsin-Madison

12

  • Limited information about the performance of RCA and RAP

built on LSSB.

  • Different mixtures of RCA-RAP
  • Freeze-thaw durability
  • Frost heave-thaw weakening settlement
  • Stiffness
  • No pavement design guideline for pavements built with RCA,

RAP on LSSB.

  • Verify available methods to predict stiffness and strength of

these materials with simple index properties.

PROBLEMS WITH USE OF RECYCLED BASE MATERIAL AND LARGE STONE SUBBASE

slide-13
SLIDE 13

Slide 13 Iowa State University University of Wisconsin-Madison

13

OBJECTIVES

1st Goal – Determine the field and laboratory performance

  • FWD, LWD, DCP, Intelligent compaction (IC) data
  • Unsaturated characteristics, index properties

2nd Goal – Develop a method to estimate the stiffness and permeability

  • Percent crushing of recycled aggregates and LSSB
  • Sphericity, angularity, and surface texture of aggregates
  • Gravel, sand, fines content, gravel-to-sand ratio, D10, D30, D50, D60

3rd Goal – Prepare a pavement design and construction specification

  • Performance
  • Cost benefits
  • Life cycle cost
slide-14
SLIDE 14

Slide 14 Iowa State University University of Wisconsin-Madison

14

Overview of Research Plan

  • Task 1 – Literature Review and Recommendations
  • Task 2 – Tech Transfer “State of Practice”
  • Task 3 – Construction Monitoring and Reporting
  • Task 4 – Laboratory Testing
  • Task 5 – Performance Monitoring and Reporting and Climatic

Effects

  • Task 6 – Instrumentation
  • Task 7 – Pavement Design Criteria
  • Task 8&9 – Draft/Final Report
slide-15
SLIDE 15

Slide 15 Iowa State University University of Wisconsin-Madison

15

Task 1

Task 1 – Literature Review and Recommendations Conduct a comprehensive literature review on:

  • Current recycling practices of State DOTs from different

climatic regions

  • Previous laboratory and field investigations on the use of

RCA, RAP, and LSSB

  • In depth review on a recently published FHWA report (Edil

2012)

slide-16
SLIDE 16

Slide 16 Iowa State University University of Wisconsin-Madison

16

Task 2

Task 2 – Tech Transfer “State of Practice” Prepare a report:

  • To guide local county engineers and state DOTs on how to

apply recommended methods and designs to built highway pavement foundation systems with recycled materials and LSSB.

  • Specific information will be provided about the mixtures of

RCA-RAP-VA, RCA-VA, and LSSB built with different thickness and geosynthetics.

  • CP Tech Center will assist to the research team
slide-17
SLIDE 17

Slide 17 Iowa State University University of Wisconsin-Madison

17

Task 3

Task 3 – Construction Monitoring and Reporting

slide-18
SLIDE 18

Slide 18 Iowa State University University of Wisconsin-Madison

18

Task 4

Task 4 – Laboratory Testing

slide-19
SLIDE 19

Slide 19 Iowa State University University of Wisconsin-Madison

19

Task 4

Normalized resilient modulus of recycled concrete aggregate and recycled asphalt pavement at 5-10 F-T cycles (a) vs D30, (b) vs G/S ratio (from Rosa et al. 2017). Task 4 – Example of Freeze-Thaw Behavior of Recycled Materials

0.5 0.6 0.7 0.8 0.9 1 1 2 3 4 5 6 7

Reycled Asphalt Pavement Recycled Concrete Aggregates

D30 (mm) a) MrN/Mr0 (at 5-10 F-T cycles) 0.5 0.6 0.7 0.8 0.9 1 0.5 1 1.5 2 2.5 3 3.5 4

Recycled Asphalt Pavement Recycled Concrete Aggregates

G/S Ratio b) MrN/Mr0 (at 5-10 F-T cycles)

slide-20
SLIDE 20

Slide 20 Iowa State University University of Wisconsin-Madison

20

Task 5 & 6

Task 5 & 6 – Performance Monitoring and Reporting, and Climatic Effects

Analyze the following data that will be collecting throughout the project

  • FWD, frost heave-thaw settlement, IRI, rutting, surface survey.
  • Temperature, moisture, matric suction, strain.
  • Determine freeze-thaw cycle numbers and its impact on pavement

performance

  • Determine impact of frost heave and thaw settlements on pavement

performance

  • Predict frost/thaw depth
slide-21
SLIDE 21

Slide 21 Iowa State University University of Wisconsin-Madison

21

Task 5 & 6

FWD elastic modulus of RCA base layer during 7 years (Data collected from MnDOT 2008 project). Task 5 & 6 – FWD variation over long period of time

slide-22
SLIDE 22

Slide 22 Iowa State University University of Wisconsin-Madison

22

Task 5 & 6

5 10 15 20 1 2 3 4 6 in 9 in 12 in Total Number of Freeze-Thaw Cycles Years a) RCA - Cell 16 50 100 150 200 250 300 5 10 15 20

RCA RCA-VA Mixtures RAP Class 5

FWD Modulus (MPa) Number of Freeze Thaw Cycles b) Depth 6 in

a) Cumulative number of F-T cycles since 2008 in RCA base layer and b) field elastic modulus of RCA, RCA-VA blend, RAP, and Class 5 aggregate field test sections with F-T cycles (Edil et al. 2017). Task 5 & 6 – FWD variation with freeze-thaw cycles

slide-23
SLIDE 23

Slide 23 Iowa State University University of Wisconsin-Madison

23

Task 5 & 6

Task 5 & 6 – Frost depth prediction over the years

Li et al. (2016)

slide-24
SLIDE 24

Slide 24 Iowa State University University of Wisconsin-Madison

24

Task 7

Task 7 – Determine Pavement Design Criteria Prepare a report that:

  • Summarizes the findings from the laboratory and field tests
  • Provides detailed review on pavement design inputs in terms
  • f benefits and costs
  • Analyzes the cost effectiveness of using recycled materials and

LSSB

  • Shows correlations between the index properties and

stiffness/permeability of geomaterials tested

  • Provides the results of sustainability assessment analyses
slide-25
SLIDE 25

Slide 25 Iowa State University University of Wisconsin-Madison

25

Task 8&9

Task 8&9 – Draft/Final Report

slide-26
SLIDE 26

Slide 26 Iowa State University University of Wisconsin-Madison

26

Schedule

TASKS

MONTHS

1 2 3 4 5 6 7 8 9 1 1 1 1 2 1 3 1 4 1 5 1 6 1 7 1 8 1 9 2 2 1 2 2 2 3 2 4 2 5 2 6 2 7 2 8 2 9 3 3 1 3 2 3 3

Task 1 Task 2 Task 3 Task 4 Task 5 Task 6 Task 7 Task 8 Task 9

slide-27
SLIDE 27

Slide 27 Iowa State University University of Wisconsin-Madison

27

PRODUCTS & DELIVERABLES

  • Quarterly progress reports as required
  • Draft final report
  • Final report
  • Technology transfer brief
  • A copy of the executive final presentation
slide-28
SLIDE 28

Slide 28 Iowa State University University of Wisconsin-Madison

28

AGENCY ASSISTANCE

  • Access to data collected during construction
  • Access to data being collected throughout the project
  • Assistance with installation of matric suction sensors
slide-29
SLIDE 29

Slide 29 Iowa State University University of Wisconsin-Madison

29

Thank You!

QUESTIONS??
