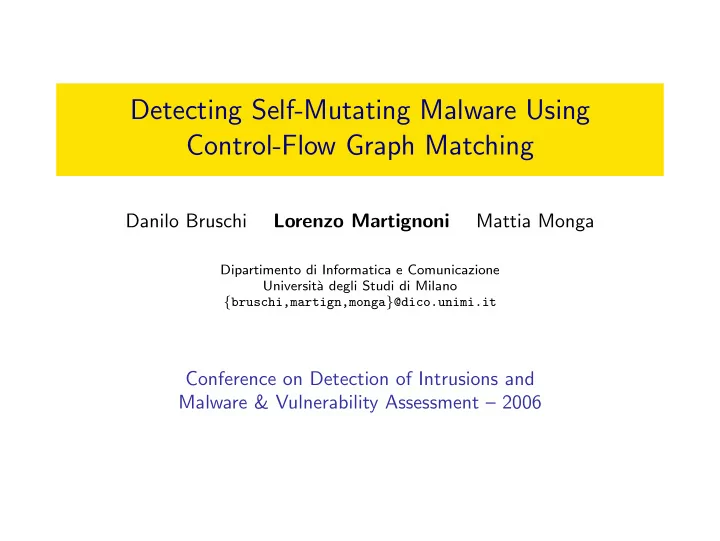

Detecting Self-Mutating Malware Using Control-Flow Graph Matching

Danilo Bruschi Lorenzo Martignoni Mattia Monga

Dipartimento di Informatica e Comunicazione Universit` a degli Studi di Milano {bruschi,martign,monga}@dico.unimi.it

Conference on Detection of Intrusions and Malware & Vulnerability Assessment – 2006

Outline

Code Obfuscation and Self-mutation Strategies adopted to achieve self-mutation and code insertion Challenges for the detection Unveiling malicious code Code normalization Code comparison Prototype implementation Experimental results Summary and future works

• D. Bruschi, L. Martignoni, M. Monga

Detecting Self-Mutating Malware Using Control-Flow Graph Matching DIMVA2006 2

Code obfuscation and self-mutation

◮ Code obfuscation is a semantic-preserving program transformation

that can be used to make a program harder to understand

◮ Self-mutation is a particular form of code obfuscation, which is

performed automatically by the code on itself

◮ Self-mutation is adopted by malicious code to defeat detectors ◮ Self-mutation is applied during malicious code replication to generate

completely new different instances

• D. Bruschi, L. Martignoni, M. Monga

Detecting Self-Mutating Malware Using Control-Flow Graph Matching DIMVA2006 3

Self-mutation

Common transformations adopted to achieve self-mutation:

◮ Substitution of instructions ◮ Permutation of instructions ◮ Garbage insertion ◮ Substitution of variables ◮ Control flow alteration

Signature matching becomes useless

• D. Bruschi, L. Martignoni, M. Monga

Detecting Self-Mutating Malware Using Control-Flow Graph Matching DIMVA2006 4

Self-mutation

Common transformations adopted to achieve self-mutation:

◮ Substitution of instructions ◮ Permutation of instructions ◮ Garbage insertion ◮ Substitution of variables ◮ Control flow alteration

Signature matching becomes useless

• D. Bruschi, L. Martignoni, M. Monga

Detecting Self-Mutating Malware Using Control-Flow Graph Matching DIMVA2006 4

Code insertion

Common techniques adopted for malicious code insertion:

◮ Cavity insertion ◮ Jump tables manipulation ◮ Data segment expansion

The malicious code is seamless integrated into the host code

• D. Bruschi, L. Martignoni, M. Monga

Detecting Self-Mutating Malware Using Control-Flow Graph Matching DIMVA2006 5

Code insertion

Common techniques adopted for malicious code insertion:

◮ Cavity insertion ◮ Jump tables manipulation ◮ Data segment expansion

The malicious code is seamless integrated into the host code

• D. Bruschi, L. Martignoni, M. Monga

Detecting Self-Mutating Malware Using Control-Flow Graph Matching DIMVA2006 5

Challenges for the detection

Conventional detection techniques are likely to fail:

◮ Pattern matching fails since fragmentation and mutation make hard to

find signature patterns

◮ Emulation would require a complete tracing of analyzed programs as

the entry point of the guest is not known; moreover every execution should be traced until the malicious payload is not executed

◮ Heuristics based on ad-hoc predictable and observable alterations of

executables become useless when insertion is performed producing almost no alteration of any of the static properties of the original binary Theoretical studies (Chess & White) demonstrated that perfect detection

• f a self-mutating malware is an undecidable problem
• D. Bruschi, L. Martignoni, M. Monga

Detecting Self-Mutating Malware Using Control-Flow Graph Matching DIMVA2006 6

Challenges for the detection

Conventional detection techniques are likely to fail:

◮ Pattern matching fails since fragmentation and mutation make hard to

find signature patterns

◮ Emulation would require a complete tracing of analyzed programs as

the entry point of the guest is not known; moreover every execution should be traced until the malicious payload is not executed

◮ Heuristics based on ad-hoc predictable and observable alterations of

executables become useless when insertion is performed producing almost no alteration of any of the static properties of the original binary Theoretical studies (Chess & White) demonstrated that perfect detection

• f a self-mutating malware is an undecidable problem
• D. Bruschi, L. Martignoni, M. Monga

Detecting Self-Mutating Malware Using Control-Flow Graph Matching DIMVA2006 6

Devised strategy

Code interpretation and normalization

◮ Given a piece of code P which represents (or

contains) an instance of a self-mutating malware we automatically revert all the mutations performed on it

◮ P is consequently reduced into a form, PN,

which is pretty close to its archetype M and which can be recognized more easily

Code comparison

◮ Detection is performed by looking for known

abstract patterns into the transformed program PN

• D. Bruschi, L. Martignoni, M. Monga

Detecting Self-Mutating Malware Using Control-Flow Graph Matching DIMVA2006 7

Code normalization

Code normalization

A program is transformed into a canonical form which is simpler in term

• f structure or syntax while preserving the original semantic and that is

more suitable for comparison

◮ Analysis of the transformations adopted to implement self-mutation

and experimental observations highlighted some weakness:

◮ Transformations led to the generation of useless computations ◮ Most transformations are invertible

◮ Different instances of the same malware can be viewed as

under-optimized version of the archetype; the archetype is consequently the normal form of the malicious code

◮ Code normalization can be performed adopting some of the well known

techniques used by compiler to produce compact and efficient code

• D. Bruschi, L. Martignoni, M. Monga

Detecting Self-Mutating Malware Using Control-Flow Graph Matching DIMVA2006 8

Code normalization

Some details

◮ Executable code is disassembled and translated into an intermediate

form to explicit the semantic of each machine instruction

◮ Control-flow analysis and data-flow analysis are performed on the code

to collect information that will be used by the next step

◮ Code transformations aim at:

◮ Identify all the instructions that do not contribute to the computation

(dead and unreachable code elimination)

◮ Rewrite and simplify algebraic expressions in order to statically evaluate

most of their sub-expressions (algebraic simplification)

◮ Propagate values computed by intermediate instructions to the

appropriate use sites (expressions propagation)

◮ Analyze and try to evaluate control-flow transition conditions to identify

tautologies and to rearrange the control to reduce the number of flow transitions (control-flow normalization)

◮ Analyze indirect control flow transitions to discover the smallest set of

valid targets and the paths originating (indirections resolution)

• D. Bruschi, L. Martignoni, M. Monga

Detecting Self-Mutating Malware Using Control-Flow Graph Matching DIMVA2006 9

Code comparison

Given the normalized program we need to answer the question: “is the program PN hosting the malware M?”

◮ We cannot expect to find a perfect matching of M in PN even if most

• f the transformations have been reverted

◮ The code comparator must be able to cope with some impurities left

by normalization (we observed that these impurities are always local to basic blocks)

◮ The normalized control-flow of the malware is constant

• D. Bruschi, L. Martignoni, M. Monga

Detecting Self-Mutating Malware Using Control-Flow Graph Matching DIMVA2006 10

Code comparison

Some details

◮ PN is represented through its

interprocedural-control flow graph (ICFG) and M through its control-flow graph

◮ The malicious code detection can be

formulated as a subgraph isomorphism decision problem: “given two graphs G1 and G2, is G1 isomorphic to a subgraph of G2?” (G1 is M and G2 is PN)

◮ The graphs are augmented with labels to

achieve the necessary trade-off between precision and abstraction (to handle possible impurities)

◮ Instructions and flow transitions are

partitioned into classes; labels describe the set of classes in which instructions of a basic block can be grouped

Instruction classes Integer arithmetic Float arithmetic Logic Comparison Function call . . .

• D. Bruschi, L. Martignoni, M. Monga

Detecting Self-Mutating Malware Using Control-Flow Graph Matching DIMVA2006 11

Code comparison

Some details

◮ PN is represented through its

interprocedural-control flow graph (ICFG) and M through its control-flow graph

◮ The malicious code detection can be

formulated as a subgraph isomorphism decision problem: “given two graphs G1 and G2, is G1 isomorphic to a subgraph of G2?” (G1 is M and G2 is PN)

◮ The graphs are augmented with labels to

achieve the necessary trade-off between precision and abstraction (to handle possible impurities)

◮ Instructions and flow transitions are

partitioned into classes; labels describe the set of classes in which instructions of a basic block can be grouped M PN

Instruction classes Integer arithmetic Float arithmetic Logic Comparison Function call . . .

• D. Bruschi, L. Martignoni, M. Monga

Detecting Self-Mutating Malware Using Control-Flow Graph Matching DIMVA2006 11

Code comparison

Some details

◮ PN is represented through its

interprocedural-control flow graph (ICFG) and M through its control-flow graph

◮ The malicious code detection can be

formulated as a subgraph isomorphism decision problem: “given two graphs G1 and G2, is G1 isomorphic to a subgraph of G2?” (G1 is M and G2 is PN)

◮ The graphs are augmented with labels to

achieve the necessary trade-off between precision and abstraction (to handle possible impurities)

◮ Instructions and flow transitions are

partitioned into classes; labels describe the set of classes in which instructions of a basic block can be grouped M PN

Instruction classes Integer arithmetic Float arithmetic Logic Comparison Function call . . .

• D. Bruschi, L. Martignoni, M. Monga

Detecting Self-Mutating Malware Using Control-Flow Graph Matching DIMVA2006 11

Code comparison

Some details

◮ PN is represented through its

interprocedural-control flow graph (ICFG) and M through its control-flow graph

◮ The malicious code detection can be

formulated as a subgraph isomorphism decision problem: “given two graphs G1 and G2, is G1 isomorphic to a subgraph of G2?” (G1 is M and G2 is PN)

◮ The graphs are augmented with labels to

achieve the necessary trade-off between precision and abstraction (to handle possible impurities)

◮ Instructions and flow transitions are

partitioned into classes; labels describe the set of classes in which instructions of a basic block can be grouped M PN

Instruction classes Integer arithmetic Float arithmetic Logic Comparison Function call . . .

• D. Bruschi, L. Martignoni, M. Monga

Detecting Self-Mutating Malware Using Control-Flow Graph Matching DIMVA2006 11

Prototype implementation

◮ The code normalizer is built on top of Boomerang, an open-source

decompiler:

◮ Translate machine code into the intermediate form through a recursive

disassembler

◮ Performs data-flow analysis on the intermediate form ◮ Performs the normalization steps previously described (some of the

transformation have been extended to suit our needs)

◮ Able to solve know patterns of indirection

◮ The prototype receives an executable files and emits its normalized

ICFGPN

◮ The ICFGPN of the normalized program and the CFGM of the searched

malware are then fed to the VFlib2 library which is used to identify possible matches

◮ In case of match the comparison routine returns the set of ICFGPN

nodes that match the ones of the CFGM

• D. Bruschi, L. Martignoni, M. Monga

Detecting Self-Mutating Malware Using Control-Flow Graph Matching DIMVA2006 12

Experimental results

Two independent tests were performed:

• 1. Evaluation of code normalization effectiveness:

◮ Several instances of the same self-mutating malicious code (the virus

MetaPHOR) were collected and normalized

◮ The normalized control-flow graphs were all isomorphic, they were not

before

• 2. Evaluation of code comparison precision:

◮ Different executables were collected and their ICFGs were built ◮ Each procedure CFG was used to simulate malicious code and searched

inside the ICFGs

◮ The results of the subgraph isomorphism detection procedure were

compared with the results obtained through code fingerprinting

◮ A random set of alleged false-positives and false-negatives were selected

and inspected by hand

• D. Bruschi, L. Martignoni, M. Monga

Detecting Self-Mutating Malware Using Control-Flow Graph Matching DIMVA2006 13

Experimental results

Some numbers Type # Executables 572 Functions (# nodes > 5) 25145 Unique functions (# nodes > 5) 15429 Positive results # % Equivalent code 35 70 Equivalent code (negligible differences) 9 18 Different code (small number of nodes) 3 6 Unknown 1 2 Bug 2 4 Negative results # % Different code 50 100 # nodes Average load Worst detection (∼) time (secs.) time (secs.) 100 0.00 0.00 1000 0.09 0.00 5000 1.40 0.05 10000 5.15 0.14 15000 11.50 0.32 20000 28.38 0.72 25000 40.07 0.95 50000 215.10 5.85

• D. Bruschi, L. Martignoni, M. Monga

Detecting Self-Mutating Malware Using Control-Flow Graph Matching DIMVA2006 14

Summary

◮ We proposed a general strategy, based on static analysis, that can be

used to pragmatically fight malicious codes that adopt self-mutation to circumvent detectors

◮ We developed a prototype tool and used it to show that a malware

that suffers a cycle of mutations in most cases can be brought back to a canonical shape that is shared among all instances

◮ We showed that augmented control-flow graphs are well suited to

describe a peculiar piece of code and that reliable code identification can be formulated as a subgraph isomorphism decision problem

◮ Although the subgraph isomorphism is a NP-complete problem, our

particular instance seems to be tractable (the graphs we are dealing with are very sparse)

• D. Bruschi, L. Martignoni, M. Monga

Detecting Self-Mutating Malware Using Control-Flow Graph Matching DIMVA2006 15

Future works

◮ Extend our prototype to perform normalization on real world

executables and increase the effectiveness of normalization by extending the quality of the analysis performed

◮ Evaluate algorithms for partial subgraph isomorphism matching and

the benefits they could give in our context

◮ Perform more exhaustive experiments using new malicious code ◮ Investigate attacks and countermeasures to defeat static analysis

• D. Bruschi, L. Martignoni, M. Monga

Detecting Self-Mutating Malware Using Control-Flow Graph Matching DIMVA2006 16

Thank you!

• D. Bruschi, L. Martignoni, M. Monga

Detecting Self-Mutating Malware Using Control-Flow Graph Matching DIMVA2006 17
