Objects First With Java A Practical Introduction Using BlueJ Designing classes How to write classes in a way that they are easily understandable, maintainable, and reusable 2.0 Main concepts to be covered Responsibility-driven design

slide-1
SLIDE 1

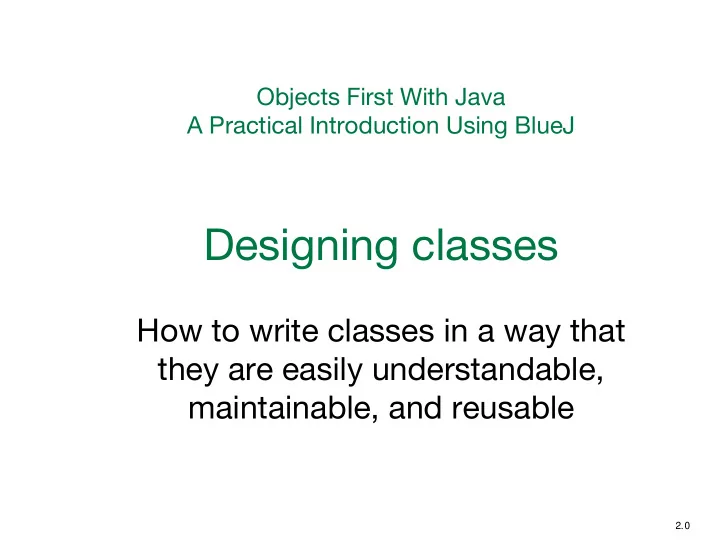

Objects First With Java A Practical Introduction Using BlueJ

Designing classes

How to write classes in a way that they are easily understandable, maintainable, and reusable

2.0

slide-2
SLIDE 2

Objects First with Java - A Practical Introduction using BlueJ, David J. Barnes, Michael Kölling; extensions by HJB&TN for TUM-CSE, winter 2010/2011

2

Main concepts to be covered

  • Responsibility-driven design
  • Coupling
  • Cohesion
  • Refactoring
slide-3
SLIDE 3

Objects First with Java - A Practical Introduction using BlueJ, David J. Barnes, Michael Kölling; extensions by HJB&TN for TUM-CSE, winter 2010/2011

3

Quality of a class

  • What are well designed classes, what are

badly designed ones?

  • What are the principles we should follow?
  • Typically, a poor class design can be done

faster – which often makes it more attractive from the short term point of view.

  • However, in the long term, things look

completely different!

slide-4
SLIDE 4

Objects First with Java - A Practical Introduction using BlueJ, David J. Barnes, Michael Kölling; extensions by HJB&TN for TUM-CSE, winter 2010/2011

4

Software changes

  • Software is not like a novel that is written
  • nce and then remains unchanged.
  • Software is extended, corrected,

maintained, ported, adapted, re- engineered, …

  • The work is done by different people over

time (often decades).

  • Hence: Functionality is only part of the job

– maintainability counts, too!

slide-5
SLIDE 5

Objects First with Java - A Practical Introduction using BlueJ, David J. Barnes, Michael Kölling; extensions by HJB&TN for TUM-CSE, winter 2010/2011

5

Change or die

  • There are only two options for

software:

– Either it is continuously maintained – or it dies.

  • Software that cannot be maintained

(easily) will be thrown away.

slide-6
SLIDE 6

Objects First with Java - A Practical Introduction using BlueJ, David J. Barnes, Michael Kölling; extensions by HJB&TN for TUM-CSE, winter 2010/2011

6

Example (BlueJ): World of Zuul

slide-7
SLIDE 7

Objects First with Java - A Practical Introduction using BlueJ, David J. Barnes, Michael Kölling; extensions by HJB&TN for TUM-CSE, winter 2010/2011

7

World of Zuul

  • An early adventure game form the early 1970s –

finding your way through a complex cave system.

  • Very basic structure: 5 classes

– CommandWords: all valid commands (array of strings) – Parser: reads lines of input and interprets them as commands; creates objects of class Command – Command: a command entered by the user – Room: a location (rooms have exits leading to other rooms) – Game: main class, starts the games and then enters a loop to read and execute commands

  • Any other ideas for the game design?
  • A very nice example for stepwise software design.
slide-8
SLIDE 8

Objects First with Java - A Practical Introduction using BlueJ, David J. Barnes, Michael Kölling; extensions by HJB&TN for TUM-CSE, winter 2010/2011

8

Code quality

Two important concepts for quality of code:

  • Coupling
  • Cohesion
slide-9
SLIDE 9

Objects First with Java - A Practical Introduction using BlueJ, David J. Barnes, Michael Kölling; extensions by HJB&TN for TUM-CSE, winter 2010/2011

9

Coupling

  • Coupling refers to links or relations

between separate units of a program.

– Remember: Applications are designed as sets

  • f cooperating classes that communicate via

well-defined interfaces.

  • If two classes depend closely on many

details of each other, we say they are tightly coupled.

  • We aim for loose coupling.
slide-10
SLIDE 10

Objects First with Java - A Practical Introduction using BlueJ, David J. Barnes, Michael Kölling; extensions by HJB&TN for TUM-CSE, winter 2010/2011

10

Loose coupling

Loose coupling makes it possible to:

  • understand one class without reading
  • thers;
  • change one class without affecting (i.e.

having to modify) others – identifying all possible side effects may be tedious;

  • thus: improve maintainability.

Encapsulation is one strategy to keep coupling loose.

slide-11
SLIDE 11

Objects First with Java - A Practical Introduction using BlueJ, David J. Barnes, Michael Kölling; extensions by HJB&TN for TUM-CSE, winter 2010/2011

11

Even worse: implicit coupling

Imagine the following scenario:

  • There is a printHelp method in Game which,

among other things, prints a fixed text containing all existing commands.

  • Later, you add a new command to your game.
  • This is an implicit coupling: the next time a player

needs help, the list won’t be complete any more.

  • Remedy: Don’t use a constant text, but let the list
  • f commands be generated by a method in

CommandWords – this class is responsible of the commands, anyway.

  • This will be called responsibility-driven design

later!

slide-12
SLIDE 12

Objects First with Java - A Practical Introduction using BlueJ, David J. Barnes, Michael Kölling; extensions by HJB&TN for TUM-CSE, winter 2010/2011

12

Encapsulation

  • Hide information.
  • Fields or methods that do not have to

be public should be kept private.

slide-13
SLIDE 13

Objects First with Java - A Practical Introduction using BlueJ, David J. Barnes, Michael Kölling; extensions by HJB&TN for TUM-CSE, winter 2010/2011

13

Cohesion

  • Cohesion refers to the number and

diversity of tasks that a single unit is responsible for.

  • If each unit is responsible for one single

task or logical entity, we say it has high cohesion.

  • Cohesion applies to classes and methods.
  • We aim for high cohesion – high cohesion

increases the chances of reusability in different contexts.

slide-14
SLIDE 14

Objects First with Java - A Practical Introduction using BlueJ, David J. Barnes, Michael Kölling; extensions by HJB&TN for TUM-CSE, winter 2010/2011

14

High cohesion

High cohesion makes it easier to:

  • understand what a class or method

does;

  • identify all relevant pieces in case of a

change;

  • briefly: to read the code;
  • use descriptive names;
  • reuse classes or methods.
slide-15
SLIDE 15

Objects First with Java - A Practical Introduction using BlueJ, David J. Barnes, Michael Kölling; extensions by HJB&TN for TUM-CSE, winter 2010/2011

15

Cohesion of methods

  • A method should be responsible for
  • ne and only one well-defined task.
  • Cohesive frequently also means short.
slide-16
SLIDE 16

Objects First with Java - A Practical Introduction using BlueJ, David J. Barnes, Michael Kölling; extensions by HJB&TN for TUM-CSE, winter 2010/2011

16

Cohesion of classes

  • Classes should represent one single, well-

defined entity.

  • What’s bad with non-cohesive classes?

– Extend World of Zuul: Let each room now contain an item with a description and a weight. – Realization: additional fields vs. new class Item. – What happens if later more than one item can be in one room??

slide-17
SLIDE 17

Objects First with Java - A Practical Introduction using BlueJ, David J. Barnes, Michael Kölling; extensions by HJB&TN for TUM-CSE, winter 2010/2011

17

Code duplication

Code duplication

  • means to have the same segment of code

more than once in one application;

  • is an indicator of bad cohesion and design;
  • makes maintenance much harder (change

all occurrences to avoid inconsistencies);

  • can lead to the introduction of errors during

maintenance. Finding code duplicates is one of challenges of code re-engineering.

slide-18
SLIDE 18

Objects First with Java - A Practical Introduction using BlueJ, David J. Barnes, Michael Kölling; extensions by HJB&TN for TUM-CSE, winter 2010/2011

18

Code duplication

An example:

  • Imagine in class Game two methods

LocateYourself and GotoRoom

  • Semantics?
  • LocateYourself:

– Some tests, and then print the current room.

  • GotoRoom:

– Realize the steps, and then print the current room.

  • How should these methods not be implemented?
  • Compare good and bad design, and discuss why!
slide-19
SLIDE 19

Objects First with Java - A Practical Introduction using BlueJ, David J. Barnes, Michael Kölling; extensions by HJB&TN for TUM-CSE, winter 2010/2011

19

Responsibility-driven design

  • Question: where should we add a new

method (where = in which class)?

  • Each class should be responsible for

manipulating its own data.

  • The class that owns the data should be

responsible for processing it.

  • RDD leads to low coupling.
  • RDD helps to locate functionality later

(“where was this or that defined?”).

slide-20
SLIDE 20

Objects First with Java - A Practical Introduction using BlueJ, David J. Barnes, Michael Kölling; extensions by HJB&TN for TUM-CSE, winter 2010/2011

20

Localizing change

  • One aim of reducing coupling and of

responsibility-driven design is to localize change.

  • When a change is needed, as few

classes as possible should be affected (side effects).

slide-21
SLIDE 21

Objects First with Java - A Practical Introduction using BlueJ, David J. Barnes, Michael Kölling; extensions by HJB&TN for TUM-CSE, winter 2010/2011

21

Thinking ahead

  • When designing a class, we try to think

what changes are likely to be made in the future.

  • We aim to make those changes easy.
  • Example:

– In our game, so far all output is done via System.out.println statements. – What should be changed, if we thought about placing response in a text field in a window??

slide-22
SLIDE 22

Objects First with Java - A Practical Introduction using BlueJ, David J. Barnes, Michael Kölling; extensions by HJB&TN for TUM-CSE, winter 2010/2011

22

Refactoring

  • When classes are maintained, often

code is added.

  • Classes and methods tend to become

longer.

  • Every now and then, classes and

methods should be refactored to maintain cohesion and low coupling.

slide-23
SLIDE 23

Objects First with Java - A Practical Introduction using BlueJ, David J. Barnes, Michael Kölling; extensions by HJB&TN for TUM-CSE, winter 2010/2011

23

Refactoring and testing

  • When refactoring code, separate the

refactoring from making other changes.

  • First do the refactoring only, without

changing the functionality.

  • Test before and after refactoring to ensure

that nothing was broken (automated tests++!!).

slide-24
SLIDE 24

Objects First with Java - A Practical Introduction using BlueJ, David J. Barnes, Michael Kölling; extensions by HJB&TN for TUM-CSE, winter 2010/2011

24

Design questions

Common questions:

  • How long should a class be?
  • How long should a method be?
  • Can not be answered in terms of lines
  • f code.
  • Can now be answered in terms of

cohesion and coupling.

slide-25
SLIDE 25

Objects First with Java - A Practical Introduction using BlueJ, David J. Barnes, Michael Kölling; extensions by HJB&TN for TUM-CSE, winter 2010/2011

25

Design guidelines

  • A method is too long if it does more

than one logical task.

  • A class is too complex if it represents

more than one logical entity.

  • Note: these are guidelines - they still

leave much open to the designer.

slide-26
SLIDE 26

Objects First with Java - A Practical Introduction using BlueJ, David J. Barnes, Michael Kölling; extensions by HJB&TN for TUM-CSE, winter 2010/2011

26

Review

  • Programs are continuously changed.
  • It is important to make this change

possible.

  • Quality of code requires much more

than just performing correct at one time.

  • Code must be understandable and

maintainable.

slide-27
SLIDE 27

Objects First with Java - A Practical Introduction using BlueJ, David J. Barnes, Michael Kölling; extensions by HJB&TN for TUM-CSE, winter 2010/2011

27

Review

  • Good quality code avoids duplication,

displays high cohesion, low coupling.

  • Coding style (commenting, naming,

layout, etc.) is also important.

  • There is a big difference in the

amount of work required to change poorly structured and well structured code.
