SLIDE 1

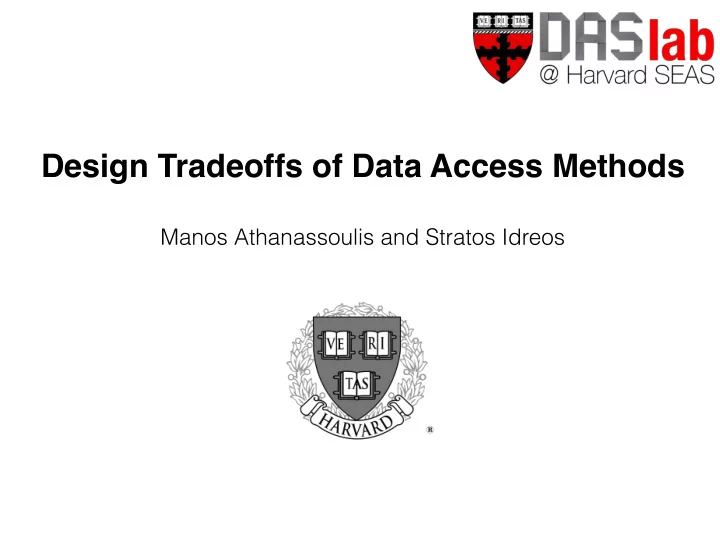

Design Tradeoffs of Data Access Methods
Manos Athanassoulis and Stratos Idreos
declarative interface
ask ‘’what’’ you want
db system
the system decides “how” to best store and access data
Design Tradeoffs of Data Access Methods Manos Athanassoulis and - - PowerPoint PPT Presentation
Design Tradeoffs of Data Access Methods Manos Athanassoulis and - - PowerPoint PPT Presentation
Design Tradeoffs of Data Access Methods Manos Athanassoulis and Stratos Idreos declarative interface ask what you want the system decides how to best store and access data db system applications api/sql
SLIDE 2
SLIDE 3
applications api/sql
cpu memory hierarchy data data data
algorithms/operators
data system kernel: a collection of access methods
SLIDE 4
layout structure navigation
an access method is a way to store and access data
SLIDE 5
layout structure navigation
e.g., array unordered scan
an access method is a way to store and access data
SLIDE 6
layout structure navigation
e.g., array unordered scan e.g., array
- rdered
binary search
an access method is a way to store and access data
SLIDE 7
TREES TRIES HASH TABLES ARRAYS LOG-STRUCTURED TREES MULTI-DIMENTIONAL COLUMNS COLUMN-GROUPS SLOTTED PAGES
SLIDE 8
isn’t this a solved problem?
SLIDE 9
isn’t this a solved problem? access method design is now as important as ever
SLIDE 10
data systems are nearly everywhere…
today
continuous need for new and tailored data systems
y dai
2 2.5
[IB
data grows
SLIDE 11
data systems are nearly everywhere…
today tomorrow
continuous need for new and tailored data systems
y dai
2 2.5
[IB
data grows
SLIDE 12
data systems are nearly everywhere…
today tomorrow
continuous need for new and tailored data systems
y dai
2 2.5
[IB
data grows
SLIDE 13
disk memory A B C D
SLIDE 14
disk memory A B C D A BC
row-store engine
- ption1
SLIDE 15
disk memory A B C D A
column- store engine
- ption2
A BC
row-store engine
- ption1
X X X
SLIDE 16
how many more new access methods to design?
SLIDE 17
how many more new access methods to design? it is not about radical new designs only! design, tuning and variations
SLIDE 18
say the workload (read/write ratio) shifts (e.g., due to app features): should we use a different data layout for base data - diff updates? should we use different indexing or no indexing?
SLIDE 19
say we buy new hardware X (flash/memory): should we change the size of b-tree nodes? should we change the merging strategy in our LSM-tree? say the workload (read/write ratio) shifts (e.g., due to app features): should we use a different data layout for base data - diff updates? should we use different indexing or no indexing?
SLIDE 20
say we buy new hardware X (flash/memory): should we change the size of b-tree nodes? should we change the merging strategy in our LSM-tree? say we want to improve response time: would it be beneficial if we would buy faster flash disks? would it be beneficial if we buy more memory? say the workload (read/write ratio) shifts (e.g., due to app features): should we use a different data layout for base data - diff updates? should we use different indexing or no indexing?
SLIDE 21
application requirements hardware budget energy profile performance
(hardware and requirements change continuously and rapidly)
conflicting goals moving target
SLIDE 22
move from design based on intuition & experience only to a more formal and systematic way to design systems
SLIDE 23
goals and structure of the tutorial
structure design space & tradeoffs highlight open problems towards easy to design methods
SLIDE 24
goals and structure of the tutorial
~30 min ~40 min
design space basic tradeoffs goals & vision
structure design space & tradeoffs highlight open problems towards easy to design methods
[slides available at daslab.seas.harvard.edu]
SLIDE 25
target audience = beginner to expert
no new designs but new connections & structure
SLIDE 26
NOT JUST SQL
+
- perating systems, no sql, sciences
SLIDE 27
hardware is a big drive of access method (re)design
(and it continuously evolves)
SLIDE 28
registers
- n chip cache
- n board cache
memory disk CPU
memory wall
cheaper faster
SRAM DRAM
~1ns ~10ns ~100ns
it is not just memory and disk we want to move as few data items as possible all the way up to the CPU
SLIDE 29
random access & page-based access
…
need to only read x… but have to read all of page 1
page1 page2 page3 data value x
SLIDE 30
what is the perfect access method?
SLIDE 31
what is the perfect access method?
no single answer; it depends
SLIDE 32
what is the perfect access method?
no single answer; it depends
what is the application read patterns write patterns reads/writes ratios hardware (CPU, memory, etc) SLAs
SLIDE 33
a perfect access method for reads (point queries)
- racle
x
find(x)
SLIDE 34
a perfect access method for reads (point queries)
- racle
x
find(x) reads updates memory
SLIDE 35
a perfect access method for reads (point queries)
- racle
x
find(x) reads updates memory
SLIDE 36
a perfect access method for reads (point queries)
- racle
x
find(x) reads updates memory
SLIDE 37
a perfect access method for reads (point queries)
- racle
x
find(x) reads updates memory
SLIDE 38
a perfect access method for reads (point queries)
binary search to find(x)
but with no memory overhead
sorted
SLIDE 39
a perfect access method for reads (point queries)
binary search to find(x) reads updates memory
but with no memory overhead
sorted
SLIDE 40
a perfect access method for reads (point queries)
binary search to find(x) reads updates memory
but with no memory overhead
sorted
SLIDE 41
a perfect access method for reads (point queries)
binary search to find(x) reads updates memory
but with no memory overhead
sorted
SLIDE 42
a perfect access method for reads (point queries)
binary search to find(x) reads updates memory
but with no memory overhead
sorted
SLIDE 43
a perfect access method for writes (point writes)
x
update(x)
x x
update log
SLIDE 44
a perfect access method for writes (point writes)
x
update(x) reads updates memory
x x
update log
SLIDE 45
a perfect access method for writes (point writes)
x
update(x) reads updates memory
x x
update log
SLIDE 46
a perfect access method for writes (point writes)
x
update(x) reads updates memory
x x
update log
SLIDE 47
a perfect access method for writes (point writes)
x
update(x) reads updates memory
x x
update log
SLIDE 48
it all starts with how we store data every bit matters
design space
SLIDE 49
basic tradeoffs
Reads Updates Memory
RUM conjecture, EDBT 2016
SLIDE 50
Read Update Memory
max min min minReads Updates Memory
SLIDE 51
Read Update Memory
max min min min read-op(mized max min min update & memory- p-mized
Reads Updates Memory
SLIDE 52
Logarithmic Design Fractional Cascading Log-structured Updates Sparse Indexing Differential Updates Partitioning Fractional Cascading
Read Update Memory
max min min minstudy basic access methods design components how they affect the RUM tradeoffs how are they combined in existing access methods
SLIDE 53
Logarithmic Design Fractional Cascading Log-structured Updates Sparse Indexing Differential Updates Partitioning Fractional Cascading
Read Update Memory
max min min minstudy basic access methods design components
Part 2
how they affect the RUM tradeoffs how are they combined in existing access methods
SLIDE 54
can we make it easy to design/tune access methods?
SLIDE 55
disk memory flash
…
1
easily utilize past concepts
SLIDE 56
2
do not miss out on cool ideas and concepts
# of citations 7 14 21 28 35 1996 1999 2002 2005 2008 2011 2014
- P. O’Neil, E. Cheng, D. Gawlick, E, O'Neil
The log-structured merge-tree (LSM-tree) Acta Informatica 33 (4): 351–385, 1996
SLIDE 57
2
do not miss out on cool ideas and concepts
# of citations 7 14 21 28 35 1996 1999 2002 2005 2008 2011 2014
- P. O’Neil, E. Cheng, D. Gawlick, E, O'Neil
The log-structured merge-tree (LSM-tree) Acta Informatica 33 (4): 351–385, 1996
Google publishes BigTable
SLIDE 58
move from design based on intuition & experience only to a more formal and systematic way to design systems
SLIDE 59
construct access methods
- ut of basic components
(and their tradeoffs) e.g., scan*, tree*, bloom filters, bitmaps, hash tables, etc.
SLIDE 60
INTERACTIVE DATA SYSTEM DESIGN/TUNING/TESTING
data system designer
SLIDE 61
possible opportunities
- nce we have a “complete” & navigable set of design modules
learn from: s/w engineering, modular dbs, compilers, goes all the way back to basic texts
SLIDE 62
possible opportunities
- nce we have a “complete” & navigable set of design modules
easy to design easy to change/adapt learn from: s/w engineering, modular dbs, compilers, goes all the way back to basic texts
SLIDE 63
possible opportunities
- nce we have a “complete” & navigable set of design modules
testing universal development platform
easy to design easy to change/adapt learn from: s/w engineering, modular dbs, compilers, goes all the way back to basic texts
SLIDE 64
possible opportunities
- nce we have a “complete” & navigable set of design modules
testing universal development platform
easy to design easy to change/adapt
discovery of new combinations
- f design options
learn from: s/w engineering, modular dbs, compilers, goes all the way back to basic texts
SLIDE 65
Part 2: observe how papers fill in gaps in the structure and existing open gaps
