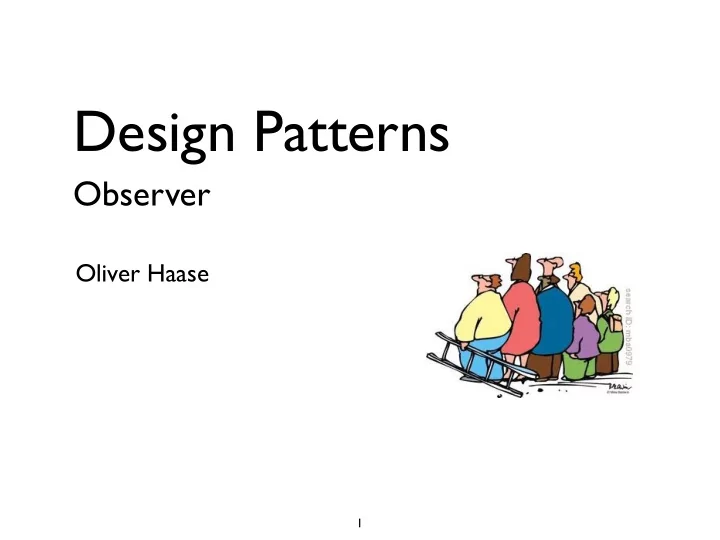

Oliver Haase

Design Patterns

Observer

1

Description

2

• Object based behavioral pattern
• Purpose: Define a one-to-many dependency between
• bjects so that when one object changes state, all its

dependents are notified and updated automatically.

• Also Known As: Publish-Subscribe

Model View 1 View 2 View 3 Observer Subject, Observable notify get update

Motivating Example

3

• keep consistency between decoupled objects
• often used in the context of the MVC architectural pattern,

more general, related to event listeners

• helps build a layered architecture

update() Observer concreteSubject.get() attach(Observer) detach(Observer) notify() Subject update() ConcreteObserver

• bservers

get() set(s) state ConcreteSubject concreteSubject state = s notify() return state for each o in observers

• .update()

General Structure

4

• knows its observers
• provides interface for attaching

and detaching observers

• concrete observed subject
• maintains state
• notifies observers about change of state

defines call-back operation to get notified uses concrete subject’s get

• perations to pull

updated state

Applicability

Use the Observer pattern when

• the abstraction has two aspects where one depends on the
• ther. Encapsulating these aspects in separate objects will

increase the chance to reuse them independently.

• the subject doesn't know in advance how many observer
• bjects it will have.
• the subject should be able to notify its observer objects

without knowing them.

5

Interactions

• ConcreteSubject notifies its observers whenever a change

to its internal state happens.

• After a ConcreteObserver gets notified, it may query the

subject state by using the get() method.

ConcreteObserver uses this information to change its own

internal state.

6

Pros & Cons

• Pros:
• Decoupling of subject and observer, each can be extended

and reused individually.

• Dynamic addition and removal of observers at runtime.
• Subject broadcasts notification automatically to all interested
• bjects, no matter how many or which kind of observers are

registered.

• Cons:
• May result in many notifications the observers are not

interested in

• Potentially difficult for the observers to figure out the

specific state change of the subject.

7

Push vs. Pull Model

• In its purest form, notification does not carry updated state

information → Pull Model

• Variant: notification contains updated state → Push Model

8

Pull Model Push Model signature of notify

• peration

number of

• peration calls

unnecessarily exchanged state information independent of subject’s state fields subject to modification if subject’s state fields are changed higher lower fewer more

Observer in Java

9

Call of notifyObservers without prior call of setChanged has no effect!

update(Observable, Object) <<interface>> Observer + addObserver(Observer) + deleteObserver(Observer) + notifyObservers() # setChanged() Observable update(Observable, Object) MyObserver

• bservers

getState() setState(s) state MyObservable state = s setChanged() notifyObservers()

Observer in Java

• Observable is a class.
• What if our observable subject already has a super-class?
• What aspects of inheritance are needed?

10

→ implementation inheritance, and → interface inheritance ⇒ SmartAdapter!

• Can class Observable be delegated to?

→ No, because setChanged is protected.

• Adapter & Delegation (see Implementation Reuse patterns)

Observer in Java: SmartAdapter

11

update(Observable, Object) <<interface>> Observer + addObserver(Observer) + deleteObserver(Observer) + notifyObservers() # setChanged() Observable update(Observable, Object) MyObserver

• bservers

getState() setState(s) state delegate MyObservable MySuper state = s delegate.setChanged() delegate.notify() + setChanged() + getState() + setState(s) delegate SmartObservableAdapter delegate.setState(s) return delegate.getState() super.setChanged()

Observer and Concurrency

Naive implementation of attach(), detach(), and notify()

12 public final class NaiveSubject { private final Vector<Observer> observers; ... public final void attach(Observer o) {

• bservers.addElement(o);

} public final void detach(Observer o) {

• bservers.removeElement(o);

} public final void notifyObservers() { for(Observer o : observers) {

• .update();

} } }

Observer and Concurrency

• Vector is thread-safe, but NaiveSubject is not.
• NaiveSubject will throw

ConcurrentModificationException if a thread adds or

removes an observer while another notifies the observers.

• Possible solutions:
• Java Monitor Pattern (risky because of alien method call)
• Use CopyOnWriteArrayList
• Copy vector before iteration (this is how JDK Observable

does it)

13

Observer and Concurrency

• Do not attach observer to subject inside observer’s

constructor!

14

→ Otherwise the observer’s this reference escapes before the subject is fully constructed. Reminder: In general, do not register a listener at an event source within listener’s constructor!

Relationship with other Patterns

15

MVC architectural pattern almost always uses Observer pattern.

Mediator

16

Motivation

17

• Complex systems often require that the participating
• bjects know each other.
• This might end up in a nontransparent situation which is

hard to understand.

• The Mediator now supervises this communication.
• It knows all the objects taking part and the objects are only

aware of the mediator.

Description

18

• Object based behavioral pattern
• Purpose: Define an object that encapsulates how a set of
• bjects interact. Mediator promotes loose coupling by

keeping objects from referring to each other explicitly, and it lets you vary their interaction independently.

• Also Known As: Broker

Mediator Colleague ConcreteMediator ConcreteColleague2 ConcreteColleague1 mediator

General Structure

19

• Each colleague-class knows its broker-class
• Each colleague-object works with its broker

and not with the other colleague-objects

• implements the general

behavior by coordinating the colleague-objects

• knows and manages its

colleague-objects defines an interface for the interaction with colleague-objects

Applicability

Use the Mediator pattern when

• there are many objects that have to work with each other,

but the dependencies are unstructured and hard to understand.

• reusability of object is hard, because it has dependencies to

many other objects.

• a behavior that's distributed between several classes should

be customizable without a lot of subclassing

20

Pros & Cons

• Pro:
• Limits subclassing
• Decoupled colleague-objects
• n:n-relations converted to 1:n-relations
• Abstracts how the colleague-objects work with each other
• Centralized control
• Con:
• Broker class might turn into a hard to maintain monolith

21

Relationship with other Patterns

• Facade: Subsystem-classes don‘t know about the facade;

colleague-classes know their broker.

• Colleague objects can notify the broker using the

Observer pattern.

• If the Mediator alters message then it is an Adapter

pattern.

22

Memento

23

Description

24

• Object based behavioral pattern
• Purpose: Capture the internal state of an object without

violating encapsulation and thus providing a mean for restoring the object into initial state when needed.

• Also Known As: Token

Description

25

• Used for: Undo functionality
• A Memento is an object which saves a snapshot of an
• riginator’s internal state.
• Only the originator has access to the state of the memento
• bject.

return new Memento(state) CareTaker getState() setState(state) state Memento createMemento() setMemento(Memento m) state Originator memento state = m.getState()

General Structure

26

• Creates a memento object

capturing the originator’s internal state.

• Use the memento object to restore

its previous state. The memento is opaque to the caretaker, and the caretaker must not operate on it.

• Saves the state information
• Full access only from the originator

Interactions

27

:Caretaker :Originator aMemento:Memento

createMemento() new Memento() setState() setMemento(aMemento) getState()

Applicability

Use the Memento pattern if

• an object's state must be captured so that it can be

restored later on, and if

• explicitly passing the state of the object would violate

encapsulation.

28

Consequences

• Preserves encapsulation.
• CareTaker simplifies originator code.
• Using the memento pattern can be expensive.
• In some languages it is hard to ensure that only the

Originator can access the Memento’s state.

• How can we ensure this in Java?

29

→ Make Memento an inner class of Originator

Ensure encapsulation in Java

30 public final class Originator { private int state; public Memento createMemento() { return new Memento(state); } public void setMemento(Memento memento) { state = memento.getState(); } public static final class Memento { private final int state; private Memento(int state) { this.state = state; } private int getState() { return state; } } }

private method of static inner class can be called by outer class

Relationship with other Patterns

• Command objects can use mementos to maintain state

for undoable operations.

• Iterator can use memento objects to save state of

iteration.

31

Strategy

32

Description

33

• Object based behavioral pattern
• Purpose: Define a family of algorithms, encapsulate each
• ne, and make them interchangeable. Strategy lets the

algorithm vary independent of clients that use it.

• Also Known As: Policy

Motivating Example

34

@Immutable public final class OriginalAIOpponent { private final Level skill; public OriginalAIOpponent(Level skill) { this.skill = skill; } public void repelMove(int posX, int posY) { switch (skill) { case LOUSY: // do something break; case ... } } public void printCoolSlogan() { switch (skill) { case LOUSY: // print something break; case ... } } } public enum Level { LOUSY, STRONG; }

Motivating Example

• Options if we need to add a new skill level?
• add case to Opponent class (easy to forget an occurrence)
• create subclass of Opponent
• outsource different behavior

35

Motivating Example

Define strategy interfaces:

36 public interface RepelStrategy { void repelMove(int posX, int posY); } public interface SloganStrategy { void printCoolSlogan(); }

Sample implementation:

public class LousySloganStrategy implements SloganStrategy { @Override public void printCoolSlogan() { System.out.println("Please don't hurt me!"); } }

Motivating Example

37 public class AIOpponent { private final RepelStrategy repelStrategy; private final SloganStrategy sloganStrategy; public AIOpponent(RepelStrategy repelStrategy, SloganStrategy sloganStrategy) { this.repelStrategy = repelStrategy; this.sloganStrategy = sloganStrategy; } public void repelMove(int posX, int posY) { repelStrategy.repelMove(posX, posY); } public void printCoolSlogan() { sloganStrategy.printCoolSlogan(); } } AIOpponent o = new AIOpponent( new LousyRepelStrategy(), new LousySloganStrategy());

Sample Structure

38

printCoolSlogan() <<interface>> SloganStrategy sloganStrategy.printCoolSlogan() printCoolSlogan() LousySloganStrategy ContextInterface() AIOpponent printCoolSlogan() StrongSloganStrategy sloganStrategy

AlgorithmInterface() Strategy strategy.AlgorithmInterface() AlgorithmInterface() ConcreteStrategyA ContextInterface() Context AlgorithmInterface() ConcreteStrategyB strategy

General Structure

39

• gets configured with ConcreteStrategy
• bject
• may define interface that lets Strategy

access its data implements the algorithm using the Strategy interface interface common to all supported algorithms

Applicability

Use the Strategy pattern when

• many related classes differ only in their behavior. Strategies

provide a way to configure a class with one of many behaviors.

• need of different variants of algorithms.
• an algorithm uses data that clients shouldn’t know about
• A class defines many behaviors (use of multiple conditional

statements).

• Remark: be aware of switch-case-statements, they have a smell

40

Interactions

• A context forwards requests from its clients to its strategy.
• Data handover:
• A context may hand over all data required by the algorithm

to the strategy method.

• The context can pass itself as an argument to Strategy

method.

41

Pros & Cons

• Pro:
• Re-usability of algorithms
• An alternative to sub-classing of the context class
• Choice of different implementations
• Elimination of conditional statements
• clean separation of different algorithms ➔ easier to test
• Con:
• Clients must be aware of different strategies
• Communication overhead
• Increased number of objects

42

Real World Examples

• ThreadPoolExecutor gets RejectedExecutionHandler
• bject to decide strategy for tasks that cannot be executed

(AbortPolicy, CallerRunsPolicy, DiscardOldestPolicy,

DiscardPolicy)

• Java Comparator interface
• Java AWT and Swing, e.g. paintBorder() method of

JComponent

43

Relationship with other Patterns

• Flyweight can be used to implement strategy objects.

44
