1 st INTERDISCIPLARY ONCOLOGY CONFERENCE DIAGNOSIS AND THERAPY 29 th of March 2014, Nicosia - Cyprus Presentation Title: Design and construction of silicon lung and heart for the phantom Project Title: Optimizing the Diagnostic Value in

slide-1
SLIDE 1

Slide 1/39

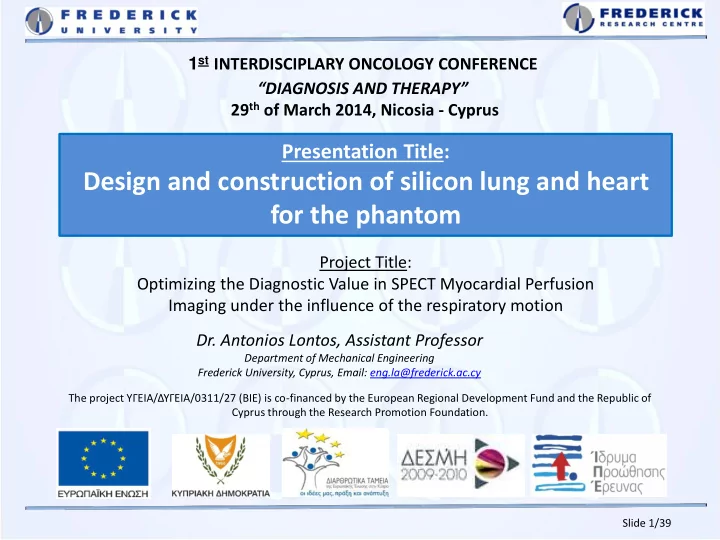

  • Dr. Antonios Lontos, Assistant Professor

Department of Mechanical Engineering Frederick University, Cyprus, Email: eng.la@frederick.ac.cy

Presentation Title:

Design and construction of silicon lung and heart for the phantom

The project ΥΓΕΙΑ/ΔΥΓΕΙΑ/0311/27 (ΒΙΕ) is co-financed by the European Regional Development Fund and the Republic of Cyprus through the Research Promotion Foundation.

1st INTERDISCIPLARY ONCOLOGY CONFERENCE “DIAGNOSIS AND THERAPY” 29th of March 2014, Nicosia - Cyprus Project Title: Optimizing the Diagnostic Value in SPECT Myocardial Perfusion Imaging under the influence of the respiratory motion

slide-2
SLIDE 2

Slide 2/39

Table of contents

  • 1. Introduction
  • 2. Image processing and 3D design
  • 3. Design of the moulds
  • 4. Construction of aluminum moulds for heart and lungs
  • 5. Construction of silicon heart and lungs
  • 6. Conclusions
slide-3
SLIDE 3

Slide 3/39

  • 1. Introduction

The specificity of myocardial perfusion images (MPI) is influenced not only by the cardiac motion but also by various other parameters such as the respiratory motion Our scope was to develop a respiratory motion phantom, in order to study the influence the respiratory motion to MPI. We will also motion correct the images by independent reconstructions of each gated- frame followed by transformation of each image with respect to a reference image using known motion fields. Concluding on the influence the respiratory and diaphragmatic motion to MPI applying the proposed approach will result in the optimization of MPI protocols by the consortium physicians Further, the elaborated phantom will be used for Quality Assurance measurements to validate new protocols before implementation as well as for educational purposes

slide-4
SLIDE 4

Slide 4/39

  • 2. Image processing and 3D design

The first step to construct a real lung is to know the exact geometry and shape. CT scan were conducted and various medical images of human thorax were collected.

slide-5
SLIDE 5

Slide 5/39

Thorax-CT flash-anatomy Total planes: 86 Lungs geometry after image processing

slide-6
SLIDE 6

Slide 6/39

Left lung geometry Real lung geometry Schematic lung geometry Real lung geometry after image processing

slide-7
SLIDE 7

Slide 7/39

slide-8
SLIDE 8

Slide 8/39

Left lung geometry (volume 485 cm3) Right lung geometry - (volume 569 cm3)

slide-9
SLIDE 9

Slide 9/39

Design of heart chamber Volume for heart chamber (Initial 80 cm3) Inner part Outer part

slide-10
SLIDE 10

Slide 10/39

  • 3. Design of the moulds

left lung assembly Right lung assembly

slide-11
SLIDE 11

Slide 11/39

Design of different parts of the left lung mould

Part 1 Part 2 Part 3 Part 4 Part 5 Part 6

slide-12
SLIDE 12

Slide 12/39

Assembly of left lung mould

slide-13
SLIDE 13

Slide 13/39

Part 1 Part 2 Part 3 Part 4 Part 5 Part 6

Design of different parts for the right lung mould

slide-14
SLIDE 14

Slide 14/39

Assembly of right lung mould

slide-15
SLIDE 15

Slide 15/39

Design of different parts for heart mould – Inner part Inner part

slide-16
SLIDE 16

Slide 16/39

Design of different parts for heart mould – Outer part

slide-17
SLIDE 17

Slide 17/39

  • 4. Construction of aluminum moulds for heart and lungs

In order to manufacture all different parts for the left and right mould a CNC machine has been used.

slide-18
SLIDE 18

Slide 18/39

Detail dimensions for part 5 left lung mould

slide-19
SLIDE 19

Slide 19/39

Preparation of the CNC manufacturing

slide-20
SLIDE 20

Slide 20/39

CNC manufacturing simulation

slide-21
SLIDE 21

Slide 21/39

  • 4. Construction of aluminum moulds for heart and lungs

Aluminum parts of the left lung mould Part 1 Part 2 Part 3 Part 4 Part 5

slide-22
SLIDE 22

Slide 22/39

Aluminum parts of the left lung mould

slide-23
SLIDE 23

Slide 23/39

Aluminum parts of the right lung mould

slide-24
SLIDE 24

Slide 24/39

Assembly of the right lung mould

slide-25
SLIDE 25

Slide 25/39

Moulds for the heart - inner part

slide-26
SLIDE 26

Slide 26/39

Moulds for the heart – outer part

slide-27
SLIDE 27

Slide 27/39

  • 5. Construction of silicon heart and lungs

Two different silicon rubber were used in order to construct left and right lungs. Special features (very good flow, excellent mould release; usually no further release agent required, fast and non-shrink cure at room temperature which, can be accelerated considerably by the application of heat, medium Shore A hardness (approx. 40), good transparency of the cured rubber, high tear strength, outstanding resistance to casting resins, particularly, polyurethanes and epoxies, for long service life of the molds. Elastosil M 4645 A/B, , RTV-2 Silastic 3481

slide-28
SLIDE 28

Slide 28/39

Silicone mixing (component A+B) Silicone parameters

  • Color
  • Density
  • Viscosity
  • Hardness
  • Elongation at break
  • Tear strength

Injection of silicon rubber into the lung moulds Silicon injection mechanism

Injection procedure

slide-29
SLIDE 29

Slide 29/39

Injection of silicon rubber into the lung moulds Left lung mould Silicon left lung with bubbles Vacuum pump and chamber After mixture preparation 5-10 min in vacuum chamber

slide-30
SLIDE 30

Slide 30/39

Silicon left and right lungs Left lung Right lung from white silicon rubber Right lung White silicon rubber White and transparent silicon rubber

slide-31
SLIDE 31

Slide 31/39

Cage construction for better simulation of the respiratory motion Thermoplastic cage Thermoplastic cage with silicon lungs

slide-32
SLIDE 32

Slide 32/39

Transparent cardiac and respiratory phantoms within the anthropomorphic phantom stabilized by a tissue-equivalent support (proper distances and inclinations) Shaped thermoplastics were sewed around the lungs to keep the right shape during inhalation Lung-equivalent material inserted in the lungs Phantom and lungs stabilization Tissue-equivalent support

slide-33
SLIDE 33

Slide 33/39

Silicon heart final construction, transparent silicon Inner part Outer part Inner part Outer part

slide-34
SLIDE 34

Slide 34/39

Inner part testing Outer part testing NO pressure With pressure NO pressure With pressure

slide-35
SLIDE 35

Slide 35/39

Silicon heart final assembly and testing NO pressure With pressure

slide-36
SLIDE 36

Slide 36/39

Respiratory movement

slide-37
SLIDE 37

Slide 37/39

Heart movement

slide-38
SLIDE 38

Slide 38/39

Phantom

slide-39
SLIDE 39

Slide 39/39 The project ΥΓΕΙΑ/ΔΥΓΕΙΑ/0311/27 (ΒΙΕ) is co-financed by the European Regional Development Fund and the Republic of Cyprus through the Research Promotion Foundation.

Thank you for your attention

The author would like to thank:

  • Yiannis Parpottas, Ph.D. in Nuclear Physics
  • Isabelle Chrysanthou, Ph.D. in Medical Physics
  • Antonis Antoniou, Ph.D. in Mechanical Engineering

and

  • Panayi Panayiotis (CNC manufacturing , Moulds Construction)

“Machinery Panagiotis J. Panagi”
