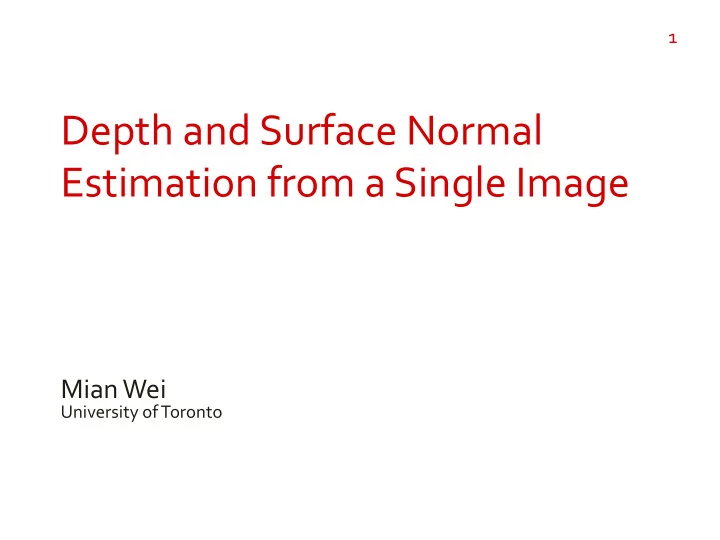

SLIDE 1
Mian Wei
University of Toronto
1
2
Depth and Surface Normal Estimation from a Single Image Mian Wei - - PowerPoint PPT Presentation
Depth and Surface Normal Estimation from a Single Image Mian Wei - - PowerPoint PPT Presentation
1 Depth and Surface Normal Estimation from a Single Image Mian Wei University of Toronto 2 Indirect-Invariant What is the problem? 3 Indirect-Invariant Given one image 4 N. Silberman, D. Hoiem, P. Kohli, and R. Fergus, Indoor
SLIDE 2
SLIDE 3
3
Indirect-Invariant Given one image
SLIDE 4
4
- N. Silberman, D. Hoiem, P. Kohli, and R. Fergus, “Indoor segmentation and support
inference from RGBD images,” in Proc. Eur. Conf. Comput. Vision, 2012, pp. 746–760.
SLIDE 5
5
Indirect-Invariant Estimate the following:
SLIDE 6
6
Eigen, D. and Fergus, R. Predicting depth, surface normals and semantic labels with a common multi-scale convolutional architecture. ICCV 2015
SLIDE 7
7
Eigen, D. and Fergus, R. Predicting depth, surface normals and semantic labels with a common multi-scale convolutional architecture. ICCV 2015
SLIDE 8
8
Indirect-Invariant Why is this hard?
SLIDE 9
9
Indirect-Invariant Multiple ambiguities
SLIDE 10
10
Indirect-Invariant Scale ambiguity
SLIDE 11
11
SLIDE 12
12
SLIDE 13
13
Indirect-Invariant Bas-relief ambiguity
- P. Belhumeur, D. Kriegman, and A. Yuille, “The Bas-Relief Ambiguity,” Proc. IEEE Conf.
Computer Vision and Pattern Recognition, pp. 1040-1046, 1997.
SLIDE 14
14
Indirect-Invariant Let’s play a game
SLIDE 15
15
Indirect-Invariant Spot the Difference
SLIDE 16
16
- P. Belhumeur, D. Kriegman, and A. Yuille, “The Bas-Relief Ambiguity,” Proc. IEEE Conf.
Computer Vision and Pattern Recognition, pp. 1040-1046, 1997.
SLIDE 17
17
- P. Belhumeur, D. Kriegman, and A. Yuille, “The Bas-Relief Ambiguity,” Proc. IEEE Conf.
Computer Vision and Pattern Recognition, pp. 1040-1046, 1997.
SLIDE 18
18
Indirect-Invariant All the same
SLIDE 19
19
- P. Belhumeur, D. Kriegman, and A. Yuille, “The Bas-Relief Ambiguity,” Proc. IEEE Conf.
Computer Vision and Pattern Recognition, pp. 1040-1046, 1997.
SLIDE 20
20
- P. Belhumeur, D. Kriegman, and A. Yuille, “The Bas-Relief Ambiguity,” Proc. IEEE Conf.
Computer Vision and Pattern Recognition, pp. 1040-1046, 1997.
SLIDE 21
21
Indirect-Invariant Family of transformation
SLIDE 22
22
Indirect-Invariant Generalized Bas-Relief
SLIDE 23
23
Indirect-Invariant Change shape and illumination
SLIDE 24
24
Indirect-Invariant Yield same image
SLIDE 25
25
Indirect-Invariant Existing works
SLIDE 26
26
Indirect-Invariant Multi-view Stereo
Hartley,R. and Zisserman, A. 2000. Multiple view geometry in computer vision, Cambridge University Press: Cambridge, UK.
SLIDE 27
27
SLIDE 28
28
SLIDE 29
29
Indirect-Invariant Photometric Stereo
Woodham, R.J. (1980), Photometric method for determining surface orientation from multiple images, Optical Engineering 19 (1) 139-144.
SLIDE 30
30
Indirect-Invariant Collimated Light Sources
SLIDE 31
31
Indirect-Invariant Light rays parallel
SLIDE 32
32
SLIDE 33
33
SLIDE 34
34
SLIDE 35
35
Indirect-Invariant Shape from Focus
- S. Nayar and N. Yasuo, “Shape From Focus,” IEEE Trans. Pattern Analysis and Machine
Intelligence, vol. 16, no. 8, pp. 824-831, 1994.
SLIDE 36
36
SLIDE 37
37
SLIDE 38
38
SLIDE 39
39
SLIDE 40
40
SLIDE 41
41
SLIDE 42
42
SLIDE 43
43
SLIDE 44
44
SLIDE 45
45
SLIDE 46
46
SLIDE 47
47
SLIDE 48
48
Indirect-Invariant Light Fall-off Stereo
- M. Liao, L. Wang, R. Yang, and M. Gong. Light fall-off stereo. In Proceedings of CVPR,
pages 1–8, 2007.
SLIDE 49
49
SLIDE 50
50
SLIDE 51
51
Indirect-Invariant Specialized Hardware
SLIDE 52
52
Indirect-Invariant Laser Scanner
SLIDE 53
53
Indirect-Invariant Active Illumination
SLIDE 54
54
Indirect-Invariant Time of Flight
SLIDE 55
55
Indirect-Invariant Estimating Depth
- D. Eigen, C. Puhrsch, and R. Fergus. Depth map prediction from a single image using a
multi-scale deep network. NIPS 2014
SLIDE 56
56
SLIDE 57
57
Indirect-Invariant Train 2 networks
SLIDE 58
58
Indirect-Invariant Global coarse-scale network
SLIDE 59
59
Indirect-Invariant Local fine-scale network
SLIDE 60
60
Indirect-Invariant Global coarse-scale network
SLIDE 61
61
Indirect-Invariant Learns a coarse depth map
SLIDE 62
62
SLIDE 63
63
SLIDE 64
64
SLIDE 65
65
Indirect-Invariant Used as input to local network
SLIDE 66
66
Indirect-Invariant Intuition:
SLIDE 67
67
Indirect-Invariant Coarse info learnt already
SLIDE 68
68
Indirect-Invariant Focus on learning finer info
SLIDE 69
69
SLIDE 70
70
SLIDE 71
71
Indirect-Invariant Scale ambiguity
SLIDE 72
72
Indirect-Invariant Scale invariant error function
SLIDE 73
D(y, y*) = 1 2n (log yi − log y*
i i=1 n
∑
+α(yi, y*
i))2
73
α(yi, y*
i) = 1
n (log y*
i − log yi) i=1 n
∑
SLIDE 74
D(ay,ay*) = 1 2n (logayi − logay*
i i=1 n
∑
+α(ayi,ay*
i))2
D(ay,ay*) = 1 2n (loga − loga + log yi − log y*
i i=1 n
∑
+α(ayi,ay*
i))2
D(ay,ay*) = 1 2n (log yi − log y*
i i=1 n
∑
+ loga − loga +α(yi, y*
i))2
D(ay,ay*) = D(y, y*)
74
SLIDE 75
75
Indirect-Invariant Loss Function
SLIDE 76
76
Indirect-Invariant Scale invariant
SLIDE 77
77
L(y, y*) = 1 n d 2
i i=1 n
∑
− λ n2 ( di
i=1 n
∑
)2 di = log yi − log y*
i
SLIDE 78
78
Indirect-Invariant 2 Datasets
SLIDE 79
79
Indirect-Invariant NYUDepthV2
- N. Silberman, D. Hoiem, P. Kohli, and R. Fergus, “Indoor segmentation and support
inference from RGBD images,” in Proc. Eur. Conf. Comput. Vision, 2012, pp. 746–760.
SLIDE 80
80
Indirect-Invariant Indoor Rooms
SLIDE 81
81
SLIDE 82
82
Indirect-Invariant KITTI
- A. Greiger, P. Lenz, C. Stiller, and R. Urtasun. Vision meets robotics: The kitti dataset.
International Journal of Robotics Research (IJRR). 2013.
SLIDE 83
83
Indirect-Invariant Outdoor images taken on a car
SLIDE 84
84
SLIDE 85
85
Indirect-Invariant How do you get ground truth?
SLIDE 86
86
Indirect-Invariant NYUDepthV2
SLIDE 87
87
Indirect-Invariant Kinect
SLIDE 88
88
SLIDE 89
89
Indirect-Invariant KITTI
SLIDE 90
90
SLIDE 91
91
Indirect-Invariant Time of Flight
SLIDE 92
92
Indirect-Invariant Times how long light travels
SLIDE 93
93
Indirect-Invariant From light source to camera
SLIDE 94
94
Indirect-Invariant Results
SLIDE 95
95
SLIDE 96
96
SLIDE 97
97
SLIDE 98
98
Indirect-Invariant Estimating Surface Normals
- X. Wang, D. F. Fouhey, and A. Gupta. Designing deep networks for surface normal
- estimation. CVPR 2015
SLIDE 99
99
Indirect-Invariant Similar to Eigen
SLIDE 100
100
SLIDE 101
101
Indirect-Invariant Trains 3 networks
SLIDE 102
102
Indirect-Invariant Global coarse-scale network
SLIDE 103
103
SLIDE 104
104
Indirect-Invariant Trains for room layout as well
SLIDE 105
105
SLIDE 106
106
Indirect-Invariant Local fine-scale network
SLIDE 107
107
SLIDE 108
108
Indirect-Invariant Trains for edge labels as well
SLIDE 109
109
Indirect-Invariant Convex, concave, occlusion, N/A
SLIDE 110
110
SLIDE 111
111
Indirect-Invariant Difference: Global and Local trained separately
SLIDE 112
112
Indirect-Invariant Fusion Network
SLIDE 113
113
Indirect-Invariant Combines both networks
SLIDE 114
114
Indirect-Invariant How to represent normals
SLIDE 115
115
Indirect-Invariant Normals lie in continuous space
SLIDE 116
116
Indirect-Invariant Regression as Classification
SLIDE 117
117
Indirect-Invariant Surface normal triangular coding
SLIDE 118
118
SLIDE 119
119
Indirect-Invariant Codebook with k-means
SLIDE 120
120
SLIDE 121
121
Indirect-Invariant Delaunay Triangulation cover
SLIDE 122
122
SLIDE 123
123
Indirect-Invariant Triangles as classes
SLIDE 124
124
Indirect-Invariant Represent Surface Normals
SLIDE 125
125
Indirect-Invariant Weighted sum of triangle corners
SLIDE 126
126
Indirect-Invariant Loss Function
SLIDE 127
L(I,Y) = − (
k=1 K
∑
i=1 M×M
∑
1(yi = k)logF
i,k(I))
127
SLIDE 128
128
SLIDE 129
129
SLIDE 130
130
Indirect-Invariant Thoughts
SLIDE 131
131
Indirect-Invariant Do not address bas-relief
SLIDE 132
132
Indirect-Invariant Incorporate Computer Graphics
SLIDE 133
133
Indirect-Invariant Inverse problem
SLIDE 134
134
Indirect-Invariant Given surface normals
SLIDE 135
135
Indirect-Invariant How should the scene look?
SLIDE 136
136
Indirect-Invariant What is the correct image?
SLIDE 137
137
Indirect-Invariant Incorporate image formation model
SLIDE 138
138
