Joint Cordova and Vineyard Community Planning Advisory Council Workshops Workshop #3 Sewer, Water Supply, Drainage Department of Water Resources, Sacramento Regional County Sanitation District, Sacramento Area Sewer District, and

slide-1
SLIDE 1

Department of Water Resources, Sacramento Regional County Sanitation District, Sacramento Area Sewer District, and Environmental Management Department April 26, 2016

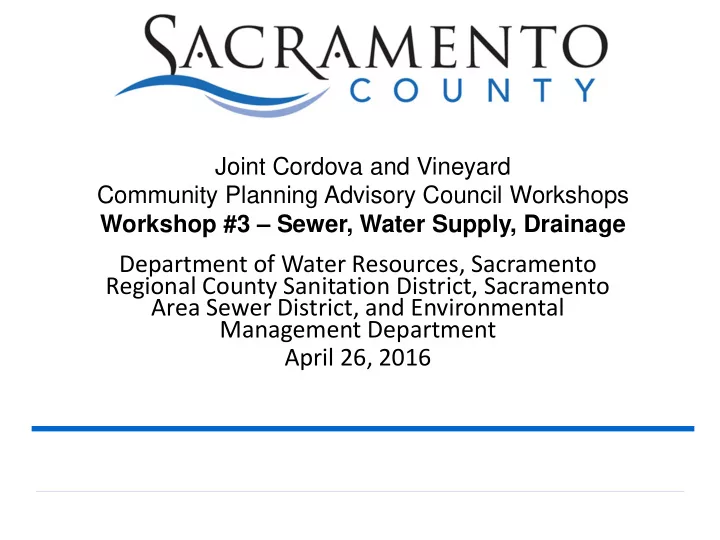

Joint Cordova and Vineyard Community Planning Advisory Council Workshops Workshop #3 – Sewer, Water Supply, Drainage

slide-2
SLIDE 2

Workshop #1: March 30, 2016 - Planning and Environmental Review Workshop #2: April 13, 2016 - Transportation Planning Workshop #3: April 26, 2016 - Sewer, Water Supply and Drainage Workshop #4: May 11, 2016 - Infrastructure and Municipal Services Planning and Financing

April 26, 2016 CPAC Workshop #3 2

Four Workshops on Master Plan Topics

slide-3
SLIDE 3

Growth area master plan applications  Separate EIR’s for each project  Each has their own timeline  Each project will ultimately be acted upon by each CPAC

April 26, 2016 CPAC Workshop #3 3

Overview

slide-4
SLIDE 4

Introductions – (10 minutes) Presentations Sewer - (15 minutes) Question and Comment Session - (15 minutes) Water Supply - (15 minutes) Question and Comment Session - (15 minutes) Drainage - (15 minutes) Question and Comment Session - (15 minutes) Wrap Up – (10 minutes)

April 26, 2016 CPAC Workshop #3 4

Agenda

slide-5
SLIDE 5

Wastewater (Sewer) Stephen Moore (SASD/Regional San) Chris Hunley (EMD)

April 26, 2016 5 SASD, Regional San, and EMD – CPAC Workshop #3

slide-6
SLIDE 6
  • Role of the Sacramento Area Sewer District (SASD)

– Local collection system (design flow < 10 MGD) – Provides service to unincorporated Sacramento County, Elk Grove, Citrus Heights, Rancho Cordova, and parts of Sacramento and Folsom – Over 1.2 million people served – Over 4,400 miles of sewer pipe (mains and laterals) – Over 100 sewer pump stations – Facilities needed for development are constructed by developers and given to SASD

April 26, 2016 6

Sewer – SASD

SASD, Regional San, and EMD – CPAC Workshop #3

slide-7
SLIDE 7

April 26, 2016 7 SASD, Regional San, and EMD – CPAC Workshop #3

slide-8
SLIDE 8
  • Role of the Sacramento Regional County Sanitation

District (Regional San)

– Regional wastewater conveyance (design flow > 10 MGD) – Wastewater treatment and disposal – Provides service to SASD and the Cities Sacramento, West Sacramento, and Folsom – Over 140 miles of interceptor sewer pipe – Treats 150 MGD average with capacity of 400 MGD – Typically constructs their own facilities

April 26, 2016 8

Sewer – Regional San

SASD, Regional San, and EMD – CPAC Workshop #3

slide-9
SLIDE 9

April 26, 2016 9 SASD, Regional San, and EMD – CPAC Workshop #3

Sewer – Regional San Service Area

slide-10
SLIDE 10

Sewer System Planning Documents

  • Regional San Interceptor Sequencing Study (Feb 2013)
  • SASD Sewer System Capacity Plan (Nov 2011)

Sewer System Development

  • Project Specific Sewer Studies

– Environmental/Financial (Level 1) – Master Plan/Specific Plan (Level 2) – Subdivision Plan (Level 3)

  • Pump Station Design Report
  • Improvement Plans

April 26, 2016 10

Sewer – SASD and Regional San

SASD, Regional San, and EMD – CPAC Workshop #3

Prepared by SASD/Regional San Prepared by Developer and Approved by SASD/Regional San

slide-11
SLIDE 11

April 26, 2016 11 SASD, Regional San, and EMD – CPAC Workshop #3

2010 SASD System Capacity Plan

Vs Project Maps

slide-12
SLIDE 12

Regional San Existing Interceptors

April 26, 2016 12

Sewer – Regional San

SASD, Regional San, and EMD – CPAC Workshop #3

slide-13
SLIDE 13

Existing Sewer Facilities

  • Bradshaw and Central Interceptors only

Proposed Sewer Facilities

  • West Jackson Highway – Master Plan in Review
  • Jackson Township – Master Plan in Review
  • NewBridge – Approved
  • Mather South – Approved; however, may need to

amend due to substantial changes to the land use plan

April 26, 2016 13

Sewer – SASD and Regional San

SASD, Regional San, and EMD – CPAC Workshop #3

slide-14
SLIDE 14

Role of EMD

  • Protect Public Health & Environment

EMD Role in the Planning Process

  • Evaluate onsite waste water capabilities

– New Development without public sewer – New Development without public water or sewer

April 26, 2016 14

Sewer – EMD

SASD, Regional San, and EMD – CPAC Workshop #3

slide-15
SLIDE 15

Existing Septic Systems

  • Repair Permits Only

200-foot Rule Exceptions to 200-foot Rule

  • Force Main (pressurized pipe)
  • Pumping Required
  • Crossing Another Property
  • Residential: Twice as Expensive as Septic

April 26, 2016 15

Sewer – SASD and EMD

SASD, Regional San, and EMD – CPAC Workshop #3

slide-16
SLIDE 16

Questions and Comments

15 minutes

April 26, 2016 16

Sewer – SASD, Regional San, and EMD

SASD, Regional San, and EMD – CPAC Workshop #3

slide-17
SLIDE 17

Sacramento County Water Agency Michael Grinstead

April 26, 2016 Water Supply – CPAC Workshop #3 17

slide-18
SLIDE 18

What are we talking about today?

Sacramento County Water Agency Water Supply Planning For New Growth Areas

  • Planning Documents
  • Document Updates
  • Project Location
  • Water Supplies
  • Infrastructure
  • Recycled Water

April 16, 2016 18

Sacramento County Water Agency

Water Supply – CPAC Workshop #3

slide-19
SLIDE 19

Planning Documents

  • Water Supply Master Plan

– Identifies water demands – Describes water sources and facilities – Provides financial analysis – Broad overview

  • Water System Infrastructure Plan

– Planning and implementation tool – In depth facility planning

  • Urban Water Management Plan

– Projects water supply and demand over 25 years in 5-year increments for different water year types (i.e. wet and dry)

April 26, 2016 19

Sacramento County Water Agency

Water Supply – CPAC Workshop #3

slide-20
SLIDE 20

Planning Document Updates

  • Water Supply Master Plan

– Requires amendments to include proposed growth areas – Draft amendments need Board approval

  • Water System Infrastructure Plan

– Draft is complete and moving through approval process – Update supported development of the Master Plan amendments

  • Urban Water Management Plan

– Currently being updated, informed by the Water System Infrastructure update and Master Plan amendments – Scheduled for Board approval in June of this year

April 26, 2016 20

Sacramento County Water Agency

Water Supply – CPAC Workshop #3

slide-21
SLIDE 21

Planning Document Updates

Water Supply Assessment

  • Shows whether adequate water supply has been

planned for each development

  • Required by California Water Code
  • Uses information from other planning documents
  • Will be developed as part of CEQA Process

April 26, 2016 21

Sacramento County Water Agency

Water Supply – CPAC Workshop #3

slide-22
SLIDE 22

April 26, 2016 22

Sacramento County Water Agency

Water Supply – CPAC Workshop #3

Planning Area

  • Green is Water

Agency Boundary

  • Hatched area is

Urban Policy Area

Growth Areas

slide-23
SLIDE 23

Water Supplies – Conjunctive Use Program

  • Provides for a balance of surface water and

groundwater use

  • Provides system flexibility to ensure protection of

both groundwater and surface water resources

  • Provides for reliable water service
  • Introduced surface water into basin through the

Freeport intake on the Sacramento River treated at the Vineyard treatment plant

April 26, 2016 23

Sacramento County Water Agency

Water Supply – CPAC Workshop #3

slide-24
SLIDE 24

April 26, 2016 24

Sacramento County Water Agency

Water Supply – CPAC Workshop #3

Existing Backbone Infrastructure Supply from Groundwater Treatment Plant (GWTP)

Anatolia GWTP Excelsior Well Field

slide-25
SLIDE 25

Phase 1 Infrastructure: Surface Water Treatment Plant (SWTP) Connected to Anatolia Tank – Wells Turned Off

April 26, 2016 25

Sacramento County Water Agency

Water Supply – CPAC Workshop #3

Anatolia Tank First Phase NSA Excelsior Wells

slide-26
SLIDE 26

Phase 2 Infrastructure: Additional Line from SWTP to a New Tank, West Jackson connected to SWTP

April 26, 2016 26

Sacramento County Water Agency

Water Supply – CPAC Workshop #3

Tank NSA Terminal Tank Excelsior Wells Second Phase NSA Anatolia Tank

slide-27
SLIDE 27

Final Phase: Wells Connected to New Groundwater Treatment Plant and Distribution Line

April 26, 2016 27

Sacramento County Water Agency

Water Supply – CPAC Workshop #3

Tank West Jackson GWTP Wells Anatolia Tank NSA Terminal Tank Excelsior Wells

slide-28
SLIDE 28

Recycled Water

  • Recycled water is used

currently available in the Elk Grove area, which is close to the water recycling treatment facility

  • Potential additional uses

for recycled water being evaluated in Feasibility Study

April 26, 2016 28

Sacramento County Water Agency

Water Supply – CPAC Workshop #3

slide-29
SLIDE 29

April 26, 2016 29 Water Supply – CPAC Workshop #3

Questions and Comments

15 minutes

Sacramento County Water Agency

slide-30
SLIDE 30

Drainage and Flood

George Booth

Sacramento County Department of Water Resources Drainage Development and Floodplain Management

April 26, 2016 Drainage – CPAC Workshop #3 30

slide-31
SLIDE 31
  • Rainfall statistics
  • Hydrology
  • Apply to grading, pipes, channels, basins, pumps
  • Local 1:10 year pipe design
  • FEMA 1:100 year flood regulations
  • State 1:200 year flood regulations
  • Climate change

April 26, 2016 31

Drainage and Floodplain Management

Drainage – CPAC Workshop #3

slide-32
SLIDE 32

April 26, 2016 32 Drainage – CPAC Workshop #3

slide-33
SLIDE 33

April 26, 2016 33 Drainage – CPAC Workshop #3

Computer modeling ‘no adverse impact’… Downstream on Elder Creek

  • North Vineyard Station
  • Florin Vineyard Gap
  • City of Sacramento

Downstream on Laguna Creek

  • Vineyard Springs
  • City of Elk Grove
  • City of Sacramento

Drainage and Floodplain Management

slide-34
SLIDE 34

Drainage and Floodplain Management

April 26, 2016 34 Drainage – CPAC Workshop #3

Morison Creek

  • Mined areas (West Jackson)
  • Realigned creek
  • Analysis will include a storm event significantly

wetter than the 1:200 year event

  • FEMA certification
  • Levee maintenance
  • Pump stations and basins no adverse impact
  • BASH
slide-35
SLIDE 35

Drainage and Floodplain Management

April 26, 2016 35 Drainage – CPAC Workshop #3

Regulations (Regulators) -

  • Endangered Species Act (US Fish & Wildlife Service)
  • Clean Water Act (US Army Corps of Engineers and CA

Water Board)

  • Streambed alteration (CA Fish and Wildlife)
  • Flood Control (FEMA and Central Valley Flood Protection

Board)

slide-36
SLIDE 36

Drainage and Floodplain Management

April 26 2016 36 Drainage – CPAC Workshop #3

Drainage Master Planning for Development-

  • What needs to be built

– How it fits on the land use plan

  • When does it need to be built

– Phased development plan

  • What will it cost to build the trunk drainage
  • What will it cost to maintain it
slide-37
SLIDE 37

April 26, 2016 37 Drainage – CPAC Workshop #3

Questions and Comments

15 minutes

Drainage and Floodplain Management

slide-38
SLIDE 38

April 26, 2016 CPAC Workshop #3 38

  • May 11, 2016
  • Infrastructure and Municipal Services Planning and Financing

Overview

Next Workshop

slide-39
SLIDE 39

April 26, 2016 CPAC Workshop #3 39

Contacts

Master Plans – Overall Project Management

  • Todd Smith, Principal Planner: 874-6918; smithtodd@saccounty.net

Master Plans – Environmental Review

  • Cathy Hack, Principal Environmental Analyst: 874-7183;

hackc@saccounty.net

*Staff contacts for each project listed in Agenda Handout.*
