Using Vetiver Grass in Thanh Mai Demonstration Bioengineered Revetment in Bac Kan, Vietnam ADB TA 8102-VIE: Promoting Climate Resilient Rural Infrastructure in Northern Vietnam James Ramsay - Nguyen Dinh Ninh OVERVIEW PROJECT NAME

slide-1
SLIDE 1

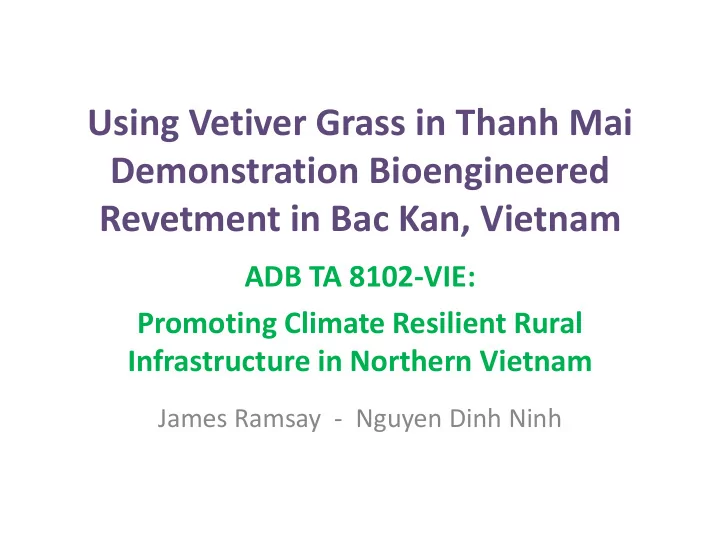

Using Vetiver Grass in Thanh Mai Demonstration Bioengineered Revetment in Bac Kan, Vietnam

ADB TA 8102-VIE: Promoting Climate Resilient Rural Infrastructure in Northern Vietnam

James Ramsay - Nguyen Dinh Ninh

slide-2
SLIDE 2

OVERVIEW

PROJECT NAME Promoting Climate Resilient Rural Infrastructure in Northern Vietnam FUNDED BY Global Environment Facility (GEF) through Asian Development Bank (ADB) and United Nations Development Programme (UNDP) DEMONSTRATION MODEL Bioengineered revetment in Thanh Mai commune, Bac Kan

slide-3
SLIDE 3

SITE SELECTION

Thanh Mai commune, Cho Moi district, Bac Kan province A tributary of Cau river SRIDP protects 2.42 km of riverbank on the Thanh Mai river in Thanh Mai and Cao Ky 2 possible sites for demonstration bioengineering measures: in Thanh Mai and Cao Ky Thanh Mai site was chosen for: (i) erosion that is threatening community infrastructure (roads, power lines), (ii) suitability for demonstration measures

slide-4
SLIDE 4

LOCATION OF DEMONSTRATION SITE

slide-5
SLIDE 5

SECTION SELECTED FOR BIOENGINEERING MEASURES

slide-6
SLIDE 6

TECHNICAL MEASURES

6 vegetative treatments 1 toe protection treatment Demonstration of bioengineering measures on 106 m

  • f Thanh Mai

riverbank

slide-7
SLIDE 7

BIOENGINEERING MEASURES APPLIED

Segment Length (m) TECHNIQUE Toe protection Bank protection

1 25

Vegetated riprap Brush layers

2 25

Vegetated riprap Live poles

3 25

Riprap Live fences Fascines

4 31

Vegetated riprap Vetiver grass lines

slide-8
SLIDE 8

SPECIES AND TECHNIQUES USED

Bioengineering Technique Species Name Local Name English Name

Brush layers Homonoia riparia Pượu Willow-leaved water croton Live fences Homonoia riparia Pượu Willow-leaved water croton Ficus benjamina Si Benjamin’s fig, Weeping fig Live poles Ficus benjamina Si Benjamin’s fig, Weeping fig Fascines Ficus benjamina Si Benjamin’s fig, Weeping fig Vegetated riprap Ficus benjamina Si Benjamin’s fig, Weeping fig Grass Chrysopogon zizanioides Vetiver Vetiver

slide-9
SLIDE 9

Ficus Benjamina (Si)

slide-10
SLIDE 10

Homonoia riparia (Puou)

slide-11
SLIDE 11

Vetiver Grass

slide-12
SLIDE 12

CROSS-SECTION K0

slide-13
SLIDE 13

CROSS-SECTION K3

slide-14
SLIDE 14

CROSS-SECTION K6

slide-15
SLIDE 15

CROSS-SECTION K9

slide-16
SLIDE 16

Thanh Mai Revetment after Construction

slide-17
SLIDE 17

Vegetated riprap using ‘Si’ cuttings

slide-18
SLIDE 18

Brush layers using ‘Puou’ cuttings

slide-19
SLIDE 19

Planting vetiver

slide-20
SLIDE 20

Planting vetiver

slide-21
SLIDE 21

IRRIGATE VETIVER GRASS

slide-22
SLIDE 22

SUMMARY AND RESULTS TO DATE

  • Planting date: 12-14 April 2015
  • Latest observation date: 20 April 2015
  • General Observation and Results to Date of Techniques
  • Toe protection: survived flood during construction
  • Bank protection: too early to assess
  • Homonoia riparia - Brush layers
  • Homonoia riparia - Live fences
  • Ficus benjamina - Live fences
  • Ficus benjamina - Live poles
  • Ficus benjamina – Fascines
  • Ficus benjamina – Vegetated riprap
  • Chrysopogon zizanioides - Vetiver Grass rows
  • Effectiveness of Vetiver compared with Other Plants from Results to Date:

too early to assess

  • Recommendations: continue monitoring; bring visitors to raise awareness
slide-23
SLIDE 23

Benefits of bioengineering in general or with Vetiver grass

Environmentally friendly Short construction time (only 2 months) Uses local labour Cost-effective Low cost: 20-40% as much as conventional measures
