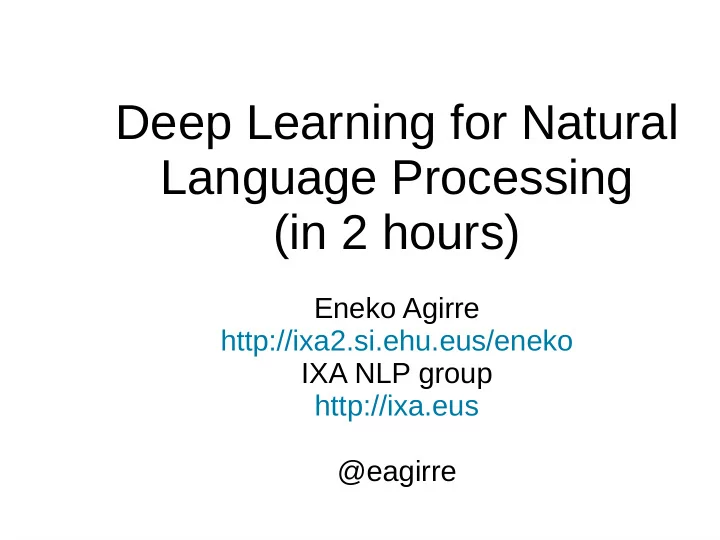

Deep Learning for Natural Language Processing (in 2 hours)

Eneko Agirre http://ixa2.si.ehu.eus/eneko IXA NLP group http://ixa.eus @eagirre

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 2

Contents

• Introduction to Deep learning

– Deep Learning ~ Learning Representations

• Text as bag of words
• Text as a sequence

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 4

Quiz

• How many of you have done

– A course on linguistics – A course on computational linguistics (aka NLP) – A course on machine learning – A course on deep learning

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 5

Introduction to Deep Learning

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 6

What is deep learning

A subfield of machine learning

• Supervised ML, given a dataset of

examples x with labels y

• Learn a function f(x)→y

with low training error and low test error

Key manual step: design features to extract key information from x (representation)

• e.g. weather forecast (wind, temperature, humidity, pressure, precipitations … –

local and nearby locations)

• e.g. sentiment of tweet

(keywords like “good” “bad”, certain emojis, ...)

Source: staesthetic.wordpress.com

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 7

What is deep learning

Source: Chris Manning cs224n

x f(x)=y

Source: www.vaetas.cz

Deep? Multiple levels Deep learning jointly learns representation and output

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 11 ImageNet Classification withDeep Convolutional Neural Networks (Krizhevsky et al. 2012) Learning hierarchical representations for face verification with convolutional deep belief networks (Huang et al. 2012)

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 17

Brief history of NLP

• 1960s: Complex rules and first order logic.

Humans build complex grammars.

• 1990s: Supervised machine learning.

Humans annotate text, design laborious task-specific features, and apply ML techniques.

• 2010s: Deep learning.

Learning continuous representations, get rid of task-specific features.

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 18

Why deep learning for NLP?

• Technology behind current

speech processing and machine translation

– Advances in the state-of-the-art on most tasks

• Focus on representation learning

– Learns representations for words and word sequences fitted to the task

… including world and visual knowledge.

– Naturally accounts for graded judgments about language

• Word similarity: building / house
• Sentence similarity:

A pony is close to the house / There is a horse in the front yard

• End-to-end joint learning (vs. pipeline)
• Transfer models accross tasks

(word embeddings, sentence encoders)

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 19

Contents

• Introduction to Deep learning

– Deep Learning ~ Learning Representations

• Text as bag of words

– Text Classification – Representation learning and word embeddings – Superhuman: cross-lingual word embeddings

• Text as a sequence

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 20

Classification

• Input

– A document d

D ∈ D !

– A fixed set of classes C={c1, c2, … cj}

• Output: a predicted class y

C ∈ D !

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 23

Classification

Supervised machine learning Learn a classifier from hand-annotated examples:

• Input: A training set of n hand-labeled

documents (x1,y1) … (xm, ym)

• Output: A learned classifier f:D→C

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 24

Text Classification

• Most NLP tasks can be framed

as text classification

– PoS tagging, parsing, QA, MT ...

• Simple example to showcase key methods

– Sentiment analysis (polarity) – Positive or negative movie review

• Full of zany characters and richly applied satire
• It was pathetic
• Modestly accomplished, lifted by two terrific performances.
• Not NEARLY as funny as its title

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 25

Documents as Documents as feature vectors feature vectors (bag of words) (bag of words)

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 26

Feature vectors

Representation of each example (document)

• Key idea for most machine learning
• Example as a vector of features x

– All examples same number of features – Features: boolean, integer, real

• Pre-processing code

to convert from example into feature vector

– Substantial effort (e.g. tokenization)

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 27

Bag of words

Representation of each example (document) ⇒ Bag of words representation

Source: Sam Bowman

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 30

Bag of words

Classifier:

• Input: vector of |V| binary features

Simple sentiment analysis: words in document 1

• Output of the classifier: discrete

Simple sentiment analysis: two classes

f( ) = c

it 1 the and by ... terrific 1 pathetic funny ...

Positive!

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 31

Classification: Classification: Softmax Softmax (Logistic Regression) (Logistic Regression)

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 35

Softmax classification

• Given: vectors of weights wc for class c

(e.g. terrific for positive class high weight)

– For each class compute wc x + b – Add non-linearity fc = exp(wc x + b)

– Normalize it to estimate probabilities:

p(y=c|x) ≈ fc / ∑c’

C ∈ D ! fc’

• That is the softmax function:

softmax(wc x)=exp(wc x)

∑

c'∈C

exp(wc' x)

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 36

Softmax classification

• Given: vectors of weights wc for class c ’
• Output value y = argmaxc softmax(wc x)
• Task for the training algorithm:

– Given labeled examples – Find wc vectors such that the output value is not

wrong for as many training examples as possible

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 38

Softmax classification

Estimating weights (parameters)

• Choose parameter which

minimize error over training data Loss function J (aka cost f. or objective f.) Cross-entropy error on one example (xi,yi)

– We want to maximize probability of correct class

i.e. minimize negative log probability of the correct class

J i(W )=−log P( yi=c∣xi)=−log( exp(W c x)

∑

c '∈C

exp(W c' x))

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 39

Softmax classification

Estimating parameters

• Search for parameters which

minimize error over training data

• Back-propagation

Stochastic gradient descent

– Start with random parameters – Select K examples (mini-batch) at random – Change parameters a little bit towards minimum of loss function

for those K (derivatives!)

– Continue until loss function converges (or increases)

Source: staesthetic.wordpress.com

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 41

Softmax classification

• An input layer – the feature vector
• An output layer – class probabilities

Train, given labeled data (x1,y1) … (xm, ym)

• For each example (xi,yi):

– Forward: input xi, obtain predicted class ci – If ci ≠ yi then backward: adjust parameters

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 42

Softmax classification

Source: http://cs.stanford.edu/people/karpathy/convnetjs/demo/classify2d.html

Intuition:

• Assume 2D vectors
• W defines the linear

decision boundary

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 43

Going deep: Multilayer perceptron

• An input layer

– just a feature vector

• One or more hidden layers, each

computed on the layer below – latent features (representations)

• An output layer, based on the top hidden

layer – class probabilities

• Also known as Feed Forward

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 44

Going deep: Multilayer perceptron

Softmax classification y=softmax(W x+b) y x W

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 45

Going deep: Multilayer perceptron

y=softmax(W 2h1+b2) h1=f (W 1h0+b1) h0=f (W 0 x+b0) y x h1 h0

W 2 W 1 W 0

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 46

Going deep: Multilayer perceptron

Layers have the same structure Non-linear functions!

hi=f (W ihi−1+bi)

Sigmoid : σ(x)= 1 1+exp(−x) Hyperbolic: tanh(x)=1−exp(−2x) 1+exp(−2 x) Rectifiedlinear unit : rect(x)=max(0, x)

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 47

Going deep: Multilayer perceptron

Motivation

Without non-linearities, there is no extra expresivity: a sequence of linear transformations is a linear transformation

How do we train it?

Source: http://cs.stanford.edu/people/karpathy/convnetjs/demo/classify2d.html

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 48

What about representation learning?

• Document as bag-of-words:

– Each word ~ a one-hot-vector

(0 0 0 0 0 … 1 … 0 0 0)

– Each document ~ summation of

words in the document (0 0 0 1 0 … 1 … 1 0 0)

• NLP has been representing

words as distinct features for many years!

– Is there a better alternative?

Source: Sam Bowman

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 49

Representation learning

y=softmax(W 2h1+b2) h1=f (W 1h0+b1) h0=f (W 0 x+b0)

1

W 0 x

(one-hot)

h0

→

h0

MLP: What are we learning in W0 when we backpropagate?

W 0

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 50

Representation learning

1

W 0 x

(one-hot)

→

y=softmax(W 2h1+b2) h1=f (W 1h0+b1) h0=f (W 0 x+b0)

h0

W 0

MLP: What are we learning in W0 when we backpropagate?

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 51

Representation learning

Back-propagation allows Neural Networks to learn representations for words while training: word embeddings!

1

W 0 x

(one-hot)

→

y=softmax(W 2h1+b2) h1=f (W 1h0+b1) h0=f (W 0 x+b0)

h0

W 0

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 52

Representation learning

• Back-propagation allows Neural Networks

to learn representations for words while training!

– Word embeddings!

Continuous vector space instead of one-hot

• Are these word embeddings useful?
• Which task would be the best to learn embeddings

that can be used in other tasks?

• Can we transfer this representation

from one task to the other?

• Can we have all languages in one embedding space?

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 53

Representation learning Representation learning and and word embeddings word embeddings

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 54

Word embeddings

• Let’s represent words as vectors:

Similar words should have vectors which are close to each other

• If an AI has seen these two sequences

I live in Cambridge I live in Paris

• … then which one should be more plausible?

I live in Tallinn I live in policeman

Cambridge London Tallinn Paris policeman judge driver cop

WHY?

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 55

Word embeddings

• Let’s represent words as vectors:

Similar words should have vectors which are close to each other

• If an AI has seen these two sequences

I live in Cambridge I live in Paris

• … then which one should be more plausible?

I live in Tallinn OK I live in policeman

Cambridge London Tallinn Paris policeman judge driver cop

WHY?

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 59

Word embeddings

Option 1: use co-occurrence matrix PPMI

• 1A: large sparse matrix
• 1B: factorize it and use low-

rank dense matrix (SVD)

• Cambridge

London Tallinn Paris policeman judge driver cop

Option 2: learn low-rank dense matrix directly

• 2A: MLP on particular

classification task

• 2B: find a general task

Distributional vector spaces:

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 60

Word embeddings

Cambridge London Tallinn Paris policeman judge driver cop

… people who keep pet dogs or cats exhibit better mental and physical health …

General task with large quantities of data: guess the missing word (language models) CBOW: given context guess middle word SKIP-GRAM given middle word guess context

Proposed by Mikolov et al. (2013) - Word2vec

… people who keep pet dogs or cats exhibit better mental and physical health …

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 62

CBOW

Like MLP, one layer, LARGE vocabulary

… people who keep pet dogs or cats exhibit better mental and physical health …

Cross-entropy loss / Softmax expensive! Negative sampling:

J NEGw(t)=log σ(h0i)−∑

k=1 K

Ewn∼Pnoiselog σ(hon)

Source: Mikolov et al. 2013

LARGE number of classes! The vocabulary

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 63

Word embeddings

Pre-trained word embeddings can leverage texts with BILLIONS of words!!

Pre-trained word embeddings useful for:

• Word similarity
• Word analogy
• Other tasks like PoS tagging, NERC,

sentiment analysis, etc.

• Initialize embedding layer in deep learning models

Cambridge London Tallinn Paris policeman judge driver cop

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 64

Word embeddings

Word similarity

Cambridge London Tallinn Paris policeman judge driver cop

Source: Collobert et al. 2011

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 65

Word embeddings

Word analogy: a is to b as c is to ? man is to king as woman is to ?

policeman Cambridge London Tallinn Paris judge driver cop

king man woman

?

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 66

Word embeddings

Word analogy: a is to b as c is to ? man is to king as woman is to ?

policeman Cambridge London Tallinn Paris judge driver cop

a−b≈c−d d≈c−a+b king−man+woman≈queen argmaxd∈V(cos(d ,c−a+b))

king man woman queen

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 68

Word embeddings

• How to use embeddings in a given task

(e.g. MLP sentiment analysis):

– Learn them from scratch (random init.) – Initialize using pre-trained embeddings

from some other task (e.g. word2vec)

• Other embeddings:

– GloVe (Pennington et al. 2014) – Fastext (Mikolov et al. 2017)

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 70

Recap

• Deep learning: learn representations for words
• Are they useful for anything?
• Which task would be the best to learn

embeddings that can be used in other tasks?

• Can we transfer this representation

from one task to the other?

• Can we have all languages in one embedding

space?

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 71

Superhuman abilities: Superhuman abilities: cross-lingual word cross-lingual word embeddings embeddings

http://aclweb.org/anthology/P18-1073 http://aclweb.org/anthology/P18-1073

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 120

Contents

• Introduction to NLP

– Deep Learning ~ Learning Representations

• Text as bag of words

– Text Classification – Representation learning and word embeddings – Superhuman: xlingual word embeddings

• Text as a sequence: RNN

– Sentence encoders – Machine Translation – Superhuman: unsupervised MT

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 121

From words to sequences

• Representation for words:
• ne vector for each word (word embeddings)
• Representation for sequences of words:
• ne vector for each sequence (?!)

– Is it possible to represent a sentence in one

vector at all?

– Let’s go back to MLP

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 122

From words to sequences

MLP: What is h0 with respect to the words in the input ?

• Add vectors of words in context (1’s in x),

plus bias, apply non-linearity

h0 sentence representation

f (∑ ⃗ wi+b0)

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 123

Sentence encoder

A function: input a sequence of word embeddings

• utput a sentence representation

hidden layers

sentence representation

⃗

wi∈ℝ

D

⃗

w1

⃗

w2

⃗

w3

⃗

s∈ℝ

D'

⃗

s

sentence encoder word embeddings

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 124

Sentence encoder

Baseline: Continuous bag of words (pre-trained embeddings)

sentence representation

⃗

w1

⃗

w2

⃗

w3

⃗

s

word embeddings

Σ

h1=f (W 1h0+b1) h0=⃗ s

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 125

Sentence encoder

Baseline: MLP (with or without pre-trained embeddings) Encoding sequences as continous bag of words

sentence representation

f (∑ ⃗ wi+b0)

⃗

s

⃗

w1

⃗

w2

⃗

w3

h1=f (W 1h0+b1) h0=⃗ s

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 126

Problems with bag of words

• Representation is limited

– repr(John loves Mary) = repr(Mary loves John) – repr(The end is weak but the film is awesome) =

repr(The end is awesome but the film is weak)

• We need a more powerful representation

which takes into account word order

– Sequences of tokens – Bigrams, trigrams of tokens

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 127

Sentence encoder

Concatenation

sentence representation ⃗

s

⃗

w1

⃗

w2

⃗

w3

concatenate

h1=f (W 1h0+b1) h0=⃗ s

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 128

Sentence encoder

Concatenation

It is a masterful performance but, for me, not enough to make me a fan of the film. It is not only lovely to look at (the exquisite northern Italian countryside made me want to hop on a plane that moment), but is made even better by the subtle performance of Timothée Chalamet. " Fantastic movie

h1=f (W 1h0+b1) h0=⃗ s

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 129

Sentence encoder

Recurrent Neural Network (RNN)

Apply a single function f recursively

hidden layers

⃗

w1

⃗

w2

⃗

w3

0 0 0 0 0 0

f f f

y

x

f

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 130

Sentence encoder: RNN

Recurrent Neural Network (RNN) Apply a single function f recursively keeping history (hidden) state

hidden layers

⃗

w1

⃗

w2

⃗

w3

0 0 0 0 0 0

f f f

y

x

f

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 131

Sentence encoder: RNN

Recurrent Neural Network (RNN) Apply a single function f recursively keeping history (hidden) state

hidden layers

⃗

w1

⃗

w2

⃗

w3

0 0 0 0 0 0

f f f

y

x

f

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 132

Sentence encoder: RNN

Recurrent Neural Network (RNN) Apply a single function f recursively keeping history (hidden) state

hidden layers

⃗

w1

⃗

w2

⃗

w3

0 0 0 0 0 0

f f f

y

x

f

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 133

Sentence encoder: RNN

Apply a single function f recursively.

⃗

w1

⃗

w2

⃗

w3

0 0 0 0 0 0

f f f

⃗

ht=f (⃗ ht−1,⃗ wt)=tanh(W [⃗ ht−1,⃗ wt]+⃗ b)

sentence representation

y

x

f

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 134

Sentence encoder: RNN

Varying sequence length: unroll (different graph for each input)

⃗

w1

⃗

w2

⃗

w3

0 0 0 0 0 0

f f f

sentence representation

⃗

w1

⃗

w2

0 0 0 0 0 0

f f ⃗

w3

f

⃗

w4

f

sentence representation

y

x

f

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 136

Sentence encoder: RNN

• Last hidden state is input to classifier

⃗

w1

⃗

w2

⃗

w3

0 0 0 0 0 0

f f f g

g(⃗ ht)=softmax(U ⃗ ht+⃗ c)

y

x

f

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 137

RNNs offer a lot of flexibility

MLP

Source: Fei-Fei Li & Andrej Karpathy and Justin Johnson

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 138

RNNs offer a lot of flexibility

Sentiment classification

Source: Fei-Fei Li & Andrej Karpathy and Justin Johnson

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 139

RNNs offer a lot of flexibility

Machine translation

Source: Fei-Fei Li & Andrej Karpathy and Justin Johnson

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 140

RNNs offer a lot of flexibility

Image Captioning

Source: Fei-Fei Li & Andrej Karpathy and Justin Johnson

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 141

RNNs offer a lot of flexibility

Video classification at frame level

Source: Fei-Fei Li & Andrej Karpathy and Justin Johnson

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 142

Machine Translation Machine Translation seq2seq seq2seq

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 143

Sequence to sequence models

• For any problem that can be interpreted as a

transformation from one sequence to another:

– Model it as a pair of RNNs: – An encoder that reads the input sentence,

• utputs nothing

– A decoder whose starting hidden state is the last

hidden state of the encoder, and that generates a sentence (RNN language model)

– Give it lots of data….

Success is guaranteed (Sutskever et al. 2014)

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 144

Sequente to sequence models

• They are state-of-the-art in many problems,

some of them fairly novel

– Foreign sentences →

translation

– Emails →

simple replies (Google)

– Python functions →

result

– English sentences →

parsing instructions

– ...

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 145

Sequence to sequence for MT

Combine two RNN: encoder and decoder Train as regular RNN (NOTE: N classifiers)

g g

hidden layers hidden layers

</s>

g

hidden layers

0 0 0 0 0 0

<s>

f f f

txakur pelikula txakur

</s>

pelikula

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 146

Sequence to sequence for MT

Combine two RNN Train as in regular RNN

• Note that decoder is conditioned
• n last hidden state from

encoder:

g g

hidden layers hidden layers

g

hidden layers

<s>

txakur pelikula txakur

</s>

pelikula

p(w1,..., wm∣hencoder)≈∏

t=0 m−1

^ yt ,correct C=⃗ hencoder

⃗

ht=tanh(W [⃗ ht−1,⃗ wt,C]+⃗ b) ^ yt=softmax(W

S ⃗

ht+⃗ c) Jsentence=− 1 T ∑

t=1 m

log ^ yt ,correct

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 147

Sequence to sequence for MT

• Test as decoder

– Compute sentence representation

</s>

0 0 0 0 0 0

f f f

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 148

Sequence to sequence for MT

• Test as conditional RLM decoder

– Compute sentence representation – Generate first word

g

hidden layers

</s>

0 0 0 0 0 0

<s>

f f f

katu

^ wt=argmax

i

^ yt ,i

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 149

Sequence to sequence for MT

• Test as conditional RLM decoder

– Compute sentence representation – Generate second word

g g

hidden layers hidden layers

</s>

0 0 0 0 0 0

f f f

katu pelikula

<s>

katu

^ wt=argmax

i

^ yt ,i

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 150

Sequence to sequence for MT

• Test as conditional RLM decoder

– Compute sentence representation – Generate next word, stop if </s>

g g

hidden layers hidden layers

</s>

g

hidden layers

0 0 0 0 0 0

f f f

katu pelikula

</s>

pelikula

<s>

katu

^ wt=argmax

i

^ yt ,i

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 151

Sequence to sequence for MT

• These models do not beat statistical MT
• More complex RNN: LSTM
• There is a huge loss of information in trying to

cram all the meaning of the input sentence in a single vector

– The decoder is missing key information like

individual words in the input, word order information, length of input, etc.

– Add capability to attend to each of the tokens in

the input: attention!

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 152

Re-thinking seq2seq for NMT

How can we access the necessary information at each decoding step?

g g

hidden layers hidden layers

</s>

g

hidden layers

0 0 0 0 0 0

<s>

f f f

txakur pelikula txakur

</s>

pelikula

h3=⃗ c=⃗ s0

⃗

h0

⃗

h1

⃗

h2

⃗

s1

⃗

s2

⃗

s3

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 153

Re-thinking seq2seq for NMT

Learn alignments jointly with the translation (!) (Bahdanu et al. 2015; Luong et al. 2015)

</s>

f f f

⃗

ct α t 1 + α t 3 α t 2

0 0 0 0 0 0

⃗

st

hidden layers

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 160

Re-thinking seq2seq for NMT

0 0 0 0 0 0

f f f

⃗

ct α t 1 + α t 3 α t 2

</s>

g

hidden layers

<s>

⃗

s1

⃗

ct=∑

j=1 T x

αtj ⃗ h j α tj=exp(etj)/∑

k=1 T x

exp(etk) etj=a(⃗ st , ⃗ hj)=⃗ st W a ⃗ hj

t=1

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 161

Re-thinking seq2seq for NMT

0 0 0 0 0 0

f f f

⃗

ct α t 1 + α t 3 α t 2

</s>

g

hidden layers

<s>

katu

⃗

s1

⃗

ct=∑

j=1 T x

αtj ⃗ h j α tj=exp(etj)/∑

k=1 T x

exp(etk) etj=a(⃗ st , ⃗ hj)=⃗ st W a ⃗ hj

t=1

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 162

Re-thinking seq2seq for NMT

0 0 0 0 0 0

f f f

⃗

ct α t 1 + α t 3 α t 2

</s>

g g

hidden layers hidden layers

<s>

katu katu

⃗

s1

⃗

s2

⃗

ct=∑

j=1 T x

αtj ⃗ h j α tj=exp(etj)/∑

k=1 T x

exp(etk) etj=a(⃗ st , ⃗ hj)=⃗ st W a ⃗ hj

t=2

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 163

Re-thinking seq2seq for NMT

0 0 0 0 0 0

f f f

⃗

ct α t 1 + α t 3 α t 2

</s>

g g

hidden layers hidden layers

<s>

katu katu pelikula

⃗

s1

⃗

s2

⃗

ct=∑

j=1 T x

αtj ⃗ h j α tj=exp(etj)/∑

k=1 T x

exp(etk) etj=a(⃗ st , ⃗ hj)=⃗ st W a ⃗ hj

t=2

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 164

Re-thinking seq2seq for NMT

0 0 0 0 0 0

f f f

⃗

ct α t 1 + α t 3 α t 2

</s>

g g

hidden layers hidden layers

g

hidden layers

<s>

katu pelikula katu

</s>

pelikula

⃗

s1

⃗

s2

⃗

s3

⃗

ct=∑

j=1 T x

αtj ⃗ h j α tj=exp(etj)/∑

k=1 T x

exp(etk) etj=a(⃗ st , ⃗ hj)=⃗ st W a ⃗ hj

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 166

Re-thinking seq2seq for NMT

Back to sentence representations:

– Instead of last hidden state of encoder ... – Attention: keep information of all hidden states

encoder

txakur pelikula

decoder

ederra

⃗

c

⃗

c0

⃗

c1

⃗

c2

⃗

c=[⃗ c0 ,⃗ c1 ,⃗ c2]

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 167

Attention is all you need (!?)

Transformer (Vaswani et al. 2017)

• Extend attention to self-attention:

source (and target) with itself

• Build hidden states using feed forward networks

S t a t e

• f
• t

h e

• a

r t M T

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 168

Attention is all you need (!?)

Transformer (Vaswani et al. 2017)

⃗

c1 α11 + α t 3 α12

Feed forward

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 169

Attention is all you need (!?)

Transformer (Vaswani et al. 2017)

⃗

c2 α 21 + α 23 α 22

⃗

c1

Feed forward

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 170

Attention is all you need (!?)

Transformer (Vaswani et al. 2017)

⃗

c2

⃗

c1

⃗

c3 α 31 + α 33 α 32

Feed forward

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 171

Attention is all you need (!?)

Transformer (Vaswani et al. 2017)

⃗

c2

⃗

c1

⃗

c3 +

Feed forward Feed forward

+

Feed forward

α11 + α t 3 α12

One forward pass

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 172

Recap

• Deep learning:

learn representations for sentences

– Encoders like RNNs (one vector plus attention) – Transformers that keep one vector per token

• Which task would be the best to learn

representations that can be used in other tasks?

• Can we transfer this representation

from one task to the other?

• Can we have all languages in one representation

space?

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 173

Superhuman abilities: Superhuman abilities: unsupervised MT unsupervised MT

https://openreview.net/pdf?id=Sy2ogebAW https://openreview.net/pdf?id=Sy2ogebAW

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 175

Unsupervised MT

• Given:

– Some books in Chinese – Some other books in Arabic – A person who does not know Chinese nor Arabic

• Can a person learn to translate from Chinese

to Arabic or vice versa?

• A machine can!

– Leverage unsupervised cross-lingual embeddings

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 176

… . . .

L1 embeddings

Encoder for L1

… . . .

atuentjon sofumax

L2 decoder

Unsupervised MT

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 177

… . . .

fjxed cross-lingual embeddings

Shared encoder (L1/L2)

… . . .

atuentjon sofumax

L1 decoder

… . . .

atuentjon sofumax

L2 decoder

Unsupervised MT

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 178

Unsupervised MT

Previously: cross-lingual embeddings Steps:

• Train as autoencoder:

– Given sentence in L1

train shared encoder with L1 decoder

– Given sentence in L2

train shared encoder with L2 decoder

• Test:

– Given sentence in L1 produce

sentence in L2

– Given sentence in L2 produce

sentence in L1

Fails!! Why?

… . . .

fjxed cross-lingual embeddings

Shared encoder (L1/L2)

… . . .

atuentjon sofumax

L1 decoder

… . . .

atuentjon sofumax

L2 decoder

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 179

Unsupervised MT

• Improvements

– Denoising autoencoder: introduce noise in input – Backtranslation:

• Given sentence in L1 translate to L2 and

train shared encoder with L1 decoder to recover original sentence

• It works!

– Artetxe et al. (2017): The first paper (by 1 day!)

showing that it is possible to translate from one language to the other without bilingual resources

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 180

Unsupervised MT

• Significant improvements last year

– NMT shared decoder – Statistical MT initialized with bilingual dictionary,

plus back-translation iterations

• Results competitive with the state-of-the-art

in 2014

– No bilingual resource!

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 181

Unsupervised MT

• Why does it work at all? An intuition:

– Cross-lingual embedding space provides

information for k-best possible translations

– NMT/SMT figures out how to best “combine”

them

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 182

Conclusions

• New research area – unsupervised Machine Translation
• Performance up, 33 BLEU En-Fr
• Plenty of margin for improvement
• Code for replicability

https://github.com/artetxem/undreamt

https://github.com/artetxem/monoses

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 183

References

• Mikel Artetxe, Gorka Labaka, and Eneko Agirre. 2017.

Unsupervised Neural Machine Translation. In ICLR- 2018.

• Mikel Artetxe, Gorka Labaka, and Eneko Agirre. 2018.

Unsupervised Statistical Machine Translation. In EMNLP-2018.

• (Forthcoming)

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 184

Last words Last words

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 185

DL4NLP

• We have only scratched the surface of

representation learning for NLP

– How do learned representations match

linguistic expectations?

• Exciting developments in transfer learning:

– Language generation with GPT-2 – Contextual embeddings with BERT – Multilingual sentence representations

• Language understanding also requires:

– Complex structure beyond sequence – Function words beyond embeddings (every,not)

DL4NLP 186

Resources

• Books!!
• Tutorials and implementations in Tensorflow (Keras) and Pytorch websites
• Stanford NLP and DL courses: https://nlp.stanford.edu/teaching/
• NYU NLP and DL courses:

https://www.nyu.edu/projects/bowman/teaching.shtml

• Coursera, Udacity, Nvidia Deep Learning courses

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 187

And...

• Short 20 hour, 3 day summer course in July

in San Sebastian (Keras) http://ixa2.si.ehu.es/deep_learning_seminar/ (pre-registration closes 15th of May!)

• Longer version in January

35 hours, 3 weeks (Tensorflow) (to be announced)

• Master and PhD opportunities

DL4NLP in 2 hours - Eneko Agirre - Pavia 2019 188

THANKS!

@eagirre e.agirre@ehu.eus

Acknowledgements:

• Overall slides: Sam Bowman (NYU), Chris Manning and Richard Socher (Stanford)
• All source url’s listed in the slides
