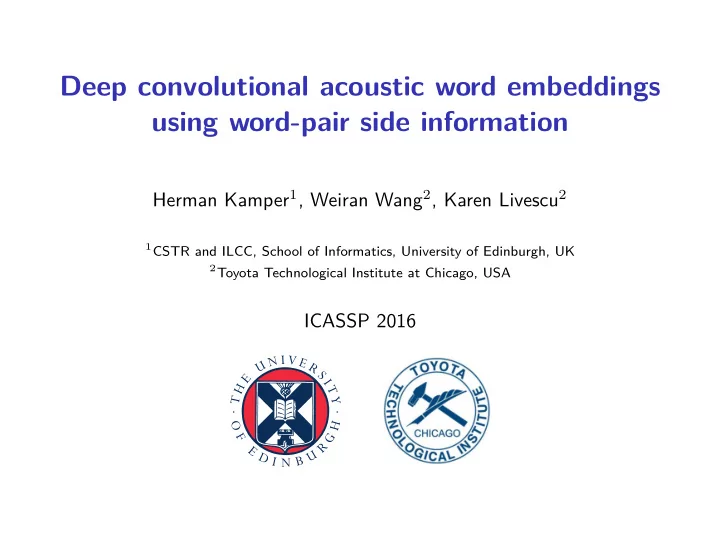

Deep convolutional acoustic word embeddings using word-pair side - - PowerPoint PPT Presentation

Deep convolutional acoustic word embeddings using word-pair side information

Herman Kamper1, Weiran Wang2, Karen Livescu2

1CSTR and ILCC, School of Informatics, University of Edinburgh, UK 2Toyota Technological Institute at Chicago, USA

ICASSP 2016

Introduction

◮ Most speech processing systems rely on deep architectures to classify speech

frames into subword units (HMM triphone states).

◮ Requires pronunciation dictionary for breaking words into subwords; in many

cases still makes frame-level independence assumptions.

◮ Some studies have started to reconsider whole words as basic modelling unit

[Heigold et al., 2012; Chen et al., 2015].

2 / 17

Segmental automatic speech recognition

Segmental conditional random field ASR [Maas et al., 2012]:

Andrew, f1=0 ran, f1=1

Whole-word lattice rescoring [Bengio and Heigold, 2014]:

3 / 17

Segmental query-by-example search

From [Levin et al., 2015]:

LapEig NN Index Search audio segments Segment embeddings Query result(s) Query embedding Query audio LapEig

• Fig. 1. Diagram of the S-RAILS audio search system.

[Chen et al., 2015]: Similar scheme for “Okay Google” using LSTMs.

4 / 17

Segmental query-by-example search

From [Levin et al., 2015]:

LapEig NN Index Search audio segments Segment embeddings Query result(s) Query embedding Query audio LapEig

• Fig. 1. Diagram of the S-RAILS audio search system.

[Chen et al., 2015]: Similar scheme for “Okay Google” using LSTMs. In this work, we also use a query-related task for evaluation.

4 / 17

Acoustic word embedding problem

xi ∈ Rd in d-dimensional space

f(Y1) f(Y2) Y2 Y1

5 / 17

Reference vector method [Levin et al., 2013]

6 / 17

Reference vector method [Levin et al., 2013]

Segment we want to embed: yt1:t2

6 / 17

Reference vector method [Levin et al., 2013]

Reference set Yref: Segment we want to embed: yt1:t2

6 / 17

Reference vector method [Levin et al., 2013]

Reference set Yref: Segment we want to embed: yt1:t2 Dist1

6 / 17

Reference vector method [Levin et al., 2013]

Reference set Yref: Segment we want to embed: yt1:t2 Dist1 Dist2

6 / 17

Reference vector method [Levin et al., 2013]

Reference set Yref: Segment we want to embed: yt1:t2 Dist1 Dist2 Dist3 Dist4 Distm

6 / 17

Reference vector method [Levin et al., 2013]

∈ Rm Reference set Yref: Segment we want to embed: yt1:t2 Dist1 Dist2 Dist3 Dist4 Distm

6 / 17

Reference vector method [Levin et al., 2013]

∈ Rm ×P P ∈ Rm×d Dimensionality reduction: Reference set Yref: Segment we want to embed: yt1:t2 Dist1 Dist2 Dist3 Dist4 Distm

6 / 17

Reference vector method [Levin et al., 2013]

∈ Rm ×P P ∈ Rm×d Dimensionality reduction: ∈ Rd Reference set Yref: Segment we want to embed: Embedding: in fixed d-dimensional space yt1:t2 xi = f(yt1:t2) Dist1 Dist2 Dist3 Dist4 Distm

6 / 17

Word classification CNN [Bengio and Heigold, 2014]

7 / 17

Word classification CNN [Bengio and Heigold, 2014]

Yi

0 0 0 · · · 1 · · · 0 0

wi

7 / 17

Word classification CNN [Bengio and Heigold, 2014]

Yi

0 0 0 · · · 1 · · · 0 0 softmax

wi

7 / 17

Word classification CNN [Bengio and Heigold, 2014]

Yi

0 0 0 · · · 1 · · · 0 0 softmax

wi

7 / 17

Word classification CNN [Bengio and Heigold, 2014]

Yi

0 0 0 · · · 1 · · · 0 0 softmax

wi

7 / 17

Word classification CNN [Bengio and Heigold, 2014]

Yi

0 0 0 · · · 1 · · · 0 0 softmax

wi

7 / 17

Word classification CNN [Bengio and Heigold, 2014]

Yi

0 0 0 · · · 1 · · · 0 0 softmax

wi

7 / 17

Word classification CNN [Bengio and Heigold, 2014]

Yi

0 0 0 · · · 1 · · · 0 0 convolution softmax

wi

7 / 17

Word classification CNN [Bengio and Heigold, 2014]

Yi

0 0 0 · · · 1 · · · 0 0 convolution softmax

wi

7 / 17

Word classification CNN [Bengio and Heigold, 2014]

Yi

0 0 0 · · · 1 · · · 0 0 convolution softmax

wi

7 / 17

Word classification CNN [Bengio and Heigold, 2014]

Yi

0 0 0 · · · 1 · · · 0 0 convolution max softmax

wi

7 / 17

Word classification CNN [Bengio and Heigold, 2014]

Yi

0 0 0 · · · 1 · · · 0 0 convolution max softmax

wi ×nconv

7 / 17

Word classification CNN [Bengio and Heigold, 2014]

Yi

0 0 0 · · · 1 · · · 0 0 convolution max softmax fully connected

wi ×nconv

7 / 17

Word classification CNN [Bengio and Heigold, 2014]

Yi

0 0 0 · · · 1 · · · 0 0 convolution max softmax fully connected

wi ×nfull ×nconv

7 / 17

Word classification CNN [Bengio and Heigold, 2014]

Yi

0 0 0 · · · 1 · · · 0 0 convolution max softmax fully connected

xi = f(Yi) wi ×nfull ×nconv

7 / 17

Supervision and side information

◮ The word classifier CNN assumes a corpus of labelled word segments. ◮ In some cases these might not be available. ◮ Weaker form of supervision we sometimes have (e.g. [Thiolli`

ere et al., 2015]) are known word pairs: Strain = {(m, n) : (Ym, Yn) are of the same type}

◮ Also aligns with query / word discrimination task: does two speech segments

contain instances of the same word? (Don’t care about word identity.)

8 / 17

Supervision and side information

◮ The word classifier CNN assumes a corpus of labelled word segments. ◮ In some cases these might not be available. ◮ Weaker form of supervision we sometimes have (e.g. [Thiolli`

ere et al., 2015]) are known word pairs: Strain = {(m, n) : (Ym, Yn) are of the same type}

◮ Also aligns with query / word discrimination task: does two speech segments

contain instances of the same word? (Don’t care about word identity.) Can we use this weak supervision (sometimes called side information) to train an acoustic word embedding function f ?

8 / 17

Word similarity Siamese CNN

Use idea of Siamese networks [Bromley et al., 1993].

9 / 17

Word similarity Siamese CNN

Use idea of Siamese networks [Bromley et al., 1993].

Y1 x1 = f(Y1) Y2 x2 = f(Y2)

9 / 17

Word similarity Siamese CNN

Use idea of Siamese networks [Bromley et al., 1993].

Y1 x1 = f(Y1) Y2 x2 = f(Y2) distance l(x1, x2)

9 / 17

Loss functions

10 / 17

Loss functions

The coscos2 loss [Synnaeve et al., 2014]: lcos cos2(x1, x2) = 1−cos(x1,x2)

2

if same cos2(x1, x2) if different same different

10 / 17

Loss functions

The coscos2 loss [Synnaeve et al., 2014]: lcos cos2(x1, x2) = 1−cos(x1,x2)

2

if same cos2(x1, x2) if different same different Margin-based hinge loss [Mikolov, 2013]: lcos hinge = max {0, m + dcos(x1, x2) − dcos(x1, x3)} where dcos(x1, x2) = 1−cos(x1,x2)

2

is the cosine distance between x1 and x2, and m is a margin parameter. Pair (x1, x2) are same, (x1, x3) are different.

10 / 17

Embedding evaluation: the same-different task

Proposed in [Carlin et al., 2011] and also used in [Levin et al., 2013].

11 / 17

Embedding evaluation: the same-different task

Proposed in [Carlin et al., 2011] and also used in [Levin et al., 2013].

“apple” “pie” “grape” “apple” “apple” “like”

11 / 17

Embedding evaluation: the same-different task

Proposed in [Carlin et al., 2011] and also used in [Levin et al., 2013].

“apple” “pie” “grape” “apple” “apple” “like”

11 / 17

Embedding evaluation: the same-different task

Proposed in [Carlin et al., 2011] and also used in [Levin et al., 2013].

“apple” “pie” “grape” “apple” “apple” “like” “apple” Treat as query

11 / 17

Embedding evaluation: the same-different task

Proposed in [Carlin et al., 2011] and also used in [Levin et al., 2013].

“apple” “pie” “grape” “apple” “apple” “like” “pie” “grape” “apple” “apple” “like” “apple” Treat as query Treat as terms to search

11 / 17

Embedding evaluation: the same-different task

Proposed in [Carlin et al., 2011] and also used in [Levin et al., 2013].

“apple” “pie” “grape” “apple” “apple” “like” “pie” “grape” “apple” “apple” “like” “apple”

11 / 17

Embedding evaluation: the same-different task

Proposed in [Carlin et al., 2011] and also used in [Levin et al., 2013].

“apple” “pie” “grape” “apple” “apple” “like” “pie” “grape” “apple” “apple” “like” “apple”

11 / 17

Embedding evaluation: the same-different task

Proposed in [Carlin et al., 2011] and also used in [Levin et al., 2013].

“apple” “pie” “grape” “apple” “apple” “like” “pie” “grape” “apple” “apple” “like” “apple” di < threshold? predict: Cosine distance: d1

11 / 17

Embedding evaluation: the same-different task

Proposed in [Carlin et al., 2011] and also used in [Levin et al., 2013].

“apple” “pie” “grape” “apple” “apple” “like” “pie” “grape” “apple” “apple” “like” “apple” di < threshold? predict: different Cosine distance: d1

11 / 17

Embedding evaluation: the same-different task

Proposed in [Carlin et al., 2011] and also used in [Levin et al., 2013].

“apple” “pie” “grape” “apple” “apple” “like” “pie” “grape” “apple” “apple” “like” “apple” di < threshold? predict: different Cosine distance: d1

• 11 / 17

Embedding evaluation: the same-different task

Proposed in [Carlin et al., 2011] and also used in [Levin et al., 2013].

“apple” “pie” “grape” “apple” “apple” “like” “pie” “grape” “apple” “apple” “like” “apple” di < threshold? predict: different Cosine distance: d1

• 11 / 17

Embedding evaluation: the same-different task

Proposed in [Carlin et al., 2011] and also used in [Levin et al., 2013].

“apple” “pie” “grape” “apple” “apple” “like” “pie” “grape” “apple” “apple” “like” “apple” di < threshold? predict: different Cosine distance: d1 d2

• 11 / 17

Embedding evaluation: the same-different task

Proposed in [Carlin et al., 2011] and also used in [Levin et al., 2013].

“apple” “pie” “grape” “apple” “apple” “like” “pie” “grape” “apple” “apple” “like” “apple” di < threshold? predict: different same Cosine distance: d1 d2

• 11 / 17

Embedding evaluation: the same-different task

Proposed in [Carlin et al., 2011] and also used in [Levin et al., 2013].

“apple” “pie” “grape” “apple” “apple” “like” “pie” “grape” “apple” “apple” “like” “apple” di < threshold? predict: different same Cosine distance: d1 d2

• ×

11 / 17

Embedding evaluation: the same-different task

Proposed in [Carlin et al., 2011] and also used in [Levin et al., 2013].

“apple” “pie” “grape” “apple” “apple” “like” “pie” “grape” “apple” “apple” “like” “apple” di < threshold? predict: different same Cosine distance: d1 d2

• ×

11 / 17

Embedding evaluation: the same-different task

Proposed in [Carlin et al., 2011] and also used in [Levin et al., 2013].

“apple” “pie” “grape” “apple” “apple” “like” “pie” “grape” “apple” “apple” “like” “apple” di < threshold? predict: different same Cosine distance: d1 d2 d3

• ×

11 / 17

Embedding evaluation: the same-different task

Proposed in [Carlin et al., 2011] and also used in [Levin et al., 2013].

“apple” “pie” “grape” “apple” “apple” “like” “pie” “grape” “apple” “apple” “like” “apple” di < threshold? predict: different same same Cosine distance: d1 d2 d3

• ×

11 / 17

Embedding evaluation: the same-different task

Proposed in [Carlin et al., 2011] and also used in [Levin et al., 2013].

“apple” “pie” “grape” “apple” “apple” “like” “pie” “grape” “apple” “apple” “like” “apple” di < threshold? predict: different same same Cosine distance: d1 d2 d3

• ×
• 11 / 17

Embedding evaluation: the same-different task

Proposed in [Carlin et al., 2011] and also used in [Levin et al., 2013].

“apple” “pie” “grape” “apple” “apple” “like” “pie” “grape” “apple” “apple” “like” “apple” di < threshold? predict: different same different same different Cosine distance: d1 d2 d3 d4 dN

• ×
• ×
• 11 / 17

Experimental setup

◮ Speech from Switchboard is used for evaluation. ◮ Training set: 10k word tokens; sampled 100k training word pairs. ◮ Test set for same-different evaluation: 11k word tokens, 60.7M pairs, 3%

produced by same speaker.

◮ Used a comparable development set.

12 / 17

Network architectures: Word classifier CNN

39-dimensional padded MFCCs, npad = 200 1-D convolution: 96 ReLU filters over 9 frames Max-pooling: 3 units 1-D convolution: 96 ReLU filters over 8 units Max-pooling: 3 units 1024 ReLU Linear Bottleneck (optional) softmax: 1061 classes

13 / 17

Network architectures: Word classifier CNN

39-dimensional padded MFCCs, npad = 200 1-D convolution: 96 ReLU filters over 9 frames Max-pooling: 3 units 1-D convolution: 96 ReLU filters over 8 units Max-pooling: 3 units 1024 ReLU Linear Bottleneck (optional) softmax: 1061 classes

13 / 17

Network architectures: Word classifier CNN

39-dimensional padded MFCCs, npad = 200 1-D convolution: 96 ReLU filters over 9 frames Max-pooling: 3 units 1-D convolution: 96 ReLU filters over 8 units Max-pooling: 3 units 1024 ReLU Linear Bottleneck (optional) softmax: 1061 classes

13 / 17

Network architectures: Siamese CNN

39-dimensional padded MFCCs, npad = 200 1-D convolution: 96 ReLU filters over 9 frames Max-pooling: 3 units 1-D convolution: 96 ReLU filters over 8 units Max-pooling: 3 units 2048 ReLU 1024 Linear l(x1, x2) distance 39-dimensional padded MFCCs, npad = 200 1-D convolution: 96 ReLU filters over 9 frames Max-pooling: 3 units 1-D convolution: 96 ReLU filters over 8 units Max-pooling: 3 units 2048 ReLU 1024 Linear

14 / 17

Network architectures: Siamese CNN

39-dimensional padded MFCCs, npad = 200 1-D convolution: 96 ReLU filters over 9 frames Max-pooling: 3 units 1-D convolution: 96 ReLU filters over 8 units Max-pooling: 3 units 2048 ReLU 1024 Linear l(x1, x2) distance 39-dimensional padded MFCCs, npad = 200 1-D convolution: 96 ReLU filters over 9 frames Max-pooling: 3 units 1-D convolution: 96 ReLU filters over 8 units Max-pooling: 3 units 2048 ReLU 1024 Linear

14 / 17

Results

Representation Dim AP

15 / 17

Results

Representation Dim AP DTW MFCCs with CMVN 39 0.214

15 / 17

Results

Representation Dim AP DTW MFCCs with CMVN 39 0.214 Correspondence autoencoder [Kamper et al., 2015] 100 0.469

15 / 17

Results

Representation Dim AP DTW MFCCs with CMVN 39 0.214 Correspondence autoencoder [Kamper et al., 2015] 100 0.469 Acoustic word embed. Reference vector approach [Levin et al., 2013] 50 0.365

15 / 17

Results

Representation Dim AP DTW MFCCs with CMVN 39 0.214 Correspondence autoencoder [Kamper et al., 2015] 100 0.469 Acoustic word embed. Reference vector approach [Levin et al., 2013] 50 0.365 Word classifier CNN 1061 0.532 ± 0.014

15 / 17

Results

Representation Dim AP DTW MFCCs with CMVN 39 0.214 Correspondence autoencoder [Kamper et al., 2015] 100 0.469 Acoustic word embed. Reference vector approach [Levin et al., 2013] 50 0.365 Word classifier CNN 1061 0.532 ± 0.014 50 0.474 ± 0.012

15 / 17

Results

Representation Dim AP DTW MFCCs with CMVN 39 0.214 Correspondence autoencoder [Kamper et al., 2015] 100 0.469 Acoustic word embed. Reference vector approach [Levin et al., 2013] 50 0.365 Word classifier CNN 1061 0.532 ± 0.014 50 0.474 ± 0.012 Siamese CNN, lcos cos2 loss 1024 0.342 ± 0.026 Siamese CNN, lcos hinge loss 1024 0.549 ± 0.011

15 / 17

Results

Representation Dim AP DTW MFCCs with CMVN 39 0.214 Correspondence autoencoder [Kamper et al., 2015] 100 0.469 Acoustic word embed. Reference vector approach [Levin et al., 2013] 50 0.365 Word classifier CNN 1061 0.532 ± 0.014 50 0.474 ± 0.012 Siamese CNN, lcos cos2 loss 1024 0.342 ± 0.026 Siamese CNN, lcos hinge loss 1024 0.549 ± 0.011 50 0.504 ± 0.011

15 / 17

Results

Representation Dim AP DTW MFCCs with CMVN 39 0.214 Correspondence autoencoder [Kamper et al., 2015] 100 0.469 Acoustic word embed. Reference vector approach [Levin et al., 2013] 50 0.365 Word classifier CNN 1061 0.532 ± 0.014 50 0.474 ± 0.012 Siamese CNN, lcos cos2 loss 1024 0.342 ± 0.026 Siamese CNN, lcos hinge loss 1024 0.549 ± 0.011 50 0.504 ± 0.011 LDA on: lcos hinge, d = 1024 100 0.545 ± 0.011

15 / 17

Varying dimensionalities on development data

10 30 100 300 1000 3000 Dimensionality of acoustic embedding (log scale) 0.05 0.10 0.15 0.20 0.25 0.30 0.35 0.40 0.45 0.50 Average precision (AP)

Word classifier CNN Siamese CNN: lcos cos2 Siamese CNN: lcos hinge

16 / 17

Varying dimensionalities on development data

10 30 100 300 1000 3000 Dimensionality of acoustic embedding (log scale) 0.05 0.10 0.15 0.20 0.25 0.30 0.35 0.40 0.45 0.50 Average precision (AP)

Word classifier CNN Siamese CNN: lcos cos2 Siamese CNN: lcos hinge Siamese CNN with LDA

16 / 17

Summary and conclusion

◮ Introduced the Siamese CNN for obtaining acoustic word embeddings, and

evaluated different cost functions.

◮ Evaluated using word discrimination task, and showed similar performance to

word classifier CNN.

◮ For smaller dimensionalities: Siamese CNN outperformed classifier CNN. ◮ Self-criticism: evaluated on a small dataset (low-resource setting). ◮ Future work: sequence models, using embeddings for search and ASR.

17 / 17

Code

Neural networks (Theano): https://github.com/kamperh/couscous Complete recipe: https://github.com/kamperh/recipe_swbd_wordembeds
