DECISION MAKING IN A CONDOMINIUM AN ISING-LIKE SOCIOPHYSICAL SYSTEM Mrta Jvor Tams Geszti Roland Etvs University IN MEMORIAM GEORGE MARX (1927 2002) 2 Purpose to show: how we can use a simple model of statistical

slide-1
SLIDE 1

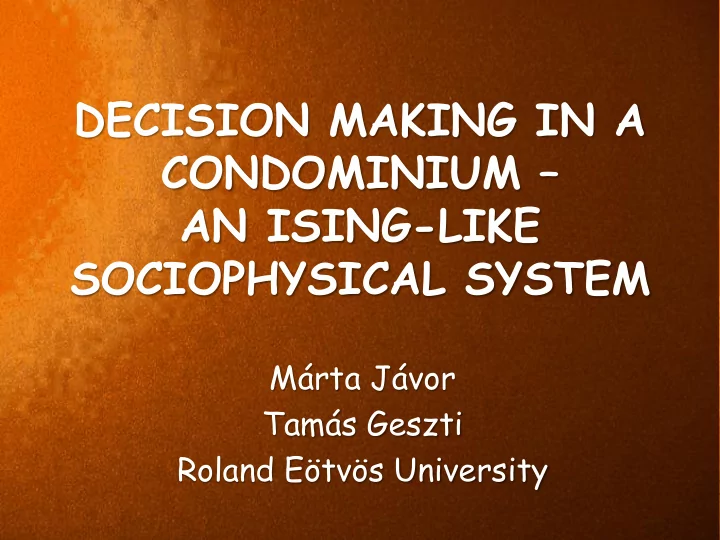

DECISION MAKING IN A CONDOMINIUM – AN ISING-LIKE SOCIOPHYSICAL SYSTEM

Márta Jávor Tamás Geszti Roland Eötvös University

slide-2
SLIDE 2

2

IN MEMORIAM

GEORGE MARX (1927 – 2002)

slide-3
SLIDE 3

3

Purpose

  • to show:

how we can use a simple model of statistical physics – the Ising model – and a statistical method – Monte Carlo - to study a complex sociological system

slide-4
SLIDE 4

4

Sociophysics

adaptation of statistical physics methods to sociological systems

  • Serge Galam „father of sociophysics”:

COLLECTIVE DECISION TAKING is like MAGNETIC ORDERING

slide-5
SLIDE 5

5

slide-6
SLIDE 6

6

Two men dissussing with one another are similar to two interacting spins

slide-7
SLIDE 7

7

slide-8
SLIDE 8

8

Simple model of ferromagnetism

The game is to learn about human community from the Ising model.

Ernst Ising

slide-9
SLIDE 9

𝐹 = −

𝑗,𝑘

𝐾𝑗𝑘𝑇𝑗𝑇

𝑘 − 𝐼 𝑗

𝑇𝑗

9

ISING MODEL

energy coupling coefficient external magnetic field magnetization spin

The coupling is SYMMETRICAL!

slide-10
SLIDE 10

10

Only two possibilities

slide-11
SLIDE 11

11

Without external magnetic field

𝐼 = 0 𝐹 = −

𝑗,𝑘

𝐾𝑗𝑘𝑇𝑗𝑇

𝑘

slide-12
SLIDE 12

12

Simulation method

  • MC – Monte Carlo method

(using computer-generated random numbers) – using the Metropolis algorithm

slide-13
SLIDE 13

13

Metropolis algorithm

  • run over all spins on a lattice, and for each

spin

– propose a change from the current state: flip

  • 1 to +1 or +1 to -1, and calculate the

acceptance probability – decide to accept or reject this change by using a random number between 0 and 1:

  • accept the change

if random number ≤ acceptance probability

  • reject the change

if random number › acceptance probability

slide-14
SLIDE 14

14

Acceptance probability:

if if

Evaluate energy change ∆E accompanying the flip;

slide-15
SLIDE 15

15

Decision

  • generate a random number: r ⋲ (0,1)

Accept change if r‹W, Reject

  • therwise
slide-16
SLIDE 16

16

EXCEL Visual Basic macro

slide-17
SLIDE 17

17

2D 25×25 lattice

slide-18
SLIDE 18

18

Neighbours

i-1;j i;j-1 i,j i;j+1 i+1;j

slide-19
SLIDE 19

19

Periodic boundary conditions

slide-20
SLIDE 20

20

Periodic boundary conditions

each cell has 4 neighbours 25×25 lattice

slide-21
SLIDE 21

21

MADRID

slide-22
SLIDE 22

22

MOSCOW

„BUBLIK”

slide-23
SLIDE 23

23

TORUS

slide-24
SLIDE 24

24

Random initial configuration

1 2 2 1 2 1 1 1 1 2 1 2 2 2 2 1 1 1 1 1 1 1 2 2 1 1 2 2 2 2 1 1 1 1 1 1 2 1 2 2 1 1 2 2 2 2 1 2 2 2 2 1 1 2 1 1 1 1 1 2 2 1 1 1 1 2 2 1 1 2 2 2 1 2 2 1 2 2 2 1 1 2 1 1 2 2 1 1 1 2 2 1 2 1 2 2 2 2 1 1 1 2 2 1 1 1 2 1 2 2 2 1 1 1 1 2 2 2 2 1 1 1 2 1 1 1 2 2 1 1 2 1 1 1 2 2 2 2 2 1 2 1 2 1 2 1 2 2 1 2 1 2 2 2 2 2 1 1 1 2 1 1 2 1 2 2 2 1 2 1 1 2 2 2 1 2 1 2 1 2 1 2 2 1 2 2 1 2 2 2 1 2 1 1 2 2 2 2 1 1 1 2 2 1 2 1 1 1 1 1 2 2 1 2 1 2 2 2 1 2 1 1 2 2 2 1 2 2 2 1 1 1 1 1 2 2 2 1 2 2 2 2 2 1 1 2 2 2 1 1 2 2 2 1 2 2 2 1 2 2 2 1 2 2 1 2 2 1 1 2 1 1 2 2 2 1 1 1 1 2 1 1 1 1 2 1 1 1 2 1 1 2 1 2 1 2 1 2 2 2 2 2 2 2 1 2 1 2 2 2 2 2 2 1 2 2 2 2 1 2 1 1 1 1 1 2 1 1 2 2 2 1 2 2 1 2 2 2 2 2 2 1 2 1 2 2 1 1 1 1 2 1 2 2 2 2 2 2 2 2 1 1 1 1 1 2 2 2 2 1 2 2 2 2 2 2 2 2 1 1 2 1 2 1 2 2 1 2 1 2 2 2 2 2 1 2 1 2 1 1 2 1 1 1 1 2 2 2 2 1 1 1 2 1 1 1 1 1 1 2 1 2 2 1 1 2 2 1 2 1 2 1 2 2 2 2 2 1 1 2 1 2 2 1 1 1 1 1 2 1 1 2 2 1 1 1 2 2 1 1 2 1 2 2 2 1 1 1 2 1 2 1 1 2 1 2 1 1 1 1 1 2 2 1 2 2 1 1 1 1 1 2 1 2 1 1 1 2 2 2 1 1 1 1 2 2 1 2 1 1 1 2 1 2 1 1 1 2 2 1 2 2 2 1 2 2 1 1 1 1 2 1 2 1 2 2 1 2 2 2 1 1 2 1 1 1 2 1 1 2 2 1 1 2 2 2 1 1 1 1 2 2 2 2 2 2 1 1 2 1 1 1 2 1 1 2 2 1 2 1 1 2 1 2 2 2 2 2 1 1 1 1 2 2 1 2 1 1 1 2 1 1 1 1 1 2 1 1 1 1 2 2 1 1 1 2 1 1 1 2 2 2 2 1 1

slide-25
SLIDE 25

25

EXCEL worksheet

slide-26
SLIDE 26

26

100-step iteration result

  • 1.0000
  • 0.5000

0.0000 0.5000 1.0000 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5 kT/J

M/N

M/N

slide-27
SLIDE 27

27

Statistics – EXCEL worksheet

slide-28
SLIDE 28

28

M/N depending on parameters

slide-29
SLIDE 29

29

Decision in the condominium

slide-30
SLIDE 30

30

One example

  • There is a hole on the roof

– two possibilities:

  • to repair
  • not repair, resolve
  • therwise
slide-31
SLIDE 31

31

Factors influencing decision

  • psychology

– individual background – openness towards other people

  • Sociology

– connections between neighbours – knowledge about the problem to decide

  • effects from environment unrelated to

the decision

slide-32
SLIDE 32

32

J=0

Everybody having his/her

  • wn idea
slide-33
SLIDE 33

33

Discussion J≠0

slide-34
SLIDE 34

34

Types of coupling

J›0 J‹0 asymmetrical non-Ising! symmetrical

slide-35
SLIDE 35

35

slide-36
SLIDE 36

36

Symmetrical coupling ; J›0

slide-37
SLIDE 37

37

magnetizations from seven 100-step simulations, as a function of kT/J

slide-38
SLIDE 38

38

magnetizations from seven 100-step simulations, as a function of kT/J

2.27

ONSAGER theory

slide-39
SLIDE 39

Analysis of model’s results about the decision

  • main parameter of the model is the

ratio

𝑄 = 𝑙𝑈 𝐾

  • if this parameter is low (T is low)

– the neighbours pay attention to each other

  • if this parameter is hight (T is high)

– the neighbours pay attention to many other things

slide-40
SLIDE 40

40

EXTERNAL MAGNETIC FIELD may correspond to:

  • a strong argument

in favour of some decision

  • r a dominant personality
slide-41
SLIDE 41

41

slide-42
SLIDE 42

Magnetization ~ achieving majority („polarization”), even in the presence of strong noise („high temperature”)

slide-43
SLIDE 43
slide-44
SLIDE 44

44

Beyond the physical model:

asymmetric coupling

slide-45
SLIDE 45

45

Beyond the physical model: asymmetric coupling

i-1;j i;j-1 i,j i;j+1 i+1;j

upper & left neighbours

J

slide-46
SLIDE 46

46

Beyond the physical model: asymmetric coupling

i-1;j i;j-1 i,j i;j+1 i+1;j

upper & left neighbours lower & right neighbours

J qJ

slide-47
SLIDE 47

47

Beyond the physical model: asymmetric coupling

i-1;j i;j-1 i,j i;j+1 i+1;j

upper & left neighbours lower & right neighbours

J qJ

slide-48
SLIDE 48

48

Beyond the physical model: asymmetric coupling

i-1;j i;j-1 i,j i;j+1 i+1;j

upper & left neighbours lower & right neighbours

J qJ

slide-49
SLIDE 49

49

Beyond the physical model: asymmetric coupling

i-1;j i;j-1 i,j i;j+1 i+1;j

upper & left neighbours lower & right neighbours

J qJ

slide-50
SLIDE 50

50

q=0.4 kT/J=1.5

slide-51
SLIDE 51

51

q=0.2 kT/J=1.0

slide-52
SLIDE 52

52

Conclusion:

symmetrical coupling: the decision is final asymmetrical coupling: the decision is temporary

slide-53
SLIDE 53

53

SUMMARY

  • Simple physical models may reveal a lot about

complex social problems

  • Some common physical features of the model

(e.g. symmetric coupling) should be given up to get closer to social reality

  • Numerical modeling using simple tools (excel)

provide good insight for high-school teaching

slide-54
SLIDE 54

54

slide-55
SLIDE 55

55

Beyond the physical model: asymmetric coupling

i-1;j i;j-1 i,j i;j+1 i+1;j

upper & left neighbours lower & right neighbours

J qJ
