Data Warehouse

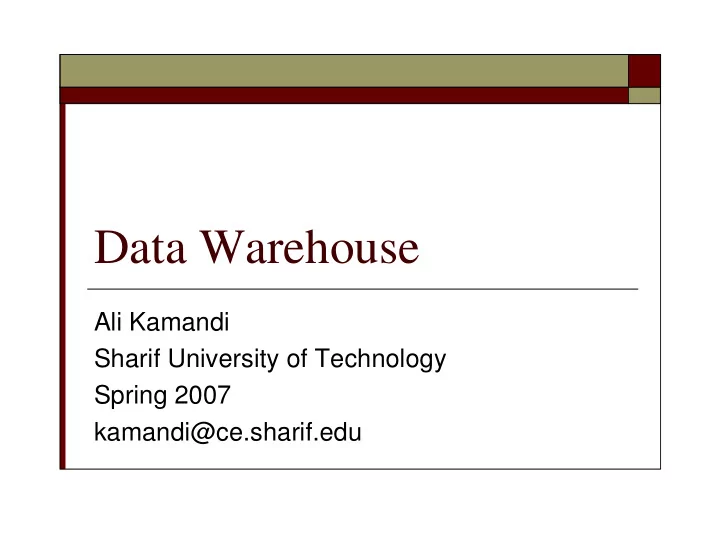

Ali Kamandi Sharif University of Technology Spring 2007 kamandi@ce.sharif.edu

2

Part 1:

Data Warehouse Concepts

3

Data, Data everywhere yet ...

• I can’t find the data I need
• data is scattered over the network
• many versions
• I can’t understand the data I found
• I can’t use the data I found

4

Data Management

The Difficulties of managing Data:

• The amount of data increases exponentially with time
• Data are scattered throughout organization
• An ever-increasing amount of external data needs
• Data security, quality, and integrity are critical

5

Data Sources

Internal Data Sources Personal Data External Data Sources

6

What is a Data Warehouse?

A single, complete and consistent store of data

• btained from a variety of

different sources made available to end users in a what they can understand and use in a business context. [Barry Devlin]

7

• Why Data Warehousing?

8

Definition of data warehousing

• A data warehouse is a subject-oriented,

integrated, time-variant and non-volatile collection of data in support of management’s decision making process.

9

Characteristics of a Data Warehouse

Subject-Oriented. Data are organized by subject and contain information relevant for decision support only .

• Consistency. Data in different operational databases may be encoded

differently . In the data warehouse, though, they will be coded in a consistent manner. Time variant. The data are kept for many years so that they can be used for trends, forecasting, and comparisons over time. Non-volatile. Data are not updated once entered into the warehouse.

• Multidimensional. Typically the data warehouse uses a

multidimensional structure .

10

OLTP vs. OLAP

• Mostly updates
• Many small transactions
• Mb-Tb of data
• Raw data
• Clerical users
• Up-to-date data
• Consistency,

recoverability critical

• Mostly reads
• Queries long, complex
• Gb-Tb of data
• Summarized, consolidated

data

• Decision-makers, analysts

as users

OLTP OLAP

11

Part 2:

Data Warehouse Design

12

Building a Data Warehouse

13

Relational and Multidimensional Database

Relational databases store data in two –

dimensional tables. Multidimensional databases typically store data in arrays, which consist of at least three business dimension.

14

Relational data model

• based on a single structure of data values in a two

dimensional table

CUSTOMER ORDER Cus_id Cus_name … 001 Robert … 002 Lyn … … … … Ord_no Ord_date Cus_id … 01 02 Dec 02 002 … 02 03 Dec 02 Lyn … … … … …

15

A Sample Data Cube

Total annual sales

• f TV in U.S.A.

Date Product Country

sum sum TV VCR PC 1Qtr 2Qtr 3Qtr 4Qtr U.S.A Canada Mexico sum

16

Multidimensional Data Model

Composed of one fact table and a set of

dimension tables.

Dimensional table: each dimension table has a

simple table (non-composite) primary key that corresponds exactly to one of the components of the composite key in the fact table.

A multidimensional data model is typically

• rganized around a central theme, like sales, for

instance.

17

Conceptual Modeling of Data Warehouses

Modeling data warehouses: dimensions & measures

• Star schema: A fact table in the middle connected to a set
• f dimension tables
• Snowflake schema: A refinement of star schema where

some dimensional hierarchy is normalized into a set of smaller dimension tables, forming a shape similar to snowflake

• Fact constellations: Multiple fact tables share dimension

tables, viewed as a collection of stars, therefore called galaxy schema or fact constellation

18

Example of Star Schema

time_key day day_of_the_week month quarter year

time

location_key street city province_or_street country

location Sales Fact Table time_key item_key branch_key location_key units_sold dollars_sold avg_sales Measures

item_key item_name brand type supplier_type

item

branch_key branch_name branch_type

branch

19

Example of Snowflake Schema

time_key day day_of_the_week month quarter year

time

location_key street city_key

location Sales Fact Table time_key item_key branch_key location_key units_sold dollars_sold avg_sales Measures

item_key item_name brand type supplier_key

item

branch_key branch_name branch_type

branch

supplier_key supplier_type

supplier

city_key city province_or_street country

city

20

Example of Fact Constellation

time_key day day_of_the_week month quarter year

time

location_key street city province_or_street country

location Sales Fact Table time_key item_key branch_key location_key units_sold dollars_sold avg_sales Measures

item_key item_name brand type supplier_type

item

branch_key branch_name branch_type

branch Shipping Fact Table time_key item_key shipper_key from_location to_location dollars_cost units_shipped

shipper_key shipper_name location_key shipper_type

shipper

21

Typical OLAP Operations

• Roll up (drill-up): summarize data
• by climbing up hierarchy or by dimension reduction
• Drill down (roll down): reverse of roll-up
• from higher level summary to lower level summary or detailed data,
• r introducing new dimensions
• Slice and dice:
• project and select
• Pivot (rotate):
• reorient the cube, visualization, 3D to series of 2D planes.
• Other operations

22

Operations

Rollup: summarize data

e.g., given sales data, summarize sales for last

year by product category and region

Drill down: get more details

e.g., given summarized sales as above, find

breakup of sales by city within each region, or within the Andhra region

23

More Cube Operations

Slice and dice: select and project

e.g.: Sales of soft-drinks in Andhra over the last

quarter

Pivot: change the view of data

24

Design a Warehouse?

• Design data warehouse
• Design data marts
• Design representation (Star schema, …)
• gathering data
• Which data is needed?
• Where does it come from?
• cleansing, integrating, ...
• querying, reporting, analysis
• monitoring, administering warehouse
• data mining

25

Data Gathering

Periodic snapshots Database triggers Log shipping Data shipping (replication service) …

26

Loading Data

Incremental vs. refresh Off-line vs. on-line Frequency of loading

At night, 1x a week/month, continuously

Parallel/Partitioned load

27

Part 3:

Data Mining

28

Data Mining Concepts

Data mining: The process of searching for valuable business information in a large database, data warehouse, or data mart.

29

Text Mining

The application of data mining to non- structured or less-structured text files.

30

Web Mining

The application of data mining techniques to discover actionable and meaningful patterns form web resources.

31

Some basic operations

Regression Classification Clustering / similarity matching Association rules and variants

32

Classification

Given old data about customers and

payments, predict new applicant’s loan eligibility.

Age Salary Profession Location Customer type Previous customers Classifier Decision rules

Salary > 5 L

• Prof. = Exec

New applicant’s data

Good/ bad

33

Classification methods

Goal: Predict class Ci = f(x1, x2, .. Xn)

Regression: (linear or any other polynomial)

a*x1 + b*x2 + c = Ci.

34

Tree where internal nodes are simple

decision rules on one or more attributes and leaf nodes are predicted class labels.

Decision trees

Salary < 1 M Prof = teacher Good Age < 30 Bad Bad Good

35

Neural network

Set of nodes connected by directed weighted

edges

Hidden nodes Output nodes x1 x2 x3 x1 x2 x3 w1 w2 w3

y n i i i

e y x w

• −

=

+ = =

• 1

1 ) ( ) (

1

σ σ

Basic NN unit A more typical NN

36

What is association rule mining?

Hmmm, which items are frequently purchased together by my customers? milk cereal bread milk bread butter milk bread sugar eggs Customer 1 Market Analyst Customer 2 sugar eggs Customer n Customer 3 Shopping Baskets

milk brea d suga r butte r cerea l eggs Basket 1 1 1 1 Basket 2 1 1 1 1 Basket 3 1 1 1 Basket 4 1 1

37

What is association rule mining? (cont.)

milk bread sugar butter cereal eggs Basket 1 1 1 1 Basket 2 1 1 1 1 Basket 3 1 1 1 Basket 4 1 1 count 3 3 2 1 1 2 Support (milk)=3 Support (bread)=3 Support (sugar)=2 …… Support (milk U bread)=3 Support (milk U sugar)=1 …… Support (milk U bread U sugar)=1 …… Support (milk U bread U sugar U butter U cereal U eggs)=0

Confidence (A B)=Support (A U B)/Support (A) As Confidence (milk bread) = = Support (milk U bread)/Support (milk) = 3/3 = 100%, Then milk bread If Confidence (A B) >= min_conf, Then A B

38

How DM improve your business?

Strategy 1: Placing milk and bread within close proximity may further encourage the sale of these items together within single visits to the store.

39

How DM improve your business?

Strategy 2: Placing milk and bread at opposite ends of the store may entice customers who purchase such items to pick up other items along the way.

40

How DM improve your business?

Strategy 3:Put these two items into a package at reduced price.
