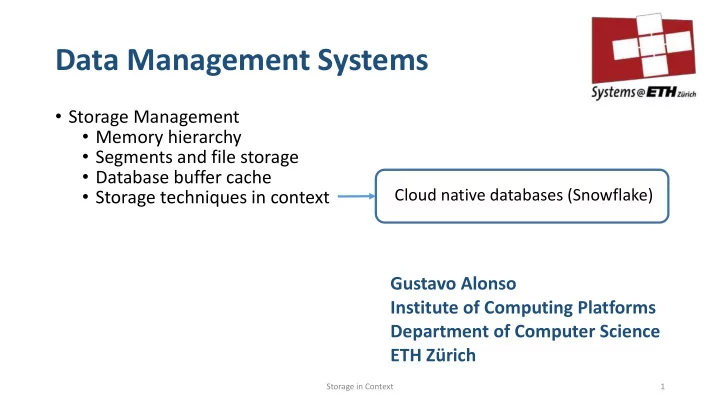

Data Management Systems

• Storage Management
• Memory hierarchy
• Segments and file storage
• Database buffer cache
• Storage techniques in context

Gustavo Alonso Institute of Computing Platforms Department of Computer Science ETH Zürich

1 Storage in Context

Cloud native databases (Snowflake)

Architecture of a database

Blocks, files, segments Pages in memory Physical records Logical records (tuples) Logical data (tables, schemas) Relations, views Queries, Transactions (SQL) Record Interface Record Access Page access File Access Application Logical view (logical data) Access Paths Physical data in memory Page structure Storage allocation

2 Storage in Context

Cloud storage and file system (Amazon S3)

Goals of the lecture

• Put the previous material regarding storage in perspective
• Use a modern example of a database (Snowflake)
• Illustrate how hardware and the cloud change things
• Illustrate the many possibilities available to a database engine in

terms of storing and managing physical data

• Start introducing different database engine designs speciliazed to

concrete applications

Storage in Context 3

Snowflake

• A data warehouse specialized for analytical queries developed

entirely on the cloud (cloud native)

• Separates compute (nodes running VMs with a local disk) from

storage (Amazon’s S3)

Storage in Context 4

Documentation: https://docs.snowflake.com/en/user-guide-intro.html Paper: https://dl.acm.org/doi/10.1145/2882903.2903741

Amazon’s S3

• Simple Storage Service (S3) is an object storage service in the cloud

that acts as the persistent storage that is available to applications

• Unlike conventional local disks or distributed file system!
• Object store (key-value) [object = file]
• HTTP(S) PUT/GET/DELETE interface
• No update in place (objects must be written in full)
• Can read parts (ranges) of an object instead of the whole object
• High CPU overhead (because of HTTP)
• I/O is extra expensive (network bandwidth, latency, interface)

Storage in Context 5

Something familiar

• A virtual warehouse is a collection
• f worker nodes (EC2 instances in

Amazon)

• Each worker node has a cache in

its local disk where it stores the

• bjects (table files or parts

thereof) accessed before

• The cache uses a simple LRU

replacement policy

Storage in Context 6

Micro-partitions

• Micro-partitions are Snowflake’s name for extents
• What is interesting is how they are organized to facilitate query

processing

• Size ranges between 50 and 500 MB (before compression, the data is always

compressed when in S3)

• Each micro partition has metadata describing what is inside
• The metadata can be read without reading the whole micro-partition
• The metadata is used to read just the part of the micro-partition that is

relevant

• Data in the micro-partition is stored in columnar form (by columns not by

rows)

Storage in Context 7

Storage in Context 8

https://docs.snowflake.com/en/user-guide/tables-clustering-micropartitions.html

A not so uncommon design

• Snowflake is combining many tricks used before in different contexts:
• Horizontal partitioning of the tables (by row): allows to read the table in

parallel, to put different parts of the table in different processing nodes, and – if organized accordingly- allows to read only the needed tuples instead of all the table

• Columnar format (storage by column): the preferred storage format for

analytics, improves cache locality, enables vectorized processing, facilitates projection operations (SQL), allows to process only the part of the table that is relevant

• Storage level processing to read only the part of the file that is needed

(helped by the micro-partitions and the columnar format)

Storage in Context 9

Pruning based on metadata

• The header for a micro-partition

contains information about the data. SELECT * FROM T WHERE age > 45

• If header contains the min and

max age in the data, we can decide we do not need that micro- partition simply by looking at the header

Storage in Context 10

Pruning

• Snowflake does not use indexes
• Indexes require a lot of space
• Indexes induce random accesses (very bad for slow storage like S3)
• Indexes need to be maintained and selected correctly
• Instead, it uses the metadata to store information that allows to filter

micro-partitions (min/max, #distinct values,#nulls, bloom filters, etc.)

• The metadata is much smaller than an index and easier to load than a

whole index

• By splitting table in potentially many micro-partitions, it can

significantly optimize the data movement to and from storage

Storage in Context 11

Writing to disk

• S3 does not support update in place, a file is replaced in its entirety

(immutable)

• Snowflake uses this feature to implement snapshots of the data (like

shadow paging):

• When a micro-partition is modified, a new file is written
• The old micro-partition can be kept or discarded
• Allows time travel (read the data in the past up to 90 days) and

provides fault-tolerance (the old data can be recovered from the old micro-partitions)

Storage in Context 12
