SLIDE 1

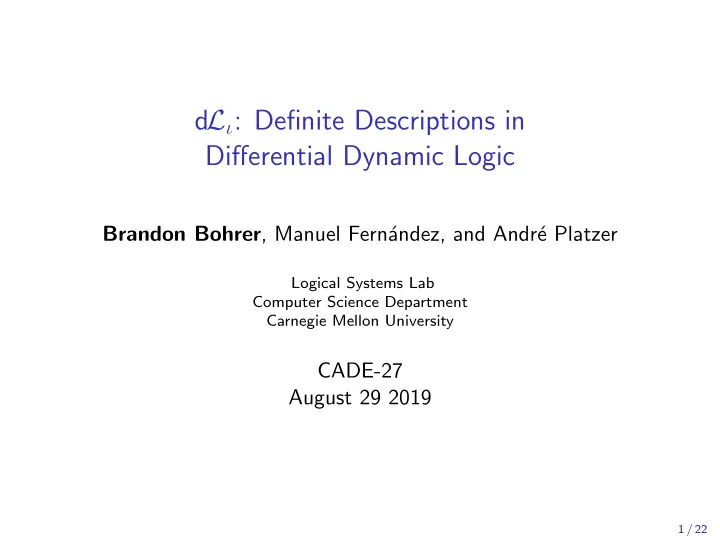

dLι: Definite Descriptions in Differential Dynamic Logic

Brandon Bohrer, Manuel Fern´ andez, and Andr´ e Platzer

Logical Systems Lab Computer Science Department Carnegie Mellon University

CADE-27 August 29 2019

1 / 22

SLIDE 2

Outline

1 Introduction 2 CPS Needs Partiality, Discontinuity 3 Semantics 4 Proof Calculus 5 Theory

2 / 22

SLIDE 3

We Can Trust Theorem Provers

Prover NuPRL Coq KeYmaera X HOL4 Verification Foundation PRL CIC dL HOL [AR14] [Bar10] [BRV+17] [KAMO16]

3 / 22

SLIDE 4

We Can Almost Trust Theorem Provers

Prover NuPRL Coq KeYmaera X HOL4 Challenge Foundation PRL CIC dL HOL Γ ⇓ ⇀, C ∞ [KAMO16]

4 / 22

SLIDE 5

We Help dL Foundation Catch Up

Prover NuPRL Coq KeYmaera X HOL4 Challenge Foundation PRL CIC dLι HOL Γ ⇓ ⇀, C ∞ [BFP19] [KAMO16]

5 / 22

SLIDE 6

Safety-Critical CPS Deserve Proofs

Planes Drones Robots How can we design cyber-physical systems people can bet their lives on? – Jeanette Wing

6 / 22

SLIDE 7

dL + KeYmaera X Provides Proofs

Planes Drones Robots Γ ⊢ A Γ ⊢ A ∧ B Discrete Control Continuous Dynamics Syntactic Proof

6 / 22

SLIDE 8

dL + KeYmaera X Provides Proofs

Planes Drones Robots Γ ⊢ A Γ ⊢ A ∧ B Discrete Control Continuous Dynamics Syntactic Proof How do proofs cope when control, dynamics are partial, discontinuous?

6 / 22

SLIDE 9

Outline

1 Introduction 2 CPS Needs Partiality, Discontinuity 3 Semantics 4 Proof Calculus 5 Theory

7 / 22

SLIDE 10

Example System: Robot Water Cooler

αB ≡

{?h > 0; a := 1} ∪ a := 0
;

h′ = −

2gh a

A & h ≥ 0 ∗

Proposition (Leakiness)

g > 0 ∧ h = h0 ∧ h0 > 0 ∧ A > 0 → [αB](h ≤ h0)

8 / 22

SLIDE 11

Example System: Robot Water Cooler

αB ≡

{?h > 0; a := 1} ∪ a := 0
;

h′ = −

2gh a

A & h ≥ 0 ∗ Choose control case

Proposition (Leakiness)

g > 0 ∧ h = h0 ∧ h0 > 0 ∧ A > 0 → [αB](h ≤ h0)

8 / 22

SLIDE 12

Example System: Robot Water Cooler

αB ≡

{?h > 0; a := 1} ∪ a := 0
;

h′ = −

2gh a

A & h ≥ 0 ∗ Choose control case Test h > 0

Proposition (Leakiness)

g > 0 ∧ h = h0 ∧ h0 > 0 ∧ A > 0 → [αB](h ≤ h0)

8 / 22

SLIDE 13

Example System: Robot Water Cooler

αB ≡

{?h > 0; a := 1} ∪ a := 0
;

h′ = −

2gh a

A & h ≥ 0 ∗ Choose control case Test h > 0 Set a to 1

Proposition (Leakiness)

g > 0 ∧ h = h0 ∧ h0 > 0 ∧ A > 0 → [αB](h ≤ h0)

8 / 22

SLIDE 14

Example System: Robot Water Cooler

αB ≡

{?h > 0; a := 1} ∪ a := 0
;

h′ = −

2gh a

A & h ≥ 0 ∗ Choose control case Test h > 0 Set a to 1 Evolve physics

Proposition (Leakiness)

g > 0 ∧ h = h0 ∧ h0 > 0 ∧ A > 0 → [αB](h ≤ h0)

8 / 22

SLIDE 15

Example System: Robot Water Cooler

αB ≡

{?h > 0; a := 1} ∪ a := 0
;

h′ = −

2gh a

A & h ≥ 0 ∗ Choose control case Test h > 0 Set a to 1 Evolve physics

Proposition (Leakiness)

g > 0 ∧ h = h0 ∧ h0 > 0 ∧ A > 0 → [αB](h ≤ h0) F.O. Arithmetic

8 / 22

SLIDE 16

Example System: Robot Water Cooler

αB ≡

{?h > 0; a := 1} ∪ a := 0
;

h′ = −

2gh a

A & h ≥ 0 ∗ Choose control case Test h > 0 Set a to 1 Evolve physics

Proposition (Leakiness)

g > 0 ∧ h = h0 ∧ h0 > 0 ∧ A > 0 → [αB](h ≤ h0) F.O. Arithmetic Conjunction

8 / 22

SLIDE 17

Example System: Robot Water Cooler

αB ≡

{?h > 0; a := 1} ∪ a := 0
;

h′ = −

2gh a

A & h ≥ 0 ∗ Choose control case Test h > 0 Set a to 1 Evolve physics

Proposition (Leakiness)

g > 0 ∧ h = h0 ∧ h0 > 0 ∧ A > 0 → [αB](h ≤ h0) F.O. Arithmetic Conjunction Implication

8 / 22

SLIDE 18

Example System: Robot Water Cooler

αB ≡

{?h > 0; a := 1} ∪ a := 0
;

h′ = −

2gh a

A & h ≥ 0 ∗ Choose control case Test h > 0 Set a to 1 Evolve physics

Proposition (Leakiness)

g > 0 ∧ h = h0 ∧ h0 > 0 ∧ A > 0 → [αB](h ≤ h0) F.O. Arithmetic Conjunction Implication All runs

8 / 22

SLIDE 19

Example System: Robot Water Cooler

αB ≡

{?h > 0; a := 1} ∪ a := 0
;

h′ = −

2gh a

A & h ≥ 0 ∗ Choose control case Test h > 0 Set a to 1 Evolve physics

Proposition (Leakiness)

g > 0 ∧ h = h0 ∧ h0 > 0 ∧ A > 0 → [αB](h ≤ h0) F.O. Arithmetic Conjunction Implication All runs

8 / 22

SLIDE 20

Outline

1 Introduction 2 CPS Needs Partiality, Discontinuity 3 Semantics 4 Proof Calculus 5 Theory

9 / 22

SLIDE 21

dL Needs Lots of Extensions

Definition (dL Terms)

θ, η ::= x | q | θ + η | θ · η | (θ)′

10 / 22

SLIDE 22

dL Needs Lots of Extensions

Definition (dL Terms)

θ, η ::= x | q | θ + η | θ · η | (θ)′ | θ/η

10 / 22

SLIDE 23

dL Needs Lots of Extensions

Definition (dL Terms)

θ, η ::= x | q | θ + η | θ · η | (θ)′ | θ/η | √ θ

10 / 22

SLIDE 24

dL Needs Lots of Extensions

Definition (dL Terms)

θ, η ::= x | q | θ + η | θ · η | (θ)′ | θ/η | √ θ | max(θ, eta) | min(θ, η) | |θ| | (if(φ)(θ)else(η))

10 / 22

SLIDE 25

dL Needs Lots of Extensions

Definition (dL Terms)

θ, η ::= x | q | θ + η | θ · η | (θ)′ | θ/η | √ θ | max(θ, eta) | min(θ, η) | |θ| | (if(φ)(θ)else(η)) | sin(θ) | cos(θ) | (θ, η) | π1θ | π2θ | inR(θ) | isT(θ) | map2(T, f (x, y)) | zip(L1, L2) |

L1

+L2

| L1

·L2

10 / 22

SLIDE 26

dLι Generalizes Foundations

Definition (dLι Terms)

θ, η ::= · · · | (θ, η) | ιx φ(x)

Lukasiewicz

Free Logic R Analysis

U. Subst. Ind. Types

dLι Partiality Discontinuity Extensibility Vectoriality Examples:

(if(φ)(θ1)else(θ2)) = ιx (φ ∧ x=θ1) ∨ (¬φ ∧ x=θ2) √ θ = ιx (x2=θ ∧ x ≥ 0) θ1/θ2 = ιx (x · θ2=θ1)

11 / 22

SLIDE 27

dLι Generalizes Foundations

Definition (dLι Terms)

θ, η ::= · · · | (θ, η) | ιx φ(x) Pairing

Lukasiewicz

Free Logic R Analysis

U. Subst. Ind. Types

dLι Partiality Discontinuity Extensibility Vectoriality Examples:

(if(φ)(θ1)else(θ2)) = ιx (φ ∧ x=θ1) ∨ (¬φ ∧ x=θ2) √ θ = ιx (x2=θ ∧ x ≥ 0) θ1/θ2 = ιx (x · θ2=θ1)

11 / 22

SLIDE 28

dLι Generalizes Foundations

Definition (dLι Terms)

θ, η ::= · · · | (θ, η) | ιx φ(x) Pairing Unique x s.t. φ

Lukasiewicz

Free Logic R Analysis

U. Subst. Ind. Types

dLι Partiality Discontinuity Extensibility Vectoriality Examples:

(if(φ)(θ1)else(θ2)) = ιx (φ ∧ x=θ1) ∨ (¬φ ∧ x=θ2) √ θ = ιx (x2=θ ∧ x ≥ 0) θ1/θ2 = ιx (x · θ2=θ1)

11 / 22

SLIDE 29

Term Semantics

dL dLι

12 / 22

SLIDE 30

Formula Semantics

Compare And

1.0
0.5

0.0 0.5 1.0

1.0
0.5

0.0 0.5 1.0

1.0
0.5

0.0 0.5 1.0

1.0
0.5

0.0 0.5 1.0

x/y = 1 x/y ≥ 1 ∧ y/x ≥ 1 Not Or

1.0
0.5

0.0 0.5 1.0

1.0
0.5

0.0 0.5 1.0

1.0
0.5

0.0 0.5 1.0

1.0
0.5

0.0 0.5 1.0

¬(x/y = 1) x/y ≥ 1 ∨ y/x ≥ 1

13 / 22

SLIDE 31

Outline

1 Introduction 2 CPS Needs Partiality, Discontinuity 3 Semantics 4 Proof Calculus 5 Theory

14 / 22

SLIDE 32

Program Axioms Decompose Dynamics

[:=] ([x := f ]p(x) ↔ p(f )) [?] [?Q]P ↔ (Q → P) ∪ a ∪ bP ↔ (aP ∨ bP) in

ut
ut

α β α ∪ β

Figure: Selected Program Axioms (dLι)

15 / 22

SLIDE 33

Program Axioms Decompose Dynamics

[:=] ([x := f ]p(x) ↔ p(f )) ← E(f ) [?] [?Q]P ↔ (D(Q) → P) ∪ a ∪ bP ↔ (aP ∨ bP) in

ut
ut

α β α ∪ β

Figure: Selected Program Axioms (dLι)

15 / 22

SLIDE 34

Program Axioms Decompose Dynamics

[:=] ([x := f ]p(x) ↔ p(f )) ← E(f ) [?] [?Q]P ↔ (D(Q) → P) ∪ a ∪ bP ↔ (aP ∨ bP) Denotes in

ut
ut

α β α ∪ β

Figure: Selected Program Axioms (dLι)

15 / 22

SLIDE 35

Program Axioms Decompose Dynamics

[:=] ([x := f ]p(x) ↔ p(f )) ← E(f ) [?] [?Q]P ↔ (D(Q) → P) ∪ a ∪ bP ↔ (aP ∨ bP) Denotes Definitely true in

ut
ut

α β α ∪ β

Figure: Selected Program Axioms (dLι)

15 / 22

SLIDE 36

Outline

1 Introduction 2 CPS Needs Partiality, Discontinuity 3 Semantics 4 Proof Calculus 5 Theory

16 / 22

SLIDE 37

U. Subst is Clean Foundation

Axioms are single formulas, substitution is explicit: US φ σ(φ) Sound for admissible σ:

Definition (Admissibility (dL))

No new free variable ref. under formula, program binders

Definition (Admissibility (dLι))

No new free variable ref. under formula, program, term binders Takeaway: Admissibility generalizes cleanly to definite description

17 / 22

SLIDE 38

Axiom Validity

Proposition (Non-conservative extension)

Formula x · x ≥ 0 is valid in dL but not dLι

Proposition (Converse reducibility)

Exists linear-time T(φ) : dL → dLι where T(φ) valid iff φ valid.

Non-conservative implies soundness must be proved anew in

dLι (but we proved it).

dLι axioms are single formulas, so each case of soundness only

needs to show validity of one single formula.

Converse reducibility shows dLι supports all dL theorems in

theory and practice.

18 / 22

SLIDE 39

Forward Reducibility

Motivation: What is the expressive power of dLι?

Theorem (Forward reducibility)

Exists reduction T(φ) : dLι → dL T(x′ = θ & φ) sol(t) ∧ axiomssol T((x, y)) G¨

delR(x, y)

T(f (x)) G¨

delR(f (x))

19 / 22

SLIDE 40

Forward Reducibility

Motivation: What is the expressive power of dLι?

Theorem (Forward reducibility)

Exists reduction T(φ) : dLι → dL T(x′ = θ & φ) sol(t) ∧ axiomssol T((x, y)) G¨

delR(x, y)

T(f (x)) G¨

delR(f (x))

Implication: Reduction is hard, want dLι in practice.

19 / 22

SLIDE 41

Takeaways

dLι (definite description) helped dL foundation catch up with

KeYmaera X implementation.

Theory is now ahead of implementation (vectors, function

definitions, non-polynomial ODEs)

Uniform substitution calculus generalizes smoothly to many

logics

20 / 22

SLIDE 42

References I

Abhishek Anand and Vincent Rahli, Towards a formally verified proof assistant, ITP (Gerwin Klein and Ruben Gamboa, eds.), LNCS, vol. 8558, Springer, 2014, pp. 27–44. Bruno Barras, Sets in Coq, Coq in sets, J. Formalized Reasoning 3 (2010), no. 1, 29–48. Brandon Bohrer, Manuel Fernandez, and Andr´ e Platzer, dLι: Definite descriptions in differential dynamic logic, CADE (Pascal Fontaine, ed.), LNCS, vol. 11716, Springer, 2019,

pp. 94–110.

21 / 22

SLIDE 43

References II

Brandon Bohrer, Vincent Rahli, Ivana Vukotic, Marcus V¨

lp,

and Andr´ e Platzer, Formally verified differential dynamic logic, Certified Programs and Proofs - 6th ACM SIGPLAN Conference, CPP 2017, Paris, France, January 16-17, 2017 (New York) (Yves Bertot and Viktor Vafeiadis, eds.), ACM, 2017, pp. 208–221. Ramana Kumar, Rob Arthan, Magnus O. Myreen, and Scott Owens, Self-formalisation of higher-order logic: Semantics, soundness, and a verified implementation, J. Autom. Reas. 56 (2016), no. 3, 221–259.

22 / 22
