CSP 3.0: 247Solar Plants for Highly Competitive CSP The 247Solar Plant is a dream come true for the 21st century---a solar power plant with built in storage so it can generate electricity economically any time day or night when needed. -

slide-1
SLIDE 1

Bruce Norman Anderson, CEO 247Solar Inc. Bruce.Anderson@247Solar.com +1-617-290-9913 www.247Solar.com

Wilson 24Solar Plant, 20 megawatts

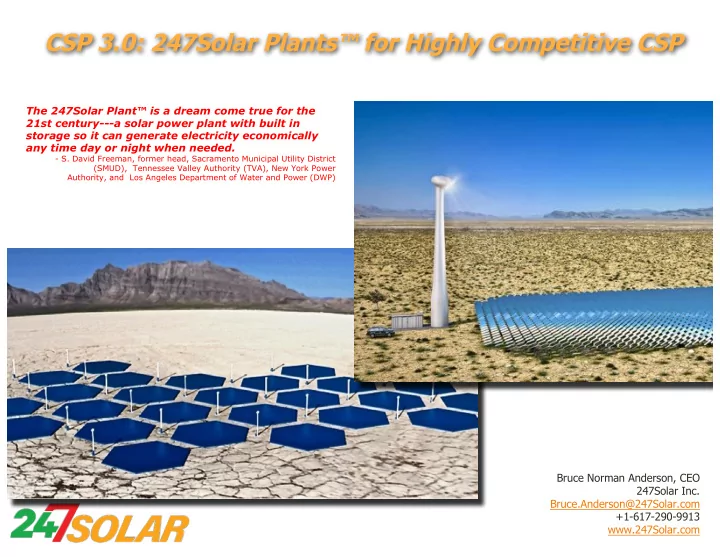

CSP 3.0: 247Solar Plants™ for Highly Competitive CSP

ssssssshhss

The 247Solar Plant™ is a dream come true for the 21st century---a solar power plant with built in storage so it can generate electricity economically any time day or night when needed.

  • S. David Freeman, former head, Sacramento Municipal Utility District

(SMUD), Tennessee Valley Authority (TVA), New York Power Authority, and Los Angeles Department of Water and Power (DWP)

slide-2
SLIDE 2

2

Presenting

40-year solar industry leader and pioneer

Bruce N. Anderson, Co-founder, CEO

  • Began solar career in 1973 with 3 degrees from MIT
  • First “Lifetime Achievement Award,” American Solar Energy Society
  • Author of 5 solar energy books, including New York Times bestseller
  • Twice testified to US Congress
  • Member, MIT Corporation (Board of Trustees)
  • Multiple solar patents
slide-3
SLIDE 3

3

IMAGINE…a solar power solution

Ø That takes the best characteristics of PV and CSP Ø Discards the worst characteristics of PV and CSP AND Ø adds additional benefits

Takes the best of PV…………….

  • Low cost
  • Distributed to utility scale
  • Low O&M/OPEX

and the worst of CSP:

  • Cost
  • Complexity
  • Long project cycles
  • Environmental challenges
  • Siting constraints

Discards the worst of PV……..

  • Unreliable, sunshine-only operation
  • Non-dispatchability
  • Grid instability

plus the best of CSP:

  • 24 hour operation
  • Dispatchability

And adds additional benefits

  • Battery-like response to grid voltage/frequency fluctuations
  • Super flexible operation
  • Elimination of expense of emergency backup power plants
  • No cost, instantly-responsive spinning reserves
  • Wholesale market arbitrage
slide-4
SLIDE 4

4

  • 1. Maximize mass production of all components, like PV and wind
  • 2. Minimize on-site construction time and cost, like PV and wind
  • 3. Standardize a modular product, like wind machines
  • 4. Slash O&M with few moving parts, no risky materials, simple
  • peration

Design Approach

Focus on lowest cost, THE driver to market acceptance

slide-5
SLIDE 5

5

Strictly Confidential

9

Competitive with PV+batteries, will be competitive with coal

  • 1. Mass-produced 2. quickly assembled 3. standardized, identical

modules with 4. few moving parts, no exotic materials, no water/steam (low O&M)

The Solution: 247Solar Plants™

slide-6
SLIDE 6

6

  • Firmly dispatchable every hour of the year
  • Low risk, mostly proven, locally made equipment
  • Simple, remote operation, low maintenance
  • Battery-speed grid stabilization
  • Super flexible operation

Distributed to utility scale

Operates 24/7 using very low cost thermal storage with fuel backup

slide-7
SLIDE 7

7

üNext generation CSP eliminates all major shortcoming of conventional CSP and PV üMIT originated üUS Department of Energy funded (USD5 million) üCompetitive with PV with batteries but also 24/7 reliability; adds to grid resilience,

flexibility; battery-like demand and voltage fluctuation response; spinning reserves

üStand alone (villages, mines, etc) or utility scale üPerfectly matches emerging markets need for 24/7 clean power üLocally made components for local use/jobs and for export

Summary: 247Solar Plant™

Lowest cost 24/7 solar electricity

slide-8
SLIDE 8

8

THE TECHNOLOGY

“247Solar’s CSP concept has enormous potential – a home run.”

  • Dr. Fred Morse ("Mr. CSP”)

Directed DOE's solar program under both Carter and Reagan; June 2013

slide-9
SLIDE 9

9

The 247Solar Plant™ breakthrough

Lowest cost 24/7 solar electricity

World’s most versatile, reliable, proven power generator World’s highest temperature, breakthrough solar air heater, 970oC World’s lowest cost heliostats (solar mirrors) World’s lowest cost, proven energy storage, 2-15 hours

slide-10
SLIDE 10

10

Disruptive CSP system: 247Solar Plant™

11

Factory made, quickly assembled; few moving parts simple to operate; no water/steam, salts, oils

hhhhhhhh

  • 2. Breakthrough

247SOLAR RECEIVER™ (air heating, no moving parts)

  • 1. Conventional MICROTURBINE

(off-the-shelf, 333 kWe, outfitted with 247Solar Heat Exchanger™ and 247Solar Combustor™)

  • 3. OFF-THE-SHELF SUN-

TRACKING HELIOSTATS (~4 acres per 333 kWe, 16,000m2)

XXXX X

  • 4. 100+ year proven

247SOLAR THERMAL STORAGE SYSTEM™ (4-15 hours, e.g. fire brick no moving parts) RECEIVER OUTLET “HOT AIR” (970

OC)

RECEIVER INLET “WARM AIR” (650

OC) AIR FLOW, warm air up, hot air down CONVENTIONAL TOWER (~125ft (35m), not shown)

hh

slide-11
SLIDE 11

11

Subsystem 1. 247Solar Power Block™

  • 1. No water/steam, just hot air
  • 2. Simple, low maintenance,
  • 3. High flexible operation, fast start, rapid demand

response

  • 4. Plug-and-play, includes turbine, compressor, generator,

power electronics for quick grid

  • 5. Powered by solar and/or by a wide variety of fuels,

including biofuels and natural gas, of course

  • 6. Firmly reliable dispatchable 24/7

World’s most versatile, reliable, proven power generators, Gas turbines: 300kWe to 25MWe

slide-12
SLIDE 12

12

World’s highest temperature solar air heater, 970oC

  • Ambient pressure
  • No moving parts
  • Simple, high efficiency design

U.S. Patent No. 9,726,155 China Patent No. 103270298A

Subsystem 2. 247Solar Receiver™

§ Development partner: German Aerospace Center (DLR) World’s

foremost experts in power tower technology http://www.dlr.de

Inlet&air& Ceramic&foam&&

  • utlet&absorber&

Inlet&air& Wire&mesh& inlet&absorber& Outlet&air& Quartz&window&

slide-13
SLIDE 13

13

Subsystem 3. Third party heliostats

cbcbcbbccbcb

  • Highly accurate
  • All factory made
  • Quick assembly
  • No foundations

World’s lowest cost heliostats (solar mirrors)

slide-14
SLIDE 14

14

Subsystem 4. 247Solar Thermal Storage System™

World’s lowest cost, proven heat storage

*For more information about firebrick, see https://en.wikipedia.org/wiki/Fire_brick http://www.traditionaloven.com/articles/84/firebricks-heavy-dense-fire-clay-bricks http://news.mit.edu/2017/firebricks-low-cost-storage-carbon-free-energy-0906

1. >100-year-old technology 2. <5% the cost of batteries 3. 4-20 hours storage 4. No moving parts, unlimited cycles 5. Firebrick/checker brick* spaced for airflow

slide-15
SLIDE 15

247Solar Power Block™

247Solar Receiver™

P = 1

247Solar Thermal Storage System™ Main blower Damper open

m = 2.7 m = 2.7 m = 1.7 m = 1

m = 1.7

Daytime solar operation

Exhaust air from the turbine and the thermal storage are heated in the solar

  • receiver. Some of the air passes through the

thermal storage and the remainder powers the turbine.

Damper closed Light from heliostats

hhhhhhhh

247Solar Plant™ system diagram

P = Pressure m = Mass m = 1

15

U.S. Patent No. 9,726,155 China Patent No. 103270298A

Few components, very few moving parts

slide-16
SLIDE 16

247Solar Receiver™ Damper open

m = 0 m = 1 m = 1

m = 1

Night operation from storage

Exhaust air from the turbine passes through the thermal storage in the

  • pposite direction to power the turbine.

A combustor heats the air further, if needed.

Damper closed

m = 0

Main blower (off) 247Solar Thermal Storage System™

hhhhhhhh

247Solar Plant™ system diagram

P = Pressure m = Mass

247Solar Power Block™

m = 1

16

U.S. Patent No. 9,726,155 China Patent No. 103270298A

24/7 operation, low maintenance

slide-17
SLIDE 17

17

Low risk

Iiiiii

Mostly proven, off-the-shelf components

Subsystem

247Solar Power Block™

Off-the-shelf proven gas turbines

247Solar Thermal Storage System™

>100-year-old proven technology by steel industry, no moving parts

247Solar Receiver™

Scaled up but simplified proven technology by DLR, no moving parts

Heliostats/field

Off-the-shelf proven technology

Tower

Conventional tower

Air Transport Subsystem

Conventional low-pressure ducts, blowers, dampers

slide-18
SLIDE 18

18

PLUS 247Solar Plants offer grid operators

Never before imagined benefits…

Battery-like response to grid voltage, frequency, demand fluctuations Outstanding grid reliability, stability 24/7 free, spinning- reserves from 24/7 clean power Mitigates intermittency from renewables with flexible firm 24/7 dispatchability Lowers grid

  • perating cost

eliminates cost of emergency backup power plants (Capacity Credit)

slide-19
SLIDE 19
