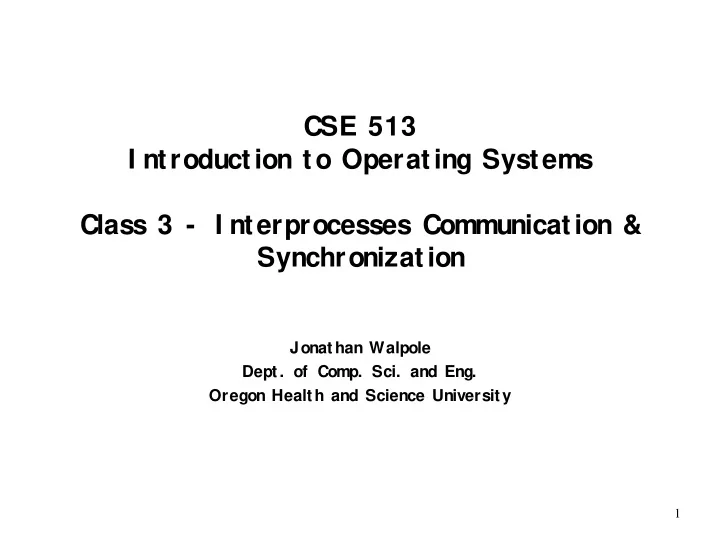

CSE 513 I ntroduction to Operating Systems Class 3 - I nterprocesses Communication & Synchronization

Jonathan Walpole

• Dept. of Comp. Sci. and Eng.

Oregon Health and Science University

2

Race conditions

• What is a race condition?

t wo or more processes have an inconsist ent view of a

shared memory region (I .e., a variable)

• Why do race conditions occur?

values of memory locat ions replicat ed in regist ers during

execut ion

cont ext swit ches at arbit rary t imes during execut ion processes can see “st ale” memory values in regist ers

• What solutions can we apply?

prevent cont ext swit ches by prevent ing int errupt s? make processes coordinat e wit h each ot her t o ensure

mut ual exclusion in accessing “crit ical sect ions” of code

3

Counter increment race condition

I ncrementing a counter (load, increment, store) Context switch can occur af ter load and bef ore increment!

4

Mutual exclusion conditions

• No two processes simultaneously in critical region
• No assumptions made about speeds or numbers of CPUs
• No process running outside its critical region may block

another process

• No process must wait f orever to enter its critical region

5

Critical regions with mutual exclusion

Mutual exclusion using critical regions

6

How can we implement mutual exclusion?

What about using a binary “lock” variable in

memory and having processes check it and set it bef ore entry to critical regions?

Many computers have some limited hardware

support f or setting locks

“At omic” Test and Set Lock inst r uct ion “At omic” compar e and swap oper at ion

Solves the problem of

Expr essing int ent ion t o ent er C.S. Act ually set t ing a lock t o pr event concur r ent access

7

Test and Set Lock

Test- and- set does two things atomically:

Test a lock (whose value is r et ur ned) Set t he lock

Lock obtained when the return value is FALSE I f TRUE, someone already had the lock (and

still has it)

lock = {TRUE , FALSE}

Test_var

• 1. extract value
• 2. Set TRUE

8

Test and Set Lock

FALSE Lock

9

Test and Set Lock

P1

FALSE Lock

10

Test and Set Lock

P1

Lock FALSE FALSE = Lock Available!!

11

Test and Set Lock

TRUE Lock FALSE

P1

12

Test and Set Lock

TRUE Lock FALSE

P1

13

Test and Set Lock

TRUE Lock

P1 P2 P3 P4

TRUE TRUE TRUE TRUE TRUE TRUE

14

Test and Set Lock

TRUE Lock

P1 P2 P3 P4

TRUE TRUE TRUE TRUE TRUE TRUE

15

Test and Set Lock

TRUE Lock

P1 P2 P3 P4

TRUE TRUE TRUE TRUE TRUE TRUE

16

Test and Set Lock

FALSE Lock

P1 P2 P3 P4

TRUE TRUE TRUE TRUE TRUE TRUE

17

Test and Set Lock

FALSE Lock

P1 P2 P3 P4

TRUE FALSE

18

Test and Set Lock

FALSE Lock

P1 P2 P3 P4

TRUE FALSE

19

Test and Set Lock

TRUE Lock

P1 P2 P3 P4

TRUE TRUE TRUE TRUE

20

Critical section entry code with TSL

1 repeat 2 while(TSL(lock)) 3 no-op; 4 critical section 5 Lock = FALSE; 6 remainder section 7 until FALSE 1 repeat

• while(TSL(lock))

3 no-op; 4 critical section 5 Lock = FALSE; 6 remainder section 7 until FALSE

J I Guaranteed that only one process returns with FALSE when a lock is returned to the system and others are waiting to act on the lock

21

Generalized primitives f or critical sections

• Thus f ar, the solutions have used busy waiting

a process consumes CP

U resources t o evaluat e when a lock becomes f ree

• n a single CP

U syst em busy wait ing prevent s t he lock holder f rom running, complet ing t he crit ical sect ion and releasing t he lock!

it would be bet t er t o block inst ead of busy wait (on a

single CP U syst em)

• Blocking synchronization primitives

sleep – allows a process t o sleep on a condit ion wakeup – allows a process t o signal anot her process

t hat a condit ion it was wait ing on is t rue

but how can t hese be implement ed?

22

Blocking synchronization primitives

• Sleep and wakeup are system calls

OS can implement t hem by managing a dat a st ruct ure t hat

records who is blocked and on what condit ion

but how can t he OS access t hese dat a st ruct ures

at omically?

• Concurrency in the OS: context switches and interrupts

t he OS can arrange not t o perf orm a cont ext swit ch while

manipulat ing it s dat a st ruct ures f or sleep and wakeup

but what about int errupt s? what if int errupt handlers manipulat e t he sleep and wakeup

dat a st ruct ures? What if t hey need synchronizat ion?

how can t he OS synchronize access t o it s own crit ical

sect ions?

23

Disabling interrupts

• Disabling interrupts in the OS vs disabling interrupts in

user processes

why not allow user processes t o disable int errupt s? is it ok t o disable int errupt s in t he OS? what precaut ions should you t ake?

24

Generic synchronization problems

25

Producer/ Consumer with busy waiting

process producer{ while(1){ //produce char c while (count==n) no_op; buf[InP] = c; InP = InP + 1 mod n count++; } } process consumer{ while(1){ while (count==0) no_op; c = buf[OutP]; OutP = OutP + 1 mod n count--; //consume char } } 2 3 n-1 … Global variables: char buf[n] int InP, OutP; // [0-n-1] int count

26

Problems with busy waiting solution

• Producer and consumer can’t run at the same time
• Count variable can be corrupted if context switch occurs

at the wrong time

• Bugs dif f icult to track down

27

Producer/ Consumer with blocking

process producer{

• while(1){
• //produce char c
• if (count==n)
• sleep(full);
• buf[InP] = c;
• InP = InP + 1 mod n
• count++;
• if (count == 1)
• wakeup(empty);
• }

} process consumer{

• while(1){
• while (count==0)
• sleep(empty);
• c = buf[OutP];
• OutP = OutP + 1 mod n
• count--;
• if (count == n-1)
• wakeup(full);
• //consume char
• }

} 1 2 3 n-1 … Global variables: char buf[n] int InP, OutP; // [0-n-1] int count

28

Problems with the blocking solution

• Count variable can be corrupted
• I ncrements or decrements may be lost
• Both processes may sleep f orever
• Buf f er contents may be over- written
• Code that manipulates count must be made a critical

section and protected using mutual exclusion

• Sleep and wakeup must be implemented as system calls
• OS must use synchronization mechanisms (TSL or

interrupt disabling) in its implementation of sleep and wake- up … I .e., the critical sections of OS code that manipulate sleep/ wakeup data structures must be protected using mutual exclusion

29

Semaphores

An abstract data type that can be used f or

condition synchronization and mutual exclusion

I nteger variable with two operations:

down (sema_var )

decr ement sema_var by 1, if possible if not possible, “wait ” unt il possible

up(sema_var )

incr ement sema_var by 1

Both up() and down() are assumed to be atomic

made t o be at omic by OS implement at ion

30

Semaphores

There are multiple names f or semaphores

Down(S), wait (S), P(S) Up(S), signal(S), V(S)

Semaphore implementations

Binar y semaphor es (mut ex)

• support mutual exclusion (lock either set or f ree)

Count ing semaphor es

• support multiple values f or more sophisticated

coordination and controlled concurrent access among processes

31

Using Semaphores f or Mutex

1 repeat 2 down(mutex); 3 critical section 4 up(mutex); 5 remainder section 6 until FALSE 1 repeat 2 down(mutex); 3 critical section 4 up(mutex); 5 remainder section 6 until FALSE semaphore mutex = 1

32

Using Semaphores f or Mutex

1 repeat 2 down(mutex); 3 critical section 4 up(mutex); 5 remainder section 6 until FALSE 1 repeat 2 down(mutex); 3 critical section 4 up(mutex); 5 remainder section 6 until FALSE semaphore mutex = 0

33

Using Semaphores f or Mutex

1 repeat 2 down(mutex); 3 critical section 4 up(mutex); 5 remainder section 6 until FALSE 1 repeat 2 down(mutex); 3 critical section 4 up(mutex); 5 remainder section 6 until FALSE semaphore mutex = 0

34

Using Semaphores f or Mutex

1 repeat 2 down(mutex); 3 critical section 4 up(mutex); 5 remainder section 6 until FALSE 1 repeat 2 down(mutex); 3 critical section 4 up(mutex); 5 remainder section 6 until FALSE semaphore mutex = 1

35

Using Semaphores f or Mutex

1 repeat 2 down(mutex); 3 critical section 4 up(mutex); 5 remainder section 6 until FALSE 1 repeat 2 down(mutex); 3 critical section 4 up(mutex); 5 remainder section 6 until FALSE semaphore mutex = 1

Check again to see if it can be decremented

36

I n class exercise…

I mplement producer consumer solution:

37

Counting semaphores in producer/ consumer

process producer{

• while(1){
• //produce char c
• down(empty_buffs);
• buf[InP] = c;
• InP = InP + 1 mod n
• up(full_buffs);
• }

} process consumer{

• while(1){
• down(full_buffs);
• c = buf[OutP];
• OutP = OutP + 1 mod n
• up(empty_buffs);
• //consume char
• }

} Global variables semaphore full_buffs = 0; semaphore empty_buffs = n; char buff[n]; int InP, OutP;

38

I mplementing semaphores

Generally, the hardware has some simple

mechanism to support semaphores

Cont r ol over int er r upt s (almost all) Special at omic inst r uct ions in I SA

• test and set lock
• compare and swap

Spin- Locks vs. Blocking

Spin-locks (busy wait ing)

• may waste a lot of cycles on uni- processors

Blocking

• may waste a lot of cycles on multi- processors

39

I mplementing semphores

Blocking

Up(semaphore sem) DISABLE_INTS sem.val++; if (sem.val <= 0) { proc = remove next proc from sem.L wakeup(proc); } ENABLE_INTS struct semaphore{ int val; list L; } Down(semaphore sem) DISABLE_INTS sem.val--; if (sem.val < 0){ add proc to sem.L block(proc); } ENABLE_INTS

40

Semaphores in UNI X

User- accessible semaphores in UNI X are

somewhat complex

each up and down oper at ion is done at omically on an

“ar r ay” of semaphor es.

*********WORDS OF WARNI NG *********

Semaphor es ar e allocat ed by (and in) t he oper at ing

syst em (number based on conf igur at ion par amet er s).

Semaphor es in UNI X ARE A SHARED RESOURCE

AMONG EVERYONE (most implement at ions ar e).

REMOVE your semaphor es af t er you ar e done wit h

t hem.

41

Typical usage

main(){ int sem_id; sem_id = NewSemaphore(1); ... Down(sem_id); [CRITICAL SECTION] Up (sem_id); ... FreeSemaphore(sem_id); }

42

Managing your UNI X semaphores

Listing currently allocated ipc resources

ipcs

Removing semaphores

ipcrm -s <sem number>

43

Classical I PC problems

There are a number of “classic” I PC problems

including:

Pr oducer / Consumer synchr onizat ion The dining philosopher s pr oblem The sleeping bar ber pr oblem The r eader s and wr it er s pr oblem Count ing semaphor es out of binar y semaphor es

44

Dining Philosophers Problem

• Five philosophers sit at a table
• Between each philosopher there is one chopstick
• Philosophers:
• Why do they need to synchronize?
• How should they do it?

while(!dead){ Think(hard); Grab first chopstick; Grab second chopstick; Eat; Put first chopstick back; Put second chopstick back; }

45

Dining philospher’s solution???

Why doesn’t this work?

#define N 5 Philosopher() { while(!dead){ Think(hard); take_fork(i); take_fork((i+1)% N); Eat(alot); put_fork(i); put_fork((i+1)% N); } }

46

Dining philospher’s solution (part 1)

47

Dining philospher’s solution (part 2)

48

Dining Philosophers

I s this correct? What does it mean f or it to be correct? I s there an easier way?

49

Sleeping Barber Problem

50

Sleeping barber

• Barber

if t here are people wait ing f or a hair cut bring t hem t o

t he barber chair, and give t hem a haircut

else go t o sleep

• Customer:

if t he wait ing chairs are all f ull, t hen leave st ore. if someone is get t ing a haircut , t hen wait f or t he barber

t o f ree up by sit t ing in a chair

if t he barber is sleeping, t hen wake him up and get a

haircut

51

Solution to the sleeping barber problem

52

The readers and writers problem

Readers and writers want to access a database Multiple readers can proceed concurrently Writers must synchronize with readers and

• ther writers

Maximize concurrency Prevent starvation

53

One solution to readers and writers

54

Counting semaphores

A binary semaphore can only take on the values

• f [0, 1].

Class exercise: create a counting semaphore

(generalized semaphore that we discussed previously) using just a binary semaphore!!

55

Possible solution

Semaphore S1, S2, S3; // BINARY!! int C = N; // N is # locks down_c(sem){ downB(S3); downB(S1); C = C – 1; if (C<0) { upB(S1); downB(S2); } else { upB(S1); } upB(S3); } up_c(sem){ downB(S1); C = C + 1; if (C<=0) { upB(S2); } upB(S1); }
