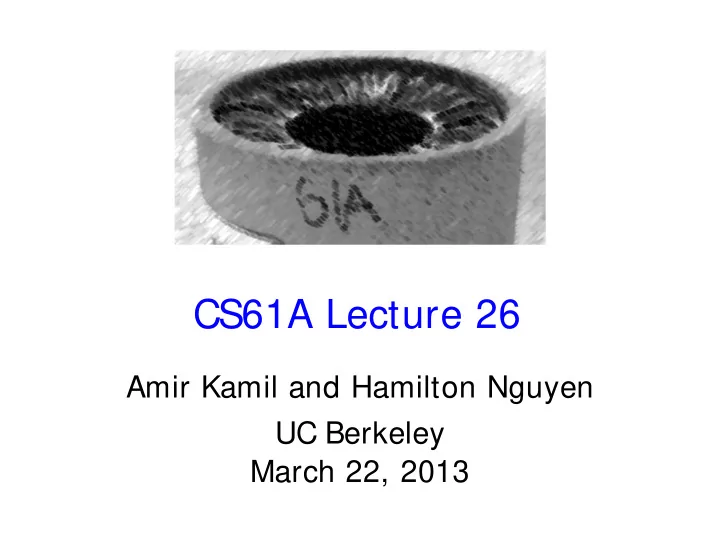

CS61A Lecture 26

Amir Kamil and Hamilton Nguyen UC Berkeley March 22, 2013

 HW9 out tonight, due 4/3  Ants extra credit due 4/3

 See Piazza for submission instructions

Announcements

   

Data Structure Applications

The data structures we cover in 61A are used everywhere in CS

  

Data Structure Applications

The data structures we cover in 61A are used everywhere in CS More about data structures in 61B

 

Data Structure Applications

The data structures we cover in 61A are used everywhere in CS More about data structures in 61B Example: recursive lists (also called linked lists)



Data Structure Applications

The data structures we cover in 61A are used everywhere in CS More about data structures in 61B Example: recursive lists (also called linked lists)

• Operating systems



Data Structure Applications

The data structures we cover in 61A are used everywhere in CS More about data structures in 61B Example: recursive lists (also called linked lists)

• Operating systems
• Interpreters and compilers



Data Structure Applications

The data structures we cover in 61A are used everywhere in CS More about data structures in 61B Example: recursive lists (also called linked lists)

• Operating systems
• Interpreters and compilers
• Anything that uses a queue



Data Structure Applications

The data structures we cover in 61A are used everywhere in CS More about data structures in 61B Example: recursive lists (also called linked lists)

• Operating systems
• Interpreters and compilers
• Anything that uses a queue

The Scheme programming language, which we will learn soon, uses recursive lists as its primary data structure

Data Structure Applications

Example: Environments

Example: http://goo.gl/8DNY1

Example: Environments

Example: http://goo.gl/8DNY1

Recursive List

Example: Environments

Example: http://goo.gl/8DNY1

Recursive List

Example: Environments

Example: http://goo.gl/8DNY1

Recursive List

Example: Environments

Example: http://goo.gl/8DNY1

Recursive List

Example: Environments

Example: http://goo.gl/8DNY1

Recursive List

Example: Environments

Example: http://goo.gl/8DNY1

Recursive List

Example: Environments

Example: http://goo.gl/8DNY1

Recursive List

Example: Environments

Example: http://goo.gl/8DNY1

Recursive List

Example: Environments

Example: http://goo.gl/8DNY1

Recursive List Rest is Empty

Trees with Internal Node Values

Trees can have values at internal nodes as well as their leaves.

class Tree(object): def __init__(self, entry, left=None, right=None): self.entry = entry self.left = left self.right = right def fib_tree(n): if n == 1: return Tree(0) if n == 2: return Tree(1) left = fib_tree(n - 2) right = fib_tree(n - 1) return Tree(left.entry + right.entry, left, right)

Implementing Sets

What we should be able to do with a set:

• Membership testing: Is a value an element of a set?
• Union: Return a set with all elements in set1 or set2
• Intersection: Return a set with any elements in set1 and set2
• Adjunction: Return a set with all elements in s and a value v

Union

1 3 4 2 3 5 1 3 4 2 5

Intersection

1 3 4 2 3 5 3

Adjunction

1 3 4 2 1 3 4 2

Sets as Unordered Sequences

Proposal 1: A set is represented by a recursive list that contains no duplicate items This is how we implemented dictionaries

def empty(s): return s is Rlist.empty def set_contains(s, v): if empty(s): return False elif s.first == v: return True return set_contains(s.rest, v)

Sets as Unordered Sequences

Sets as Unordered Sequences

def adjoin_set(s, v):

Sets as Unordered Sequences

def adjoin_set(s, v): if set_contains(s, v):

Sets as Unordered Sequences

def adjoin_set(s, v): if set_contains(s, v): return s

Sets as Unordered Sequences

def adjoin_set(s, v): if set_contains(s, v): return s return Rlist(v, s)

Sets as Unordered Sequences

def adjoin_set(s, v): if set_contains(s, v): return s return Rlist(v, s)

Time order of growth

Sets as Unordered Sequences

def adjoin_set(s, v): if set_contains(s, v): return s return Rlist(v, s)

Time order of growth

Sets as Unordered Sequences

def adjoin_set(s, v): if set_contains(s, v): return s return Rlist(v, s)

Time order of growth The size of the set

Sets as Unordered Sequences

def adjoin_set(s, v): if set_contains(s, v): return s return Rlist(v, s) def intersect_set(set1, set2):

Time order of growth The size of the set

Sets as Unordered Sequences

def adjoin_set(s, v): if set_contains(s, v): return s return Rlist(v, s) def intersect_set(set1, set2): f = lambda v: set_contains(set2, v)

Time order of growth The size of the set

Sets as Unordered Sequences

def adjoin_set(s, v): if set_contains(s, v): return s return Rlist(v, s) def intersect_set(set1, set2): f = lambda v: set_contains(set2, v) return filter_rlist(set1, f)

Time order of growth The size of the set

Sets as Unordered Sequences

def adjoin_set(s, v): if set_contains(s, v): return s return Rlist(v, s) def intersect_set(set1, set2): f = lambda v: set_contains(set2, v) return filter_rlist(set1, f)

Time order of growth The size of the set

Sets as Unordered Sequences

def adjoin_set(s, v): if set_contains(s, v): return s return Rlist(v, s) def intersect_set(set1, set2): f = lambda v: set_contains(set2, v) return filter_rlist(set1, f)

Time order of growth The size of the set Assume sets are the same size

Sets as Unordered Sequences

def adjoin_set(s, v): if set_contains(s, v): return s return Rlist(v, s) def intersect_set(set1, set2): f = lambda v: set_contains(set2, v) return filter_rlist(set1, f) def union_set(set1, set2):

Time order of growth The size of the set Assume sets are the same size

Sets as Unordered Sequences

def adjoin_set(s, v): if set_contains(s, v): return s return Rlist(v, s) def intersect_set(set1, set2): f = lambda v: set_contains(set2, v) return filter_rlist(set1, f) def union_set(set1, set2): f = lambda v: not set_contains(set2, v)

Time order of growth The size of the set Assume sets are the same size

Sets as Unordered Sequences

def adjoin_set(s, v): if set_contains(s, v): return s return Rlist(v, s) def intersect_set(set1, set2): f = lambda v: set_contains(set2, v) return filter_rlist(set1, f) def union_set(set1, set2): f = lambda v: not set_contains(set2, v) set1_not_set2 = filter_rlist(set1, f)

Time order of growth The size of the set Assume sets are the same size

Sets as Unordered Sequences

def adjoin_set(s, v): if set_contains(s, v): return s return Rlist(v, s) def intersect_set(set1, set2): f = lambda v: set_contains(set2, v) return filter_rlist(set1, f) def union_set(set1, set2): f = lambda v: not set_contains(set2, v) set1_not_set2 = filter_rlist(set1, f) return extend_rlist(set1_not_set2, set2)

Time order of growth The size of the set Assume sets are the same size

Sets as Unordered Sequences

def adjoin_set(s, v): if set_contains(s, v): return s return Rlist(v, s) def intersect_set(set1, set2): f = lambda v: set_contains(set2, v) return filter_rlist(set1, f) def union_set(set1, set2): f = lambda v: not set_contains(set2, v) set1_not_set2 = filter_rlist(set1, f) return extend_rlist(set1_not_set2, set2)

Time order of growth The size of the set Assume sets are the same size

Sets as Ordered Sequences

Proposal 2: A set is represented by a recursive list with unique elements ordered from least to greatest

Sets as Ordered Sequences

Proposal 2: A set is represented by a recursive list with unique elements ordered from least to greatest Order of growth?

Sets as Ordered Sequences

Proposal 2: A set is represented by a recursive list with unique elements ordered from least to greatest Order of growth?

Sets as Ordered Sequences

Proposal 2: A set is represented by a recursive list with unique elements ordered from least to greatest Order of growth?

def set_contains2(s, v):

Sets as Ordered Sequences

Proposal 2: A set is represented by a recursive list with unique elements ordered from least to greatest Order of growth?

def set_contains2(s, v): if empty(s) or s.first > v:

Sets as Ordered Sequences

Proposal 2: A set is represented by a recursive list with unique elements ordered from least to greatest Order of growth?

def set_contains2(s, v): if empty(s) or s.first > v: return False

Sets as Ordered Sequences

Proposal 2: A set is represented by a recursive list with unique elements ordered from least to greatest Order of growth?

def set_contains2(s, v): if empty(s) or s.first > v: return False elif s.first == v:

Sets as Ordered Sequences

Proposal 2: A set is represented by a recursive list with unique elements ordered from least to greatest Order of growth?

def set_contains2(s, v): if empty(s) or s.first > v: return False elif s.first == v: return True

Sets as Ordered Sequences

Proposal 2: A set is represented by a recursive list with unique elements ordered from least to greatest Order of growth?

def set_contains2(s, v): if empty(s) or s.first > v: return False elif s.first == v: return True return set_contains(s.rest, v)

Set Intersection Using Ordered Sequences

Set Intersection Using Ordered Sequences

This algorithm assumes that elements are in order.

Set Intersection Using Ordered Sequences

This algorithm assumes that elements are in order. Order of growth?

Set Intersection Using Ordered Sequences

This algorithm assumes that elements are in order. Order of growth?

Set Intersection Using Ordered Sequences

This algorithm assumes that elements are in order. Order of growth?

def intersect_set2(set1, set2):

Set Intersection Using Ordered Sequences

This algorithm assumes that elements are in order. Order of growth?

def intersect_set2(set1, set2): if empty(set1) or empty(set2):

Set Intersection Using Ordered Sequences

This algorithm assumes that elements are in order. Order of growth?

def intersect_set2(set1, set2): if empty(set1) or empty(set2): return Rlist.empty

Set Intersection Using Ordered Sequences

This algorithm assumes that elements are in order. Order of growth?

def intersect_set2(set1, set2): if empty(set1) or empty(set2): return Rlist.empty e1, e2 = set1.first, set2.first

Set Intersection Using Ordered Sequences

This algorithm assumes that elements are in order. Order of growth?

def intersect_set2(set1, set2): if empty(set1) or empty(set2): return Rlist.empty e1, e2 = set1.first, set2.first if e1 == e2:

Set Intersection Using Ordered Sequences

This algorithm assumes that elements are in order. Order of growth?

def intersect_set2(set1, set2): if empty(set1) or empty(set2): return Rlist.empty e1, e2 = set1.first, set2.first if e1 == e2: rest = intersect_set2(set1.rest, set2.rest)

Set Intersection Using Ordered Sequences

This algorithm assumes that elements are in order. Order of growth?

def intersect_set2(set1, set2): if empty(set1) or empty(set2): return Rlist.empty e1, e2 = set1.first, set2.first if e1 == e2: rest = intersect_set2(set1.rest, set2.rest) return Rlist(e1, rest)

Set Intersection Using Ordered Sequences

This algorithm assumes that elements are in order. Order of growth?

def intersect_set2(set1, set2): if empty(set1) or empty(set2): return Rlist.empty e1, e2 = set1.first, set2.first if e1 == e2: rest = intersect_set2(set1.rest, set2.rest) return Rlist(e1, rest) elif e1 < e2:

Set Intersection Using Ordered Sequences

This algorithm assumes that elements are in order. Order of growth?

def intersect_set2(set1, set2): if empty(set1) or empty(set2): return Rlist.empty e1, e2 = set1.first, set2.first if e1 == e2: rest = intersect_set2(set1.rest, set2.rest) return Rlist(e1, rest) elif e1 < e2: return intersect_set2(set1.rest, set2)

Set Intersection Using Ordered Sequences

This algorithm assumes that elements are in order. Order of growth?

def intersect_set2(set1, set2): if empty(set1) or empty(set2): return Rlist.empty e1, e2 = set1.first, set2.first if e1 == e2: rest = intersect_set2(set1.rest, set2.rest) return Rlist(e1, rest) elif e1 < e2: return intersect_set2(set1.rest, set2) elif e2 < e1:

Set Intersection Using Ordered Sequences

This algorithm assumes that elements are in order. Order of growth?

def intersect_set2(set1, set2): if empty(set1) or empty(set2): return Rlist.empty e1, e2 = set1.first, set2.first if e1 == e2: rest = intersect_set2(set1.rest, set2.rest) return Rlist(e1, rest) elif e1 < e2: return intersect_set2(set1.rest, set2) elif e2 < e1: return intersect_set2(set1, set2.rest)

Tree Sets

Tree Sets

Proposal 3: A set is represented as a Tree. Each entry is:

Tree Sets

Proposal 3: A set is represented as a Tree. Each entry is:

• Larger than all entries in its left branch and

Tree Sets

Proposal 3: A set is represented as a Tree. Each entry is:

• Larger than all entries in its left branch and
• Smaller than all entries in its right branch

Tree Sets

Proposal 3: A set is represented as a Tree. Each entry is:

• Larger than all entries in its left branch and
• Smaller than all entries in its right branch

7 3 1 5 9 11

Tree Sets

Proposal 3: A set is represented as a Tree. Each entry is:

• Larger than all entries in its left branch and
• Smaller than all entries in its right branch

7 3 1 5 9 11 7 3 1 5 9 11

Tree Sets

Proposal 3: A set is represented as a Tree. Each entry is:

• Larger than all entries in its left branch and
• Smaller than all entries in its right branch

7 3 1 5 9 11 7 3 1 5 9 11 5 3 1 7 9 11

Membership in Tree Sets

Membership in Tree Sets

Set membership tests traverse the tree

Membership in Tree Sets

Set membership tests traverse the tree

• The element is either in the left or right sub‐branch

Membership in Tree Sets

Set membership tests traverse the tree

• The element is either in the left or right sub‐branch
• By focusing on one branch, we reduce the set by about half

Membership in Tree Sets

Set membership tests traverse the tree

• The element is either in the left or right sub‐branch
• By focusing on one branch, we reduce the set by about half

def set_contains3(s, v):

Membership in Tree Sets

Set membership tests traverse the tree

• The element is either in the left or right sub‐branch
• By focusing on one branch, we reduce the set by about half

def set_contains3(s, v): if s is None:

Membership in Tree Sets

Set membership tests traverse the tree

• The element is either in the left or right sub‐branch
• By focusing on one branch, we reduce the set by about half

def set_contains3(s, v): if s is None: return False

Membership in Tree Sets

Set membership tests traverse the tree

• The element is either in the left or right sub‐branch
• By focusing on one branch, we reduce the set by about half

def set_contains3(s, v): if s is None: return False elif s.entry == v:

Membership in Tree Sets

Set membership tests traverse the tree

• The element is either in the left or right sub‐branch
• By focusing on one branch, we reduce the set by about half

def set_contains3(s, v): if s is None: return False elif s.entry == v: return True

Membership in Tree Sets

Set membership tests traverse the tree

• The element is either in the left or right sub‐branch
• By focusing on one branch, we reduce the set by about half

def set_contains3(s, v): if s is None: return False elif s.entry == v: return True elif s.entry < v:

Membership in Tree Sets

Set membership tests traverse the tree

• The element is either in the left or right sub‐branch
• By focusing on one branch, we reduce the set by about half

def set_contains3(s, v): if s is None: return False elif s.entry == v: return True elif s.entry < v: return set_contains3(s.right, v)

Membership in Tree Sets

Set membership tests traverse the tree

• The element is either in the left or right sub‐branch
• By focusing on one branch, we reduce the set by about half

def set_contains3(s, v): if s is None: return False elif s.entry == v: return True elif s.entry < v: return set_contains3(s.right, v) elif s.entry > v:

Membership in Tree Sets

Set membership tests traverse the tree

• The element is either in the left or right sub‐branch
• By focusing on one branch, we reduce the set by about half

def set_contains3(s, v): if s is None: return False elif s.entry == v: return True elif s.entry < v: return set_contains3(s.right, v) elif s.entry > v: return set_contains3(s.left, v)

Membership in Tree Sets

Set membership tests traverse the tree

• The element is either in the left or right sub‐branch
• By focusing on one branch, we reduce the set by about half

5 3 1 7 9 11

def set_contains3(s, v): if s is None: return False elif s.entry == v: return True elif s.entry < v: return set_contains3(s.right, v) elif s.entry > v: return set_contains3(s.left, v)

Membership in Tree Sets

Set membership tests traverse the tree

• The element is either in the left or right sub‐branch
• By focusing on one branch, we reduce the set by about half

5 3 1 7 9 11

def set_contains3(s, v): if s is None: return False elif s.entry == v: return True elif s.entry < v: return set_contains3(s.right, v) elif s.entry > v: return set_contains3(s.left, v)

9

Membership in Tree Sets

Set membership tests traverse the tree

• The element is either in the left or right sub‐branch
• By focusing on one branch, we reduce the set by about half

5 3 1 7 9 11

def set_contains3(s, v): if s is None: return False elif s.entry == v: return True elif s.entry < v: return set_contains3(s.right, v) elif s.entry > v: return set_contains3(s.left, v)

9

If 9 is in the set, it is in this branch

Membership in Tree Sets

Set membership tests traverse the tree

• The element is either in the left or right sub‐branch
• By focusing on one branch, we reduce the set by about half

5 3 1 7 9 11

def set_contains3(s, v): if s is None: return False elif s.entry == v: return True elif s.entry < v: return set_contains3(s.right, v) elif s.entry > v: return set_contains3(s.left, v)

9

If 9 is in the set, it is in this branch Order of growth?

Adjoining to a Tree Set

Adjoining to a Tree Set

5 3 1 7 9 11 8

Adjoining to a Tree Set

5 3 1 7 9 11 8

Right!

Adjoining to a Tree Set

5 3 1 7 9 11 8

Right!

Adjoining to a Tree Set

5 3 1 7 9 11 8 7 9 11 8

Right!

Adjoining to a Tree Set

5 3 1 7 9 11 8 7 9 11 8

Right! Left!

Adjoining to a Tree Set

5 3 1 7 9 11 8 7 9 11 8 7 8

Right! Left!

Adjoining to a Tree Set

5 3 1 7 9 11 8 7 9 11 8 7 8

Right! Left!

None None

Adjoining to a Tree Set

5 3 1 7 9 11 8 7 9 11 8 7 8

Right! Left! Right!

None None

Adjoining to a Tree Set

5 3 1 7 9 11 8 7 9 11 8 7 8

Right! Left! Right!

None None 8 None

Adjoining to a Tree Set

5 3 1 7 9 11 8 7 9 11 8 7 8

Right! Left! Right!

None None 8 None

Stop!

Adjoining to a Tree Set

5 3 1 7 9 11 8 7 9 11 8 7 8

Right! Left! Right!

None None 8 None

Stop!

Adjoining to a Tree Set

5 3 1 7 9 11 8 7 9 11 8 7 8

Right! Left! Right!

None None 8 None

Stop!

8

Adjoining to a Tree Set

5 3 1 7 9 11 8 7 9 11 8 7 8

Right! Left! Right!

None None 8 None

Stop!

8 7 8

Adjoining to a Tree Set

5 3 1 7 9 11 8 7 9 11 8 7 8

Right! Left! Right!

None None 8 None

Stop!

8 7 8 7 9 11 8

Adjoining to a Tree Set

5 3 1 7 9 11 8 7 9 11 8 7 8

Right! Left! Right!

None None 8 None

Stop!

8 7 8 7 9 11 8 5 3 1 7 9 11 8

What Did I Leave Out?

What Did I Leave Out?

Sets as ordered sequences:

What Did I Leave Out?

Sets as ordered sequences:

• Adjoining an element to a set

What Did I Leave Out?

Sets as ordered sequences:

• Adjoining an element to a set
• Union of two sets

What Did I Leave Out?

Sets as ordered sequences:

• Adjoining an element to a set
• Union of two sets

Sets as binary trees:

What Did I Leave Out?

Sets as ordered sequences:

• Adjoining an element to a set
• Union of two sets

Sets as binary trees:

• Intersection of two sets

What Did I Leave Out?

Sets as ordered sequences:

• Adjoining an element to a set
• Union of two sets

Sets as binary trees:

• Intersection of two sets
• Union of two sets

What Did I Leave Out?

Sets as ordered sequences:

• Adjoining an element to a set
• Union of two sets

Sets as binary trees:

• Intersection of two sets
• Union of two sets

That's homework 9!

 Why things go wrong  What can we do about this

Social Implications / Programming Practices



Therac‐25 Case Study



Therac‐25 Case Study

 Medical imaging

device

Therac‐25 Case Study

   

Therac‐25 Case Study

 What happened?   

Therac‐25 Case Study

 What happened?  6 serious injuries  

Therac‐25 Case Study

 What happened?  6 serious injuries  4 deaths 

Therac‐25 Case Study

 What happened?  6 serious injuries  4 deaths  Otherwise effective – saved hundreds of lives

Therac‐25 Case Study

  

 

Lesson to be learned

 Social responsibility in engineering  

 

Lesson to be learned

 Social responsibility in engineering  First real incident of fatal software failure 

 

Lesson to be learned

 Social responsibility in engineering  First real incident of fatal software failure  Bigger issue

 No bad guys  Honestly believed there was nothing wrong

Lesson to be learned

 Other engineering fields: clear sense of

degradation and decay

 Can software become brittle or fractured?

“Software Rot”





  

A bigger picture

All software is part of a bigger system



  

A bigger picture

All software is part of a bigger system

 Software degrades because:

 Other piece of software changes  Hardware changes  Environment changes

A bigger picture

Ex: Compatibility Issues

 The makers of the Therac did not fully

understand the complexity of their software

 Complexity of constructs in other fields more

apparent

A bigger issue



A “simple” program



A “simple” program

 This program can delete any file you can

A “simple” program

   

Complexity in the Therac‐25

 Abundant user interface issues   

Complexity in the Therac‐25

 Abundant user interface issues  Cursor position and field entry  

Complexity in the Therac‐25

 Abundant user interface issues  Cursor position and field entry  Default values 

Complexity in the Therac‐25

 Abundant user interface issues  Cursor position and field entry  Default values  Too many error messages

Complexity in the Therac‐25

Too many error messages

Too many error messages

 No atomic test‐and‐set  No hardware interlocks

(More) Complexity in the Therac‐25

 Know your user  Fail‐Soft (or Fail‐Safe)  Audit Trail  Correctness from the start  Redundancy

How can we solve these things?

Fail‐Soft (or Fail‐Safe)

def mutable_rlist(): def dispatch(message, value=None): nonlocal contents if message == 'first': return first(contents) if message == 'rest': return rest(contents) if message == 'len': return len_rlist(contents) ... return dispatch

Fail‐Soft (or Fail‐Safe)

def mutable_rlist(): def dispatch(message, value=None): nonlocal contents if message == 'first': return first(contents) if message == 'rest': return rest(contents) if message == 'len': return len_rlist(contents) ... else: print('Unknown message') return dispatch

 Edsger Dijkstra: “On the Cruelty of Really

Teaching Computing Sciences”

 CS students shouldn’t use computers  Rigorously prove correctness of their programs  Correctness proofs  Compilation (pre‐execution) analysis

Correctness from the start

 Black box debugging  Glass box debugging  Don’t break what works  Golden rule of debugging…

On debugging

“Debug by subtraction, not by

addition”

Prof. Brian Harvey

Golden rule of debugging
