CS525: Advanced Database Organization Notes 2: Storage Hardware Yousef M. Elmehdwi Department of Computer Science Illinois Institute of Technology yelmehdwi@iit.edu January 10, 2018 Slides: adapted from a courses taught by Hector


slide-1

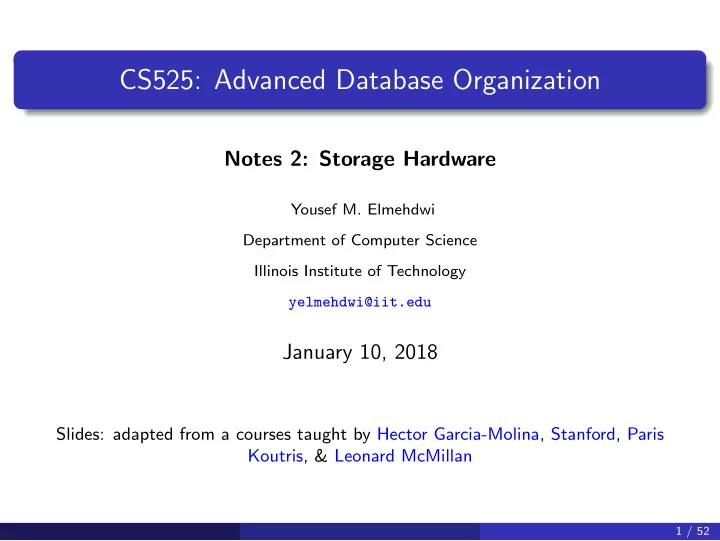

SLIDE 1

CS525: Advanced Database Organization

Notes 2: Storage Hardware

Yousef M. Elmehdwi Department of Computer Science Illinois Institute of Technology yelmehdwi@iit.edu

January 10, 2018

Slides: adapted from a courses taught by Hector Garcia-Molina, Stanford, Paris Koutris, & Leonard McMillan

1 / 52

slide-2
SLIDE 2

Outline

Study of data storage in a database management systems There are two issues we must address which are related to how a DBMS deals with very large amounts of data efficiently:

How does a computer system store and manage very large volumes of data? What representations and data structures best support efficient manipulations of this data?

2 / 52

slide-3
SLIDE 3

Today

Hardware: Disks Access Times Optimizations Other Topics:

Storage costs Using secondary storage Disk failures

3 / 52

slide-4
SLIDE 4

Hardware

4 / 52

slide-5
SLIDE 5

Data Storage

How does a DBMS store and access data?

main memory (fast, temporary) disk (slow, permanent)

How do we move data from disk to main memory?

buffer manager

How do we organize relational data into files?

5 / 52

slide-6
SLIDE 6

Disks and Files

DBMS stores information on (“hard”) disks. This has major implications for DBMS design!

READ: transfer data from disk to main memory (RAM). WRITE: transfer data from RAM to disk. Both are high-cost operations, relative to in-memory operations, so must be planned carefully!

6 / 52

slide-7
SLIDE 7

Why Not Store Everything in Memory?

Relatively high cost Main memory is not persistent (volatile)

We want data to be saved between runs. (Obviously!)

Data Size > Memory Size > Address Space

7 / 52

slide-8
SLIDE 8

Typical Storage Hierarchy

CPU Registers temporary variables Cash - Fast copies of frequently accessed memory locations Main memory (RAM) for currently used “addressable” data. Disk for main database (secondary storage) Tapes for archiving older versions of the data (tertiary storage)

8 / 52

slide-9
SLIDE 9

Memory hierarchy

1

1 c

2013 Gribble, Lazowska, Levy, Zahorjan

9 / 52

slide-10
SLIDE 10

Disks

The use of secondary storage is one of the important characteristics

  • f a DBMS.

To motivate many of the ideas used in DBMS implementation, we must examine the operation of disks in detail

10 / 52

slide-11
SLIDE 11

Disks

Secondary storage device of choice Main advantage over tapes: random access vs. sequential

Sequential: read the data contiguously Random: read the data from anywhere at any time

Data is stored and retrieved in units called disk blocks or pages

Typical numbers these days are 64 KB per block

Retrieval time depends upon the location of the disk

Therefore, relative placement of pages on disk has major impact on DBMS performance!

11 / 52

slide-12
SLIDE 12

Components of a Disk

platter: circular hard surface on which data is stored by inducing magnetic changes spindle: responsible for rotating the platters RPM (Rotations Per Minute): 7200 RPM 15000 RPM

12 / 52

slide-13
SLIDE 13

Components of a Disk

data is encoded in concentric circles of sectors called tracks The arm assembly is moved in

  • r out to position a head on a

desired track. Tracks under heads make a cylinder (imaginary!). Only one head reads/writes at any one time. Block size is a multiple of sector size (which is fixed).

13 / 52

slide-14
SLIDE 14

Top View

14 / 52

slide-15
SLIDE 15

Disk Storage Characteristics

# Cylinders= # tracks per surface (platter) e.g., 10 sectors ⇒ 10 cylinders and we can refer to them cylinder zero to cylinder nine # tracks per cylinder= # of heads or 2× # platter # sector per track bytes per sector ⇒disk capacity/size

15 / 52

slide-16
SLIDE 16

Today

Hardware: Disks Access Times Optimizations Other Topics:

Storage costs Using secondary storage Disk failures

16 / 52

slide-17
SLIDE 17

Accessing the Disk

The time taken between the moment at which the command to read a block is issued and the time that the contents of the block appear in main memory is called the latency of the disk. The access time is also called the latency of the disk.

17 / 52

slide-18
SLIDE 18

Accessing the Disk

Note that blocks can be read or written only when: The heads are positioned at the cylinder containing the track on which the block is located, and The sectors contained in the block move under the disk head as the entire disk assembly rotates.

18 / 52

slide-19
SLIDE 19

Accessing the Disk

access time = seek time + rotational delay + transfer time +other delay Other Delays:

CPU time to issue I/O Contention for controller Contention for bus, memory “Typical” Value: 0

19 / 52

slide-20
SLIDE 20

Accessing the Disk

access time = seek time + rotational delay + transfer time

Seek time: time to move the arm to position disk head on the right track Seek time can be 0 if the heads happen already to be at the proper cylinder. If not, the heads require some minimum time to start moving and to stop again, plus additional time that is roughly proportional to the distance traveled. The average seek time is often used as a way to characterize the speed of the disk.

20 / 52

slide-21
SLIDE 21

Average Random Seek Time

Given N as the total number of tracks S = N

i=1

N

j=1,j=i SEEKTIME(i → j)

N(N − 1) It sums up all the time traveled between each pair of tracks and get the average of it as the average seek time.

21 / 52

slide-22
SLIDE 22

Accessing the Disk

access time = seek time + rotational delay + transfer time

rotational delay: time to wait for sector to rotate under the disk head

22 / 52

slide-23
SLIDE 23

Average Rotational Delay

On the average, the desired sector will be about half way around the circle when the heads arrive at its cylinder. Average rotational delay is time for 1

2 revolution

Example: Given a total revolution of 7200 RPM

One rotation =

60s 7200 = 8.33 ms

Average rotational latency = 4.16 ms

23 / 52

slide-24
SLIDE 24

Accessing the Disk

access time = seek time + rotational delay + transfer time

data transfer time: time to move the data to/from the disk surface Transfer time is the time it takes the sectors of the block and any gaps between them to rotate past the head. Given a transfer rate, the transfer time= block size

transfer rate

24 / 52

slide-25
SLIDE 25

Accessing the Disk

Seek time and rotational delay dominate. Key to lower I/O cost: reduce seek/rotation delays!

25 / 52

slide-26
SLIDE 26

Arranging Blocks on Disk

So far: Random Block Access. Blocks in a file should be arranged sequentially on disk (by “next”) to minimize seek and rotational delay. Next block concept:

blocks on same track, followed by blocks on same cylinder, followed by blocks on adjacent cylinder

For a sequential scan, pre-fetching several blocks at a time is a big win.

26 / 52

slide-27
SLIDE 27

If we do things right

(e.g., Double Buffer, Stagger Blocks) Time to get blocks should be proportional to the size of blocks, and the seek time and rotational latency thus become trivial time to get block =

Block size transfer rate + Negligible

Negligible:

skip gap switch track

  • nce in a while, next cylinder

27 / 52

slide-28
SLIDE 28

Rule of Thumb

Random I/O: Expensive Sequential I/O: Much less

28 / 52

slide-29
SLIDE 29

Cost for Writing similar to Reading

The process of writing a block is, in its simplest form, quite similar to reading a block . . . unless we want to verify! need to add (full) rotation + Block size

transfer rate

29 / 52

slide-30
SLIDE 30

To Modify a Block?

It is not possible to modify a block on disk directly. Rather, even if we wish to modify only a few bytes, we must do the following:

1 Read Block 2 Modify in Memory 3 Write Block 4 [Verify?] 30 / 52

slide-31
SLIDE 31

SSD (SOLID STATE DRIVE)

SSDs use flash memory No moving parts (no rotate/seek motors)

eliminates seek time and rotational delay very low power and lightweight

Data transfer rates: 300-600 MB/s SSDs can read data (sequential or random) very fast! Small storage (0.1 − 0.5× of HDD) expensive (20× of HDD) Writes are much more expensive than reads (10×) Limited lifetime

1-10K writes per page the average failure rate is 6 years

31 / 52

slide-32
SLIDE 32

Today

Hardware: Disks Access Times Optimizations Other Topics:

Storage costs Using secondary storage Disk failures

32 / 52

slide-33
SLIDE 33

Optimizations (in controller or O.S.)

Effective ways to speed up disk accesses: Disk Scheduling Algorithms Track (or larger) Buffer Pre-fetch Arrays Mirrored Disks On Disk Cache

33 / 52

slide-34
SLIDE 34

Double Buffering

Another suggestion for speeding up some secondary-memory algorithms is called double buffering. In some scenarios, we can predict the order in which blocks will be requested from disk by some process. Prefetching (double buffering) is the method of fetching the necessary blocks into the buffer in advance Requires enough buffer space Speedup factor up to n, where n is the number of blocks requested by a process

34 / 52

slide-35
SLIDE 35

Double Buffering

Problem Have a File

Sequence of Blocks B1, B2

Have a Program

Process B1 Process B2 Process B3 . . .

35 / 52

slide-36
SLIDE 36

Single Buffer Solution

1 Read B1 → Buffer 2 Process Data in Buffer 3 Read B2 → Buffer 4 Process Data in Buffer 5 .

. .

36 / 52

slide-37
SLIDE 37

Single Buffer Solution

Let: P = time to process/block R = time to read in 1 block n = # blocks Single buffer time =n(P + R)

37 / 52

slide-38
SLIDE 38

Double Buffering Solution

38 / 52

slide-39
SLIDE 39

Double Buffering Solution

39 / 52

slide-40
SLIDE 40

Double Buffering Solution

40 / 52

slide-41
SLIDE 41

Double Buffer Solution

Let: P = time to process/block R = time to read in 1 block n = # blocks P ≥ R What is processing time? Double buffering time = R + nP Single buffer time =n(R + P)

41 / 52

slide-42
SLIDE 42

Block Size Selection?

Big Block → Less Management Overhead Unfortunately Big Block → Read in more useless stuff and takes longer to read Trend: As memory prices drop, blocks get bigger

42 / 52

slide-43
SLIDE 43

Disk Failures

We Consider ways in which disks can fail and what can be done to mitigate these failures: Partial → Total Intermittent → Permanent

43 / 52

slide-44
SLIDE 44

Coping with Disk Failures

Detection

e.g. Checksum

Correction

Redundancy

44 / 52

slide-45
SLIDE 45

Megatron 747 Disk (old)

Example

Rotate at 3600 RPM Only 1 surface 16 MB usable capacity (usable capacity excludes the gaps) 128 cylinders seek time:

average = 25 ms. adjacent cylinders = 5 ms.

1 KB block = 1 sector 10% overhead between blocks

gaps represent 10% of the circle and sectors represent the remaining 90%

45 / 52

slide-46
SLIDE 46

Megatron 747 Disk (old)

bytes/cyl =

total capacity total # cylinders = 220×16 128

= 224

27 = 217 = 128KB

#blocks/cyl = capacity of each cylinder

size of block

= 128KB

1KB

= 128

46 / 52

slide-47
SLIDE 47

Megatron 747 Disk (old)

3600 RPM → 60 revolutions/sec→1 rev. = 16.66 msec. Time over useful data = 16.66 × 0.9 = 14.99 ms Time over gaps=16.66 × 0.1 = 1.66 ms Transfer time 1 block = 14.99

128 = 0.117ms

Q) If there are 128 sectors in each cylinder, then how many gaps are there? Transfer time 1 block+gap= 16.66

128 = 0.13ms

47 / 52

slide-48
SLIDE 48

Megatron 747 Disk (old)

T1 = Time to read one random block T1 = seek + rotational delay + Transfer time 1 block T1 = 25 + 16.66

2

+ 0.117 = 33.45 ms.

48 / 52

slide-49
SLIDE 49

Megatron 747 Disk (old)

Suppose OS deals with 4 KB blocks T4 = 25 + 16.66

2

+ 0.117 × 1 + 0.13 × 3 = 33.83 ms Compare to T1 = 33.45ms Q) The time to read a full track is ?

49 / 52

slide-50
SLIDE 50

Summary

Secondary storage, mainly disks I/O times I/Os should be avoided, especially random ones

50 / 52

slide-51
SLIDE 51

Reading

Chapter 2: data storage in week1/reading folder, except Sections: 2.3.3, 2.3.4, 2.3.5, 2.4.4, 2.5.4, 2.6

51 / 52

slide-52
SLIDE 52

Next

File and System Structure

52 / 52
