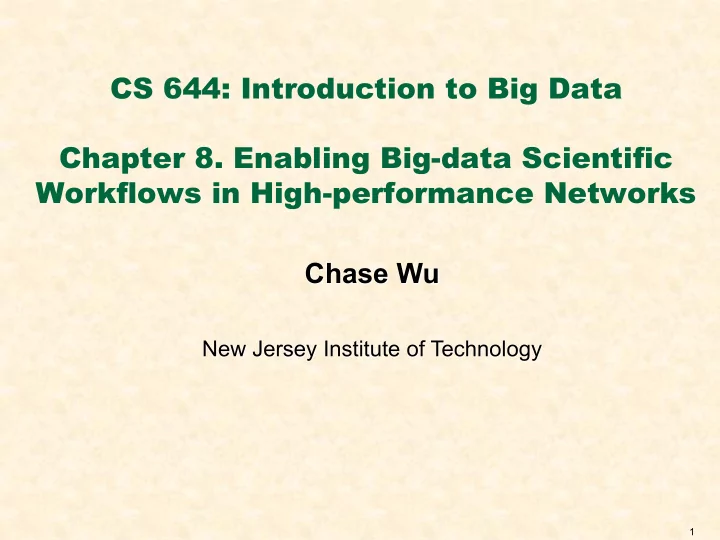

CS 644: Introduction to Big Data Chapter 8. Enabling Big-data Scientific Workflows in High-performance Networks

1

Chase Wu

New Jersey Institute of Technology

SLIDE 2

Outline

• Introduction
• Challenges & Objectives
• A Three-layer Architecture Solution
• Enabling Technologies: networking and computing
• Networking for Big Data
• Software-defined Networking (SDN)
• High-performance Networking (HPN)
• Computing for Big Data
• Workflow Management and Optimization
• Simulation/Experimental Results
• Conclusion

2

SLIDE 3

Introduction

• Supercomputing for big-data science

3

Astrophysics Computational biology Climate research Flow dynamics Computational materials Fusion simulation Neutron sciences Nanoscience

SLIDE 4

Terascale Supernova Initiative (TSI)

4

Visualization channel Visualization control channel Computation steering channel

• Collaborative project
• Supernova explosion
• TSI simulation
• 1 terabyte a day with a

small portion of parameters

• From TSI to PSI
• Transfer to remote sites
• Interactive distributed

visualization

• Collaborative data

analysis

• Computation monitoring
• Computation steering

Supercomputer or Cluster Client

SLIDE 5

Challenges for Extreme-scale Scientific Applications

• A typical way of research conduct
• Run simulation code on supercomputer in a batch mode

Ø One day: 1 terabyte datasets

• Move datasets to HPSS

Ø About 8 hours

• Transfer datasets to remote sites over the Internet

Ø TCP-based transfer tools: up to one week

• Filter out data of interest
• Partition dataset for parallel processing
• Extract geometry data
• Generate images on rendering engine
• Display results on desktop, laptop, powerwall, etc.

}

5

Visualization: several hours or days

Start over if any parameter values are not set appropriately!

SLIDE 6

Challenges in Modern Sciences

• BIG DATA: from T to P, to E, to Z, to Y, and beyond…
• Simulation
• Astrophysics, climate modeling, combustion research, etc.
• Experimental
• Spallation Neutron Source, Large Hadron Collider, etc.
• Observational
• Large-scale sensor networks, astronomical image data (Dark

Energy Camera), etc.

No matter which type of data is considered, we need

an end-to-end workflow solution

for data transfer, processing, and analysis!

6

SLIDE 7

Big-data Scientific Workflows

• Require massively distributed resources
• Hardware
• Computing facilities, storage systems, special rendering engines, display devices

(tiled display, powerwall, etc.), network infrastructure, etc.

• Software
• Domain-specific data analytics/processing tools, programs, etc.
• Data type
• Real-time, archival
• Feature different complexities
• Simple case: linear pipeline (a special case of DAG)
• Complex case: DAG-structured graph
• Support different application types
• Interactive: minimize total end-to-end delay for fast response
• Streaming: maximize frame rate to achieve smooth data flow

7

SLIDE 8

8

• Support distributed workflows in heterogeneous

environments

• Optimize workflow performance to meet various

user requirements

Ø Delay, throughput, reliability, etc. Ø Remote visualization, online computational monitoring and steering, etc.

• Make the best use of computing and networking

resources

Ultimate Goals

SLIDE 9

Solution: A Three-layer Architecture

9

SLIDE 10

Enabling Technologies

10

• Three layers
• Top: Abstract scientific workflow
• Middle: Virtual overlay network (grid, cloud)
• Bottom: Physical high-performance network
• Top and bottom layers meet at middle layer
• From bottom to middle: resource abstraction
• Bandwidth scheduling
• Performance modeling and prediction
• From top to middle: workflow mapping
• Optimization: where to execute modules?
• Workflow execution
• Actual data transfer: transport control
• Actual module running: job scheduling

SLIDE 11

Networking Requirements

• Provision dedicated channels to meet

different transport objectives

• High bandwidths
• Multiples of 10Gbps to terabits networking
• Support bulk data transfers
• Stable bandwidths
• 100s of Mbps
• Support interactive control operations
• Why not the Internet?
• Only backbone has high bandwidths (last mile)
• Packet-level resource sharing
• Best-effort IP routing
• TCP: hard to sustain 10s Gbps or to stabilize

11

SLIDE 12

12

An Overview of TCP/IP Stack

SLIDE 13

Software-Defined Networking

• The Concept of Virtualization
• Virtualization of Computing
• Virtualization of Networking
• Software-Defined Network
• Possible Directions

13

SLIDE 14

Concept of Virtualization

• Decoupling HW/SW
• Abstraction and layering
• Using, demanding, but not owning or

configuring

• Resource pool: flexible to slice, resize,

combine, and distribute

• A degree of automation by software

14

SLIDE 15

Benefits of Virtualization

• An analogy: owning a huge house
• Real estate, immovable property
• Does not generate cash and income
• How to gain more profit?
• Divide this huge house into suites, and RENT to

people!

• Renting suites: using but not owning
• Transform a static investment into cash

generators!!!

15

SLIDE 16

Virtualization of Computing

• Partitioning one physical machine
• Virtual instances
• Running concurrently, sharing resources
• Hypervisor: Virtual Machine Monitor (VMM)
• A software layer presents abstraction of physical resources

Key Factor of Virtualization

16

SLIDE 17

Networks are Hard to Manage

• Operating a network is expensive
• More than half the cost of a network
• Yet, operator error causes most outages
• Buggy software in the equipment
• Routers with 20+ million lines of code
• Cascading failures, vulnerabilities, etc.
• The network is “in the way”
• Especially a problem in data centers
• … and home networks

17

SLIDE 18

Traditional Computer Networks

Collect measurements and configure the equipment Management plane:

18

SLIDE 19

Software Defined Networking (SDN)

API to the data plane (e.g., OpenFlow) Logically-centralized control Switches Smart, slow Dumb, fast

19

SLIDE 20

OpenFlow Protocol NETWORK OPERATING SYSTEM

Bandwidth

• on -

Demand Dynamic Optical Bypass Unified Recovery

Unified Control Plane

Switch Abstraction Networking Applications

VIRTUALIZATION (SLICING) PLANE Underlying Data Plane Switching

Traffic Engineering Application

• Aware

QoS

Provide Choices

Packet Switch Packet Switch Wavelength Switch Time-slot Switch Multi-layer Switch

Packet & Circuit Switch Packet & Circuit Switch

20

SLIDE 21

Architecture

Onix / Network OS

Logical Forwarding Plane Control Plane / Applications

Network Hypervisor

Real States Logical States Abstractions Mapping Control Commands Distributes, Configures Network Info Base

API

Distributed System

Abstraction

Provides

Provides

OpenFlow

21

SLIDE 22

Switch Forwarding Pipeline

Logical Forwarding Plane As packets/flows traverse the network: moving both in logical and physical forwarding plane → logical context

22

SLIDE 23

Data-Plane: Simple Packet Handling

• Simple packet-handling rules
• Pattern: match packet header bits
• Actions: drop, forward, modify, send to controller
• Priority: disambiguate overlapping patterns
• Counters: #bytes and #packets
• 1. src=1.2.*.*, dest=3.4.5.* à drop
• 2. src = *.*.*.*, dest=3.4.*.* à forward(2)
• 3. src=10.1.2.3, dest=*.*.*.* à send to controller

23

SLIDE 24

Unifies Different Kinds of Boxes

• Router
• Match: longest destination

IP prefix

• Action: forward out a link
• Switch
• Match: destination MAC

address

• Action: forward or flood
• Firewall
• Match: IP addresses and

TCP/UDP port numbers

• Action: permit or deny
• NAT
• Match: IP address and port
• Action: rewrite address and

port

24

SLIDE 25

Controller: Programmability

25

Network OS

Controller Application Events from switches Topology changes, Traffic statistics, Arriving packets Commands to switches (Un)install rules, Query statistics, Send packets

SLIDE 26

Example OpenFlow Applications

• Dynamic access control
• Seamless mobility/migration
• Server load balancing
• Network virtualization
• Using multiple wireless access points
• Energy-efficient networking
• Adaptive traffic monitoring
• Denial-of-Service attack detection

See http://www.openflow.org/videos/

26

SLIDE 27

Example: Dynamic Access Control

• Inspect first packet of a connection
• Consult the access control policy
• Install rules to block or route traffic

27

SLIDE 28

Seamless Mobility/Migration

• See host send traffic at new location
• Modify rules to reroute the traffic

28

SLIDE 29

Server Load Balancing

• Pre-install load-balancing policy
• Split traffic based on source IP

29

src=0* src=1*

SLIDE 30

Network Virtualization

30

Partition the space of packet headers

Controller #1 Controller #2 Controller #3

SLIDE 31

OpenFlow in the Wild

• Open Networking Foundation
• Google, Facebook, Microsoft, Yahoo, Verizon, Deutsche

Telekom, and many other companies

• Commercial OpenFlow switches
• HP, NEC, Quanta, Dell, IBM, Juniper, …
• Network operating systems
• NOX, Beacon, Floodlight, Nettle, ONIX, POX, Frenetic
• Network deployments
• Eight campuses, and two research backbone networks
• Commercial deployments (e.g. Google backbone)

31

SLIDE 32

Controller Delay and Overhead

• Controller is much slower than the switch
• Processing packets leads to delay and overhead
• Need to keep most packets in the “fast path”

32

packets

SLIDE 33

Distributed Controller

33

Network OS

Controller Application

Network OS

Controller Application For scalability and reliability Partition and replicate state

SLIDE 34

High-performance Networks

• Production and testbed networks
• UltraScience Net
• ESnet OSCARS
• Offers MPLS tunnels and VLAN virtual circuits
• Internet2 ION
• Offers MPLS tunnels and VLAN virtual circuits
• UCLP
• User Controlled Light Paths
• CHEETAH
• Circuit-switched High-speed End-to-End Transport

Architecture

• DRAGON
• Dynamic Resource Allocation via GMPLS Optical

Networks

34

SLIDE 35

UltraScience Net – In a Nutshell

• Experimental Network Research Testbed

35

SLIDE 36

Control Plane

36

Responsible for

• 1. Reserving link

bandwidths

• 2. Setting up end-to-

end network paths

• 3. Releasing

resources when tasks are completed

SLIDE 37

Bandwidth Scheduling

37

SLIDE 38

Bandwidth Scheduler

• Central component
• Computes paths and allocate link bandwidths
• Scheduling in USN
• Fixed slot: start time, end time, target BW
• Extension of Dijkstra’s Algorithm
• All slots: duration, target BW
• Extension of Bellman-Ford Algorithm
• Both are solvable by polynomial-time algorithms

38

SLIDE 39

Network Model for Bandwidth Scheduling

• Graph: G(V, E)
• Link bandwidth
• Segmented constant functions of time
• Time-bandwidth (TB): (t[i], t[i+1], b[i])
• Aggregated TB for all links

39 Residual Bandwidth

[0] t [2] t [1] t [3] t

SLIDE 40

4 Types of Scheduling Problems (TON’13)

• Given: G = (E, V), ATB, vs , vd , data size δ
• Objective: minimize data transfer end time
• Fixed Path with Fixed Bandwidth (FPFB)
• Compute a fixed path from vs to vd with a constant (fixed)

bandwidth

• Fixed Path with Variable Bandwidth (FPVB)
• Compute a fixed path from vs to vd with varying bandwidths

across multiple time slots

• Variable Path with Fixed Bandwidth (VPFB)
• Compute a set of paths from vs to vd at different time slots with

the same (fixed) bandwidth

• Variable Path with Variable Bandwidth (VPVB)
• Compute a set of paths from vs to vd at different time slots with

varying bandwidths across multiple time slots

40

SLIDE 41

VPFB & VPVB

• Multiple paths are used in a sequential order
• Path switching incurs a delay (overhead) τ
• Path switching delay is negligible (τ = 0)
• VPFB-0, VPVB-0
• Path switching delay is not negligible (τ > 0)
• VPFB-1, VPVB-1
• When τ is large enough
• VPFB-1 -> FPFB, VPVB-1 -> FPVB

41

SLIDE 42

Problem Features

• FPFB is the most stringent
• VPVB is the most flexible
• FPFB and VPFB restrict the BW
• Not always optimal to start data transfer

immediately

• Suited for transport methods with fixed rate
• FRTP, PLUT, Tsunami, Hurricane, RBUDP
• FPVB and VPVB use variable BW
• Always start immediately
• Suited for transport methods with dynamically

adapted rate

• SABUL, RAPID, RUNAT, improved TCP

42

SLIDE 43

Complexity and Algorithm

• An optimal algorithm for each problem
• A heuristic for each NPC problem

43

SLIDE 44

Workflow Mapping

44

SLIDE 45

Cost Models

A computing workflow consist of modules: . A computer network modeled an arbitrary directed graph , where computing nodes are interconnected by directed communication links. Objectives: map modules to nodes to achieve minimum end-to-end delay (MED) or maximum frame rate (MFR).

1 1

, ,...

m

w w w -

, 1, , 1

j

w j m =

• !

( )

j

w

l ×

1 j

w +

1 j

z -

Computational complexity

j

z

1 j

w -

Module

Recv data : Send data :

( , ) G V E = | | V n =

1 1

, , ,

n

v v v - !

k

v

Link bandwidth:

, h k

b

h

v

Min link delay:

, h k

d

Node processing power

k

p

Network

m

, , ,

( ) Message transmission time: , Node computing time:

i i

w w i j i j i j

z z d b p l +

45

Link failure rate:

, h k

f

Node Failure rate

Workflow

k

f

SLIDE 46

• Workflow mapping and execution conditions
• Single-node mapping
• If w is mapped to v,
• Otherwise,
• Module execution precedence
• Data transfer precedence

1,

c

wv w v V

x w V

Î

= " Î

å

,

,

, ,

j i j

s f w e j w i j w

t t w V e E ³ " Î Î

,

,

, ,

i j i

s f e w i w i j w

t t w V e E ³ " Î Î 1

wv

x =

wv

x =

46

SLIDE 47

• Fair node sharing
• Fair link sharing

comp

( ) ( , ) ( , ) , ,

w w w c v

z A w v T w v w V v V p l × = " Î Î

where and

( , ) ( )

f w s w

t v t

A w v t dt a = ò

:( )( ) 0

( )

f s w w w

v wv w V t t t t

t x a

Î

• ³

=

å

, , , tran , , , , , ,

( , ) ( , ) , ,

i j i j h k i j h k h k i j w h k c h k

z B e l T e l d e E l E b × = + " Î Î

where and

, , ,

, ,

( , ) ( )

f ei j s h k ei j

t i j h k l t

B e l t dt b = ò

, , , ,

:( )( ) 0

( )

h k i h j k f s i j w e e i j i j

l w v w v e E t t t t

t x x b

Î

• ³

= ×

å

47

SLIDE 48

• Performance Metrics
• End-to-end delay (ED)

1

ED 1 2 comp tran ( , ) 1 [ ] , 1 [ ] , 1 1 [ ], [ 1] [ ], [ 1] [ ], [ 1]

(CP mapped to a path of nodes) ( ) ( , ) ( ) ( ( , ), )

i i i j j i

q q g e g g i i q w w j P i i j g j P i i i i i P i P i P i P i i P i P i

T P q T T T T z A w v p z g g B e g g l d b l

+

• =

=

• =

Î ³ + + + + = +

= + = + × æ ö = ç ÷ ç ÷ è ø æ ö × + + ç ÷ ç ÷ è ø

å å å å

2 q-

å

48

SLIDE 49

• Frame rate: inverse of global bottleneck (BN)
• Overall failure rate

, , ' ', ' ' ', '

BN ' comp ' ' , , , , ', ' tran , ', ' , , ', ' ', '

( mapped to a network ) ( ) ( , ) ( , ) max max ( , ) ( , )

i i i w j k w i w j k w i c j k i c j k

w c w w i i i i i w V e E w V e E j k j k j k j k j k v V l Ec v V l Ec j k j k

T G G z A w v T w v p z B e l T e l d b l

Î Î Î Î Î Î Î Î

× æ ö ç ÷ æ ö ç ÷ = = ç ÷ ç ÷ ç ÷ × è ø + ç ÷ ç è ø ÷

, , , ,

, mappedon mappedon , ,

1 (1 ) (1 )

i j h k i h i w h c i j w h k c

h k h e l w v w V v V e E l E

f f

Î Î Î Î

æ ö æ ö ç ÷ ç ÷ = -

• ×
• ç

÷ ç ÷ ç ÷ ç ÷ è ø è ø

Õ Õ

F

49

SLIDE 50

• Objective Functions
• Minimum End-to-end Delay (MED)
• Maximum Frame Rate (MFR)

ED all possible mappings

min ( ), such that T £ F F

BN all possible mappings

min ( ), such that T £ F F

50

SLIDE 51

Pipeline Mapping

• - A special case of DAG
• Problem categories
• MED

Ø No Node Reuse (MED-NNR) Ø Contiguous Node Reuse (MED-CNR) Ø Arbitrary Node Reuse (MED-ANR)

• MFR

Ø No Node Reuse or Share (MFR-NNR) Ø Contiguous Node Reuse and Share (MFR-CNR) Ø Arbitrary Node Reuse and Share (MFR-ANR)

51

A rbi t rary node reuse

Source Destination

N

• node reuse

C

• nt i guous node reuse

M0 M1 Mn-5 Mn-4 Mn-2 Mn-1 Mn-3 Vn-2 M2 Vp+1 Vq+1 Vp Vq V1 V5 Vs Vd Source Destination M0 M1 Mn-5 Mn-4 Mn-2 Mn-1 Mn-3 Vn-2 M2 Vp+1 Vq+1 Vp Vq V1 V5 Vs Vd Source Destination M0 M1 Mn-5 Mn-4 Mn-2 Mn-1 Mn-3 Vn-2 M2 Vp+1 Vq+1 Vp Vq V1 V5 Vs Vd

SLIDE 52

Problem Category and Complexity

52

No Node Reuse Contiguous Node Reuse Arbitrary Node Reuse Objective Function Constraints Minimum End-to-end Delay NP-complete NP-complete Polynomial (Dyn. Prog.) Maximum Frame Rate NP-complete NP-complete NP-complete

• MED-ANR is polynomially solvable
• Dynamic Programming -based solution
• MED/MFR-NNR/CNR are NP-complete
• Reduce from DISJOINT-CONNECTING-PATH (DCP)
• MFR-ANR is NP-complete
• Reduce from Widest-path with Linear Capacity Constraints

(WLCC)

SLIDE 53

53

• Mapping algorithm for MED:
• Recursive Critical Path for MED with Failure Rate

Constraint

RCP-F

From special to general: DAG Mapping (TC’14)

SLIDE 54

54

• Mapping algorithm for MFR:
• Layer-oriented DP algorithm for MFR with Failure Rate

Constraint

• Sort a DAG-structured workflow in a topological order
• Map computing modules to network nodes on a layer-by-layer

basis, considering:

• Module dependency in the workflow
• Network connectivity
• Node and link failure rate

LDP-F

( ( ))

, , , , , , , , ( ), 1to 1, 1 ( ( )) ,

( , ) max 1 (1 ) (1 ) (1 ) if ( ) ( , ) max ( ) ( , ) max

j j u j i v V pre w mapping j j j

h u u j u j h i h i j u h i i h i w w j i i j w pre w j m h n v suc v i h u w w j h h

T z B e l d f f h i b z A w v T p T z A w v p l l

" Î

Î =

• £ £ -

Î

æ ö ç ÷ ç ÷ ç ÷ × ç ÷ + Ù = -

• ×
• ×
• £

¹ ç ÷ ç ÷ × = ç ÷ ç ÷ è ø × ! F F F F F 1 (1 ) (1 ) if

j u i

f h i æ ö ç ÷ ç ÷ ç ÷ ç ÷ ç ÷ ç ÷ ç ÷ ç ÷ ç ÷ ç ÷ æ ö ç ÷ ç ÷ Ù = -

• ×
• £

= ç ÷ ç ÷ ç ÷ ç ÷ ç ÷ è ø è ø F F F F F

SLIDE 55

55

The DP table with separated layers in . Layered workflow in a topological sorting.

vs=v0 vd=vn-1 v1 v2 v3 v4 ... w0 w1 w2 w3 w4 w5 …... ws wm-1 …... …... …... …... …... ... …... layer 0 vs=v0 vd=vn-1 v1 v2 v3 v4 ... w0 w1 w2 w3 w4 w5 …... ws wm-1 …... …... …... …... ... …... layer 1 vs=v0 vd=vn-1 v1 v2 v3 v4 ... w0 w1 w2 w3 w4 w5 …... ws wm-1 …... …... …... …... …... ... …... layer 2 vs=v0 vd=vn-1 v1 vy vp vq ... w0 w1 w2 w3 wl wt ws wm-1 …... …... …... …... …... ... …... layer l-2 vs=v0 vd=vn-1 w0 w1 w2 w3 wswm-1 …... …... …... …... ... …... layer l-1

…... T0,0 T1,1 T2,2 T2,4 T3,3 T4,5

v1 vy vp vq ... …...

Tq,s

Tn-1,m-1

…... …... …... wl wt

Ty,lTp,t

LDP-F

vs v3 v1 vd vq vx vp

…... …...

w0

wm-1

w2 wl wt

…... …... …...

Workflow Computer network

w1 ws vy v2 w3

…...

w5 w4

layer 0 layer 1 layer 2

…...

layer l-1 layer l-2

v4 v5

SLIDE 56

Jet air flow dynamics (pressure, raycasting) TSI explosion (density, raycasting)

A Prototype System: Distributed Remote Intelligent Visualization Environment (DRIVE)

56

Two Examples in the Visualization of Large-scale Scientific Applications

SLIDE 57

A Production System (JOGC’13): Scientific Workflow Automation and Management Platform (SWAMP)

57

SLIDE 58

58

Use Case: Spallation Neutron Source (SNS)

SLIDE 59

SNS Workflow (abstract)

59

SLIDE 60

SNS Workflow (concrete)

60

SLIDE 61

61

SLIDE 62

SNS Workflow Results

62
