CS 225 Data Structures No Novem ember er 16 Gr Graph aph Im Implementations and Tr Traversals G G Ca Carl Evans Gr Grap aph ADT Functions: - insertVertex(K key); Data: - insertEdge(Vertex v1, Vertex v2, K key); - Vertices -

slide-1

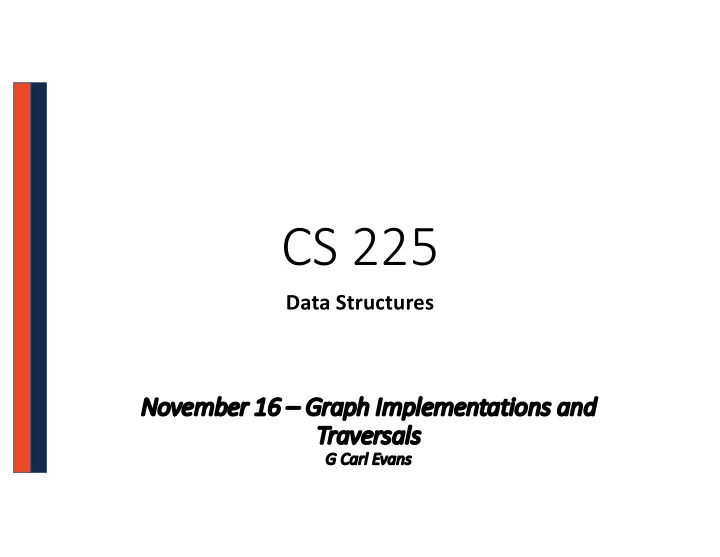

SLIDE 1

CS 225

Data Structures

No Novem ember er 16 – Gr Graph aph Im Implementations and Tr Traversals

G G Ca Carl Evans

slide-2

SLIDE 2

Gr Grap aph ADT

Functions:

insertVertex(K key);
insertEdge(Vertex v1, Vertex v2, K key);
removeVertex(Vertex v);
removeEdge(Vertex v1, Vertex v2);
incidentEdges(Vertex v);
areAdjacent(Vertex v1, Vertex v2);
origin(Edge e);
destination(Edge e);

Data:

Vertices
Edges
Some data structure

maintaining the structure between vertices and edges.

X V W Z Y b e d f g h

slide-3

SLIDE 3

Ed Edge List

v u w a c b z d u v w z u v a v w b u w c w z d

Vertex List Edge List

Key Ideas:

Given a vertex, O(1) lookup in vertex list
Implement w/ a hash table, etc
All basic ADT operations runs in O(m) time

slide-4

SLIDE 4

Ad Adjacency M Matri rix

v u w a c b z d u v w z

u v w z u

Ø Ø

v

Ø Ø

w

Ø

z

Ø u v a v w b u w c w z d

Key Ideas:

Given a vertex, O(1) lookup in vertex

list

Given a pair of vertices (an edge),

O(1) lookup in the matrix

Undirected graphs can use an upper

triangular matrix

slide-5

SLIDE 5

Gr Grap aph Imp Implemen ementati tion: Adjac jacen ency List

v u w a c b z d u v w z u v a v w b u w c w z d

slide-6

SLIDE 6

Ad Adjacency L List

v u w a c b z d u v w z u v a v w b u w c w z d a c a b b c d d

d=2 d=2 d=3 d=1

slide-7

SLIDE 7

Ad Adjacency L List

v u w a c b z d u v w z u v a v w b u w c w z d a c a b b c d d

d=2 d=2 d=3 d=1

slide-8

SLIDE 8

Ad Adjacency L List

v u w a c b z d u v w z u v a v w b u w c w z d a c a b b c d d

d=2 d=2 d=3 d=1

insertVertex(K key):

slide-9

SLIDE 9

Ad Adjacency L List

v u w a c b z d u v w z u v a v w b u w c w z d a c a b b c d d

d=2 d=2 d=3 d=1

removeVertex(Vertex v):

slide-10

SLIDE 10

Ad Adjacency L List

v u w a c b z d u v w z u v a v w b u w c w z d a c a b b c d d

d=2 d=2 d=3 d=1

incidentEdges(Vertex v):

slide-11

SLIDE 11

Ad Adjacency L List

v u w a c b z d u v w z u v a v w b u w c w z d a c a b b c d d

d=2 d=2 d=3 d=1

areAdjacent(Vertex v1, Vertex v2):

slide-12

SLIDE 12

Ad Adjacency L List

v u w a c b z d u v w z u v a v w b u w c w z d a c a b b c d d

d=2 d=2 d=3 d=1

insertEdge(Vertex v1, Vertex v2, K key):

slide-13

SLIDE 13

Expressed as O(f)

Edge List Adjacency Matrix Adjacency List Space n+m n2 n+m insertVertex(v) 1 n 1 removeVertex(v) m n deg(v) insertEdge(v, w, k) 1 1 1 removeEdge(v, w) 1 1 1 incidentEdges(v) m n deg(v) areAdjacent(v, w) m 1 min( deg(v), deg(w) )

slide-14

SLIDE 14

mp_traversals and mp_mazes

mp_traversals
Vertex Set : The pixels are the vertices
Edge Set : There is an edge between every n/s/e/w pixel unless the color

change exceeds the tolerance

There are several graphs here depending on the tolerance
mp_mazes
Vertex Set: The squares in the maze are the vertices
Edge Set: There is an edge between two vertices if canTravel() returns true
Once the maze is made this graph is a spanning tree of the graph with

canTravel() returning true.

slide-15

SLIDE 15

Tr Traversal:

Objective: Visit every vertex and every edge in the graph. Purpose: Search for interesting sub-structures in the graph. We’ve seen traversal before ….but it’s different:

Ordered
Obvious Start

slide-16

SLIDE 16

Tr Traversal: BFS

A C D E B F G H

slide-17

SLIDE 17

Tr Traversal: BFS

A C D E B F G H v d P Adjacent Edges

A B C D E F G H

slide-18

SLIDE 18

Tr Traversal: BFS

A C D E B F G H d p Adjacent Edges

0 A A C B D 1 A B A C E 1 A C B A D E F 1 A D A C F H 2 C E B C G 2 C F C D G 3 E G E F H 2 D H D G

G H F E D B C A

slide-19

SLIDE 19

BFS(G): Input: Graph, G Output: A labeling of the edges on G as discovery and cross edges foreach (Vertex v : G.vertices()): setLabel(v, UNEXPLORED) foreach (Edge e : G.edges()): setLabel(e, UNEXPLORED) foreach (Vertex v : G.vertices()): if getLabel(v) == UNEXPLORED: BFS(G, v) 1 2 3 4 5 6 7 8 9 10 11 12 BFS(G, v): Queue q setLabel(v, VISITED) q.enqueue(v) while !q.empty(): v = q.dequeue() foreach (Vertex w : G.adjacent(v)): if getLabel(w) == UNEXPLORED: setLabel(v, w, DISCOVERY) setLabel(w, VISITED) q.enqueue(w) elseif getLabel(v, w) == UNEXPLORED: setLabel(v, w, CROSS) 14 15 16 17 18 19 20 21 22 23 24 25 26 27

slide-20

SLIDE 20

BF BFS An S Analysis

Q: Does our implementation handle disjoint graphs? If so, what code handles this?

How do we use this to count components?

Q: Does our implementation detect a cycle?

How do we update our code to detect a cycle?

Q: What is the running time?

slide-21

SLIDE 21

Ru Running t time of

f BF

BFS

A C D E B F G H d p v Adjacent

0 A A C B D 1 A B A C E 1 A C B A D E F 1 A D A C F H 2 C E B C G 2 C F C D G 3 E G E F H 2 D H D G

G H F E D B C A

While-loop at :19? For-loop at :21?

slide-22

SLIDE 22

BFS(G): Input: Graph, G Output: A labeling of the edges on G as discovery and cross edges foreach (Vertex v : G.vertices()): setLabel(v, UNEXPLORED) foreach (Edge e : G.edges()): setLabel(e, UNEXPLORED) foreach (Vertex v : G.vertices()): if getLabel(v) == UNEXPLORED: BFS(G, v) 1 2 3 4 5 6 7 8 9 10 11 12 BFS(G, v): Queue q setLabel(v, VISITED) q.enqueue(v) while !q.empty(): v = q.dequeue() foreach (Vertex w : G.adjacent(v)): if getLabel(w) == UNEXPLORED: setLabel(v, w, DISCOVERY) setLabel(w, VISITED) q.enqueue(w) elseif getLabel(v, w) == UNEXPLORED: setLabel(v, w, CROSS) 14 15 16 17 18 19 20 21 22 23 24 25 26 27

slide-23

SLIDE 23

BF BFS O S Observation

ns

A C D E B F G H d p v Adjacent

0 A A C B D 1 A B A C E 1 A C B A D E F 1 A D A C F H 2 C E B C G 2 C F C D G 3 E G E F H 2 D H D G

Q: What is a shortest path from A to H? Q: What is a shortest path from E to H? Q: How does a cross edge relate to d? Q: What structure is made from discovery edges?

slide-24

SLIDE 24

BF BFS O S Observation

ns
Obs. 1: Traversals can be used to count components.
Obs. 2: Traversals can be used to detect cycles.
Obs. 3: In BFS, d provides the shortest distance to

every vertex.

Obs. 4: In BFS, the endpoints of a cross edge never

differ in distance, d, by more than 1: |d(u) - d(v)| = 1

slide-25

SLIDE 25

Tr Traversal: DFS

A C D E B F G H J K

slide-26

SLIDE 26

BFS(G): Input: Graph, G Output: A labeling of the edges on G as discovery and cross edges foreach (Vertex v : G.vertices()): setLabel(v, UNEXPLORED) foreach (Edge e : G.edges()): setLabel(e, UNEXPLORED) foreach (Vertex v : G.vertices()): if getLabel(v) == UNEXPLORED: BFS(G, v) 1 2 3 4 5 6 7 8 9 10 11 12 BFS(G, v): Queue q setLabel(v, VISITED) q.enqueue(v) while !q.empty(): v = q.dequeue() foreach (Vertex w : G.adjacent(v)): if getLabel(w) == UNEXPLORED: setLabel(v, w, DISCOVERY) setLabel(w, VISITED) q.enqueue(w) elseif getLabel(v, w) == UNEXPLORED: setLabel(v, w, CROSS) 14 15 16 17 18 19 20 21 22 23 24 25 26 27

slide-27

SLIDE 27

DFS(G): Input: Graph, G Output: A labeling of the edges on G as discovery and back edges foreach (Vertex v : G.vertices()): setLabel(v, UNEXPLORED) foreach (Edge e : G.edges()): setLabel(e, UNEXPLORED) foreach (Vertex v : G.vertices()): if getLabel(v) == UNEXPLORED: DFS(G, v) 1 2 3 4 5 6 7 8 9 10 11 12 DFS(G, v): Queue q setLabel(v, VISITED) q.enqueue(v) while !q.empty(): v = q.dequeue() foreach (Vertex w : G.adjacent(v)): if getLabel(w) == UNEXPLORED: setLabel(v, w, DISCOVERY) setLabel(w, VISITED) DFS(G, w) elseif getLabel(v, w) == UNEXPLORED: setLabel(v, w, BACK) 14 15 16 17 18 19 20 21 22 23 24 25 26 27

slide-28

SLIDE 28

Ru Running t time of

f D

DFS

Labeling:

Vertex:
Edge:

Queries:

Vertex:
Edge:

A C D E B F G H J K
