Common Range Integrated Instrumentation System (CRIIS)

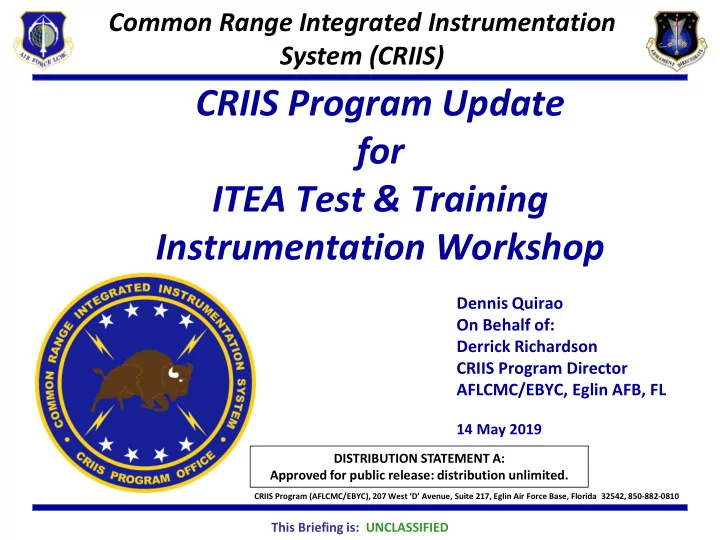

CRIIS Program Update for ITEA Test & Training Instrumentation Workshop

This Briefing is: UNCLASSIFIED

Dennis Quirao On Behalf of: Derrick Richardson CRIIS Program Director AFLCMC/EBYC, Eglin AFB, FL

14 May 2019

DISTRIBUTION STATEMENT A: Approved for public release: distribution unlimited.

CRIIS Program (AFLCMC/EBYC), 207 West ‘D’ Avenue, Suite 217, Eglin Air Force Base, Florida 32542, 850-882-0810

2

CRIIS, an OSD Central Test & Evaluation Investment Program (CTEIP) in the Production / Deployment Phase, is a Family of Systems for Airborne Data Collection

• High Accuracy Time, Space, Position

Information (TSPI)

• Multiple Independent Levels of Security

(MILS) up to & including Top Secret/SAR

• Increased throughput of Real-Time TSPI &

Aircraft Data

• Airborne Participant Packages (Pod & 2

Internal Mounts) & Ground Systems

• Integrating on F-15, F-16, F/A-18, F-22A (SIL)

& F-35 (SIL)

• Replaces Advanced Range Data System

(ARDS)

• Prime Contractor: Collins Aerospace (CA),

(Cedar Rapids, IA)

Beddown Locations: NAS Patuxent River, Eglin AFB, White Sands Missile Range, Edwards AFB, Nevada Test & Training Range, China Lake NAWS, & Point Mugu NAWC

CRIIS Description

3

Arm Deter Engage Defeat

Airborne & Ground Subsystems

Participant Packages

Configuration 4 Pod for Legacy Aircraft Configuration 6 Internal Mount Air Cooled for Legacy Aircraft Configuration 5 Internal Mount Liquid Cooled for 5th Gen Aircraft CRIIS Control Center Mission Rooms Remote Ground Station & Reference Receiver

Portable Test Set Ground Subsystems

Legacy Aircraft

REC-POD BATTERY MAC AFT HANGER RAIL ASSEMBLY CENTER WEIGHT COLLAR* NOSE CONE ASSEMBLY GPS ANTENNA (conformal) RF ANTENNAS (Qty 2) UMBILICAL COVER (AIM-9) FORWARD WEIGHT COLLAR* FORWARD HANGER MSI CONNECTOR (MIL-STD-1760) TUBE ASSEMBLY AFT WEIGHT COLLAR*

(* Front, Center and Aft Weights are absent for Light Pod)

Threshold Platforms

5th Generation Aircraft

F-22 F-35 F-16 F-18 F-15

4

Arm Deter Engage Defeat

Major Range & Test Facility Base (MRTFB) and Initial Bed-down Locations

Aberdeen Test Center Naval Air Warfare Center- Patuxent River Arnold Engineering Development Center 45th Space Wing, Patrick AFB Atlantic Undersea Test & Evaluation Center Atlantic Fleet Weapons Training Facility Utah Test & Training Range Dugway Proving Ground Naval Air Warfare Center, China Lake 30th Space Wing, Vandenberg AFB Kwajalein Missile Range Naval Air Warfare Center, Point Mugu Air Force Test Center, Edwards AFB Yuma Proving Ground Electronic Proving Ground,

• Ft. Huachuca

Joint Interoperability Test Command White Sands Missile Range 46th Test Group, Holloman AFB 96th Test Wing, Eglin AFB Air Force Air Warfare Center, Nellis AFB High Energy Laser System Test Facility

Bed-down Locations

Naval Underwater Warfare Center, Keyport Pacific Missile Range Facility

5

Arm Deter Engage Defeat

OSD - AFLCMC Relationship

Range Systems Branch (AFLCMC/EBYC) Branch Chief: Lt Col Carey Petit Branch Chief Engr: Ms Roshelle Orgusaar Air Force Life Cycle Management Center Armament Directorate (AFLCMC/EB) Director/PEO: Brig Gen Anthony Genatempo

HQ AFLCMC SAF/AQ

Range/T&E Organizations TRMC/CTEIP CTEIP PM AF/TEP AFMC/A3F Services DPMs AF/TE CRIIS Pgm Mgr: Mr Derrick Richardson Lead Engineer: Mr Dennis Quirao P5CTS Pgm Mgr: Mr Ben Collins Lead Engineer: Mr Adrian Mijangos Test and Training Division (AFLCMC/EBY) Division Chief: Mr Jerome Yates OTICC

Requirements/ Funding Acquisition Authority

6

Arm Deter Engage Defeat

CRIIS Program Schedule

Apr 2019

7

Arm Deter Engage Defeat

CRIIS Production

■ Lot 1: Completed Jul 2018

‒ Ground Subsystems: 80 ‒ Airborne Subsystems: 99

■ Lot 2: Completed Dec 2018

‒ Ground Subsystems: 62 ‒ Airborne Subsystems: 96

■ Lot 3: In Progress—On Track for Completion on Oct 2019

‒ Ground Subsystems: 39 ‒ Airborne Subsystems: 55

8

Arm Deter Engage Defeat

CRIIS MILS Architecture

Data Sorted By Classification / Caveat or Mission Number

Mission #1 JSF Mission #1 F-16 Mission #2 F-35 Mission #2 F-16

TSPI

S/JSF

Fibre data

TS/JSF

TSPI

Unclas

1553#1

S/NF

TSPI

S/JSF

TSPI

Unclas

1553#1

S/NF MILS ECU MILS ECU MILS ECU HTDL HTDL HTDL HTDL

Data Link Controller

MILS ECU

Ground Guard #1 Ground Guard #2 Ground Guard #3 Ground Guard #4

MILS ECU

Mission Room #1

Fibre data

TS/JSF

Mission Room #2 Mission Room #3 Mission Room #4

All Mission # 1 Data TS/JSF, S/JSF, Unclass, S/NF All Unclass Data All Mission #2 Data TS/JSF, S/JSF, Unclass, S/NF All S/NF Data

TS/JSF S/JSF S/NF Unclas

9

Arm Deter Engage Defeat

CRIIS Cybersecurity Approach

■ CRIIS Certification

‒ Designed for Mission Assurance Category II Classified and Protection Level 4 using Multiple Independent Levels of Security (MILS)

■ Risk Mgt Framework approach is CRIIS “Assess Only” package

‒ DT&E Authorizing Official (AO) initial review in Apr 2018 – shared common controls ‒ RDT&E AO office approved in Nov 2018

■ Cross Domain / Site-Based Security Assessments (SBSA) completed for Eglin & Edwards

‒ Cross Domain installs completed for Eglin, Edwards, Pax River, WSMR, China Lake & Pt Mugu ‒ Cross Domain SBSA (additional system security feature) paves way for test range ATOs

Host Range Inherits CRIIS Controls for Their ATO

10

Arm Deter Engage Defeat

CRIIS Air-to-Air Range Infrastructure (CRIIS - AARI)

■ 1st Delivery Order under ID/IQ Contract designed to support emerging & unplanned requirements ■ CRIIS-AARI Capability:

‒ Software mod to CRIIS datalink capabilities to enable collection of specific avionics & weapons data based on triggering events ‒ Fielding completed 30 Apr 19 and integrates w/ AARI infrastructure currently at NTTR

11

Arm Deter Engage Defeat

CRIIS Integration on F-35

 Nevada Test & Training Range (NTTR) is lead agent for CRIIS Air-

to-Air Range Infrastructure (AARI) capability on F-35

‒ Using legacy interim solution to meet F-35 flight test schedule ‒ CRIIS-AARI capability fielded for install to delivered CRIIS Production subsystems  Config 5 – Fibre Channel (FC) Internal Mount airborne participant

pkg enables CRIIS functionality on F-35 test a/c

‒ Includes CRIIS-AARI capability engineered as replacement for legacy system  Initial Config 5 – FC units delivered to NTTR in May 2018 to

support F-35 subsequent testing

12

Arm Deter Engage Defeat

CRIIS Integration on F-22

• Procurement incorporated into Lot 2 & 3 buys

‒ Using Config 5 – 1553 Internal Mount and Portable Test Sets (PTS) to support T&E requirements

• F-22 Technical Management Review held 11-13 Dec 18

‒ F-22 SPO / Lockheed Martin approved integrated cable harness; other integration previously accepted

• Delivery Order completed / closed 22 Dec 18

13

Arm Deter Engage Defeat

CRIIS Operating System (OS) Migration

 CRIIS developed w/ Windows 7-based OS; USCYBERCOM & OSD CIO

have directed migration to Windows 10 or other compliant OS

 Seeking Windows 7 extension for continued system ops until new OSD

CIO-compliant OS available

‒

Plan of Action & Milestones (POA&M) signed by AFMC (RDT&E) AO (SES) & AF Weapons PEO (1-star)—now being staffed for SAF CIO approval/concurrence  Implementing OSD CIO-compliant OS–Red Hat Enterprise Linux v7.5

‒

Projected lower lifecycle costs by ~$4.5M over 10 yrs w/ Linux v7 vs Windows 10  CTEIP Dir (w/ OTICC support) agreed to fund OS migration

‒

Initial FY18 funding provided w/ follow-on funding to be received incrementally

‒

OS Migration Planning Phase 1 DO awarded 10 Apr 18 – complete

‒

OS Migration Implementation Phase 2 DO (Inc 1) awarded 18 Sep 18; Inc 2 pending

14

Arm Deter Engage Defeat

CRIIS Sustainment Strategy

Strategy approved in LCSP; Transition Plan w/ GPS SMO & Ranges Approved  Services approved sustainment strategy on 22 Apr 16  CTEIP-funded activities include:

‒ Initial Spares ‒ Interim Contractor Support (ICS) in effect thru May 2020 ‒ Operating System migration from Win 7 to RHEL 7

 PO manages initial field & sustainment of production assets

‒ CRIIS hardware in RAMPOD database for ‘..ilities’ statistics/FIAR compliance ‒ PO developed T.O. & training baselines – distributed via ETIMS / NATEC

 PO engages CRIIS Users Group & Electronic Trajectory Measurement

Group Meetings – addresses product & range integration concerns

15

Arm Deter Engage Defeat

CRIIS Transition Activities

 May 2020 – CRIIS Program authority transfers to GPS SMO  Mar 2018 – CRIIS Transition Plan signed by CRIIS PO, Tri-Service

Dep PMs & OTICC Reps…Dep AFPEO for Weapons concurred

 2018 – Transferred 35+ CRIIS program docs & H/W drawings to

GPS SMO; S/W executables available thru ESDS at Hill AFB

 Jan 2019 – NSA Unit Partnership Agreement (UPA) for KOV-74

sustainment submitted for signature by Navy Dep PM

 Feb 2019 – Transferred 2000+ consumables to USN GPS SMO w/

accountability & FIAR responsibilities

 Ongoing: Lot 3 Production & IDIQ Delivery Orders (DOs)

16

Arm Deter Engage Defeat

CRIIS Program Summary

 CRIIS is a Next-Gen Test Range Instrumentation System

‒ 0.5 Meter Real-time TSPI Accuracy Under High Dynamics ‒ >5x More Data Throughput than Legacy ARDS ‒ Encryptor NSA-Certified up to TS Data--Certified for Use--Only Needs ATO ‒ Multiple Independent Levels of Security (MILS) ‒ CRIIS-AARI A/C Interface & Custom Message Capabilities

 Executing Production & Fielding Operations

‒ Production Lot 1 & 2 completed, ICS, Lot 3 Deliveries Ongoing

 On-going Effort for OSD CIO-Compliant Op Sys (RHEL v7)  Program Transition to GPS SMO Continues—Target 31 May 20

17

Arm Deter Engage Defeat

Questions
