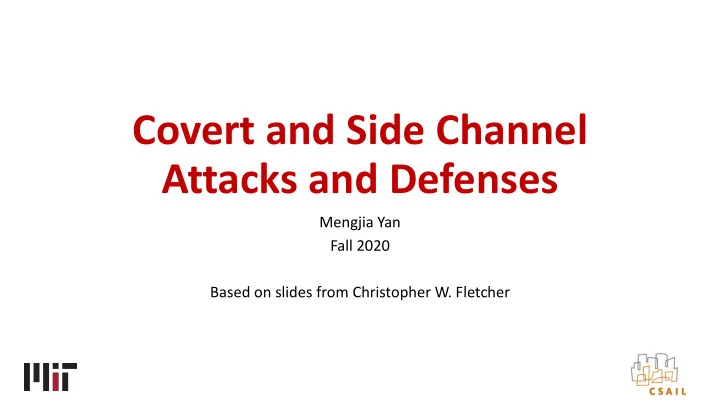

Covert and Side Channel Attacks and Defenses

Mengjia Yan Fall 2020 Based on slides from Christopher W. Fletcher

slide-2
SLIDE 2

Reminder

  • Lab assignment will be released 09/21 Monday
  • Recommend to read ”Cache missing for fun and profit.” (2005).
  • Check out the presentation schedule on course website
  • 7 slots empty, volunteer or invited speaker or Mengjia/Miles

6.888 L4-Covert and Side Channels 2

slide-3
SLIDE 3

Resources

  • Side channel tutorial website
  • https://sites.google.com/view/arch-sec/home
  • External resources
  • Mastik, a toolkit for uarch side channels: https://cs.adelaide.edu.au/~yval/Mastik/
  • Survey on microarchitectural timing attacks: https://eprint.iacr.org/2016/613.pdf
  • Survey on transient execution attacks: https://arxiv.org/abs/1811.05441

6.888 L4-Covert and Side Channels 3

slide-4
SLIDE 4

What is Covert and Side Channel?

Covert channel:

  • Intended communication between two or more security parties

Side channel:

  • Unintended communication between two or more security parties

6.888 L4-Covert and Side Channels 4

slide-5
SLIDE 5

What is Covert and Side Channel?

Covert channel:

  • Intended communication between two or more security parties

Side channel:

  • Unintended communication between two or more security parties

In both cases:

  • Communication should not be possible, following system semantics
  • The communication medium is not designed to be a communication channel

6.888 L4-Covert and Side Channels 4

slide-6
SLIDE 6

What is Covert and Side Channel?

Covert channel:

  • Intended communication between two or more security parties

Side channel:

  • Unintended communication between two or more security parties

In both cases:

  • Communication should not be possible, following system semantics
  • The communication medium is not designed to be a communication channel

Covert channel can show “best case” leakage

6.888 L4-Covert and Side Channels 4

slide-7
SLIDE 7

Scope

CIA: Confidentiality, Integrity, Availability

6.888 L4-Covert and Side Channels 5

slide-8
SLIDE 8

Scope

CIA: Confidentiality, Integrity, Availability

Confidentiality: was data being computed upon not revealed to an un-permitted party? Integrity: was the computation performed correctly, returning the correct result? Availability: did the computational resource carry out the task at all?

6.888 L4-Covert and Side Channels 5

slide-9
SLIDE 9

Scope

CIA: Confidentiality, Integrity, Availability

Confidentiality: was data being computed upon not revealed to an un-permitted party? Integrity: was the computation performed correctly, returning the correct result? Availability: did the computational resource carry out the task at all?

Confidentiality/Privacy

6.888 L4-Covert and Side Channels 5

slide-10
SLIDE 10

Scope

CIA: Confidentiality, Integrity, Availability

Confidentiality: was data being computed upon not revealed to an un-permitted party? Integrity: was the computation performed correctly, returning the correct result? Availability: did the computational resource carry out the task at all?

Confidentiality/Privacy Side/covert channels

6.888 L4-Covert and Side Channels 5

slide-11
SLIDE 11

Scope

CIA: Confidentiality, Integrity, Availability

Confidentiality: was data being computed upon not revealed to an un-permitted party? Integrity: was the computation performed correctly, returning the correct result? Availability: did the computational resource carry out the task at all?

Confidentiality/Privacy Side/covert channels Microarchitectural channels

6.888 L4-Covert and Side Channels 5

slide-12
SLIDE 12

Side Channels Are Almost Everywhere

slide-13
SLIDE 13

Daily Life Examples

  • Acoustic side channels
  • Monitor keystrokes
  • You only need: a cheap microphone + an ML model

6.888 L4-Covert and Side Channels 7

slide-14
SLIDE 14

Daily Life Examples

  • Acoustic side channels
  • Monitor keystrokes
  • You only need: a cheap microphone + an ML model
  • Network traffic contention side channel
  • If you want to be an active attacker, try stress test

6.888 L4-Covert and Side Channels 7

slide-15
SLIDE 15

“Hear” The Screen

Genkin et. al. Synesthesia: Detecting Screen Content via Remote Acoustic Side Channels. S&P’19

frequency time

Sound Spectogram

6.888 L4-Covert and Side Channels 8

slide-16
SLIDE 16

“Hear” The Screen

(A) is the LCD panel, (B) is the screen’s digital logic and image rendering board and, (C) is the screen’s power supply board.

6.888 L4-Covert and Side Channels 9

slide-17
SLIDE 17

Network Side Channels

  • Website Fingerprinting

Lescisin et. al. Tools for Active and Passive Network Side-Channel Detection for Web Applications. WOOT’18 Cai et. al. Touching from a distance: Website fingerprinting attacks and defenses. CCS’12.

6.888 L4-Covert and Side Channels 10

slide-18
SLIDE 18

Network Side Channels

  • Website Fingerprinting
  • Response dependent:
  • iSideWith.com
  • Real-time feedback:
  • Google Search auto-complete

Lescisin et. al. Tools for Active and Passive Network Side-Channel Detection for Web Applications. WOOT’18 Cai et. al. Touching from a distance: Website fingerprinting attacks and defenses. CCS’12.

6.888 L4-Covert and Side Channels 10

slide-19
SLIDE 19

Physical v.s. Timing v.s. uArch Channel

  • What can the adversary observe?

6.888 L4-Covert and Side Channels 11

slide-20
SLIDE 20

Physical v.s. Timing v.s. uArch Channel

  • What can the adversary observe?

Processor Power, EM, sound, etc. Attacker requires measurement equipment à physical access Physical channels Victim

6.888 L4-Covert and Side Channels 11

slide-21
SLIDE 21

Physical v.s. Timing v.s. uArch Channel

  • What can the adversary observe?

Processor Power, EM, sound, etc. Attacker requires measurement equipment à physical access Processor Response time Attacker may be remote (e.g.,

  • ver an internet connection)

Physical channels Timing channels Victim Victim

6.888 L4-Covert and Side Channels 11

slide-22
SLIDE 22

Physical v.s. Timing v.s. uArch Channel

  • What can the adversary observe?

Processor Power, EM, sound, etc. Attacker requires measurement equipment à physical access Processor Response time Attacker may be remote (e.g.,

  • ver an internet connection)

Physical channels Timing channels Processor Attacker may be remote,

  • r be co-located

Microarchitectural channels Microarch events (e.g., timing, perf. counters, etc.) Victim Victim Victim Attacker

6.888 L4-Covert and Side Channels 11

slide-23
SLIDE 23

Power Analysis

from https://en.wikipedia.org/wiki/Power_analysis

6.888 L4-Covert and Side Channels 12

slide-24
SLIDE 24

Victim Application: RSA

  • Square-and-multiply based exponentiation

Input : base b, modulo m, exponent e = (en−1 ...e0 )2 Output: be mod m r = 1 for i = n−1 down to 0 do r = sqr(r) r = mod(r,m) if ei == 1 then r = mul(r,b) r = mod(r,m) end end return r

6.888 L4-Covert and Side Channels 13

slide-25
SLIDE 25

Victim Application: RSA

  • Square-and-multiply based exponentiation

Input : base b, modulo m, exponent e = (en−1 ...e0 )2 Output: be mod m r = 1 for i = n−1 down to 0 do r = sqr(r) r = mod(r,m) if ei == 1 then r = mul(r,b) r = mod(r,m) end end return r

6.888 L4-Covert and Side Channels 13

slide-26
SLIDE 26

Power Analysis

6.888 L4-Covert and Side Channels 14

slide-27
SLIDE 27

Power Analysis

  • Various signal processing

techniques to de-noise.

  • More advanced: differential

power analysis (DPA)

6.888 L4-Covert and Side Channels 14

slide-28
SLIDE 28

Benign Usage: Non-intrusive Software Monitoring

  • How to efficiently monitor

application for anomaly detection?

Sehatbakhsh et al. Spectral Profiling: Observer-Effect-Free Profiling by Monitoring EM Emanations. MICRO’16

6.888 L4-Covert and Side Channels 15

slide-29
SLIDE 29

Benign Usage: Non-intrusive Software Monitoring

  • How to efficiently monitor

application for anomaly detection?

Sehatbakhsh et al. Spectral Profiling: Observer-Effect-Free Profiling by Monitoring EM Emanations. MICRO’16

6.888 L4-Covert and Side Channels 15

slide-30
SLIDE 30

What can you do with these channels?

  • Violate privilege boundaries
  • Inter-process communication
  • Infer an application’s secret
  • (Semi-Invasive) application profiling

6.888 L4-Covert and Side Channels 16

slide-31
SLIDE 31

What can you do with these channels?

  • Violate privilege boundaries
  • Inter-process communication
  • Infer an application’s secret
  • (Semi-Invasive) application profiling

Different from traditional software or physical attacks:

  • Stealthy. Sophisticated mechanisms needed to detect channel
  • Usually no permanent indication one has been exploited

6.888 L4-Covert and Side Channels 16

slide-32
SLIDE 32

uArch Side Channels

slide-33
SLIDE 33

Recap: Process Isolation

Virtual Address Space (Programmer's View) Physical Address Space (limited by DRAM size) 4KB 4KB VA PA Page Table per process Process 1 Process 2 4KB 4KB

6.888 L4-Covert and Side Channels 18

slide-34
SLIDE 34

Recap: Process Isolation

Virtual Address Space (Programmer's View) Physical Address Space (limited by DRAM size) 4KB 4KB VA PA Page Table per process Process 1 Process 2 4KB 4KB

How to communicate across processes?

6.888 L4-Covert and Side Channels 18

slide-35
SLIDE 35

Normal Cross-process Communication

include <socket.h> void send(bit msg) { socket.send(msg); } bit recv() { return socket.recv(msg); }

6.888 L4-Covert and Side Channels 19

slide-36
SLIDE 36

Normal Cross-process Communication

include <socket.h> void send(bit msg) { socket.send(msg); } bit recv() { return socket.recv(msg); }

How to communication without letting OS know?

6.888 L4-Covert and Side Channels 19

slide-37
SLIDE 37

Normal Cross-process Communication

include <socket.h> void send(bit msg) { socket.send(msg); } bit recv() { return socket.recv(msg); }

How to communication without letting OS know?

  • -> Use HW contention

6.888 L4-Covert and Side Channels 19

slide-38
SLIDE 38

Covert Channels 101: Through the Page Fault

Process 1 (Sender) Process 2 (Receiver)

DRAM (limited size) 4KB 4KB

6.888 L4-Covert and Side Channels 20

slide-39
SLIDE 39

Covert Channels 101: Through the Page Fault

Process 1 (Sender) Process 2 (Receiver)

if (send ‘1’) accesses many pages else idle

DRAM (limited size) 4KB 4KB

6.888 L4-Covert and Side Channels 20

slide-40
SLIDE 40

Covert Channels 101: Through the Page Fault

Process 1 (Sender) Process 2 (Receiver)

t1 = rdtsc() Accesses many pages t2 = rdtsc() if (send ‘1’) accesses many pages else idle if (t2 – t1 > THRESH) read ‘1’ else read ‘0’

DRAM (limited size) 4KB 4KB

6.888 L4-Covert and Side Channels 20

slide-41
SLIDE 41

Cache: # ways # sets

Another Example of Using Caches

Process 1 (Sender) Process 2 (Receiver)

t1 = rdtsc() Fill up the cache t2 = rdtsc() if (send ‘1’) Fill up the cache else idle if (t2 – t1 > THRESH) read ‘1’ else read ‘0’

6.888 L4-Covert and Side Channels 21

slide-42
SLIDE 42

Faster Communication

Process 1 (Sender) Process 2 (Receiver)

t1 = rdtsc() Fill set i t2 = rdtsc() if (send ‘1’) Fill set i else idle if (t2 – t1 > THRESH) read ‘1’ else read ‘0’ Cache: # ways # sets

6.888 L4-Covert and Side Channels 22

slide-43
SLIDE 43

Generalizes to Channels Beyond Caches

Hardware resource Sender Receiver

t1 = rdtsc() Use resource t2 = rdtsc() if (send ‘1’) Use resource else idle if (t2 – t1 > THRESH) read ‘1’ else read ‘0’

6.888 L4-Covert and Side Channels 23

slide-44
SLIDE 44

HW Resource Contention

Processor Chip (socket) core

L1/L2

core

L1/L2

LLC … System Bus (logically) Processor Chip (socket) core

L1/L2

core

L1/L2

LLC … Memory (DRAM)

  • ther I/O Devices

Non-volatile storage device

6.888 L4-Covert and Side Channels 24

slide-45
SLIDE 45

The Memory Hierarchy

  • L1, L2
  • Shared by threads on the same core
  • LLC:
  • Shared by threads on different cores
  • Directory:
  • Shared by threads on different sockets
  • DRAM row buffer:
  • Shared by …..

Processor Chip (socket) core

L1/L2

core

L1/L2

LLC … Memory (DRAM) Processor Chip (socket) core

L1/L2

core

L1/L2

LLC …

6.888 L4-Covert and Side Channels 25

slide-46
SLIDE 46

The Memory Hierarchy

  • L1, L2
  • Shared by threads on the same core
  • LLC:
  • Shared by threads on different cores
  • Directory:
  • Shared by threads on different sockets
  • DRAM row buffer:
  • Shared by …..

Processor Chip (socket) core

L1/L2

core

L1/L2

LLC … Memory (DRAM) Processor Chip (socket) core

L1/L2

core

L1/L2

LLC …

Cache is a popular attack target. Why?

6.888 L4-Covert and Side Channels 25

slide-47
SLIDE 47

Protocol 101: Prime+Probe in the Cache

Shared Cache

Sender Receiver

Cache Set

# ways

6.888 L4-Covert and Side Channels 26

slide-48
SLIDE 48

Prime+Probe

Shared Cache

Sender Receiver

Sender line Receiver line

Time Prime

Cache Set

# ways

6.888 L4-Covert and Side Channels 27

slide-49
SLIDE 49

Prime+Probe – Send “1”

Shared Cache

Sender Receiver

Sender line Receiver line

Time Prime

Cache Set

Wait Access

# ways

6.888 L4-Covert and Side Channels 28

slide-50
SLIDE 50

Prime+Probe – Send “1”

Shared Cache

Sender Receiver

Sender line Receiver line

Time Prime

Cache Set

Wait Access

# ways

6.888 L4-Covert and Side Channels 28

slide-51
SLIDE 51

Prime+Probe – Send “1”

Shared Cache

Sender Receiver

Sender line Receiver line

Time Prime

Cache Set

Wait Access

# ways

6.888 L4-Covert and Side Channels 28

slide-52
SLIDE 52

Prime+Probe – Receive “1”

Shared Cache

Sender Receiver

Sender line Receiver line

Time Prime

Cache Set

Wait Access

# ways

Receive “1” = 16 accesses à 1 miss

Probe

6.888 L4-Covert and Side Channels 29

slide-53
SLIDE 53

Prime+Probe – Send “0”

Shared Cache

Sender Receiver

Sender line Receiver line

Time Prime

Cache Set

# ways

NO Access Wait

6.888 L4-Covert and Side Channels 30

slide-54
SLIDE 54

Prime+Probe – Receive “0”

Shared Cache

Sender Receiver

Sender line Receiver line

Time Prime

Cache Set

# ways

NO Access Wait

Receive “0” = 16 accesses à 0 miss

Probe

6.888 L4-Covert and Side Channels 31

slide-55
SLIDE 55

A Complete Protocol -- Synchronization

Prime Wait Probe

Sample window length

  • Window size agreed on by sender and receiver
  • Each window transmits some bits
  • Sender & receiver need to perform an window alignment at the start

Receiver Receiver Sender

6.888 L4-Covert and Side Channels 32

slide-56
SLIDE 56

A Complete Protocol -- Synchronization

Prime Wait Probe Prime Wait Probe

Sample window length

  • Window size agreed on by sender and receiver
  • Each window transmits some bits
  • Sender & receiver need to perform an window alignment at the start

Receiver Receiver Sender

6.888 L4-Covert and Side Channels 32

slide-57
SLIDE 57

A Complete Protocol -- Synchronization

Prime Wait Probe Prime Wait Probe

Sample window length

  • Window size agreed on by sender and receiver
  • Each window transmits some bits
  • Sender & receiver need to perform an window alignment at the start

Receiver Receiver Sender

6.888 L4-Covert and Side Channels 32

Question: how to distinguish between noise and actual transmission?

slide-58
SLIDE 58

Bandwidth

Error-free bitrate of send() à recv() Depends on what hardware structure is used to build the channel. send(msg) recv()

Channel

6.888 L4-Covert and Side Channels 33

slide-59
SLIDE 59

Bandwidth

Error-free bitrate of send() à recv() Depends on what hardware structure is used to build the channel.

  • RDRAND unit: 7-200 Kbps [EP’16]
  • Ld/st performance counters: ~75-150 Kbps [HKRVDT‘15]
  • MemBus/AES-NI contention: ~550-650 Kbps [HKRVDT‘15]
  • LLC: 1.2 Mbps [MNHF’15]
  • Various structures on GPGPU: up to 4 Mbps [NKG’17]

send(msg) recv()

Channel

6.888 L4-Covert and Side Channels 33

slide-60
SLIDE 60

From Covert à Side Channels

Hardware resource Victim Attacker

if (send ‘1’) Use resource else idle Covert channel: t1 = rdtsc() Use resource t2 = rdtsc() if (t2 – t1 > THRESH) read ‘1’ else read ‘0’

6.888 L4-Covert and Side Channels 34

slide-61
SLIDE 61

From Covert à Side Channels

Hardware resource Victim Attacker

if (send ‘1’) Use resource else idle Covert channel: t1 = rdtsc() Use resource t2 = rdtsc() if (t2 – t1 > THRESH) read ‘1’ else read ‘0’

6.888 L4-Covert and Side Channels 34

slide-62
SLIDE 62

From Covert à Side Channels

Hardware resource Victim Attacker

if (send ‘1’) Use resource else idle Covert channel: if (secret) Use resource else idle Side channel: t1 = rdtsc() Use resource t2 = rdtsc() if (t2 – t1 > THRESH) read ‘1’ else read ‘0’

6.888 L4-Covert and Side Channels 34

slide-63
SLIDE 63

Micro-architecture Side Channels

Transient + Any structure e.g., RamBleed, RIDDLE

uArch Side Channels

Transient + Cache e.g, Foreshadow Spectre/ Meltdown Non-transient + Any structure

6.888 L4-Covert and Side Channels 35

slide-64
SLIDE 64

Side Channels Targeting Different Structures

On-chip Processor Off-chip DRAM

core

L1/L2

L3 core

L1/L2

… …

Flush+Reload, Prime+Probe Directory Attacks RNG Unit Covert Chanel CacheOut, RIDL, Fallout Port contention, cache banking, 4K Alias RowHammer, DRAMA RAMBleed

Spectre, Meltdown

Foreshadow, Arithmetic timing

6.888 L4-Covert and Side Channels 36

slide-65
SLIDE 65

Next Lecture: Non-transient µArch Side Channels

slide-66
SLIDE 66

6.888 L4-Covert and Side Channels 38

Hard Disk Drive (HDD)
