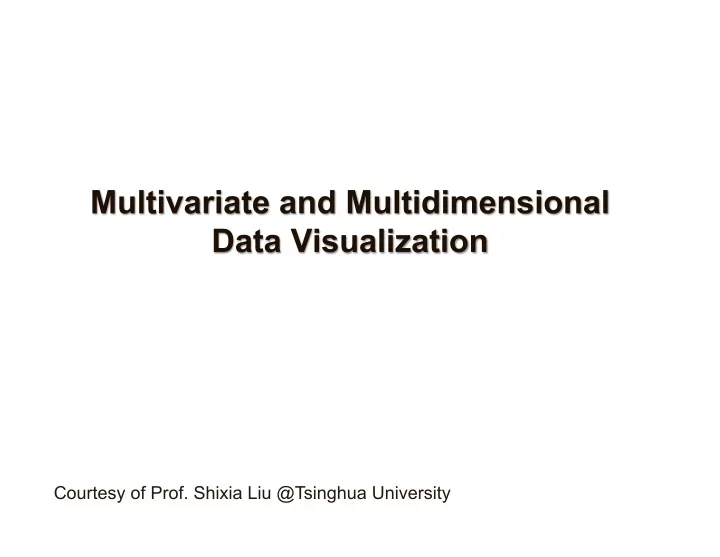

Courtesy of Prof. Shixia Liu @Tsinghua University

Outline

• Introduction
• Classification of Techniques

– Table – Scatter Plot Matrices – Projections – Parallel Coordinates

• Summary

Motivation

• Real world data contain multiple dimensions

Multivariate/Multidimensional Data Visualization

• Multivariate data visualization is a specific type of

information visualization that deals with multivariate/multidimensional data

• The data to be visualized are of high

dimensionality in which the correlations between these many attributes are of interest

Dimensionality

• Refers to the number of attributes that presents in

the data

– 1: one-dimensional 1D / univariate – 2: two-dimensional 2D/ bivaraite – 3: three-dimensional 3D / trivariate – ≥3: multidimensional / hypervarite / multivariate

• Boundary between high and low dimensionality

not clear, generally high dimensionality has >4 variables

Terminology

Dimensions Variables Multidimensional Dimensionality of the independent dimensions Multivariate Dimensionality of the dependent variables

Outline

• Introduction
• Classification of Techniques

– Projections – Parallel Coordinates – Table – Scatter Plot Matrices

• Summary

Classification of Techniques

• Projection
• Parallel Coordinates Plot
• Table
• Scatter Plot Matrix

• What if we have too many dimensions?
• A intuitive way is to project to low dimension

space

• Linear projections
• Nonlinear projections

A projection (X -> Y) maps points {x1, x2, …, xm} in an n-dimensional space into a p-dimensional space as {y1, y2, …, ym} (p << n) while preserving distance measures of data items.

Classification

• Linear projection

– Example: PCA (principal

component analysis)

• Non-linear projection

– Example: t-SNE (t-distributed

stochastic neighbor embedding)

PCA

• Seeks a space of lower

dimensionality (magenta)

• Such that the orthogonal

projection of the data points (red) onto this subspace maximizes the variance of the projected points (green)

Maximizes Variance

• To begin with, consider the projection onto a one-

dimensional space

• The direction of this space
• Variance
• How to maximize this?

Trick:

Maximizes Variance (cont’d)

• Eigenvalue

One Example

Extension to M-dimension

• Define additional principal components in an

incremental fashion (details refer to Chapter 12 in Patter Recognition and Machine Learning)

• Conclusion of M dimension:
• The M eigenvectors u1,...,uM of the data

covariance matrix S corresponding to the M largest eigenvalues λ1 ,...,λM

Covariance Matrix Covariance

Fit an n-d Ellipsoid to the Data

T-SNE

T-SNE

• Particularly well-suited for embedding high-

dimensional data into a space of two or three dimensions, which can then be visualized in a scatter plot

Major Goal

• t-Distributed stochastic neighbor embedding (t-

SNE) minimizes the divergence between two distributions: a distribution that measures pairwise similarities of the input objects and a distribution that measures pairwise similarities of the corresponding low-dimensional points in the embedding.

Two Main Stages

• First, t-SNE constructs a probability

distribution over pairs of high-dimensional objects

– Similar objects have a high probability of being picked – Dissimilar points have an extremely small probability of

being picked

Example – Step 1

Two Main Stages (cont’d)

• Second, t-SNE defines a probability distribution
• ver the points in the low-dimensional map

– Similar to the one in high-dimensional space – Minimizes the Kullback–Leibler divergence between

the two distributions with respect to the locations of the points in the map.

Heavy-tailed student-t distribution

Example: Step Two

Example: Step Two

Before optimization

Example: Final Result

Student t-distribution Gaussian distribution

The t-Student distribution

• The volume of the N-dimensional ball of radius r

scales is

• When N is large, if we pick random points

uniformly in the ball, most points will be close to the surface, and very few will be near the center.

The t-Student distribution

• If the same Gaussian distribution is used for the

low dimensional map points， not enough space is available in low dimensional space

– The crowding problem

• Use a t-Student with one degree of freedom (or

Cauchy) distribution instead for the map points.

– Has a much heavier tail than the Gaussian distribution,

which compensates the original imbalance.

Comparison

The Distribution Model

• Probability model for high-dimensional data points
• Probability model for low-dimensional map points
• The different between two distributions

The Solution

• To minimize this score, we perform a gradient
• descent. The gradient can be computed

analytically:

• Update yi iteratively

One Example

Example: MNIST

• Hand written digit (0-9)

Package

• Laurens van der Maate https://lvdmaaten.github.io/tsne/

– L.J.P. van der Maaten. Accelerating t-SNE using Tree-Based

• Algorithms. Journal of Machine Learning Research 15(Oct):

3221-3245, 2014.

– L.J.P. van der Maaten and G.E. Hinton. Visualizing Non-Metric

Similarities in Multiple Maps. Machine Learning 87(1):33-55, 2012.

– L.J.P. van der Maaten. Learning a Parametric Embedding by

Preserving Local Structure. In Proceedings of the Twelfth International Conference on Artificial Intelligence & Statistics (AI- STATS), JMLR W&CP 5:384-391, 2009. PDF

– L.J.P. van der Maaten and G.E. Hinton. Visualizing High-

Dimensional Data Using t-SNE. Journal of Machine Learning Research 9(Nov):2579-2605, 2008.

Comparison

• PCA, MDS

– Linear technique – Keep the low-dimensional representations of dissimilar

data points far apart

• t-SNE

– Non-linear technique – Capture much of the local structure of the high-

dimensional data very well, while also revealing global structure such as the presence of clusters at multiple scales.

Comparison

• Inselberg， "Multidimensional detective" (parallel

coordiantes), 1997

Parallel Coordinates: Visual Design

• Dimensions as parallel

axes

• Data items as line

segments

• Intersections on the axes

indicates the values of the corresponding attributes

dim1 dim2 dim3 dimn …… Min: 0 Max: 1 0.8 0.6 0.8 0.3 0.25

Parallel Coordinates: Pros and Cons

Correlations among

attributes studied by spotting the locations of the intersection points

• Effective for revealing

data distributions and functional dependencies

• Visual clutter due to

limited space available for each parallel axis

• Axes packed very

closely when dimensionality is high

• Clustering and filtering approaches
• Dimension reordering approaches
• Visual enhancement approaches

Out5d dataset (5 dimensions, 16384 data items)

Star Coordinates

• Scatterplots for higher

dimensions: attribute as axis on a circle, data item as point

• Change the length of axis

alters contribution of attribute

• Change the direction of axis

angles not equal, adjusts correlations between attributes Useful for gaining insight into hierarchically clustered datasets and for multi-factor analysis for decision-making

Table Lens

• Represents rows as data items and columns as

attributes

• Each column viewed as histogram or plot
• Information along rows or columns interrelated
• Uses the familiar concept “table”

The table lens: merging graphical and symbolic representations in an interactive focus+ context visualization for tabular information

Scatterplot Matrix

• Scatterplot: 2 attributes

projected along the x- and y-axis

• Collection of scatterplots

is organized in a matrix

• Straightforward
• Important patterns in

higher dimensions barely recognized

• Chaotic when number of

data items too large

Outline

• Introduction
• Classification of Techniques

– Table – Scatter Plot Matrices – Projections – Parallel Coordinates – Pixel-Oriented Techniques – Iconography

• Summary

Visualizations Advantages Disadvantages Clear visual patterns

• 1. Obscured semantics
• 2. Loss of information
• 3. Visual Clutter

Clear visual patterns Visual Clutter Uses the familiar concept “table” Support limited numbers

• f dimensions

Simple

• 1. Visual clutter
• 2. Unclear patterns

Further Reading

• Survey

– Dos Santos, Selan, and Ken Brodlie. "Gaining

understanding of multivariate and multidimensional data through visualization." Computers & Graphics28.3 (2004): 311-325.

• Website

– http://www.sci.utah.edu/~shusenl/highDimSurvey/

website/

Further Reading

• Evaluation

– Rubio-Sánchez, Manuel, et al. "A comparative study

between RadViz and Star Coordinates." IEEE transactions on visualization and computer graphics 22.1 (2016): 619-628.

References

• Rao, Ramana, and Stuart K. Card. "The table lens: merging graphical

and symbolic representations in an interactive focus+ context visualization for tabular information." Proceedings of the SIGCHI conference on Human factors in computing systems. ACM, 1994.

• Gratzl, Samuel, et al. "Lineup: Visual analysis of multi-attribute

rankings."IEEE transactions on visualization and computer graphics 19.12 (2013): 2277-2286.

• van Wijk, Jarke J., and Robert van Liere. "HyperSlice: visualization of

scalar functions of many variables." Proceedings of the 4th conference on Visualization'93. IEEE Computer Society, 1993.

• Kim, Hannah, et al. "InterAxis: Steering Scatterplot Axes via

Observation-Level Interaction." IEEE transactions on visualization and computer graphics22.1 (2016): 131-140.

References

• Maaten, Laurens van der, and Geoffrey Hinton. "Visualizing data

using t-SNE." Journal of Machine Learning Research 9.Nov (2008): 2579-2605.

• Zhou, Hong, et al. "Visual clustering in parallel

coordinates." Computer Graphics Forum. Vol. 27. No. 3., 2008.

• Ferdosi, Bilkis J., and Jos BTM Roerdink. "Visualizing High‐

Dimensional Structures by Dimension Ordering and Filtering using Subspace Analysis."Computer Graphics Forum. Vol. 30. No. 3, 2011.

• Novotny, Matej, and Helwig Hauser. "Outlier-preserving focus+

context visualization in parallel coordinates." IEEE Transactions on Visualization and Computer Graphics 12.5 (2006): 893-900.

References

• Keim, Daniel A., and H-P. Kriegel. "Visualization techniques for

mining large databases: A comparison." IEEE Transactions on knowledge and data engineering 8.6 (1996): 923-938.
