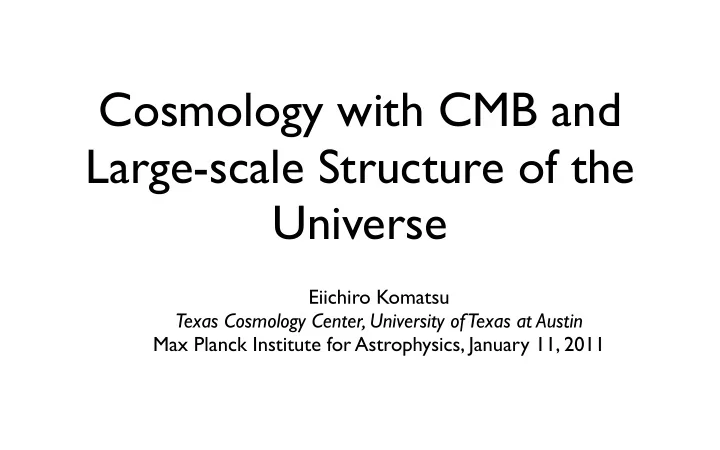

Cosmology with CMB and Large-scale Structure of the Universe Eiichiro Komatsu Texas Cosmology Center, University of Texas at Austin Max Planck Institute for Astrophysics, January 11, 2011
Cosmology: Next Decade? • Astro2010: Astronomy & Astrophysics Decadal Survey • Report from Cosmology and Fundamental Physics Panel (Panel Report, Page T -3): 2
Cosmology: Next Decade? • Astro2010: Astronomy & Astrophysics Decadal Survey • Report from Cosmology and Fundamental Physics Panel (Panel Report, Page T -3): Translation Inflation Dark Energy Dark Matter Neutrino Mass 3
Cosmology Update: WMAP 7-year+ • Standard Model • H&He = 4.58% (±0.16%) • Dark Matter = 22.9% (±1.5%) • Dark Energy = 72.5% (±1.6%) • H 0 =70.2±1.4 km/s/Mpc • Age of the Universe = 13.76 billion years (±0.11 billion years) “ScienceNews” article on the WMAP 7-year results 4
What is new from WMAP7? • First detection of the effect of primordial helium on the CMB power spectrum • An extra neutrino (or something else)? • Not statistically significant, but an interesting thing to keep eyes on. • First direct images of CMB polarization • New limits on inflation from the tilting of the power spectrum; tensor modes (gravitational waves); and non- Gaussianity 5
Larson et al (2010); Komatsu et al. (2010) 7-Year Power Spectrum Angular Power Spectrum Large Scale Small Scale COBE about 1 degree on the sky 6
Detection of Primordial Helium (Temperature Fluctuation) 2 7 =180 deg/ θ
Effect of helium on C lTT • We measure the baryon number density, n b , from the 1st- to-2nd peak ratio. • As helium recombined at z~1800, there were fewer electrons at the decoupling epoch (z=1090): n e =(1–Y p )n b . • More helium = Fewer electrons = Longer photon mean free path 1/( σ T n e ) = Enhanced damping • Y p = 0.33 ± 0.08 (68%CL) • Consistent with the standard value from the Big Bang nucleosynthesis theory: Y P =0.24. 8
Neutrinos? (Or anything that was relativistic at z~1100) 9
The Cosmic Sound Wave • “The Universe as a Miso soup” • Main Ingredients: protons, helium nuclei, electrons, photons • We measure the composition of the Universe by 10 analyzing the wave form of the cosmic sound waves.
CMB to Baryon & Dark Matter Baryon Density ( Ω b ) Total Matter Density ( Ω m ) =Baryon+Dark Matter • 1-to-2: baryon-to-photon ratio • 1-to-3: matter-to-radiation ratio (z EQ : equality redshift) 11
“3rd peak science”: Komatsu et al. (2010) Number of Relativistic Species N eff =4.3 ±0.9 from external data 12 from 3rd peak
Komatsu et al. (2010) And, the mass of neutrinos • WMAP data combined with the local measurement of the expansion rate (H 0 ), we get ∑ m ν <0.6 eV (95%CL) 13
Leave WMAP for a moment: Hunting for Dark Matter in the Gamma-ray Sky • Direct detections of dark matter particles may be possible using metals (Ge), noble gas (Ar), etc. • Indirect detections may also be possible using astrophysical observations, e.g., gamma-rays from annihilation of dark matter particles. • But, what could be a smoking-gun? 14
Energy Spectrum? Not Convincing... • Conventionally, people were focused on the spectrum of the diffuse gamma-ray background (after removing point sources). • However, the dark matter spectrum is not so distinct – this cannot be a 15 smoking gun. What else?
Gamma-ray Background Must Be Anisotropic WMAP Data Fermi Data • Use the Fermi data, just like the WMAP data, and measure the power spectrum! 17
WMAP Data Fermi Data Ando & Komatsu (2006) 18
The First Results from Fermi 22mo Data Siegal-Gaskins et al. (Fermi Collaboration + EK) arXiv:1012.1206 1–2 GeV 2–5 GeV 5–10 GeV • We are seeing the excess power spectrum at l>50, likely coming from unresolved blazars. • “Model” has the Galactic diffuse emission. 19 • Detected point sources have been removed.
Cosmic Inflation = Very Early Dark Energy 20
Theory Says... • The leading theoretical idea about the primordial Universe, called “ Cosmic Inflation ,” predicts: • The expansion of our Universe accelerated in a tiny fraction of a second after its birth. • the primordial ripples were created by quantum fluctuations during inflation, and • how the power is distributed over the scales is determined by the expansion history during cosmic inflation . • Detailed observations give us this remarkable information! 21
We have learned a lot about inflation from WMAP Peiris, Komatsu et al. (2003) Komatsu et al. (2009; 2010) • Spatial geometry of the observable universe is flat, with a deviation less than ~1%. • Initial fluctuations were “adiabatic,” meaning the photon fluctuations and matter fluctuations were perturbed in a similar way such that the entropy per matter was unperturbed. Non-adiabaticity is less than ~10%. • Initial fluctuations were close to, but not exactly, scale invariant , with P(k)~k ns–1 with n s =0.97 ±0.01 • Initial fluctuations were Gaussian, with deviation less 22 than 0.1%. [ BUT ... I will come back to this later.]
We have learned a lot about inflation from WMAP Peiris, Komatsu et al. (2003) Komatsu et al. (2009; 2010) • Spatial geometry of the observable universe is flat, with a deviation less than ~1%. Current Situation : • Initial fluctuations were “adiabatic,” meaning the photon The simplest model of inflation (say, driven by a fluctuations and matter fluctuations were perturbed in V~m 2 φ 2 ) single scalar field with a quadratic potential, a similar way such that the entropy per matter was fits everything we have so far. unperturbed. Non-adiabaticity is less than ~10%. • Initial fluctuations were close to, but not exactly, scale invariant , with P(k)~k ns–1 with n s =0.97 ±0.01 • Initial fluctuations were Gaussian, with deviation less 23 than 0.1%. [ BUT ... I will come back to this later.]
Mukhanov & Chibisov (1981); Guth & Pi (1982); Starobinsky (1982); Hawking (1982); Bardeen, Turner & Steinhardt (1983) (Scalar) Quantum Fluctuations δφ = (Expansion Rate)/(2 π ) [in natural units] • Why is this relevant? • The cosmic inflation (probably) happened when the Universe was a tiny fraction of second old. • Something like 10 -36 second old • (Expansion Rate) ~ 1/(Time) • which is a big number! (~10 12 GeV) • Quantum fluctuations were important during inflation! 24
Stretching Micro to Macro Macroscopic size at which gravity becomes important δφ Quantum fluctuations on microscopic scales INFLATION! δφ 25 Quantum fluctuations cease to be quantum, and become observable!
Starobinsky (1979) (Tensor) Quantum Fluctuations, a.k.a. Gravitational Waves h = (Expansion Rate)/(2 1/2 π M planck ) [in natural units] [h = “strain”] • Quantum fluctuations also generate ripples in space- time, i.e., gravitational waves, by the same mechanism. • Primordial gravitational waves generate temperature anisotropy in CMB, as well as polarization in CMB with a distinct pattern called “ B-mode polarization .” 26
CMB is Polarized! 27
Physics of CMB Polarization Wayne Hu • CMB Polarization is created by a local temperature quadrupole anisotropy. 28
Principle North Hot Cold Cold Hot East • Polarization direction is parallel to “hot.” 29
CMB Polarization on Large Angular Scales (>2 deg) Matter Density Potential Δ T/T = (Newton’s Gravitation Potential)/3 Δ T Polarization • How does the photon-baryon plasma move? 30
CMB Polarization Tells Us How Plasma Moves at z=1090 Zaldarriaga & Harari (1995) Matter Density Potential Δ T/T = (Newton’s Gravitation Potential)/3 Δ T Polarization • Plasma falling into the gravitational potential well = Radial polarization pattern 31
Quadrupole From Velocity Gradient (Large Scale) Sachs-Wolfe: Δ T/T= Φ /3 Δ T Stuff flowing in Potential Φ Acceleration a =– ∂Φ a >0 =0 Velocity Velocity gradient Velocity in the rest The left electron sees colder e – e – frame of electron photons along the plane wave Polarization Radial None 32
Quadrupole From Velocity Gradient (Small Scale) Compression increases Δ T temperature Stuff flowing in Potential Φ Acceleration Pressure gradient slows a =– ∂Φ – ∂ P down the flow a >0 <0 Velocity Velocity gradient Velocity in the rest e – e – frame of electron Polarization Radial Tangential 33
Komatsu et al. (2010) Stacking Analysis • Stack polarization images around temperature hot and cold spots. • Outside of the Galaxy mask (not shown), there are 12387 hot spots and 12628 cold spots . 34
Komatsu et al. (2010) Two-dimensional View • All hot and cold spots are stacked (the threshold peak height, Δ T/ σ , is zero) • “Compression phase” at θ =1.2 deg and “slow-down phase” at θ =0.6 deg are predicted to be there and we observe them! • The overall significance level: 8 σ 35
E-mode and B-mode • Gravitational potential can generate the E- mode polarization, but not B-modes. • Gravitational waves can generate both E- and B-modes! E mode B mode 36
Polarization Power Spectrum • No detection of B-mode polarization yet. B-mode is the next holy grail. 37
