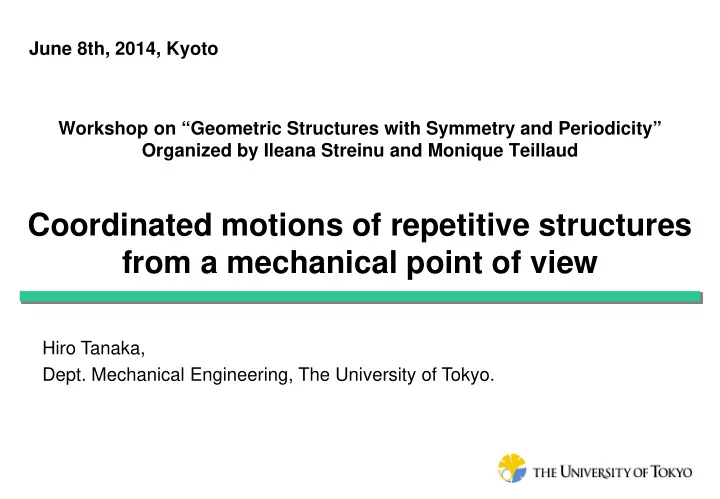

June 8th, 2014, Kyoto Workshop on Geometric Structures with Symmetry and Periodicity Organized by Ileana Streinu and Monique Teillaud Coordinated motions of repetitive structures from a mechanical point of view Hiro Tanaka, Dept.
Workshop on “Geometric Structures with Symmetry and Periodicity” Organized by Ileana Streinu and Monique Teillaud
Hiro Tanaka,
June 8th, 2014, Kyoto
1
2
square cells hexagonal cells triangular cells (truss) A polar diagram showing Young’s modulus Deformability of repetitive structures bending-dominated stretching-dominated (tensile load) bending-dominated (shear load) buckling and bending (compressive load) stretching-dominated
# Gibson LJ & Ashby MF (1997) # Deshpande VS et al. (2001) # Wicks N, Guest SD (2004)
3
Mechanical property of two-dimensional repetitive structures Poisson’s ratio : conventional materials Indentation resistance : auxetic materials Examples of repetitive structures re-entrant hexagonal units: missing ribs square units:
# Dr. Borcea’s talk is coming soon
# Smith CW, et al. (2000) # Evans KE, et al. (2000)
4
5
6
symmetry of rotational stiffness:
: i-th rotational displacent
Rotation energy of n-coordinate flexible joint (n-bar joint)
beam member
Hessian matrix of n-bar joint energy with respect to rotational displacements
7
A class of circulant matrices Standard eigenvalue problem Calculating a pair of eigenvalue and eigenvector on n-joint In case of 4-bar joint
： 4-bar joint
four independent moments and rotational displacements: two types of rotational stiffness: (nearest-neighbor interaction) (2nd nearest-neighbor interaction)
Hessian matrix
8
co-rotation mode (C4-invariance) asymmetry-rotation mode (C1-invariance) counter-rotation mode (C2-invariance) (multiple root)
Fundamental rotational modes of 4-bar joint
9
analytical model
: to be a rigid joint : to be a pinned joint Buckling problem of periodical square cells under equi-biaxial compression joint flexibility joint modeling
4x4 cells
10
Overall Buckling mode vs. local rotational mode mode 1 mode 2 mode 3 mode 4
co-rotations counter-rotations
co/counter-rotations co-rotation mode Asymmetry-rotation mode counter-rotation mode
joint flexibility: µ =1 Buckling mode vs. compression ratio (4 x 4 cells)
11
12
Localized deformation of mode 2 consists of the co/asymmetry rotations quadruple mode
13
Repetitive framework with 4-bar joints and elbowed beam members
： 4-bar joint
: to be a rigid joint : to be a pinned joint joint flexibility Poisson’s ratio where d1,2 is x1- or x2-displacement
14
Model I Model II Two types of the structures
flexible joint rigid joint pinned joint
Three type of manufacturing aluminum joints
15
substrate(SS400)：1200x1200 mm2 Overview of biaxial tensile tester
connected by rigid joints
16
zero Poisson’s ratio
connected by pinned joints
Uniaxial tensile testing for Model I expanded in the lateral direction because the moment was laterally transferred via the co-rotations of rigid joints: Negative Poisson’s ratio
17
Model I: Poisson ratio vs Nominal strain
Measurements of uniaxial tensile testing
Model II: Poisson ratio vs Nominal strain
18
Out-of-plane deformation of Model II
Under the tensile load, the beam members (red) are compressed
19
Novel 3D structure: applications of Model II
20
21
proposed structural unit call the closed-loop unit with four pairs of rhombic elements (REs) as 4RE-linkage rhombic element unknown connection
22
Motion of 4RE-linkage Motion of 4RE-linkage motion of a rhombic element closed-loop configuration: geometrical constraint conditions:
23
Animations of the obtained motions
24
Repetitive-assembly motions (2 x 2 cells)
initial configurations 5 6 7 2 3 4 1
25
Deployment mechanism of φ3
a 8-bar joint counter rotation
26
Manufactured model actuated by a single rotary operation
Minimum size: 320×320 mm2, Maximum size: 830×830 mm2 side view actuator
Combined assembly
27
the structure built of the multiple rotational modes of 8-bar joints
mode 3 mode 4 mode 5
28
29
Proposed structure
particular connections The adjacent bars painted in the same color, blue or red, are rigidly connected at all the pivot joints. Motion Structure with 8 rotational symmetry (MS-8)
30
position of each grayish node
Geometrical configuration of MS-8
8-bar joint 6-bar joint 6-bar joint
31
Motion I Motion II Mechanism of MS-8 The two patterns of square cells are tilted at 45˚ with respect to each other.
32
Which motions does MS-8 select?
loading condition balance point of the square
33
Numerical analyses of the proposed structure with the cell-to-cell contacts
for motion I for motion II stiff soft
Bi-stiffness property: switching of the stiffness due to two motions
34
Simple periodic assembly with the minimum units of the MS-8s
The internal forces are transferred on the each structural unit via the four vertices, so Motion II only occurs no matter how we may apply the vertical stress from a long distance.
35
Repetitive structure of MS-8s with inserting springs
the inserted spring transfer the central force to the center re- entrant vertex on each side of a structural unit.
36
37
by the fundamental rotational modes of 4-bar joints.
exhibited the wide ranges of Poisson’s ratio as joint flexibility changes.
deployment mechanism were presented.
and revealed that it displayed the bi-stiffness property. Summary
38
Tanaka H. and Shibutani Y., J. Mech. Phys. Solids, Vol. 57 (2009)
Tanaka H, et al., Int. J. Solids. Struct., Vol. 49 (2012)
Tanaka H, Proc. R Soc. A, Vol. 469 (2013)
