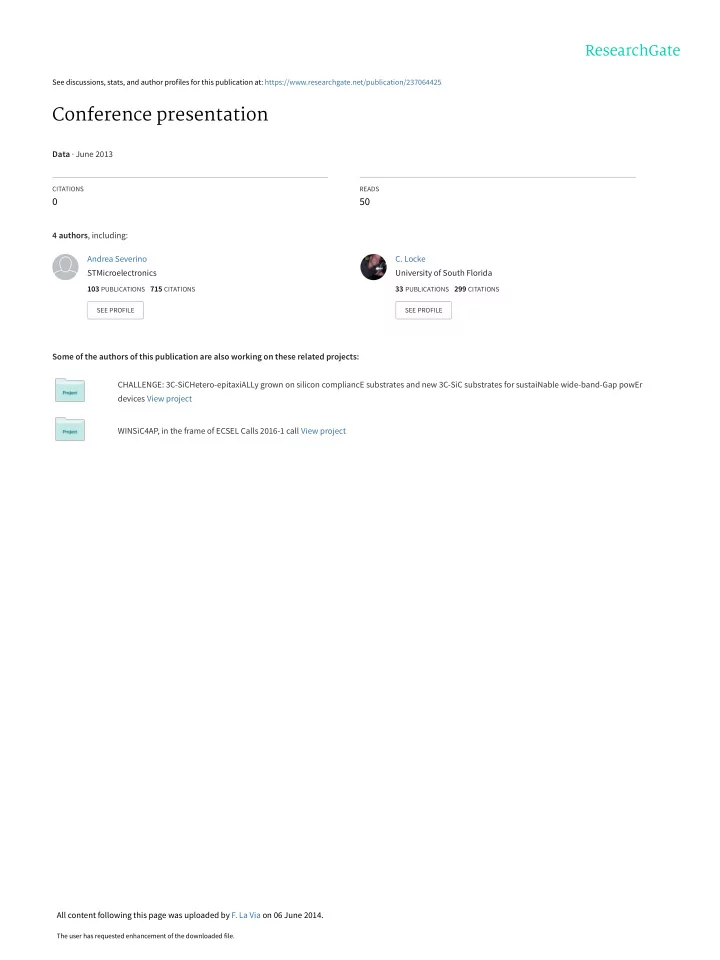

Conference presentation Data June 2013 CITATIONS READS 0 50 4 - - PDF document

See discussions, stats, and author profiles for this publication at: https://www.researchgate.net/publication/237064425

Conference presentation

Data · June 2013

CITATIONS READS

50

4 authors, including: Some of the authors of this publication are also working on these related projects: CHALLENGE: 3C-SiCHetero-epitaxiALLy grown on silicon compliancE substrates and new 3C-SiC substrates for sustaiNable wide-band-Gap powEr devices View project WINSiC4AP, in the frame of ECSEL Calls 2016-1 call View project Andrea Severino STMicroelectronics

103 PUBLICATIONS 715 CITATIONS

SEE PROFILE

• C. Locke

University of South Florida

33 PUBLICATIONS 299 CITATIONS

SEE PROFILE

All content following this page was uploaded by F. La Via on 06 June 2014.

The user has requested enhancement of the downloaded file.

IMM

High Quality Cubic Silicon Carbide (3C-SiC) for MOS Applications

• A. Severino, F. La Via

IMM-CNR, sezione di Catania, Stradale Primosole 50, 95121, Catania, Italy

• C. Locke, S.E. Saddow

University of South Florida, EE Dept., 4202 E. Fowler Ave., 33625, Tampa, FL, USA

IMM

• Motivations for Silicon Carbide
• Material Properties and Application Fields
• 3C-SiC advantages and limitations
• 3C-SiC heteroepitaxy
• Growth process from thin to thick 3C-SiC films
• Defects in 3C-SiC
• On-axis vs Off-axis 3C-SiC films
• Towards MOS - Preliminary observation at nanoscale
• Conclusions and perspectives

Outline

IMM

Motivations for SiC

HIGH POWER APPLICATIONS RF APPLICATIONS

High EB Low on-state resistance High Eg Low ni Low leakage current High κ High thermal capability High νSAT High working frequencies

IMM

SiC advantages and drawbacks

Advantages

ü Well-established CVD growth technique ü Easy implementation of Si technology ü Chance to use SiO2 as stable gate oxide ü Ability to grow p-type and n-type material ü 3C-SiC growth on low-cost large-area Si substrates

Drawbacks

ü Anisotropy of important electrical properties in hexagonal SiC (4H, 6H-SiC) ü Limited wafer size in hexagonal SiC ü Elevated costs required to grow high- quality single crystal material

IMM

The 3C-SiC Polytype

Thermodynamically stable at lower temperature

• growth at reduced temperatures on large area Si substrates

Good electrical properties

• narrower bandgap energy (2.3 eV)
• lower density of traps at SiC/SiO2 interface
• higher electron channel mobility
• higher stability under electrical stress

Good mechanical properties

• high Young modulus (400-700 GPa) for high frequency MEMS
• stable for high working temperatures (~650 °C)

Lack of a bulk as substrate for 3C-SiC homoepitaxy Generation of stress and defects in 3C-SiC heteroepitaxy

• electrically active crystallographic defects (STACKING FAULTS)
• wafer bow

IMM

High electron mobility for MOSFET realization

Electron mobilities of monocrystalline bulk 6H-SiC and 3C-SiC thin films deposited on Si (100) off-axis towards (011)

‘Comparison of 6H-SiC, 3C-SiC and Si for Power Devices’ M. Bhatnagar, B.J. Baliga, IEEE Trans. On

• Electr. Dev. 40 (3), 645 (1993)

‘Fabrication of high performance 3C-SiC vertical MOSFETs’,

• H. Nagasawa et al., Phys. Stat. Sol. b, 245, No. 7, 1272 (2008)

IMM

The Main Limitation: Stacking Faults

STACKING FAULTS AFFECT STRONGLY THE LEAKAGE CURRENT OF P-N JUNCTION

IMM

• Horizontal HW/CW CVD Reactors
• Multi-step Chemical Vapor Deposition Process
• Various Chemistries
• Several Si orientations – Off-axis surfaces
• Modified/Compliant substrates

Growth Process

Epitaxial Reactor MF2 Sited in USF Tampa

IMM

Growth of thin films – The ‘Carbonization Step’

The initial stage of growth (buffer layer) depends on the experimental conditions

Pressure and Temperature affect: Ø Nucleation density Ø Nucleation regime Ø Interface morphology Ø Surface morphology Ø Defect generation Ø Stress nature in the system

400 Torr 760 Torr

IMM

10 20 30 40 50 500 1000 1500 2000 2500 3000 3500 4000

(200) 3C-SiC FWHM (arcsec)

3C-SiC film thickness (µm)

Growth of thick films – Defects in 3C-SiC

20% lattice mismatch between aSi and aSiC generates several crystallographic defects

XRD Rocking Curve FWHMs on surface diffraction plane

Low-defect density Better film quality High-defect density Worst film quality

Cross-section TEM of a thick 3C-SiC film

• Very high-density of crystallographic defects close

to the interface

• Better 3C-SiC quality by increasing film thickness

(narrower Rocking Curve FWHM)

• E. Polychroniadis et al., Journal of Crystal Growth 263, 68 (2004).
• A. Severino et al., Thin Solid Films, 518, S165 (2010).

IMM

Growth of thick films – The growth rate

IN ORDER TO REALIZE 3C-SiC SUITABLE FOR ELECTRONIC DEVICES OR SENSORS DEFECT DENSITY MUST BE REDUCED AND CRYSTAL QUALITY IMPROVED

Allowed by reducing the growth rate

DEFECTS, SUCH AS MICRO-TWINS, REDUCE THEIR DENSITY AT LOWER GR

IMM

Growth of on-axis thick films – Stacking Faults

Saturated regime attributed to annihilation/generation mechanism of SF?

Tending to saturation

IMM

Growth of thick films – 3C-SiC film morphology

ANTI-PHASE BOUNDARIES IN ON-AXIS FILMS MICRO-STEPS DETECTED ON BOTH FILMS STEP-BUNCHING RELATED MACRO STEPS ON OFF-AXIS FILMS ANISOTROPIC DISTRIBUTION OF STACKING FAULTS ON OFF-AXIS FILMS

IMM

Growth of thick films – Stacking Faults

LOWER STACKING FAULT LINEAR DENSITY WITH HIGHLY ANISOTROPIC DISTRIBUTION OF STACKING FAULTS IN OFF-AXIS FILMS

IMM

Growth of thick films – Stacking Fault Density

FWHM of (004) 3C-SiC Rocking Curve // [1-10] Linear Density

• f SF// [1-11]

FWHM of (004) 3C-SiC Rocking Curve // [110] Linear Density

• f SF// [111]

ON AXIS 3C-SIC FILM 349 arcsec 6.5 x 103 cm-1 380 arcsec 8 x 103 cm-1 OFF-AXIS 3C-SIC FILM 329 arcsec 6.5 x 103 cm-1 298 arcsec 2 x 103 cm-1

IMM

Oxidation of 3C-SiC films – Effect of Defects

MAIN CRYSTALLOGRAPHIC DEFECTS AFFECT THE OXIDE UNIFORMITY AND INTERFACE

ANTI-PHASE BOUNDARIES CAN BE ELIMINATED BY OFF-AXIS FILM GROWTH MICRO-TWINS ARE VANISHING FOR SUFFICIENT 3C-SIC THICKNESS STACKING FAULTS STILL SURVIVE

IMM

Electrical Characterization at Nanoscale

PRELIMINARY RESULTS

5 nm SiO2 uniform layer was thermally grown on 10 µm 3C-SiC films (on and off-axis) by RTP Oxidation in N2-O2 ambient at 1050°C followed by a RTA annealing at 800°C in pure Ar

NO EFFECT RELATED TO STACKING FAULTS OBSERVED

LARGE SIGNAL VARIATION AT STEP IN SCM MAP DUE TO LARGER CONTACT AREA OF THE TIP OR TO A LOCAL ENHANCEMENT OF THE ELECTRIC FIELD OVER THE STEPS

IMM

Experimental Flat-Band Voltage

PRELIMINARY RESULTS

LOW HYSTERESIS OBSERVED à à GOOD OXIDE PERFORMANCE NEGATIVE VFB SHIFT à à POSITIVELY CHARGED C-CLUSTER AND DANGLING BONDS HIGHER EXPERIMENTAL VFB SHIFT IN ON AXIS MATERIAL

IMM

Summary

• Silicon Carbide: excellent material properties but…
• 3C-SiC heteroepitaxy on large area Si substrates
• CVD growth process – from thin to thick 3C-SiC film growth
• Buffer layer formation
• The growth rate and film thickness on 3C-SiC film quality
• SFs show a saturation for thick film growth
• Influence of substrate orientation on SFs and morphology
• Influence of defects on oxidation morphology
• Preliminary electrical characteristic of MOS at nanoscale

IMM

Acknowledgements

• Dr. Andrea Canino for SEM analysis
• Mr. Corrado Bongiorno for TEM analysis
• Dr. Filippo Giannazzo for AFM and SCM analysis
• Dr. Patrick Fiorenza for AFM and SCM analysis
