Conducting investigations on similar incidents that occurred in different countries A complex organization Arnaud TOUPET Senior Safety Investigator Capt. Nurcahyo Ray UTOMO NTSC Senior Safety Investigator Investigating on similar

SLIDE 1

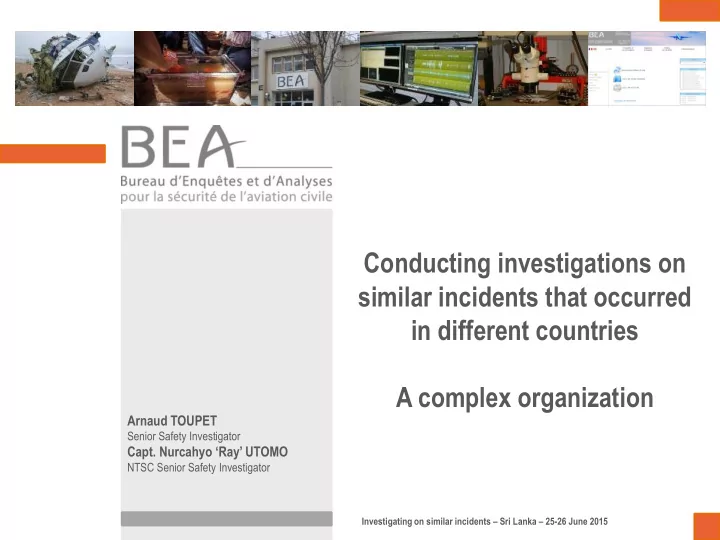

Conducting investigations on similar incidents that occurred in different countries A complex organization

Arnaud TOUPET

Senior Safety Investigator

Capt. Nurcahyo ‘Ray’ UTOMO

NTSC Senior Safety Investigator

Investigating on similar incidents – Sri Lanka – 25-26 June 2015

SLIDE 2

A practical case : the investigation on several incidents

involving propeller severe vibrations during flight

Organization of investigations according to ICAO Annex 13
Highlighted Solutions
Possible ways of improvement

Investigating on similar incidents

Investigating on similar incidents – Sri Lanka – 25-26 June 2015

SLIDE 3

On 18th September 2013, in Indonesia, ATR 72-212A

equipped with Hamilton Sundstrand Propellers 568F-1

 Severe vibrations on engine #2 propeller during descent  Engine #2 was shut down after landing  Different blade angles

bserved on

ground

Practical case : propeller severe vibrations

Investigating on similar incidents – Sri Lanka – 25-26 June 2015

SLIDE 4

Damages :

 One blade was turning freely (blade trunnion pin broken)  Blade angle actuator forward plate found bent

Practical case : propeller severe vibrations

Investigating on similar incidents – Sri Lanka – 25-26 June 2015

SLIDE 5

Damages :

 Two engine fittings found broken

Practical case : propeller severe vibrations

Investigating on similar incidents – Sri Lanka – 25-26 June 2015

SLIDE 6

According to the Attachment C of the ICAO Annex 13, this
ccurrence was classified as serious incident.
NTSC conducted full investigation and sent notification to

direct involve parties including France BEA as State of Manufacture.

Significant supports received from the BEA.
30 days after the occurrence NTSC issued safety

recommendation to the aircraft operator.

Serious Incident – full investigation

Investigating on similar incidents – Sri Lanka – 25-26 June 2015

SLIDE 7

On 4th May 2014, in Trinidad and Tobago, ATR 72-212A

equipped with Hamilton Sundstrand Propellers 568F-1

 Severe vibrations on engine #2 propeller during descent  No findings from maintenance  On 5th May 2015, vibrations after landing  Test runs leading to damages

Practical case : propeller severe vibrations

Investigating on similar incidents – Sri Lanka – 25-26 June 2015

SLIDE 8

Propeller governing system description

Practical case : propeller severe vibrations

Investigating on similar incidents – Sri Lanka – 25-26 June 2015

SLIDE 9

Damages :

 One blade was turning freely (blade trunnion pin broken)  Blade angle actuator forward plate found bent

Practical case : propeller severe vibrations

Investigating on similar incidents – Sri Lanka – 25-26 June 2015

SLIDE 10

NOT A SERIOUS INCIDENT but SIMILAR INCIDENT INVESTIGATION proposed by BEA INVESTIGATION delegated to BEA

Practical case : propeller severe vibrations

Investigating on similar incidents – Sri Lanka – 25-26 June 2015

SLIDE 11

On 30th November 2014, in Sweden, ATR 72-212A

equipped with Hamilton Sundstrand Propellers 568F-1

 Severe vibrations on engine #2 propeller during descent  Impossible to read instruments and to walk in cabin  Engine #1 fatheared then engine #2

Practical case : propeller severe vibrations

Investigating on similar incidents – Sri Lanka – 25-26 June 2015

SLIDE 12

Damages :

 One blade was turning freely (blade trunnion pin broken)  Blade angle actuator forward plate found bent

Practical case : propeller severe vibrations

Investigating on similar incidents – Sri Lanka – 25-26 June 2015

SLIDE 13

Damages :

 A 180°crack Engine rear inlet case

Practical case : propeller severe vibrations

Investigating on similar incidents – Sri Lanka – 25-26 June 2015

INCIDENT but SIMILAR INCIDENT INVESTIGATION by SHK

SLIDE 14

Organization of investigations according to ICAO Annex 13

Investigating on similar incidents – Sri Lanka – 25-26 June 2015

State of occurence

Complete or partial delegation to another state

Serious incident

State of Registry State of Operator State of Design State of Manufacture IIC AccReps Operator Advisers Type design

rganization

Final assembly

rganization

SLIDE 15

Organization of investigations according to ICAO Annex 13

Investigating on similar incidents – Sri Lanka – 25-26 June 2015

Serious incident

Accrep (Reg) Accrep (Ops) AccRep (Design ) AccRep (Man) IIC Adviser (Ops) Adviser (Design) Adviser (Assy)

SLIDE 16

Organization of investigations according to ICAO Annex 13

Investigating on similar incidents – Sri Lanka – 25-26 June 2015

France (Man) Indonesia UTAS ATR T&T/France Sweden USA (Man) Airline A T&T (OPS) Airline B Airline C

Serious Incident A Incident B Incident C

EASA FAA Canada (Man) P&W

SLIDE 17

Highlighted Solutions Incident Notification

Investigating on similar incidents – Sri Lanka – 25-26 June 2015

France (Man) Indonesia UTAS ATR T&T Sweden USA (Man) Airline A Airline B Airline C

Incident B Incident C Serious Incident A

Canada (Man)

SLIDE 18

Highlighted Solutions Information sharing between SIA

Investigating on similar incidents – Sri Lanka – 25-26 June 2015

France (Man) Indonesia T&T/France Sweden USA (Man) UTAS ATR Airline A Airline B Airline C EASA FAA P&W Canada (Man)

SLIDE 19

Highlighted Solutions Examination requests and “to do list”

Investigating on similar incidents – Sri Lanka – 25-26 June 2015

France (Man) Indonesia UTAS ATR T&T/France Sweden USA (Man) Canada (Man) P&W

SLIDE 20

Highlighted Solutions Update meetings

Investigating on similar incidents – Sri Lanka – 25-26 June 2015

USA (Man) Indonesia T&T France France (Man) Sweden ATR UTAS France/T&T France (Man) UTAS ATR Sweden Indonesia France (Man) ATR Sweden France (Man) UTAS ATR Airline C FAA EASA France/T&T UTAS ATR France (Man) EASA March 2015 Oct 2014 Dec 2014 February 2015 May 2015 P&W

SLIDE 21

Highlighted Solutions Safety recommendations

Investigating on similar incidents – Sri Lanka – 25-26 June 2015

France (Man) Indonesia T&T/France Sweden UTAS ATR Airline A Airline B Airline C EASA FAA 1st event (immediate) 3rd event Canada (Man) USA (Man) P&W

SLIDE 22

Highlighted Solutions What about the reports and final recos?

Investigating on similar incidents – Sri Lanka – 25-26 June 2015

France (Man) Indonesia T&T/France Sweden USA (Man)

Draft report comment process Final reports Final recos

Canada (Man)

SLIDE 23

Possible ways of improvement

Investigating on similar incidents – Sri Lanka – 25-26 June 2015

Improve SIA awareness
f an on going investigation
Focal point

(SIA or safety organization)

Super IIC

SLIDE 24

Possible ways of improvement

Investigating on similar incidents – Sri Lanka – 25-26 June 2015

Improve confidentiality principles

for information sharing

Harmonization of reports

and recommendations Similar investigations to be considered as a unique big one ?

SLIDE 25
