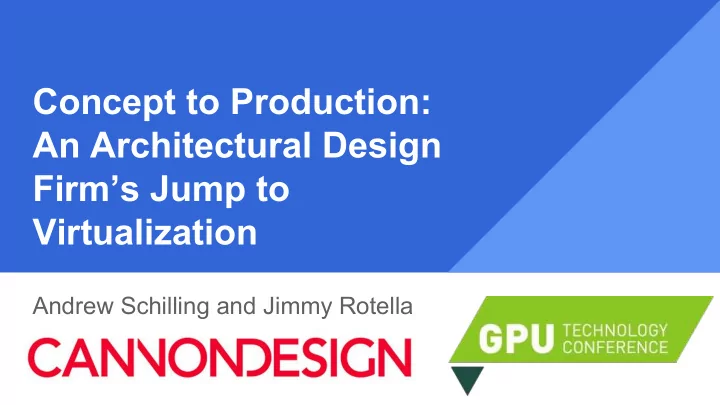

Concept to Production: An Architectural Design Firm’s Jump to Virtualization

Andrew Schilling and Jimmy Rotella

SLIDE 2

Andrew Schilling

Chief Infrastructure Officer CannonDesign aschilling@cannondesign.com

SLIDE 3

Jimmy Rotella

Digital Practice Director CannonDesign jrotella@cannondesign.com @jrotella

SLIDE 4

What We Do

CannonDesign is an integrated global design firm that unites a dynamic team of architects, engineers, strategists, futurists, researchers, and industry specialists driven by a singular goal — to help solve our client's’ and society’s greatest challenges.

SLIDE 5

SLIDE 6

Original Virtual Desktop Designs

Version 1 - Standard VDI (2008)

2 vCPU @
140GB hard drive

space

8GB RAM
vSGA software

graphics accelerations Version 2 - GPU VDI (2013)

2 vCPU @
150GB hard drive space
12GB RAM
vSGA hardware graphics

GPU acceleration Version 3 - CHUM VDI (2014)

2 vCPU @
180GB hard drive space
24GB RAM
vDGA passthrough GPU

graphics acceleration

SLIDE 7

ur JOURNEY

through virtualization begins here.

S7174: An Architectural Design Firm’s Journey Through Virtual GPU Technology for Global Collaboration

SLIDE 8

Partnerships make life on the cutting edge much more manageable.

SLIDE 9

Application Deployment Guide

Essentials of getting up and

running with VMware and Nvidia GRID

Basic installation to sizing your

environment for complex graphics applications

Step by step instructions

http://www.nvidia.com/content/grid/pdf/g rid-vgpu-deployment-guide.pdf

SLIDE 10

benchmarks

RFO Benchmark Cinebench Holomark PCmark Taylor Swift Test

SLIDE 11

Virtual Desktop Profiles

Knowledge Workers

2 vCPU @ 2.6 GHz
256GB hard drive
8GB RAM
512mb vGPU
16 users per blade

Designers

8 vCPU @ 2.6 GHz
512GB hard drive
48GB RAM
1GB vGPU
6 users per blade

Renderers

12 vCPU @ 2.6GHz
512GB hard drive
48GB RAM
4GB vGPU
2 users per blade

SLIDE 12

Storage

SSD > spindle

SLIDE 13

Load Balancing

SLIDE 14

Hot/Cold Aisles Cooling Chimneys

Cooling

SLIDE 15

SLIDE 16

Network Infrastructure

SLIDE 17

host patching driver patching

SLIDE 18

zero client vs thin client

SLIDE 19

designed for designers

SLIDE 20

physical vs virtual

SLIDE 21

peripherals can be a challenge

SLIDE 22

Where the heck are my CUDA Cores?

SLIDE 23

Render Farm

Reused “Quad Workstations” More CPU (920 Cores) CUDA support for IRAY (92GB of GPU Memory)

SLIDE 24

tweaks

memory and cpu reservation roaming profiles golden image

SLIDE 25

migration plans

SLIDE 26

future plans

4k Display Iray Support VMware Horizon 7 version 7.1 (Blast)

SLIDE 27

Questions?
