1896 1920 1987 2006 Computing and Communications 2. Information Theory -Channel Capacity Ying Cui Department of Electronic Engineering Shanghai Jiao Tong University, China 2017, Autumn 1 Outline Communication system Examples of

slide-1
SLIDE 1

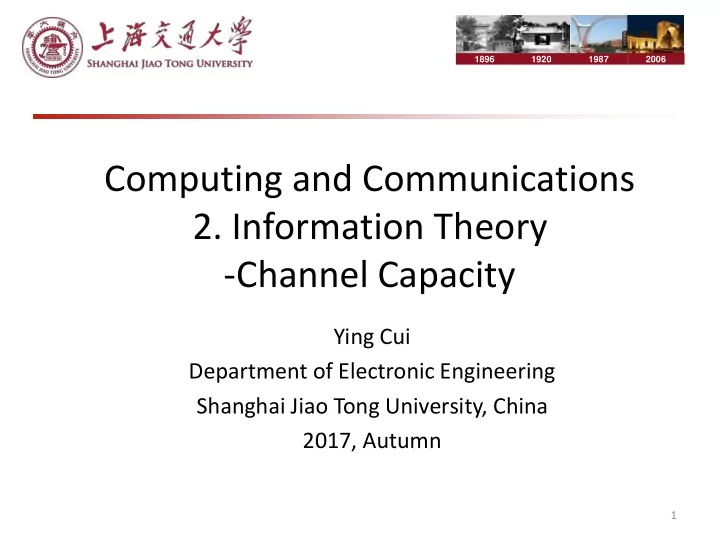

1896 1920 1987 2006

Computing and Communications

  • 2. Information Theory
  • Channel Capacity

Ying Cui Department of Electronic Engineering Shanghai Jiao Tong University, China 2017, Autumn

1

slide-2
SLIDE 2

Outline

  • Communication system
  • Examples of channel capacity
  • Symmetric channels
  • Properties of channel capacity
  • Definitions
  • Channel coding theorem
  • Source-channel coding theorem

2

slide-3
SLIDE 3

Reference

  • Elements of information theory, T. M. Cover and J. A.

Thomas, Wiley

3

slide-4
SLIDE 4

CHANNEL CAPACITY

4

slide-5
SLIDE 5

Communication System

– map source symbols from finite alphabet into some sequence of channel symbols, i.e., input sequence of channel – output sequence of channel is random but has a distribution depending on input sequence of channel

  • two different input sequences may give rise to same output sequence, i.e.,

inputs are confusable

  • choose a “nonconfusable” subset of input sequences so that with high

probability there is only one highly likely input that could have caused the particular output

– attempt to recover transmitted message from output sequence of channel

  • reconstruct input sequences with a negligible probability of error

5

slide-6
SLIDE 6

Channel Capacity

6

slide-7
SLIDE 7

EXAMPLES OF CHANNEL CAPACITY

7

slide-8
SLIDE 8

Noiseless Binary Channel

  • Binary input is reproduced exactly at output
  • C = max I(X; Y) = 1 bit, achieved using p(x) = (1/2, 1/2)

– one error-free bit can be transmitted per channel use

8

slide-9
SLIDE 9

Noisy Channel with Nonoverlapping Outputs

  • Two possible outputs corresponding to each of the two

inputs

– appear to be noisy, but really not

  • C = max I(X; Y) = 1 bit, achieved using p(x) = (1/2, 1/2)

– input can be determined from the output – every transmitted bit can be recovered without error

9

slide-10
SLIDE 10

Noisy Typewriter

  • Channel input is either

unchanged with probability 1/2

  • r is transformed into the next

letter with probability 1/2

  • If the input has 26 symbols and

we use every alternate input symbol, we can transmit one of 13 symbols without error with each transmission

  • C = max I(X; Y)

= max (H(Y) – H(Y|X)) = max H(Y) – 1 = log 26 – 1 = log 13 achieved using p(x) = (1/26,…, 1/26)

10

slide-11
SLIDE 11
  • Input symbols are complemented with probability p
  • \\\

equality is achieved when the input distribution is uniform

Binary Symmetric Channel

11

slide-12
SLIDE 12

Binary Erasure Channel

  • Two inputs and three outputs, a fraction of bits are

erased

  • Xx
  • Recover at most 1-α of bits, as α of bits are lost

12

𝜌=1/2 achieved when

slide-13
SLIDE 13

SYMMETRIC CHANNELS

13

slide-14
SLIDE 14

Symmetric

– example of symmetric channel

14

slide-15
SLIDE 15

Proof

15

slide-16
SLIDE 16

PROPERTIES OF CHANNEL CAPACITY

16

slide-17
SLIDE 17

Properties of Channel Capacity

  • is a continuous function of p(x)
  • is a concave function of p(x)
  • Problem for computing channel capacity is a convex

problem

– maximization of a bounded concave function over a closed convex set – maximum can then be found by standard nonlinear optimization techniques such as gradient search

17

0 since ( ; ) C I X Y   log since max ( ; ) max ( ) log C C I X Y H X     ( ; ) I X Y ( ; ) I X Y log since max ( ; ) max ( ) log C C I X Y H Y    

slide-18
SLIDE 18

DEFINITIONS

18

slide-19
SLIDE 19

Discrete Memoryless Channel (DMC)

19

slide-20
SLIDE 20

Code

20

slide-21
SLIDE 21

Probability of Error

21

slide-22
SLIDE 22

Rate and Capacity

– write (2𝑜𝑆, 𝑜) codes to mean ( 2𝑜𝑆 , 𝑜) codes to simplify the notation

22

slide-23
SLIDE 23

CHANNEL CODING THEOREM (SHANNON’S SECOND THEOREM)

23

slide-24
SLIDE 24

Basic Idea

  • For large block lengths, every channel has a subset of

inputs producing disjoint sequences at the output

  • Ensure that no two input X sequences produce the

same output Y sequence, to determine which X sequence was sent

24

slide-25
SLIDE 25

Basic Idea

  • Total number of possible output Y sequences is ≈

2𝑜𝐼(𝑍)

  • Divide into sets of size 2𝑜𝐼(𝑍|𝑌) corresponding to the

different input X sequences

  • Total number of disjoint sets is less than or equal to

2𝑜(𝐼 𝑍 −𝐼(𝑍|𝑌)) = 2𝑜𝐽(𝑌;𝑍)

  • Send at most ≈ 2𝑜𝐽(𝑌;𝑍) distinguishable sequences of

length n

25

slide-26
SLIDE 26

Channel Coding Theorem

26

slide-27
SLIDE 27

New Ideas in Shannon’s Proof

  • Allowing an arbitrarily small but nonzero probability of

error

  • Using the channel many times in succession, so that the

law of large numbers comes into effect

  • Calculating the average of the probability of error over a

random choice of codebooks

– symmetrize the probability and can then be used to show the existence of at least one good code

  • Shannon’s proof outline was based on idea of typical

sequences, but was not made rigorous until much later

27

slide-28
SLIDE 28

Current Proof

  • Use the same essential ideas

– random code selection, calculation of the average probability of error for a random choice of codewords, and so on

  • Main difference is in the decoding rule-decode by joint

typicality

– look for a codeword that is jointly typical with the received sequence – if find a unique codeword satisfying this property, declare that word to be the transmitted codeword – properties of joint typicality

  • with high probability the transmitted codeword and the received sequence are

jointly typical, since they are probabilistically related

  • probability that any other codeword looks jointly typical with the received

sequence is 2−𝑜𝐽

  • thus, if we have fewer then 2𝑜𝐽 codewords, then with high probability there

will be no other codewords that can be confused with the transmitted codeword, and the probability of error is small

28

slide-29
SLIDE 29

SOURCE–CHANNEL SEPARATION THEOREM (SHANNON’S THIRD THEOREM)

29

slide-30
SLIDE 30

Two Main Basic Theorems

  • Data compression: R>H
  • Data transmission: R<C
  • Is condition H < C necessary and sufficient for sending a

source over a channel?

30

slide-31
SLIDE 31

Example

  • Consider two methods for sending digitized speech
  • ver a discrete memoryless channel

– one-stage method: design a code to map the sequence of speech samples directly into the input of the channel – two-stage method: compress the speech into its most efficient representation, then use the appropriate channel code to send it over the channel

  • Lose something by using the two-stage method?

– data compression does not depend on the channel – channel coding does not depend on the source distribution

31

slide-32
SLIDE 32

Joint vs. Separate Channel Coding

  • Joint source and channel coding
  • Separate source and channel coding

32

slide-33
SLIDE 33

Source–Channel Coding Theorem

– consider the design of a communication system as a combination of two parts

  • source coding: design source codes for the most efficient representation of the

data

  • channel coding: design channel codes appropriate for the channel encodes

(combat the noise and errors introduced by the channel)

– the separate encoders can achieve the same rates as the joint encoder

  • hold for the situation where one transmitter communicates to one receiver

33

slide-34
SLIDE 34

Summary

34

slide-35
SLIDE 35

Summary

35

slide-36
SLIDE 36

cuiying@sjtu.edu.cn iwct.sjtu.edu.cn/Personal/yingcui

36
