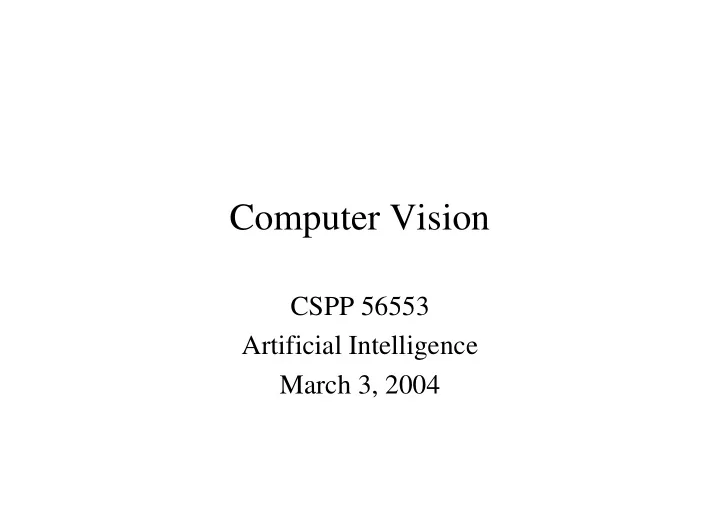

Computer Vision

CSPP 56553 Artificial Intelligence March 3, 2004

Roadmap

• Motivation

– Computer vision applications

• Is a Picture worth a thousand words?

– Low level features

• Feature extraction: intensity, color

– High level features

• Top-down constraint: shape from stereo, motion,..
• Case Study: Vision as Modern AI

– Fast, robust face detection (Viola & Jones 2002)

Perception

• From observation to facts about world

– Analogous to speech recognition – Stimulus (Percept) S, World W

• S = g(W)

– Recognition: Derive world from percept

• W=g’(S)
• Is this possible?

Key Perception Problem

• Massive ambiguity

– Optical illusions

• Occlusion
• Depth perception
• “Objects are closer than they appear”
• Is it full-sized or a miniature model?

Image Ambiguity

Handling Uncertainty

• Identify single perfect correct solution

– Impossible!

• Noise, ambiguity, complexity
• Solution:

– Probabilistic model – P(W|S) = αP(S|W) P(W)

• Maximize image probability and model probability

Handling Complexity

• Don’t solve the whole problem

– Don’t recover every object/position/color…

• Solve restricted problem

– Find all the faces – Recognize a person – Align two images

Modern Computer Vision Applications

• Face / Object detection
• Medical image registration
• Face recognition
• Object tracking

Vision Subsystems

Image Formation

Images and Representations

• Initially pixel images

– Image as NxM matrix of pixel values – Alternate image codings

• Grey-scale intensity values
• Color encoding: intensities of RGB values

Images

Grey-scale Images

Color Images

Image Features

• Grey-scale and color intensities

– Directly access image signal values – Large number of measures

• Possibly noisy
• Only care about intensities as cues to world
• Image Features:

– Mid-level representation – Extract from raw intensities – Capture elements of interest for image understanding

Edge Detection

Edge Detection

• Find sharp demarcations in intensity
• 1) Apply spatially oriented filters
• E.g. vertical, horizontal, diagonal
• 2) Label above-threshold pixels with edge orientation
• 3) Combine edge segments with same orientation:

line

Top-down Constraints

• Goal: Extract objects from images

– Approach: apply knowledge about how the world works to identify coherent objects

Motion: Optical Flow

• Find correspondences

in sequential images

– Units which move together represent

• bjects

Stereo

Stereo Depth Resolution

Texture and Shading

Edge-Based 2-3D Reconstruction

Assume world of solid polyhedra with 3-edge vertices Apply Waltz line labeling – via Constration Satisfaction

Basic Object Recognition

• Simple idea:

– extract 3-D shapes from image – match against \shape library"

• Problems:

– extracting curved surfaces from image – representing shape of extracted object – representing shape and variability of library object classes – improper segmentation, occlusion – unknown illumination, shadows, markings, noise, complexity, etc.

• Approaches:

– index into library by measuring invariant properties of objects – alignment of image feature with projected library object feature – match image against multiple stored views (aspects) of library object – machine learning methods based on image statistics

Hand-written Digit Recognition

Summary

• Vision is hard:

– Noise, ambiguity, complexity

• Prior knowledge is essential to constrain problem

– Cohesion of objects, optics, object features

• Combine multiple cues

– Motion, stereo, shading, texture,

• Image/object matching:

– Library: features, lines, edges, etc

• Apply domain knowledge: Optics
• Apply machine learning: NN, NN, CSP, etc

Computer Vision Case Study

• “Rapid Object Detection using a Boosted

Cascade of Simple Features”, Viola/Jones ’01

• Challenge:

– Object detection:

• Find all faces in an arbitrary images

– Real-time execution

• 15 frames per second

– Need simple features, classifiers

Rapid Object Detection Overview

• Fast detection with simple local features

– Simple fast feature extraction

• Small number of computations per pixel
• Rectangular features

– Feature selection with Adaboost

• Sequential feature refinement

– Cascade of classifiers

• Increasingly complex classifiers
• Repeatedly rule out non-object areas

Picking Features

• What cues do we use for object detection?

– Not direct pixel intensities – Features

• Can encode task specific domain knowledge (bias)

– Difficult to learn directly from data – Reduce training set size

• Feature system can speed processing

Rectangle Features

• Treat rectangles as units

– Derive statistics

• Two-rectangle features

– Two similar rectangular regions

• Vertically or horizontally adjacent

– Sum pixels in each region

• Compute difference between regions

Rectangle Features II

• Three-rectangle features

– 3 similar rectangles: horizontally/vertically

• Sum outside rectangles
• Subtract from center region
• Four-rectangle features

– Compute difference between diagonal pairs

• HUGE feature set: ~180,000

Rectangle Features

Computing Features Efficiently

• Fast detection requires fast feature calculation
• Rapidly compute intermediate representation

– “Integral image” – Value for point (x,y) is sum of pixels above, left – ii(x,y) = Σx’<=x,y’<=y i(x,y) – Computed by recurrence

• s(x,y) = s(x,y-1) + i(x,y) , where s(x,y) cumulative row
• ii(x,y) = ii(x-1,y) + s(x,y)
• Compute rectangle sum with 4 array references

Rectangle Feature Summary

• Rectangle features

– Relatively simple – Sensitive to bars, edges, simple structure

• Coarse

– Rich enough for effective learning – Efficiently computable

Learning an Image Classifier

• Supervised training: +/- examples
• Many learning approaches possible
• Adaboost:

– Selects features AND trains classifier – Improves performance of simple classifiers

• Guaranteed to converge exponentially rapidly

– Basic idea: Simple classifier

• Boosts performance by focusing on previous errors

Feature Selection and Training

• Goal: Pick only useful features from 180000

– Idea: Small number of features effective

• Learner selects single feature that best

separates +/- ve examples

– Learner selects optimal threshold for each feature – Classifier h(x) = 1 if pf(x)<pθ, 0 otherwise

Basic Learning Results

• Initial classification: Frontal faces

– 200 features – Finds 95%, 1/14000 false positive – Very fast

• Adding features adds to computation time
• Features interpretable

– Darker region around eyes that nose/cheeks – Eyes are darker than bridge of nose

Primary Features

“Attentional Cascade”

• Goal: Improved classification, reduced time

– Insight: Small – fast – classifiers can reject

• But have very few false negatives

– Reject majority of uninteresting regions quickly – Focus computation on interesting regions

• Approach: “Degenerate” decision tree
• Aka “cascade”
• Positive results passed to high detection classifiers

– Negative results rejected immediately

Cascade Schematic

All Sub-window Features CL 1 CL 2 CL 3 F F F T T T More Classifiers Reject Sub-Window

Cascade Construction

• Each stage is a trained classifier

– Tune threshold to minimize false negatives – Good first stage classifier

• Two feature strong classifier – eye/check + eye/nose
• Tuned: Detect 100%; 40% false positives

– Very computationally efficient

• 60 microprocessor instructions

Cascading

• Goal: Reject bad features quickly

– Most features are bad

• Reject early in processing, little effort

– Good regions will trigger full cascade

• Relatively rare
• Classification is progressively more difficult

– Rejected the most obvious cases already

• Deeper classifiers more complex, more error-prone

Cascade Training

• Tradeoffs: Accuracy vs Cost

– More accurate classifiers: more features, complex – More features, more complex: Slower – Difficult optimization

• Practical approach

– Each stage reduces false positive rate – Bound reduction in false pos, increase in miss – Add features to each stage until meet target – Add stages until overall effectiveness targets met

Results

• Task: Detect frontal upright faces

– Face/non-face training images

• Face: ~5000 hand-labeled instances
• Non-face: ~9500 random web-crawl, hand-checked

– Classifier characteristics:

• 38 layer cascade
• Increasing number of features: 1,10,25,… : 6061

– Classification: Average 10 features per window

• Most rejected in first 2 layers
• Process 384x288 image in 0.067 secs

Detection Tuning

• Multiple detections:

– Many subwindows around face will alert – Create disjoint subsets

• For overlapping boundaries, only report one

– Return average of corners

• Voting:

– 3 similarly trained detectors

• Majority rules

– Improves overall

Conclusions

• Fast, robust facial detection

– Simple, easily computable features – Simple trained classifiers – Classification cascade allows early rejection

• Early classifiers also simple, fast

– Good overall classification in real-time

Some Results

Vision in Modern Ai

• Goals:

– Robustness – Multidomain applicability – Automatic acquisition – Speed: Real time

• Approach:

– Simple mechanisms, feature selection – Machine learning: Tune features, classification
