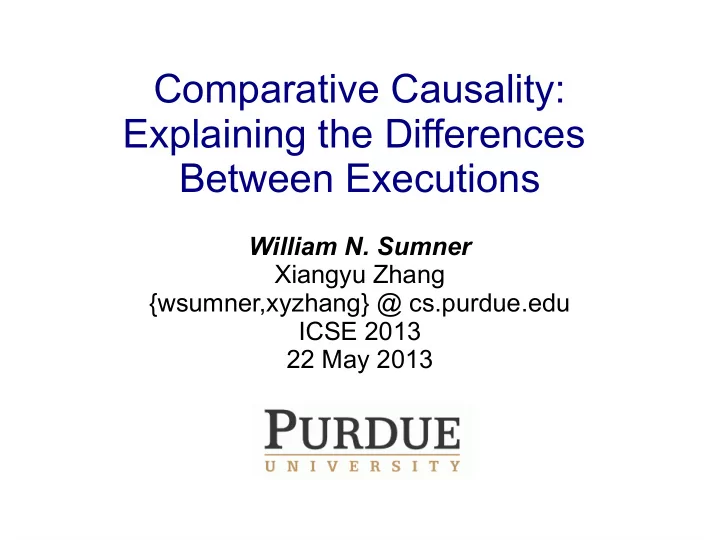

Comparative Causality: Explaining the Differences Between Executions

William N. Sumner Xiangyu Zhang {wsumner,xyzhang} @ cs.purdue.edu ICSE 2013 22 May 2013

Background

Debugging requires understanding how a program behaves.

Background

Debugging requires requires understanding how a program behaves.

• Which statements are buggy and how?

Background

Debugging requires requires understanding how a program behaves.

• Which statements are buggy and how?
• How does a bug/fault lead to a failure?

Background

Debugging requires requires understanding how a program behaves.

• Which statements are buggy and how?
• How does a bug/fault lead to a failure?
• What might possible fixes be?

Background

Debugging requires requires understanding how a program behaves.

• Which statements are buggy and how?
• How does a bug/fault lead to a failure?
• What might possible fixes be?

These questions need an explanation for a bug.

Background

Explaining a bug (fault → failure)

inventory = [(Shoes,5); (Hats,0); (Ties,1)] bought = 0 for (item, available) in inventory: if bought < 3 and available >= 0: buy(item) bought += 1 print “Items bought: “, bought

Should print “Items bought: 2” Failure: prints “Items bought: 3”

Background

Explaining a bug (fault → failure)

inventory = [(Shoes,5); (Hats,0); (Ties,1)] bought = 0 for (item, available) in inventory: if bought < 3 and available >= 0: buy(item) bought += 1 print “Items bought: “, bought

Should print “Items bought: 2” Failure: prints “Items bought: 3”

BUG: Should be >

Background

Explaining a bug (fault → failure)

inv = [(S,5); (H,0); (T,1)] bt = 0 1)for (itm, av) in inv: 2) if bt < 3 and av >= 0: 3) buy(itm) 4) bt += 1 5)print bt 1) for (itm, av) = (S,5): 2) if bt < 3 and av >= 0: 3) buy(itm) 4) bt += 1 1) for (itm, av) = (H,0): 2) if bt < 3 and av >= 0: 3) buy(itm) 4) bt += 1 1) for (itm, av) = (T,1): 2) if bt < 3 and av >= 0: 3) buy(itm) 4) bt += 1 5)print bt

Program Trace

Background

Explaining a bug (fault → failure)

1) for (itm, av) = (S,5): 2) if bt < 3 and av >= 0: 3) buy(itm) 4) bt += 1 1) for (itm, av) = (H,0): 2) if bt < 3 and av >= 0: 3) buy(itm) 4) bt += 1 1) for (itm, av) = (T,1): 2) if bt < 3 and av >= 0: 3) buy(itm) 4) bt += 1 5)print bt

Trace

A faulty branch is taken at A A

Background

Explaining a bug (fault → failure)

1) for (itm, av) = (S,5): 2) if bt < 3 and av >= 0: 3) buy(itm) 4) bt += 1 1) for (itm, av) = (H,0): 2) if bt < 3 and av >= 0: 3) buy(itm) 4) bt += 1 1) for (itm, av) = (T,1): 2) if bt < 3 and av >= 0: 3) buy(itm) 4) bt += 1 5)print bt

Trace

A faulty branch is taken at so bt is given the faulty value 2 at B A A B

Background

Explaining a bug (fault → failure)

1) for (itm, av) = (S,5): 2) if bt < 3 and av >= 0: 3) buy(itm) 4) bt += 1 1) for (itm, av) = (H,0): 2) if bt < 3 and av >= 0: 3) buy(itm) 4) bt += 1 1) for (itm, av) = (T,1): 2) if bt < 3 and av >= 0: 3) buy(itm) 4) bt += 1 5)print bt

Trace

A faulty branch is taken at so bt is given the faulty value 2 at so bt is given the faulty value 3 at B A C A B C

Background

Explaining a bug (fault → failure)

1) for (itm, av) = (S,5): 2) if bt < 3 and av >= 0: 3) buy(itm) 4) bt += 1 1) for (itm, av) = (H,0): 2) if bt < 3 and av >= 0: 3) buy(itm) 4) bt += 1 1) for (itm, av) = (T,1): 2) if bt < 3 and av >= 0: 3) buy(itm) 4) bt += 1 5)print bt

Trace

A faulty branch is taken at so bt is given the faulty value 2 at so bt is given the faulty value 3 at so '3' is printed erroneously at B A C D A B C D

Background

Explaining a bug (fault → failure)

1) for (itm, av) = (S,5): 2) if bt < 3 and av >= 0: 3) buy(itm) 4) bt += 1 1) for (itm, av) = (H,0): 2) if bt < 3 and av >= 0: 3) buy(itm) 4) bt += 1 1) for (itm, av) = (T,1): 2) if bt < 3 and av >= 0: 3) buy(itm) 4) bt += 1 5)print bt

Trace

A B C D

an explanation

Existing Approaches

Dynamic Slicing [Agrawal PLAN90]

• Too large & unwieldy in practice

Existing Approaches

Dynamic Slicing [Agrawal PLAN90]

• Too large & unwieldy in practice

State Replacement

• What faulty state can reproduce a failure?

Existing Approaches

Dynamic Slicing [Agrawal PLAN90]

• Too large & unwieldy in practice

State Replacement

• What faulty state can reproduce a failure?

– Cause Effect Chains [Zeller FSE02] – Causal Paths [Sumner FASE09,FSE10]

Causal Paths [FASE09, FSE10]

Reproduce the failure in a correct run: Buggy Correct

Causal Paths [FASE09, FSE10]

Reproduce the failure in a correct run: Buggy Correct

x = 5 y = 4 z = 3 x = 5 y = 2 z = 1

Causal Paths [FASE09, FSE10]

Reproduce the failure in a correct run: Buggy Correct

x = 5 y = 4 z = 3 x = 5 y = 2 z = 1

?

Causal Paths [FASE09, FSE10]

Reproduce the failure in a correct run: Buggy Correct

x = 5 y = 4 z = 3 x = 5 y = 2 z = 1

?

Trial

Causal Paths [FASE09, FSE10]

Reproduce the failure in a correct run: Buggy Correct

x = 5 y = 4 z = 3 x = 5 y = 2 z = 1 {y=4, z=3} {y=4} {z=3}

?

Trial

Causal Paths [FASE09, FSE10]

Reproduce the failure in a correct run: Buggy Correct

x = 5 y = 4 z = 3 x = 5 y = 2 z = 1 {y=4, z=3} {y=4} {z=3}

?

Trial

Blame smallest set possible

Causal Paths [FASE09, FSE10]

Reproduce the failure in a correct run: Buggy Correct

x = 5 y = 4 z = 3 x = 5 y = 2 z = 1

?

Trial

Causal Paths [FASE09, FSE10]

Reproduce the failure in a correct run: Buggy Correct

x = 5 y = 4 z = 3 x = 5 y = 4 z = 1 y = 4

?

Trial

Causal Paths [FASE09, FSE10]

Reproduce the failure in a correct run: Buggy Correct

x = 5 y = 4 z = 3 x = 5 y = 4 z = 1 y = 4

?

Trial

Causal Paths [FASE09, FSE10]

Reproduce the failure in a correct run: Buggy Correct

x = 5 y = 4 z = 3 x = 5 y = 4 z = 1 y = 4

?

y=4 is responsible

y = 4

Trial

Causal Paths [FASE09, FSE10]

Reproduce the failure in a correct run: Buggy Correct

y = 4

Why was y=4?

Causal Paths [FASE09, FSE10]

Reproduce the failure in a correct run: Buggy Correct

y = 4 y = ...

Causal Paths [FASE09, FSE10]

Reproduce the failure in a correct run: Buggy Correct

a = 1 b = 2 c = 1 a = 1 b = 1 c = 0 y = 4

?

Causal Paths [FASE09, FSE10]

Reproduce the failure in a correct run: Buggy Correct

a = 1 b = 2 c = 1 a = 1 b = 2 c = 1 y = 4 b = 2 c = 1

Causal Paths [FASE09, FSE10]

Reproduce the failure in a correct run: Buggy Correct

a = 1 b = 2 c = 1 a = 1 b = 2 c = 1 y = 4 b = 2 c = 1 y = 4

Causal Paths [FASE09, FSE10]

Reproduce the failure in a correct run: Buggy Correct

y = 4 b = 2 c = 1

Causal Paths [FASE09, FSE10]

Reproduce the failure in a correct run: Buggy Correct

y = 4 b = 2 c = 1

Proceed until no differences

Causal Paths [FASE09, FSE10]

Reproduce the failure in a correct run: Buggy Correct

y = 4 b = 2 c = 1

Line 23 Line 42

An explanation

• f the bug!

Causal Paths [FASE09, FSE10]

Problems?

• Identifying where to compare. [Sumner FASE09]
• Identifying & replacing state. [Sumner FSE10]

Causal Paths [FASE09, FSE10]

Problems?

• Identifying where to compare. [Sumner FASE09]
• Identifying & replacing state. [Sumner FSE10]
• Replacing state confounds the explanation.

– Arbitrary replacement can yield arbitrary results.

Causal Paths [FASE09, FSE10]

Problems?

• Identifying where to compare. [Sumner FASE09]
• Identifying & replacing state. [Sumner FSE10]
• Replacing state confounds the explanation.

– Arbitrary replacement can yield arbitrary results.

• Not helpful with execution omission

– A failure isn't just bad behavior, it is missing good

behavior

Confounding

Which state should we blame? Recall:

?

Trial

Confounding

Which state should we blame? Recall:

?

Trial

Confounding

Which state should we blame? Recall:

x = 5 y = 4 z = 3 x = 5 y = 4 z = 1 y = 4

?

Trial

Confounding

Which state should we blame? Recall:

x = 5 y = 4 z = 3 x = 5 y = 4 z = 1 y = 4

?

Trial

Confounding

Which state should we blame? Recall:

x = 5 y = 4 z = 3 x = 5 y = 4 z = 1 y = 4

?

Trial

What does this patched run even mean?

x ← 1 y ← 1 z ← 3 if False: else: y ← 2 print(2)

Example – Altered Meaning

1)x ← input() 2)y ← input() 3)z ← input() 4)if y>1 & z<6: 5) y ← 5 6)else: y ← y+1 7)print(y) x ← 0 y ← 2 z ← 6 if False: else: y ← 3 print(3)

Correct Buggy Trial

x ← 1 y ← 1 z ← 3 if False: else: y ← 2 print(2)

Example – Altered Meaning

What should we blame here?

1)x ← input() 2)y ← input() 3)z ← input() 4)if y>1 & z<6: 5) y ← 5 6)else: y ← y+1 7)print(y) x ← 0 y ← 2 z ← 6 if False: else: y ← 3 print(3)

Trial Correct Buggy

x ← 1 y ← 1 z ← 3 if False: else: y ← 2 print(2)

Example – Altered Meaning

1)x ← input() 2)y ← input() 3)z ← input() 4)if y>1 & z<6: 5) y ← 5 6)else: y ← y+1 7)print(y) x ← 0 y ← 2 z ← 6 if False: else: y ← 3 print(3)

Trial Correct Buggy

y ← 2 x ← 1 y ← 2 z ← 3 if False: else: y ← 2 print(2)

Example – Altered Meaning

1)x ← input() 2)y ← input() 3)z ← input() 4)if y>1 & z<6: 5) y ← 5 6)else: y ← y+1 7)print(y) x ← 0 y ← 2 z ← 6 if False: else: y ← 3 print(3)

Trial Correct Buggy

x ← 1 y ← 2 z ← 3 x ← 1 y ← 2 z ← 3 if False: else: y ← 2 print(2)

Example – Altered Meaning

1)x ← input() 2)y ← input() 3)z ← input() 4)if y>1 & z<6: 5) y ← 5 6)else: y ← y+1 7)print(y) x ← 0 y ← 2 z ← 6 if False: else: y ← 3 print(3)

Trial Correct Buggy

x ← 1 y ← 2 z ← 3 if True: y ← 5 print(5) x ← 1 y ← 2 z ← 3 if False: else: y ← 2 print(2)

Example – Altered Meaning

1)x ← input() 2)y ← input() 3)z ← input() 4)if y>1 & z<6: 5) y ← 5 6)else: y ← y+1 7)print(y) x ← 0 y ← 2 z ← 6 if False: else: y ← 3 print(3)

Trial Correct Buggy

x ← 1 y ← 2 z ← 3 if True: y ← 5 print(5) x ← 1 y ← 2 z ← 3 if False: else: y ← 2 print(2)

Example – Altered Meaning

1)x ← input() 2)y ← input() 3)z ← input() 4)if y>1 & z<6: 5) y ← 5 6)else: y ← y+1 7)print(y) x ← 0 y ← 2 z ← 6 if False: else: y ← 3 print(3)

Trial

• New control flow unlike original runs
• Occurs in large portion of real bugs

Correct Buggy

Confounding of Explanations

Behavior not found in original executions:

• includes irrelevant information
• excludes necessary information

Confounding of Explanations

Behavior not found in original executions:

• includes irrelevant information
• excludes necessary information

Solution: Dual Slicing

• Identify & extract execution differences

relevant to the failure

– Those that differ across executions

Confounding of Explanations

Behavior not found in original executions:

• includes irrelevant information
• excludes necessary information

Solution: Dual Slicing

• Identify & extract execution differences

relevant to the failure

– Those that differ across executions

• Run trials on the extracted program

Dual Slicing

• A slice of two executions at once

– Includes dependences that differ across executions – Skips dependences that are the same

1)x ← 1 2)y ← 1 3)print(x+y) 1)x ← 0 2)y ← 1 3)print(x+y)

Dual Slicing

• A slice of two executions at once

– Includes dependences that differ across executions – Skips dependences that are the same

1)x ← 1 2)y ← 1 3)print(x+y) 1)x ← 0 2)y ← 1 3)print(x+y) 3 2 1

1

Dual Slicing

• A slice of two executions at once

– Includes dependences that differ across executions – Skips dependences that are the same

1)x ← 1 2)y ← 1 3)print(x+y) 1)x ← 0 2)y ← 1 3)print(x+y) 3 2 1 3 2 1

1 1 1

Dual Slicing

• A slice of two executions at once

– Includes dependences that differ across executions – Skips dependences that are the same

1)x ← 1 2)y ← 1 3)print(x+y) 1)x ← 0 2)y ← 1 3)print(x+y) 3 2 1 3 2 1 3 2 1

1 1 1

Dual Slicing

• A slice of two executions at once

– Includes dependences that differ across executions – Skips dependences that are the same

1)x ← 1 2)y ← 1 3)print(x+y) 1)x ← 0 2)y ← 1 3)print(x+y) 3 2 1 3 2 1 3 2 1

1 1 1 1

x ← 1 y ← 1 z ← 3 if False: else: y ← 2 print(2)

Dual Slicing

• Identify differences affecting the failure

1)x ← input() 2)y ← input() 3)z ← input() 4)if y>1 & z<6: 5) y ← 5 6)else: y ← y+1 7)print(y) x ← 0 y ← 2 z ← 6 if False: else: y ← 3 print(3) 7

Correct Buggy

x ← 1 y ← 1 z ← 3 if False: else: y ← 2 print(2)

Dual Slicing

• Identify differences affecting the failure

1)x ← input() 2)y ← input() 3)z ← input() 4)if y>1 & z<6: 5) y ← 5 6)else: y ← y+1 7)print(y) x ← 0 y ← 2 z ← 6 if False: else: y ← 3 print(3) 7 6

Correct Buggy

x ← 1 y ← 1 z ← 3 if False: else: y ← 2 print(2)

Dual Slicing

• Identify differences affecting the failure

1)x ← input() 2)y ← input() 3)z ← input() 4)if y>1 & z<6: 5) y ← 5 6)else: y ← y+1 7)print(y) x ← 0 y ← 2 z ← 6 if False: else: y ← 3 print(3) 7 6 2

Correct Buggy

x ← 1 y ← 1 z ← 3 if False: else: y ← 2 print(2)

Dual Slicing

1)x ← input() 2)y ← input() 3)z ← input() 4)if y>1 & z<6: 5) y ← 5 6)else: y ← y+1 7)print(y) x ← 0 y ← 2 z ← 6 if False: else: y ← 3 print(3) 7 6 2 2)y ← input() 6)y ← y+1 7)print(y)

Extract

Correct Buggy

y ← 1 y ← 2 print(2)

Example – Extracted Meaning

y ← 2 y ← 3 print(3)

Trial

2)y ← input() 6)y ← y+1 7)print(y)

Correct Buggy

y ← 2 y ← 2 y ← 2 print(2)

Example – Extracted Meaning

y ← 2 y ← 3 print(3)

Trial

2)y ← input() 6)y ← y+1 7)print(y)

Correct Buggy

y ← 3 print(3) y ← 2 y ← 2 y ← 2 print(2)

Example – Extracted Meaning

y ← 2 y ← 3 print(3)

Trial

2)y ← input() 6)y ← y+1 7)print(y)

Trial can now correctly blame y

Correct Buggy

Data Confounding

1)x ← [0,1,2,3] 2)y ← input() 3)z ← input() 4)x[z] ← 5 5)print(x[y])

Trial Correct Buggy

• Control flow is not the only source of

confounding

x ← … y ← 2 z ← 3 x[3] ← 5 print(x[2]) 2 x ← … y ← 1 z ← 2 x[2] ← 5 print(x[1]) 1

x ← … y ← 2 z ← 3 x[3] ← 5 print(x[2])

Data Confounding

What should we blame here?

1)x ← [0,1,2,3] 2)y ← input() 3)z ← input() 4)x[z] ← 5 5)print(x[y])

Trial Correct Buggy

2 x ← … y ← 1 z ← 2 x[2] ← 5 print(x[1]) 1

x ← … y ← 2 z ← 3 x[3] ← 5 print(x[2])

Data Confounding

1)x ← [0,1,2,3] 2)y ← input() 3)z ← input() 4)x[z] ← 5 5)print(x[y])

Trial Correct Buggy

2 x ← … y ← 1 z ← 2 x[2] ← 5 print(x[1]) 1

Data Confounding

1)x ← [0,1,2,3] 2)y ← input() 3)z ← input() 4)x[z] ← 5 5)print(x[y]) x ← … y ← 2 z ← 3 x[3] ← 5 print(x[2])

Trial Correct Buggy

y ← 2 z ← 2 2 x ← … y ← 1 z ← 2 x[2] ← 5 print(x[1]) 1

Data Confounding

x ← … y ← 1 z ← 2 x[2] ← 5 print(x[1]) 1)x ← [0,1,2,3] 2)y ← input() 3)z ← input() 4)x[z] ← 5 5)print(x[y]) x ← … y ← 2 z ← 3 x[3] ← 5 print(x[2])

Trial Correct Buggy

y ← 2 z ← 2 x[2] ← 5 print(x[2]) 2 1 5

Data Confounding

x ← … y ← 1 z ← 2 x[2] ← 5 print(x[1]) 1)x ← [0,1,2,3] 2)y ← input() 3)z ← input() 4)x[z] ← 5 5)print(x[y]) x ← … y ← 2 z ← 3 x[3] ← 5 print(x[2])

Trial Correct Buggy

y ← 2 z ← 2 x[2] ← 5 print(x[2]) 2 1 5

Data Confounding

x ← … y ← 1 z ← 2 x[2] ← 5 print(x[1]) 1)x ← [0,1,2,3] 2)y ← input() 3)z ← input() 4)x[z] ← 5 5)print(x[y]) x ← … y ← 2 z ← 3 x[3] ← 5 print(x[2])

Trial Correct Buggy

y ← 2 z ← 2 x[2] ← 5 print(x[2]) 2 1 5

• Either new control flow or new data flow can

cause confounding.

• Removing them is crucial.

Execution Omission

• A failure is not just incorrect behavior, it is

missing correct behavior.

Execution Omission

• A failure is not just incorrect behavior, it is

missing correct behavior.

– Also known as execution omission – Cannot be explained by reproducing faulty behavior

Execution Omission

x ← 0 y ← 2 if False: print('*') x ← 4 y ← 5 if True: print(5) Print('*') 1) x ← input() 2) y ← input() 3) if x > 3: 4) print(y) 5) print('*')

Correct Buggy

x ← 4 y ← 5 if True: print(5) Print('*')

Execution Omission

x ← 0 y ← 2 if False: print('*')

What should we blame here?

1) x ← input() 2) y ← input() 3) if x > 3: 4) print(y) 5) print('*')

Correct Buggy

x ← 4 y ← 5 if True: print(5) Print('*')

Execution Omission

x ← 0 y ← 2 if False: print('*') 1) x ← input() 2) y ← input() 3) if x > 3: 4) print(y) 5) print('*')

Correct Buggy

x ← 0 y ← 5 if True: print(5) Print('*')

Execution Omission

x ← 0 y ← 5 x ← 0 y ← 2 if False: print('*') 1) x ← input() 2) y ← input() 3) if x > 3: 4) print(y) 5) print('*')

Correct Buggy

Execution Omission

1) x ← input() 2) y ← input() 3) if x > 3: 4) print(y) 5) print('*') x ← 0 y ← 2 if False: print('*') x ← 0 y ← 5 if False: print('*') x ← 0 y ← 5 if True: print(5) Print('*')

• x alone reproduces the failure!
• Does x alone explain the bug?

Correct Buggy

Execution Omission

1) x ← input() 2) y ← input() 3) if x > 3: 4) print(y) 5) print('*') x ← 0 y ← 2 if False: print('*') x ← 0 y ← 5 if False: print('*') x ← 0 y ← 5 if True: print(5) Print('*')

• x alone reproduces the failure!
• Does x alone explain the bug?

– Can you fix the bug by only fixing x?

Correct Buggy

Execution Omission

1) x ← input() 2) y ← input() 3) if x > 3: 4) print(y) 5) print('*') x ← 0 y ← 2 if False: print('*') x ← 0 y ← 5 if False: print('*') x ← 0 y ← 5 if True: print(5) Print('*')

• x alone reproduces the failure!
• Does x alone explain the bug?

– Can you fix the bug by only fixing x?

Correct Buggy

We can run a symmetric trial to find out!

x ← 4 y ← 5 if True: print(5) Print('*')

Execution Omission

x ← 0 y ← 2 if False: print('*') 1) x ← input() 2) y ← input() 3) if x > 3: 4) print(y) 5) print('*')

Correct Buggy

x ← 4 y ← 5 if True: print(5) Print('*')

Execution Omission

x ← 4 y ← 2 x ← 0 y ← 2 if False: print('*') 1) x ← input() 2) y ← input() 3) if x > 3: 4) print(y) 5) print('*')

Correct Buggy

x ← 4 y ← 5 if True: print(5) print('*')

Execution Omission

x ← 4 y ← 2 if True: print(2) print('*') x ← 0 y ← 2 if False: print('*') 1) x ← input() 2) y ← input() 3) if x > 3: 4) print(y) 5) print('*')

Correct Buggy

• Fixing x does not fix the missing behavior!

x ← 4 y ← 5 if True: print(5) print('*')

Execution Omission

x ← 4 y ← 2 if True: print(2) print('*') x ← 0 y ← 2 if False: print('*') 1) x ← input() 2) y ← input() 3) if x > 3: 4) print(y) 5) print('*')

Correct Buggy

• Fixing x does not fix the missing behavior!
• x alone does not explain the bug.

x ← 4 y ← 5 if True: print(5) Print('*')

Execution Omission

x ← 0 y ← 2 if False: print('*') 1) x ← input() 2) y ← input() 3) if x > 3: 4) print(y) 5) print('*')

Correct Buggy

What if we try both x and y?

x ← 4 y ← 5 if True: print(5) Print('*')

Execution Omission

x ← 0 y ← 2 if False: print('*') 1) x ← input() 2) y ← input() 3) if x > 3: 4) print(y) 5) print('*')

Correct Buggy

What if we try both x and y?

x ← 4 y ← 5 if True: print(5) Print('*')

Execution Omission

x ← 4 y ← 5 x ← 0 y ← 2 if False: print('*') 1) x ← input() 2) y ← input() 3) if x > 3: 4) print(y) 5) print('*')

Correct Buggy

x ← 4 y ← 5 if True: print(5) print('*')

Execution Omission

x ← 4 y ← 5 if True: print(5) print('*') x ← 0 y ← 2 if False: print('*') 1) x ← input() 2) y ← input() 3) if x > 3: 4) print(y) 5) print('*')

Correct Buggy

• Fixing x and y together can fix the bug

• Fixing x and y together can fix the bug

x ← 4 y ← 5 if True: print(5) print('*')

Execution Omission

x ← 4 y ← 5 if True: print(5) print('*') x ← 0 y ← 2 if False: print('*') 1) x ← input() 2) y ← input() 3) if x > 3: 4) print(y) 5) print('*')

Correct Buggy

Symmetric trials at each step 1) 2) explain the missed behavior, too.

Comparative Causality

Explaining a failure:

• Reproducing the failure is not enough.
• Requires explaining why both executions

differ from each other

Comparative Causality

Explaining a failure:

• Reproducing the failure is not enough.
• Requires explaining why both executions

differ from each other

• Dual slicing ensures

– That we compare behaviors from the two executions

Comparative Causality

Explaining a failure:

• Reproducing the failure is not enough.
• Requires explaining why both executions

differ from each other

• Dual slicing ensures

– That we compare behaviors from the two executions

• Symmetric comparison explains

– Why the buggy execution did something wrong – Why the buggy execution didn't do something right

Real Results

• Implemented with LLVM
• 20 KLOC
• Automatically explains bugs in C programs.

– 20kloc - 400kloc – 400kinst – 2.24minst

Real Results

Program Size CC Old Trials Time Stmts Root Trials Time Stmts Root Precision Recall find 73k 15 12 6 X 1260 253

• gnuplot

144k 33 44 10 X 469 141 10 X 1 1 gnuplot 139k 323 200 48 X 208 51

• gnuplot

134k 337 961 129

• 1888 950

121

• 0.97

0.91 gnuplot 134k 130 140 33

• 3012 931

38

• 0.87

1 grep 12k 186 114 62

• 1012 8263 23
• 0.96

0.35 grep 12k 327 156 69

• 1734 183

32

• 1

0.46 grep 12k 78 49 27 X 1546 168 23

• 0.96

0.81 make 30k 62 342 27 X 543 416 17

• 1

0.63 tar 20k 8 22 3 X 221 50 3 X 1 1 tar 24k 125 124 48 X 332 110

• tar

20k 121 53 20 X 296 66

• tar

20k 28 43 10 X 2117 439 5

• 1

0.5 tar 21k 87 80 23 X 709 165 15 X 0.73 0.48 tar 21k 15 22 4 X 1283 228 4 X 1 1 Avg. 125 157 34 1109 828 20 0.22 0.26

Real Results

Program Size CC Old Trials Time Stmts Root Trials Time Stmts Root Precision Recall find 73k 15 12 6 X 1260 253

• gnuplot

144k 33 44 10 X 469 141 10 X 1 1 gnuplot 139k 323 200 48 X 208 51

• gnuplot

134k 337 961 129

• 1888 950

121

• 0.97

0.91 gnuplot 134k 130 140 33

• 3012 931

38

• 0.87

1 grep 12k 186 114 62

• 1012 8263 23
• 0.96

0.35 grep 12k 327 156 69

• 1734 183

32

• 1

0.46 grep 12k 78 49 27 X 1546 168 23

• 0.96

0.81 make 30k 62 342 27 X 543 416 17

• 1

0.63 tar 20k 8 22 3 X 221 50 3 X 1 1 tar 24k 125 124 48 X 332 110

• tar

20k 121 53 20 X 296 66

• tar

20k 28 43 10 X 2117 439 5

• 1

0.5 tar 21k 87 80 23 X 709 165 15 X 0.73 0.48 tar 21k 15 22 4 X 1283 228 4 X 1 1 Avg. 125 157 34 1109 828 20 0.22 0.26

Real Results

Program Size CC Old Trials Time Stmts Root Trials Time Stmts Root Precision Recall find 73k 15 12 6 X 1260 253

• gnuplot

144k 33 44 10 X 469 141 10 X 1 1 gnuplot 139k 323 200 48 X 208 51

• gnuplot

134k 337 961 129

• 1888 950

121

• 0.97

0.91 gnuplot 134k 130 140 33

• 3012 931

38

• 0.87

1 grep 12k 186 114 62

• 1012 8263 23
• 0.96

0.35 grep 12k 327 156 69

• 1734 183

32

• 1

0.46 grep 12k 78 49 27 X 1546 168 23

• 0.96

0.81 make 30k 62 342 27 X 543 416 17

• 1

0.63 tar 20k 8 22 3 X 221 50 3 X 1 1 tar 24k 125 124 48 X 332 110

• tar

20k 121 53 20 X 296 66

• tar

20k 28 43 10 X 2117 439 5

• 1

0.5 tar 21k 87 80 23 X 709 165 15 X 0.73 0.48 tar 21k 15 22 4 X 1283 228 4 X 1 1 Avg. 125 157 34 1109 828 20 0.22 0.26

Real Results

Program Size CC Old Trials Time Stmts Root Trials Time Stmts Root Precision Recall find 73k 15 12 6 X 1260 253

• gnuplot

144k 33 44 10 X 469 141 10 X 1 1 gnuplot 139k 323 200 48 X 208 51

• gnuplot

134k 337 961 129

• 1888 950

121

• 0.97

0.91 gnuplot 134k 130 140 33

• 3012 931

38

• 0.87

1 grep 12k 186 114 62

• 1012 8263 23
• 0.96

0.35 grep 12k 327 156 69

• 1734 183

32

• 1

0.46 grep 12k 78 49 27 X 1546 168 23

• 0.96

0.81 make 30k 62 342 27 X 543 416 17

• 1

0.63 tar 20k 8 22 3 X 221 50 3 X 1 1 tar 24k 125 124 48 X 332 110

• tar

20k 121 53 20 X 296 66

• tar

20k 28 43 10 X 2117 439 5

• 1

0.5 tar 21k 87 80 23 X 709 165 15 X 0.73 0.48 tar 21k 15 22 4 X 1283 228 4 X 1 1 Avg. 125 157 34 1109 828 20 0.22 0.26

Precise reasoning is more efficient! 3 min 14 min

Real Results

Program Size CC Old Trials Time Stmts Root Trials Time Stmts Root Precision Recall find 73k 15 12 6 X 1260 253

• gnuplot

144k 33 44 10 X 469 141 10 X 1 1 gnuplot 139k 323 200 48 X 208 51

• gnuplot

134k 337 961 129

• 1888 950

121

• 0.97

0.91 gnuplot 134k 130 140 33

• 3012 931

38

• 0.87

1 grep 12k 186 114 62

• 1012 8263 23
• 0.96

0.35 grep 12k 327 156 69

• 1734 183

32

• 1

0.46 grep 12k 78 49 27 X 1546 168 23

• 0.96

0.81 make 30k 62 342 27 X 543 416 17

• 1

0.63 tar 20k 8 22 3 X 221 50 3 X 1 1 tar 24k 125 124 48 X 332 110

• tar

20k 121 53 20 X 296 66

• tar

20k 28 43 10 X 2117 439 5

• 1

0.5 tar 21k 87 80 23 X 709 165 15 X 0.73 0.48 tar 21k 15 22 4 X 1283 228 4 X 1 1 Avg. 125 157 34 1109 828 20 0.22 0.26

125 trials 1100 trials

Real Results

Program Size CC Old Trials Time Stmts Root Trials Time Stmts Root Precision Recall find 73k 15 12 6 X 1260 253

• gnuplot

144k 33 44 10 X 469 141 10 X 1 1 gnuplot 139k 323 200 48 X 208 51

• gnuplot

134k 337 961 129

• 1888 950

121

• 0.97

0.91 gnuplot 134k 130 140 33

• 3012 931

38

• 0.87

1 grep 12k 186 114 62

• 1012 8263 23
• 0.96

0.35 grep 12k 327 156 69

• 1734 183

32

• 1

0.46 grep 12k 78 49 27 X 1546 168 23

• 0.96

0.81 make 30k 62 342 27 X 543 416 17

• 1

0.63 tar 20k 8 22 3 X 221 50 3 X 1 1 tar 24k 125 124 48 X 332 110

• tar

20k 121 53 20 X 296 66

• tar

20k 28 43 10 X 2117 439 5

• 1

0.5 tar 21k 87 80 23 X 709 165 15 X 0.73 0.48 tar 21k 15 22 4 X 1283 228 4 X 1 1 Avg. 125 157 34 1109 828 20 0.22 0.26

35 stmts 20 stmts

Real Results

Program Size CC Old Trials Time Stmts Root Trials Time Stmts Root Precision Recall find 73k 15 12 6 X 1260 253

• gnuplot

144k 33 44 10 X 469 141 10 X 1 1 gnuplot 139k 323 200 48 X 208 51

• gnuplot

134k 337 961 129

• 1888 950

121

• 0.97

0.91 gnuplot 134k 130 140 33

• 3012 931

38

• 0.87

1 grep 12k 186 114 62

• 1012 8263 23
• 0.96

0.35 grep 12k 327 156 69

• 1734 183

32

• 1

0.46 grep 12k 78 49 27 X 1546 168 23

• 0.96

0.81 make 30k 62 342 27 X 543 416 17

• 1

0.63 tar 20k 8 22 3 X 221 50 3 X 1 1 tar 24k 125 124 48 X 332 110

• tar

20k 121 53 20 X 296 66

• tar

20k 28 43 10 X 2117 439 5

• 1

0.5 tar 21k 87 80 23 X 709 165 15 X 0.73 0.48 tar 21k 15 22 4 X 1283 228 4 X 1 1 Avg. 125 157 34 1109 828 20 0.22 0.26

35 stmts

Real Results

Program Size CC Old Trials Time Stmts Root Trials Time Stmts Root Precision Recall find 73k 15 12 6 X 1260 253

• gnuplot

144k 33 44 10 X 469 141 10 X 1 1 gnuplot 139k 323 200 48 X 208 51

• gnuplot

134k 337 961 129

• 1888 950

121

• 0.97

0.91 gnuplot 134k 130 140 33

• 3012 931

38

• 0.87

1 grep 12k 186 114 62

• 1012 8263 23
• 0.96

0.35 grep 12k 327 156 69

• 1734 183

32

• 1

0.46 grep 12k 78 49 27 X 1546 168 23

• 0.96

0.81 make 30k 62 342 27 X 543 416 17

• 1

0.63 tar 20k 8 22 3 X 221 50 3 X 1 1 tar 24k 125 124 48 X 332 110

• tar

20k 121 53 20 X 296 66

• tar

20k 28 43 10 X 2117 439 5

• 1

0.5 tar 21k 87 80 23 X 709 165 15 X 0.73 0.48 tar 21k 15 22 4 X 1283 228 4 X 1 1 Avg. 125 157 34 1109 828 20 0.22 0.26

Real Results

Program Size CC Old Trials Time Stmts Root Trials Time Stmts Root Precision Recall find 73k 15 12 6 X 1260 253

• gnuplot

144k 33 44 10 X 469 141 10 X 1 1 gnuplot 139k 323 200 48 X 208 51

• gnuplot

134k 337 961 129

• 1888 950

121

• 0.97

0.91 gnuplot 134k 130 140 33

• 3012 931

38

• 0.87

1 grep 12k 186 114 62

• 1012 8263 23
• 0.96

0.35 grep 12k 327 156 69

• 1734 183

32

• 1

0.46 grep 12k 78 49 27 X 1546 168 23

• 0.96

0.81 make 30k 62 342 27 X 543 416 17

• 1

0.63 tar 20k 8 22 3 X 221 50 3 X 1 1 tar 24k 125 124 48 X 332 110

• tar

20k 121 53 20 X 296 66

• tar

20k 28 43 10 X 2117 439 5

• 1

0.5 tar 21k 87 80 23 X 709 165 15 X 0.73 0.48 tar 21k 15 22 4 X 1283 228 4 X 1 1 Avg. 125 157 34 1109 828 20 0.22 0.26

27% explained 73% explained

Real Results

Program Size CC Old Trials Time Stmts Root Trials Time Stmts Root Precision Recall find 73k 15 12 6 X 1260 253

• gnuplot

144k 33 44 10 X 469 141 10 X 1 1 gnuplot 139k 323 200 48 X 208 51

• gnuplot

134k 337 961 129

• 1888 950

121

• 0.97

0.91 gnuplot 134k 130 140 33

• 3012 931

38

• 0.87

1 grep 12k 186 114 62

• 1012 8263 23
• 0.96

0.35 grep 12k 327 156 69

• 1734 183

32

• 1

0.46 grep 12k 78 49 27 X 1546 168 23

• 0.96

0.81 make 30k 62 342 27 X 543 416 17

• 1

0.63 tar 20k 8 22 3 X 221 50 3 X 1 1 tar 24k 125 124 48 X 332 110

• tar

20k 121 53 20 X 296 66

• tar

20k 28 43 10 X 2117 439 5

• 1

0.5 tar 21k 87 80 23 X 709 165 15 X 0.73 0.48 tar 21k 15 22 4 X 1283 228 4 X 1 1 Avg. 125 157 34 1109 828 20 0.22 0.26

Real Results

Program Size #Inst CC Slicing Stmts Stmts find 73k 481K 6 185 gnuplot 144k 461K 10 148 gnuplot 139k 1.34M 48 464 gnuplot 134k 2.18M 129 368 gnuplot 134k 2.19M 33 237 grep 12k 415K 62 153 grep 12k 434K 69 109 grep 12k 466K 27 95 make 30k 2.24M 27 38 tar 20k 1.22M 3 3 tar 24k 962K 48 61 tar 20k 1.11M 20 1239 tar 20k 1.12M 10 1270 tar 21k 1.26M 23 25 tar 21k 1.19M 4 557 Avg. 34 330

35 stmts 330 stmts

Program Size #Inst Lucid Slicing Stmts Stmts find 73k 481K 6 185 gnuplot 144k 461K 10 148 gnuplot 139k 1.34M 48 464 gnuplot 134k 2.18M 129 368 gnuplot 134k 2.19M 33 237 grep 12k 415K 62 153 grep 12k 434K 69 109 grep 12k 466K 27 95 make 30k 2.24M 27 38 tar 20k 1.22M 3 3 tar 24k 962K 48 61 tar 20k 1.11M 20 1239 tar 20k 1.12M 10 1270 tar 21k 1.26M 23 25 tar 21k 1.19M 4 557 Avg. 34 330

Real Results

More than an order

• f magnitude

Explaining a Bug (from tar)

int read_header() 1) name ← input() int extract_dir() 2) status ← mkdir(name) 3) if status 4) if !is_dir(name): 5) error() 6) return status void extract_archive() 7) status = extract_dir(name) 8) if status: 9) undo_last_backup()

Symptom:

Nothing extracted from archive when backing up existing files.

Why?

Explaining a Bug (from tar)

int read_header() 1) name ← input() int extract_dir() 2) status ← mkdir(name) 3) if status 4) if !is_dir(name): 5) error() 6) return status void extract_archive() 7) status = extract_dir(name) 8) if status: 9) undo_last_backup() 8

extract undo backup

Explaining a Bug (from tar)

int read_header() 1) name ← input() int extract_dir() 2) status ← mkdir(name) 3) if status 4) if !is_dir(name): 5) error() 6) return status void extract_archive() 7) status = extract_dir(name) 8) if status: 9) undo_last_backup() 8

extract undo backup

7

status = -1 status = 0

Explaining a Bug (from tar)

int read_header() 1) name ← input() int extract_dir() 2) status ← mkdir(name) 3) if status 4) if !is_dir(name): 5) error() 6) return status void extract_archive() 7) status = extract_dir(name) 8) if status: 9) undo_last_backup() 8

extract undo backup

7 6

status = -1 status = 0 status = 0 status = -1

Explaining a Bug (from tar)

int read_header() 1) name ← input() int extract_dir() 2) status ← mkdir(name) 3) if status 4) if !is_dir(name): 5) error() 6) return status void extract_archive() 7) status = extract_dir(name) 8) if status: 9) undo_last_backup() 8

extract undo backup

7 6 2

status = -1 status = 0 status = 0 status = -1 status = -1 status = 0

Explaining a Bug (from tar)

int read_header() 1) name ← input() int extract_dir() 2) status ← mkdir(name) 3) if status 4) if !is_dir(name): 5) error() 6) return status void extract_archive() 7) status = extract_dir(name) 8) if status: 9) undo_last_backup() 8

extract undo backup

7 6 2 1

status = -1 status = 0 status = 0 status = -1 status = -1 status = 0 name=”dir” name=”dir2”

Explaining a Bug (from tar)

int read_header() 1) name ← input() int extract_dir() 2) status ← mkdir(name) 3) if status 4) if !is_dir(name): 5) error() 6) return status void extract_archive() 7) status = extract_dir(name) 8) if status: 9) undo_last_backup()

Symptom:

Nothing extracted from archive when backing up existing files.

Why?

Because an existing directory sets a failure status the undoes extraction.

Explaining a Bug (from tar)

int read_header() 1) name ← input() int extract_dir() 2) status ← mkdir(name) 3) if status 4) if !is_dir(name): 5) error() 6) return status void extract_archive() 7) status = extract_dir(name) 8) if status: 9) undo_last_backup()

Symptom:

Nothing extracted from archive when backing up existing files.

Why?

Because an existing directory sets a failure status the undoes extraction. else: status = 0

Limitations

• Needs a deterministic, reproducible failure
• Depends on the correct run
• Requires a model of external state, I/O

Related Work

• Delta debugging

[Zeller FSE'02]

• Fault Localization

[Jones ASE'05, Liblit PLDI'04]

• Tests for Localization

[Artzi ICSE'10, Rößler ISSTA'12]

• Dynamic slicing

[Zhang PLDI'04]

• Constraint Comparison

[Qi FSE'09]

• Identifying repair candidates

[Chandra ICSE'11,Jeffrey ISSTA'08]

Future Work

Comparative Causality is a general framework for explaining why executions differ.

• Debugging
• Program understanding
• Reverse engineering

Conclusions

• Failures can be explained by explaining why

executions differ.

Conclusions

• Failures can be explained by explaining why

executions differ.

• Executing the dual slice guards against the

effects of confounding from state replacement.

Conclusions

• Failures can be explained by explaining why

executions differ.

• Executing the dual slice guards against the

effects of confounding from state replacement.

• Symmetric causality testing explains

– Observed incorrect behaviors – Missing correct behaviors

Conclusions

• Failures can be explained by explaining why

executions differ.

• Executing the dual slice guards against the

effects of confounding from state replacement.

• Symmetric causality testing explains

– Observed incorrect behaviors – Missing correct behaviors

• Comparative Causality yields precise and

concise explanations for real world bugs.

Comparative Causality: Explaining the Differences Between Executions

William N. Sumner Xiangyu Zhang {wsumner,xyzhang} @ cs.purdue.edu ICSE 2013 22 May 2013
