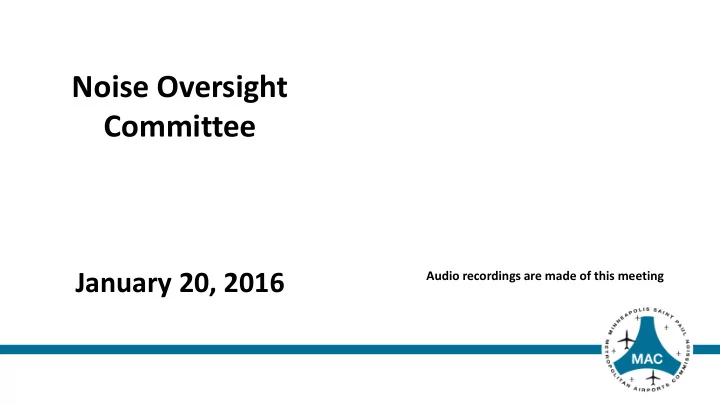

Noise Oversight Committee

January 20, 2016

Audio recordings are made of this meeting

Noise Oversight Committee January 20, 2016

Item 1: Review and Approval of November 18, 2015 Meeting Minutes

Noise Oversight Committee January 20, 2016

Item 2: Review of Operations Report Summary November and December 2015

2014 2015

November 6,264 6,955 December 5,227 5,913

MSP Complaints

Technical Advisor’s Report Summary

200 400 600 800 1,000 1,200 1,400 1,600 1,800 2,000 4,000 6,000 8,000 10,000 12,000 14,000 16,000 18,000 JAN MAR MAY JUL SEP NOV JAN MAR MAY JUL SEP NOV JAN MAR MAY JUL SEP NOV JAN MAR MAY JUL SEP NOV JAN MAR MAY JUL SEP NOV JAN MAR MAY JUL SEP NOV 2010 2011 2012 2013 2014 2015 HOUSEHOLDS COMPLAINTS COMPLAINTS HOUSEHOLDS

2014 2015

November 31,256 31,896 December 32,613 32,356

Total MSP Aircraft Operations

Technical Advisor’s Report Summary

Year-End MSP Aircraft Operations

Total

2015 402,285 2014 408,454

33,048 29,772 36,227 33,827 34,377 35,659 37,306 36,689 33,085 34,595 31,256 32,613 31,371 29,033 35,119 32,686 33,409 35,542 37,132 36,885 32,887 33,969 31,896 32,356 24,000 26,000 28,000 30,000 32,000 34,000 36,000 38,000 40,000 JAN FEB MAR APR MAY JUN JUL AUG SEP OCT NOV DEC AIRCRAFT OPERATIONS

2014 2015

2014 2015 Regional Jet Modified Stage 3 Other Regional Jet Modified Stage 3 Other November 48.7% 0.0% 51.3% 45.3% 0.0% 54.7% December 47.9% 0.0% 52.1% 44.6% 0.0% 55.4%

Air Carrier Jet Fleet Composition

2014 2015 November 29,170 29,371 December 30,292 29,828

Technical Advisor’s Report Summary

Air Carrier Jet Operations

2014 2015

November 1,375 1,632 December 1,547 1,840

Nighttime Operations

(10:30pm – 6:00am)

Source: Metropolitan Airports Commission’s Finance Department Monthly Passenger and Operations Reports

MSP Passenger Data

10,000 12,500 15,000 17,500 20,000 22,500 25,000 27,500 30,000 200,000 300,000 400,000 500,000 600,000 700,000 800,000 900,000 1,000,000 Jan Mar May Jul Sep Nov Jan Mar May Jul Sep Nov Jan Mar May Jul Sep Nov Jan Mar May Jul Sep Nov Jan Mar May Jul Sep Nov Jan Mar May Jul Sep Nov Jan Mar May Jul Sep Nov 2009 2010 2011 2012 2013 2014 2015

Operations Passengers

Regional Air Carrier Operations and Passengers

5,000 10,000 15,000 20,000 25,000 30,000 500,000 1,000,000 1,500,000 2,000,000 2,500,000 3,000,000 Jan Mar May Jul Sep Nov Jan Mar May Jul Sep Nov Jan Mar May Jul Sep Nov Jan Mar May Jul Sep Nov Jan Mar May Jul Sep Nov Jan Mar May Jul Sep Nov Jan Mar May Jul Sep Nov 2009 2010 2011 2012 2013 2014 2015

Operations Passengers

Major Air Carrier Operations and Passengers

Passengers Operations

NOVEMBER ARRIVALS NOVEMBER DEPARTURES

Technical Advisor’s Report Summary

100 200 300 400 500 SCH ACT SCH ACT SCH ACT SCH ACT SCH ACT SCH ACT SCH ACT SCH ACT 22:30 23:00 0:00 1:00 2:00 3:00 4:00 5:00 AAL ASA ASH ASQ CPZ CSQ DAL FDX FFT FLG JZA NKS OTHER RPA SCX SKW SWA TCF UAL UPS ACA BSK DYN GJS MNU SWQ UJC 50 100 150 200 250 300 SCH ACT SCH ACT SCH ACT SCH ACT SCH ACT SCH ACT SCH ACT SCH ACT 22:30 23:00 0:00 1:00 2:00 3:00 4:00 5:00 AAL ASQ CPZ DAL FFT FLG GTI NKS OTHER RPA SCX SKW SWA UAL UPS GJS SWQ FDX TCF ACA BSK NCA UJC

DECEMBER ARRIVALS DECEMBER DEPARTURES

Technical Advisor’s Report Summary

100 200 300 400 500 SCH ACT SCH ACT SCH ACT SCH ACT SCH ACT SCH ACT SCH ACT SCH ACT 22:30 23:00 0:00 1:00 2:00 3:00 4:00 5:00 AAL ASA ASH ASQ CPZ DAL FDX FFT FLG GJS JZA NKS RPA SCX SKW SWA TCF UAL UPS ACA DYN MNU OTHER GTI 50 100 150 200 250 300 350 400 SCH ACT SCH ACT SCH ACT SCH ACT SCH ACT SCH ACT SCH ACT SCH ACT 22:30 23:00 0:00 1:00 2:00 3:00 4:00 5:00 AAL ACA CPZ DAL FDX FFT FLG GJS NKS OTHER RPA SCX SKW SWA TCF UAL UPS MNU ASQ GTI BSK

Nov Dec Runway 17 Carrier Jet Departures 5,193 4,691

Runway 17 Departure Analysis Summary

Nov Dec Compliance with Runway 17 Departure Procedure 5,183 (99.8%) 4,682 (99.8%)

98.0% 98.5% 99.0% 99.5% 100.0% MAR MAY JUL SEP NOV JAN MAR MAY JUL SEP NOV JAN MAR MAY JUL SEP NOV JAN MAR MAY JUL SEP NOV JAN MAR MAY JUL SEP NOV JAN MAR MAY JUL SEP NOV 2010 2011 2012 2013 2014 2015

RUNWAY 17 DEPARTURE PROCEDURE COMPLIANCE

Eagan-Mendota Heights Departure Corridor Analysis Summary

Nov Dec Runway 12L and 12R Carrier Jet Procedures 4,405 3,183 Nov Dec Carrier Jets Remaining in the Corridor 4,198 (95.3%) 2,942 (92.4%)

80% 85% 90% 95% 100% MAR MAY JUL SEP NOV JAN MAR MAY JUL SEP NOV JAN MAR MAY JUL SEP NOV JAN MAR MAY JUL SEP NOV JAN MAR MAY JUL SEP NOV JAN MAR MAY JUL SEP NOV 2010 2011 2012 2013 2014 2015

EAGAN-MENDOTA HEIGHTS CORRIDOR COMPLIANCE

Crossing-in-the-Corridor Analysis Summary

Night Tim ime (23 (23:00 – 06: 06:00) Nov Dec Dec Carrier Jet Departures Crossing-in-the-Corridor 152 (55%) 144 (43%) Da Day Tim ime (6:0 (6:00 – 23: 23:00) Nov Dec Dec Carrier Jet Departures Crossing-in-the-Corridor 4,253 (32%) 3,039 (30%)

RUS Report Summary November

November Count Percent Arrivals on 30L, 30R and 35 6,045 18.95% Departures on 12L, 12R and 17 10,397 32.60% Use of RUS High-Priority Runways 16,442 51.55%

RUS Report Summary December

December Count Percent Arrivals on 30L, 30R and 35 9,005 27.83% Departures on 12L, 12R and 17 8,542 26.40% Use of RUS High-Priority Runways 17,547 54.23%

50% 51% 52% 53% 54% 55% MAR MAY JUL SEP NOV JAN MAR MAY JUL SEP NOV JAN MAR MAY JUL SEP NOV JAN MAR MAY JUL SEP NOV JAN MAR MAY JUL SEP NOV JAN MAR MAY JUL SEP NOV 2010 2011 2012 2013 2014 2015

USE OF RUS HIGH-PRIORITY RUNWAYS

Hourly Runway Configuration

NOV DEC 2015 MA 2.73% 12.56% N 13.20% 12.41% N* 19.27% 22.90% O 6.37% 8.42% S 36.72% 27.47% S* 21.70% 15.21% U 0.00% 1.03%

0.00% 5.00% 10.00% 15.00% 20.00% 25.00% 30.00% 35.00% 40.00%

MSP HOURLY RUNWAY CONFIGURATION

MA N N* O S S* U

RUS High-Priority Runways RUS High-Priority Runways

RUS Report Summary November Departures RUS Report Summary November Arrivals

NOVEMBER 2015 NOVEMBER HISTORICAL

4 12L 12R 17 22 30L 30R 35 Total Operations Percent 0.01% 21.39% 9.00% 34.81% 0.04% 19.53% 15.21% 0.00% Nighttime Percent (10:30 P.M. - 6:00 A.M.) 0.00% 0.38% 0.85% 0.13% 0.00% 0.69% 0.26% 0.00% Morning Transition Percent (6:00 A.M. - 7:30 A.M.) 0.01% 1.76% 1.68% 2.16% 0.01% 1.76% 1.25% 0.00% Evening Transition Percent (9:00 P.M. - 10:30 P.M.) 0.00% 1.88% 1.44% 0.07% 0.00% 0.91% 1.04% 0.00% 0% 5% 10% 15% 20% 25% 30% 35% 40% 4 12L 12R 17 22 30L 30R 35 Total Operations Percent 0.00% 29.20% 32.90% 0.00% 0.00% 16.21% 14.88% 6.81% Nighttime Percent (10:30 P.M. - 6:00 A.M.) 0.00% 1.29% 3.18% 0.00% 0.00% 2.64% 0.76% 0.06% Morning Transition Percent (6:00 A.M. - 7:30 A.M.) 0.00% 0.62% 0.39% 0.00% 0.00% 0.34% 0.52% 0.03% Evening Transition Percent (9:00 P.M. - 10:30 P.M.) 0.00% 0.92% 1.36% 0.00% 0.00% 0.85% 0.48% 0.01% 0% 5% 10% 15% 20% 25% 30% 35%

RUS High-Priority Runways RUS High-Priority Runways

RUS Report Summary December Departures RUS Report Summary December Arrivals

DECEMBER 2015 DECEMBER HISTORICAL

4 12L 12R 17 22 30L 30R 35 Total Operations Percent 1.23% 14.33% 7.32% 31.19% 0.02% 23.36% 22.54% 0.00% Nighttime Percent (10:30 P.M. - 6:00 A.M.) 0.05% 0.32% 0.80% 0.28% 0.00% 0.96% 0.54% 0.00% Morning Transition Percent (6:00 A.M. - 7:30 A.M.) 0.20% 0.66% 1.37% 2.05% 0.00% 1.75% 1.19% 0.00% Evening Transition Percent (9:00 P.M. - 10:30 P.M.) 0.00% 1.27% 1.01% 0.27% 0.01% 1.46% 1.70% 0.00% 0% 5% 10% 15% 20% 25% 30% 35% 4 12L 12R 17 22 30L 30R 35 Total Operations Percent 0.00% 20.65% 23.73% 0.00% 0.00% 25.19% 21.96% 8.46% Nighttime Percent (10:30 P.M. - 6:00 A.M.) 0.00% 1.05% 2.17% 0.00% 0.00% 3.89% 1.23% 0.08% Morning Transition Percent (6:00 A.M. - 7:30 A.M.) 0.00% 0.69% 0.42% 0.00% 0.00% 0.54% 0.83% 0.12% Evening Transition Percent (9:00 P.M. - 10:30 P.M.) 0.00% 0.69% 0.83% 0.00% 0.00% 1.30% 0.93% 0.06% 0% 5% 10% 15% 20% 25% 30%

Noise Oversight Committee January 20, 2016

Item 3: Update on the FAA’s Survey to Re-Evaluate Noise Measurement Methods

18

Item 3: Update on the FAA’s Survey to Re-Evaluate Noise Measurement Methods

On May 7, 2015 the FAA announced it would begin evaluating its methods for measuring aircraft noise. This is a multi-year process, which the FAA began in mid-2015 with a survey of public perceptions of aircraft noise. The survey will take place for a year’s time in communities situated around 20 airports nationwide. The FAA is not disclosing the airport communities in which it will conduct the survey. According to the FAA, the results will be used to determine whether an update to FAA policies regarding the Day-Night Average Sound Level (DNL) metric is warranted, along with the parameters under which a home is eligible to receive federal funding for mitigation (65 decibel DNL).

Item 3: Update on the FAA’s Survey to Re-Evaluate Noise Measurement Methods

Viewing this as an opportune time to address the FAA about noise impacts beyond the 65 decibel DNL noise level, on January 19, 2016 the City of St. Louis Park passed a city resolution titled: Resolution Regarding Federal Aviation Administration Recognition of Aircraft Noise Impacts outside the Day-Night Average Sound Level (DNL) 65 Decibel Threshold. The Resolution is to be delivered by the City of St. Louis Park to the FAA administration in Washington DC.

Noise Oversight Committee January 20, 2016

Item 4: MSP Converging Runway Operations Presentation: Elaine Buckner, MSP Air Traffic Manager

Noise Oversight Committee January 20, 2016

The 2016 NOC Work Plan includes a trend analysis in wind and the relationship to aircraft noise complaints.

Item 5: Wind and Aircraft Noise Complaint Trend Analysis

FAA’s runway use decisions are often predicated on the direction and speed of the wind as aircraft need to land and takeoff into the wind. At MSP, winds in the summer are generally from the south and southeast with warmer temperatures, while autumn and winter trends favor winds from the north and northwest. However, autumn and winter of 2015 produced higher than average temperatures and more south and southeast winds than previous years.

Item 5: Wind and Aircraft Noise Complaint Trend Analysis

Sept-Dec 2014 Sept – Dec 2015

Source: Iowa Environmental Mesonet (IEM)

In 2014 temperatures in autumn and winter were slightly below normal, while the temperatures in 2015 were 4°C (7.2°F) above normal.

Item 5: Wind and Aircraft Noise Complaint Trend Analysis

Source: National Weather Service Twin Cities/Chanhassen

With south flow configurations lasting longer into the 3rd and 4th quarters of 2015, areas to the northwest experienced more arrival flights than previous years, while areas to the south and southeast saw an increase in departure traffic. South Flow (S) Straight South Flow (S*)

4TH Q 4TH Q 4TH Q 4TH Q 4TH Q 2011 2012 2013 2014 2015 MA 7.7% 6.9% 10.1% 6.0% 7.1% MB 0.0% 0.2% 0.0% 0.0% 0.2% N 34.7% 29.6% 32.3% 27.8% 15.4% N* 10.8% 13.3% 16.8% 18.7% 18.3% O 13.2% 11.0% 10.3% 9.9% 8.1% S 21.9% 26.0% 20.4% 22.1% 32.2% S* 11.6% 13.1% 10.1% 14.7% 18.4% U 0.1% 0.0% 0.0% 0.8% 0.3% 0.0% 5.0% 10.0% 15.0% 20.0% 25.0% 30.0% 35.0% 40.0%

4TH QUARTER RUNWAY CONFIGURATIONS

MA MB N N* O S S* U 3RD Q 3RD Q 3RD Q 3RD Q 3RD Q 2011 2012 2013 2014 2015 MA 9.1% 8.6% 7.9% 7.4% 10.7% MB 0.1% 0.4% 0.1% 0.0% 0.0% N 41.4% 41.2% 31.0% 31.2% 10.3% N* 6.5% 7.0% 6.1% 9.3% 16.0% O 11.0% 11.3% 8.6% 8.7% 8.0% S 21.6% 21.5% 31.3% 28.8% 37.5% S* 10.0% 9.8% 15.0% 14.7% 17.6% U 0.3% 0.1% 0.0% 0.1% 0.0% 0.0% 5.0% 10.0% 15.0% 20.0% 25.0% 30.0% 35.0% 40.0% 45.0%

3RD QUARTER RUNWAY CONFIGURATIONS

MA MB N N* O S S* U

Item 5: Wind and Aircraft Noise Complaint Trend Analysis

540,727 404,128* 300,000 350,000 400,000 450,000 500,000 550,000 600,000 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015* OPERATIONS

MSP ANNUAL OPERATIONS

Although some areas did see more aircraft traffic, the overall number of operations at MSP are down from 2014. While overall aircraft operations are down, nighttime

• perations have increased.

The FAA’s continuous use of south flow operations and increased nighttime flights have contributed to increased noise complaints.

21.0 15.0 17.4 19.4 23.8 24.8 26.7 26.6 20.6 16.3 17.6 15.9 16.9 18.7 21.4 4.5% 3.2%3.6%3.7% 4.6% 5.3% 6.0%6.0% 4.8% 3.8%4.1%3.8%3.9% 4.6% 5.3% 0% 2% 4% 6% 8% 10% 5 10 15 20 25 30 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015

NIGHT OPERATIONS(%) OPERATIONS THOUSANDS

MSP NIGHTTIME OPERATIONS

NIGHT OPERATIONS PERCENT OF OPERATIONS AT NIGHT

Source: FAA Operations Network (OPSNET) Airport Operations *Note: Totals for 2015 are estimated due to the unavailability of FAA data at the time of the report.

200 400 600 800 1,000 1,200 1,400 1,600 2,000 4,000 6,000 8,000 10,000 12,000 14,000 16,000 JAN MAR MAY JUL SEP NOV JAN MAR MAY JUL SEP NOV JAN MAR MAY JUL SEP NOV JAN MAR MAY JUL SEP NOV JAN MAR MAY JUL SEP NOV 2011 2012 2013 2014 2015

HOUSEHOLDS COMPLAINTS

MSP AIRCRAFT NOISE COMPLAINTS

COMPLAINTS HOUSEHOLDS

Noise Oversight Committee January 20, 2016

Item 6: Airbus Aircraft Vortex Generators

The 2016 NOC Work Plan includes an investigation into the noise reduction benefits of Vortex Generators on Airbus A320 aircraft.

Item 6: Airbus Aircraft Vortex Generators Airbus A320 Family of aircraft: A321 A320 A319 A318

During approach, the A320 family of aircraft emit a high- pitched sound:

• Due to air flowing across vent openings under the wings
• Perceived on the ground over 6 miles from the runway, as

the aircraft is approaching for landing, prior to landing gear and flap extension

Item 6: Airbus Aircraft Vortex Generators

Vortex generator:

• Small triangular piece of aluminum sheet metal that is

mounted upstream of air holes or vents on each wing

• Reported to eliminate high pitched tones
• Designed by German Aerospace Center (DLR)
• Lufthansa reports an overall noise reduction up to 4.4 dB
• All new Airbus aircraft delivered after 2014 will have these

devices installed before delivery

• Lufthansa and AirFrance have started installing vortex

generators on their fleet of A320s

Noise levels were recorded at six monitoring points near Frankfurt Airport. Vortex generators provided:

• 0.2 dB reduction up to 6 miles from the airport
• 1.5 dB to 2.5 dB reduction from 6 to 9 miles from the

airport

• 3.0 dB up to 4.4 dB reduction over 9 miles from the

airport

Source: Lufthansa Group

Photos courtesy of Lufthansa and Airbus

MSP A320 Arrivals

Item 6: Airbus Aircraft Vortex Generators

Total Arrivals A320 Family Arrivals A320 Family Arrivals (%) Nov 2010 17,452 2,314 13.3% Nov 2011 15,422 2,450 15.9% Nov 2012 16,512 2,261 13.7% Nov 2013 16,820 2,310 13.7% Nov 2014 15,626 3,050 19.5% Nov 2015 15,952 2,718 17.0%

January – November 2015 Airline ID Airline A320 Family Arrivals A320 Family Arrivals (%) DAL Delta 21,084 65% NKS Spirit 3,635 11% AAL American 2,642 8% UAL United 2,229 7% FFT Frontier 1,647 5% AWE US Airways 947 3% ACA Air Canada 18 0% VRD Virgin America 2 0% JBU JetBlue 1 0% WJA Westjet 1 0% 17% of MSP arrivals in November 2015 consisted of Airbus A320 family aircraft.

Noise Oversight Committee January 20, 2016

Item 7: Aviation Environmental Design Tool (AEDT) Update

Item 7: Aviation Environmental Design Tool (AEDT) Update

2014 Annual Noise Contour – INM vs. AEDT

MAC noise consultant, HNTB, continues to evaluate the differences between the AEDT and INM noise contours to understand the differences between the contours produced by each model. MAC staff is in communication with the Consent Decree cities to establish a path forward for the 2015 Annual Noise Contour Report.

Noise Oversight Committee January 20, 2016

Item 8: Public Comment Period
