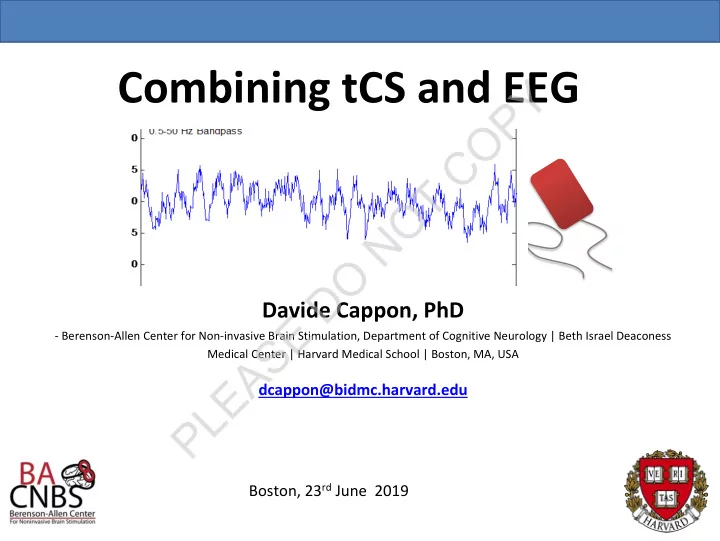

Combining tCS and EEG

Davide Cappon, PhD

  • Berenson-Allen Center for Non-invasive Brain Stimulation, Department of Cognitive Neurology | Beth Israel Deaconess

Medical Center | Harvard Medical School | Boston, MA, USA

dcappon@bidmc.harvard.edu Boston, 23rd June 2019

P L E A S E D O N O T C O P Y

slide-2
SLIDE 2

axies that can be seen today make up ju NASA

P L E A S E D O N O T C O P Y

slide-3
SLIDE 3

Observable Universe

P L E A S E D O N O T C O P Y

slide-4
SLIDE 4

Observable Universe Planet Earth

P L E A S E D O N O T C O P Y

slide-5
SLIDE 5
  • Measuring tCS effects with EEG

➢ Measuring effects outside the motor cortex ➢ Measuring focality of tCS interventions

  • Basics of EEG

➢ EEG signal: features and opportunities ➢ Analysis (ERP,Power, ...) ➢ Experimental example of EEG-tCS combination

  • Beyond EEG

➢ TMS-EEG recording

Outline

P L E A S E D O N O T C O P Y

slide-6
SLIDE 6

Corticospinal excitability as an index of Brain excitability Applied to tCS: limitation for online recording, only after effects

P L E A S E D O N O T C O P Y

slide-7
SLIDE 7

Measuring tCS effects without EEG

First evidence of tDCS after effect from Nitsche and Paulus, 2000 Changes in cortical excitability assessed using TMS-EMG

P L E A S E D O N O T C O P Y

slide-8
SLIDE 8

tDCS effect on corticospinal excitability:Online and Offline effects

Santarnecchi et al., 2014

P L E A S E D O N O T C O P Y

slide-9
SLIDE 9

tDCS Effects on the motor cortex: pre/during/post

ONLINE (15’) PRE (15’) POST (30’) Anodal and Cathodal tDCS modulate (increase/decrease excitability) right after the stimulation respect to Sham. No significant effects During the stimulation.

Still limited to the motor cortex!

P L E A S E D O N O T C O P Y

slide-10
SLIDE 10

Are we stimulating the motor cortex?

Montage, Timing, Stimulation site, Duration, Intensity, etc. suggest a complex scenario underlying tCS effects TMS-EMG is not enough Kuo et al., 2013 HD-tDCS

P L E A S E D O N O T C O P Y

slide-11
SLIDE 11

Multifactorial model

…Brain… Brain state (electrophysiological recording - EEG) Individual trait (personality, cognitive profile) Behavioural performance Behavioural scores Electrophysiological responses – EEG/ERPs/etc.. Neuroimaging ($$$) Genetics (e.g. BDNF) Physiological measurements (EKG, EDR,..) EEG/ERPs/??? fMRI? BEFORE DURING AFTER

?

Neuroimaging ($$$)

P L E A S E D O N O T C O P Y

slide-12
SLIDE 12

Targeting Optimization

P L E A S E D O N O T C O P Y

slide-13
SLIDE 13

Open questions..

  • the effect of tCS on Non-Motor regions?
  • distant effects and changes in the interplay between regions

(connectivity)  Network effects?

  • the Online effects of tCS on brain activity other than

“excitability”? Useful information to define tCS parameters and increase efficacy of interventions

P L E A S E D O N O T C O P Y

slide-14
SLIDE 14

1875: Richard Caton (1842-1926) measured currents in between the cortical surface and the skull, in dogs and monkeys 1929: Hans Berger (1873-1941) first EEG in humans (his young son), description of alpha and beta waves

  • 1950s. Grey Walter ( 1910 – 1977). Invention of topographic

EEG maps.

Electroencephalography

P L E A S E D O N O T C O P Y

slide-15
SLIDE 15

Where does the signal come from?

  • Signals stem from synchronous activity of large (~1000s)

groups of neurons close to each other and exhibiting similar patterns of activity

  • Most of the signal generated by pyramidal neurons in the

cortex (parallel to each other, oriented perpendicular to the surface)

  • EEG measures synaptic currents, not action potentials

(currents flow in opposite directions and cancel out!)

Electroencephalography

P L E A S E D O N O T C O P Y

slide-16
SLIDE 16

Primary intracellular currents give rise to volume currents and a magnetic field

Current Magnetic field Volume currents Magnetic field cortex skull scalp MEG pick-up coils Electrical potential difference (EEG) Volume currents yield potential differences on the scalp that can be measured by EEG

Electroencephalography

P L E A S E D O N O T C O P Y

slide-17
SLIDE 17

Pros and cons of EEG

P L E A S E D O N O T C O P Y

slide-18
SLIDE 18

EEG recording and analysis

P L E A S E D O N O T C O P Y

slide-19
SLIDE 19

EEG recording

  • International 10-20 system
  • Left side: odd numbers
  • Right side: even numbers
  • Numbers increase from the hemispheric line towards the edges. Letter

indicates brain regions (lobes). High-Density EEG (64-256 Channels)

P L E A S E D O N O T C O P Y

slide-20
SLIDE 20
  • EEG records potential differences at the scalp using a set of

active electrodes and a reference

  • The ground electrode is important to eliminate noise from the

amplifier circuit

  • Potential differences are then amplified
  • The representation of the EEG

channels is referred to as a montage – Unipolar/Referential ⇒ potential difference between electrode and designated reference – Bipolar ⇒ represents difference between adjacent electrodes (e.g. ECG, EOG)

EEG recording

P L E A S E D O N O T C O P Y

slide-21
SLIDE 21
  • 1. SPONTANEOUS
  • Meaningful data with ~5’ of recording
  • Eyes open/closed
  • 2. EVOKED

EEG recording

P L E A S E D O N O T C O P Y

slide-22
SLIDE 22

Time domain:

  • > when do things (amplitudes) happen?

EEG analysis

TIME

Frequency domain (spectral):

  • > magnitudes and frequencies of

waves- no time information.

Time-frequency (wavelet analysis):

  • > when do which frequencies occur?

From ERPs to Waveform

P L E A S E D O N O T C O P Y

slide-23
SLIDE 23

EEG features

fMRI

P L E A S E D O N O T C O P Y

slide-24
SLIDE 24

Time domain Analysis

Example of auditory evoked potentials

Event Relate Potentials ERPs

Advantages: computationally simple

P L E A S E D O N O T C O P Y

slide-25
SLIDE 25

How to disentangle oscillations Jean Joseph Fourier (1768–1830): “An arbitrary function, continuous or with discontinuities, de

ned in a finite interval by an arbitrarily capricious graph can always be expressed as a sum of sinusoids”.

Frequency Domain Analysis (EEG)

P L E A S E D O N O T C O P Y

slide-26
SLIDE 26

Time- Frequency Domain Analysis (EEG)

P L E A S E D O N O T C O P Y

slide-27
SLIDE 27

Connectivity Analysis (EEG)

Connectivity based on… .Phase (eg. phase-slope index) .Power (eg. coherence) .Cross-frequency coupling

P L E A S E D O N O T C O P Y

slide-28
SLIDE 28

Hipp et al., 2013

ambiguous audiovisual stimulus: two bars approached, briefly

  • verlapped while a click sound was played, and moved apart

from each other

Connectivity Analysis (EEG)

P L E A S E D O N O T C O P Y

slide-29
SLIDE 29

Cohen et al., 2013

Connectivity Analysis (EEG)

P L E A S E D O N O T C O P Y

slide-30
SLIDE 30

Advantages of tCS + EEG

  • Understanding the role of brain oscillations in both motor and non-

motor regions, in both the healthy and pathological brain

  • Measure both local and distant effects.
  • Guide tCS intervention on the basis of and online/offline monitoring
  • f brain states.

How can tCS + EEG be implemented?

P L E A S E D O N O T C O P Y

slide-31
SLIDE 31

tCS + EEG approaches

Resting or Event related EEG

tCS (no EEG recording)

Resting or Event related EEG Resting or Event related EEG

EEG recording during tCS

Resting or Event related EEG Resting or Event related EEG

tCS guided by EEG recording Resting or Event related EEG

OFFLINE ONLINE

EEG-Guided, closed-loop system

? ?

P L E A S E D O N O T C O P Y

slide-32
SLIDE 32

tCS and EEG: variables

P L E A S E D O N O T C O P Y

slide-33
SLIDE 33

EEG-Guided tCS: Location

Faria et al., 2012 EEG evaluation of a patient with Continuous spike-wave discharges during slow-wave sleep allowed identification of an epileptogenic focus. Cathodal tDCS over the focus resulted in a significant decrease in interictal spikes.

P L E A S E D O N O T C O P Y

slide-34
SLIDE 34

EEG-Guided tCS: Stimulation Parameters (Frequency, phase,etc.)

Frequency

Individual Alpha frequency

Zahele et al., 2012

  • tACS on the occipital cortex at individual alpha frequency
  • Resting EEG 

increase in alpha in parieto-central electrodes, no effects on surrounding frequencies

P L E A S E D O N O T C O P Y

slide-35
SLIDE 35

EEG-Guided tCS: Stimulation Parameters (Frequency, phase,etc.)

Vossen et al., 2015

Frequency

Individual Alpha frequency

P L E A S E D O N O T C O P Y

slide-36
SLIDE 36

EEG-Guided tCS: Stimulation Parameters (Frequency, phase,etc.)

Phase

Neuling et al., 2012

P L E A S E D O N O T C O P Y

slide-37
SLIDE 37

P L E A S E D O N O T C O P Y

slide-38
SLIDE 38

State dependency: Eyes Open vs. Eyes Closed

Significant increase in alpha-power after individual-alpha frequency tACS when applied with Eyes open, but no with Eyes closed. Neuling et al., 2013

P L E A S E D O N O T C O P Y

slide-39
SLIDE 39

State-Trait dependency

Variability in the response to tCS Neurotrasmitters balance Cortical “excitability” Fatigue, wakefulness, attention, habituation to stimuli  can Flip the effect Silvanto et al., 2007 Head-tissue morphology age Circadian rhythm Hormonal levels

P L E A S E D O N O T C O P Y

slide-40
SLIDE 40

P L E A S E D O N O T C O P Y

slide-41
SLIDE 41

Closed-Loop Diagram

P L E A S E D O N O T C O P Y

slide-42
SLIDE 42

Closed-Loop Studies in Animal

  • Rodent model of generalized

epilepsy.

  • Detection of interictal spikes

triggers tCS at 1Hz

Aborts the spike-wave discharge burst

Berenyi et al., 2012

P L E A S E D O N O T C O P Y

slide-43
SLIDE 43

Closed-Loop Studies in human sleep

Clark et al., 2017

P L E A S E D O N O T C O P Y

slide-44
SLIDE 44

TIME Amplitude

Closed-Loop Studies in human sleep

Enhancing slow waves improves memory

P L E A S E D O N O T C O P Y

slide-45
SLIDE 45

Closed-Loop Studies in human sleep

P L E A S E D O N O T C O P Y

slide-46
SLIDE 46

P L E A S E D O N O T C O P Y

slide-47
SLIDE 47

Output Measures: Power/Amplitude - Local effects

  • Anodal tDCS on right Inferior Frontal Gyrus, Cathode on OFC
  • Offline approach, tDCS + task, EEG before/after

Jacobson et al., 2012

Decrease in Theta power after tDCS

Theta Alpha Gamma Beta

P L E A S E D O N O T C O P Y

slide-48
SLIDE 48

Output Measures: Power/Amplitude - Distant effect

  • Increased Theta and Alpha

power after Anodal tDCS

  • Decreased Alpha power

after Cathodal tDCS and v nd viceversa

Occipito-Parietal Electrodes…

P L E A S E D O N O T C O P Y

slide-49
SLIDE 49

Output: Connectivity

  • 10’ of anodal tDCS over M1
  • Cathode on the contralateral Forehead
  • 62 Channels EEG recording Before & After, Resting & Task
  • Output 

Connectivity metrics (Synchronization Likelihood) in directed and undirected graphs, for each frequency band.

Polania et al., 2011 Task PRE – Task POST , High Gamma @ 60-90Hz tDCS Increases connectivity between motor, premotor and suppl. motor areas. Nose Nose R L

P L E A S E D O N O T C O P Y

slide-50
SLIDE 50

Output: Connectivity

Polania et al., 2011

  • tDCS Increases connectivity between left motor, premotor and suppl. motor areas.
  • tDCS Decreases interhemispheric connectivity in High-Gamma during task.

!

ACTIVITY DURING MOTOR TASK

P L E A S E D O N O T C O P Y

slide-51
SLIDE 51

Other multimodal approaches?

  • tCS + TMS-EMG
  • tCS + EEG (Resting – ERPs)
  • tCS + fMRI
  • tCS + NIRS
  • ….tCS + TMS-EEG ?

P L E A S E D O N O T C O P Y

slide-52
SLIDE 52

TMS-EEG

TMS evoked potential (TEP)

P L E A S E D O N O T C O P Y

slide-53
SLIDE 53

TMS-EEG

P L E A S E D O N O T C O P Y

slide-54
SLIDE 54

TMS-EEG

Santarnecchi et al. 2016, SPJ

P L E A S E D O N O T C O P Y

slide-55
SLIDE 55

TMS-EEG to investigate local and distant tDCS effects

  • 14 right-handed participants
  • 0.75mA for 15’ (anodal tDCS) + Sham
  • 60 Channels EEG
  • Masking Noise for TMS click

Romero Lauro et al., 2014 Output: TMS-Evoked Potentials (TEP) as a cortical activity/reactivity measure Global Excitability Index: Global Mean Field Power (GFMP) Local Excitability Index: Local Mean Field Power (LMFP) over 6 different clusters of electrodes, left/right Frontal-Temporal- Parietal. 3 Time windows: 0-50ms, 50-100ms, 100-150ms

P L E A S E D O N O T C O P Y

slide-56
SLIDE 56

TMS-EEG to investigate local and distant tDCS effects

Global Mean Field Potential

0-50ms 50-100ms 100-150ms

P L E A S E D O N O T C O P Y

slide-57
SLIDE 57

TMS-EEG to investigate local and distant tDCS effects

Local Mean Field Potential as an index of distant effects

Effects are (i) mostly in the 0-50ms window, which is expression of inter- regional monosynaptic connections; (ii) exclusively in the POST tDCS ONLINE tDCS  unclear OFFLINE tDCS  more specific, network-based effects

P L E A S E D O N O T C O P Y

slide-58
SLIDE 58

Technical challenges

Resting or Event related EEG tCS guided by EEG recording Resting or Event related EEG EEG-Guided, closed-loop system Stimulation Artifact during EEG recording

tDCS

  • Relatively easier, Available tools

(algorithm) to “clean” the data from Drifts

tACS

  • Artifact is bigger and affects the EEG band of

interest (!).

  • Specific filtering can be applied (reduces the

available spectrum)

P L E A S E D O N O T C O P Y

slide-59
SLIDE 59

EEG during tDCS

Sehm et al., 2013

SEP: somatosensory evoked potential 3rd order Butterworth filter (1-250Hz) to eliminate tDCS induced blurring of EEG response. POSTPROCESSING

P L E A S E D O N O T C O P Y

slide-60
SLIDE 60

EEG during tACS

Helfrich at al.,2014 Moving Average + Principal Component Analysis to Capture and eliminate the artifact (?)

P L E A S E D O N O T C O P Y

slide-61
SLIDE 61

Take home

  • Understand of Motor and non-Motor

tCS effects

  • Capture Distant effects other than cortical

excitability (e.g. Power, Coherence, Connectivity)

  • Guide tCS interventions (closed loop, etc.)
  • Interact with complex dynamics (e.g. CFC, phase-

related processing)

P L E A S E D O N O T C O P Y

slide-62
SLIDE 62

Questions? Comments? Ideas? Feedback?

  • dcappon@bidmc.harvard.edu
  • davide.balos.cappon@gmail.com

P L E A S E D O N O T C O P Y

slide-63
SLIDE 63

dcappon@bidmc.harvard.edu

Thank you for your attention

P L E A S E D O N O T C O P Y
