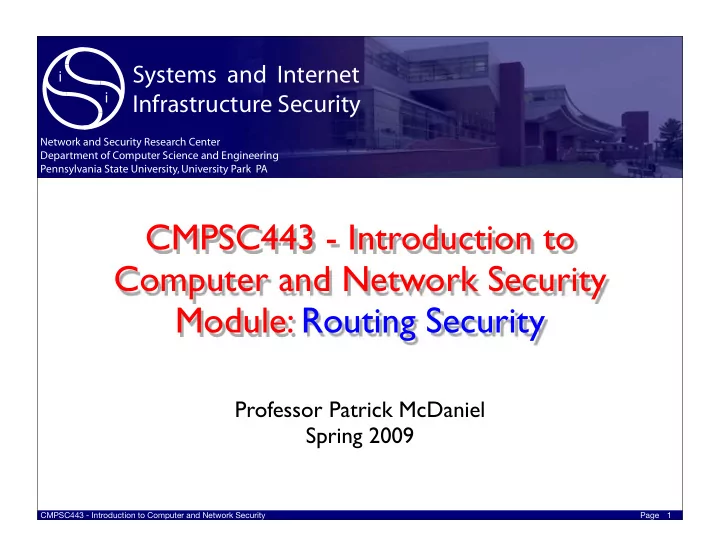

CMPSC443 - Introduction to Computer and Network Security Module: Routing Security

Professor Patrick McDaniel Spring 2009

1

CMPSC443 - Introduction to Computer and Network Security Page

Routing 101

• Network routing exists to

provide hosts desirable paths from the source to destination

• What desirable means depends on

the types of protocols being used

• Two main approaches to routing
• Link state - collected/metrics of

paths between hosts, e.g., OSPF

• Distance vector - shortest path

based on exchanged routing tables, e.g., BGP

2

CMPSC443 - Introduction to Computer and Network Security Page

Routing Security

• Bad guys play games with routing protocols.
• Traffic is diverted.
• Enemy can see the traffic.
• Enemy can easily modify the traffic.
• Enemy can drop the traffic.
• Cryptography can mitigate effects, but not stop them.
• History: we don’t have a lot of good answers!

3

CMPSC443 - Introduction to Computer and Network Security Page

Why So Little Progress?

• It's a really, really hard problem.
• Actually, getting routing to work well is hard enough.
• Has been outside the scope of traditional

communications security.

4

CMPSC443 - Introduction to Computer and Network Security Page

How is it Different?

• Most communications security failures happen because
• f buggy code or broken protocols.
• Routing security failures happen despite good code

and functioning protocols. The problem is a dishonest participant.

• Hop-by-hop authentication isn't sufficient.

5

CMPSC443 - Introduction to Computer and Network Security Page

Routing ...

6

X Z X Host A Host B X X X X X X X

CMPSC443 - Introduction to Computer and Network Security Page

The Enemy's Goal?

7

X Z X Host A Host B X X X X X X X

CMPSC443 - Introduction to Computer and Network Security Page

Routing Protocols

• Routers speak to each other.
• They exchange topology information and cost

information.

• Each router calculates the shortest path to each

destination.

• Routers forward packets along locally shortest path.
• Attacker can lie to other routers

8

CMPSC443 - Introduction to Computer and Network Security Page

Normal Behavior

9

Y → X:B(10) Y → Z :B(10) Z → X:Y (5), B(15) X → A:Z(5), Y (5), B(15)

X Z Y Host A Host B

5 5 5 10 10

CMPSC443 - Introduction to Computer and Network Security Page

Malicious Behavior

10

X Z Y Host A Host B

5 5 5 10 10

3 Y → X : B(10) Y → Z : B(10) Z → B : Y (5), B(3) X → A : Z(5), Y (5), B(8)

CMPSC443 - Introduction to Computer and Network Security Page

Why is the Problem Hard?

• X has no knowledge of Z's real connectivity.
• Even Y has no such knowledge.
• The problem isn't the link from X to Z; the problem is

the information being sent. (Note that Z might be deceived by some other neighbor Q.)

11

CMPSC443 - Introduction to Computer and Network Security Page

Worm-Holing

12

X X X Host A Host B X X Z X X Z X

CMPSC443 - Introduction to Computer and Network Security Page

Worm-Holing

13

X X X Host A Host B X X Z X X Z X

CMPSC443 - Introduction to Computer and Network Security Page

Link Cutting

14

X X X Host A Host B X X Z X X Z X

CMPSC443 - Introduction to Computer and Network Security Page

Link Cutting

15

X X X Host A Host B X X Z X X Z X

CMPSC443 - Introduction to Computer and Network Security Page

Routing in the Internet

• Two types, internal and external routing.
• Intradomin - Internal (within ISP, company): primarily OSPF.
• Interdomain routing - external (between ISPs, and some

customers): BGP.

• Topology matters.

16

CMPSC443 - Introduction to Computer and Network Security Page

OSPF (Open Shortest Path First)

• Each node announces its own connectivity.

Announcement includes link cost.

• Each node reannounces all information received from peers.
• Every node learns the full map of the network.
• Each node calculates the shortest path to all destinations.
• Note: limited to a few thousand nodes at most.

17

X Z X Host A Host B

5 5 5 10 10

CMPSC443 - Introduction to Computer and Network Security Page

Characteristics of Internal Networks

• Common management.
• Common agreement on cost metrics.
• Companies have less rich topologies, but less

controlled networks.

• ISPs have very rich---but very specialized---topologies,

but well-controlled networks.

• Often based on Ethernet and its descendants.

18

CMPSC443 - Introduction to Computer and Network Security Page

Secure OSPF?

• Simple link security is hard: multiple-access net.
• Shared secrets guard against new machines being

plugged in but not against an authorized party being dishonest.

• Solution: digitally sign each routing update (expensive!)
• List authorizations in certificate.
• Experimental RFC by Murphy et al., 1997.
• Note: everyone sees the whole map; monitoring

station can note discrepancies from reality. (But bad guys can send out different announcements in different directions.)

19

CMPSC443 - Introduction to Computer and Network Security Page

BGP (Border Gateway Protocol)

• BGP is the protocol used to

route information at the autonomous system level - (distance vector protocol)

• Everyone builds a route to every

AS in the internet based on paths received from neighbors

• Routes are flooded to neighbors
• Path selection is based on policy

(not always shortest path)

20

CMPSC443 - Introduction to Computer and Network Security Page

External Routing via BGP

• No common management
• hence no metrics beyond hop count
• No shared trust.
• Policy considerations: by intent,

not all paths are actually usable.

• Controls address management

21

The control plane for the Internet.

CMPSC443 - Introduction to Computer and Network Security Page

Secure BGP?

• Kent et al. created the sBGP

protocol which:

• Signs routes
• Signs address advertisements
• Based on the idea that we can

setup parallel PKI to support trust in the routing and address use.

• Several RFCs, many papers.
• Not really gotten traction because
• f costs and limitations of trust.

22

CMPSC443 - Introduction to Computer and Network Security Page

Routing Registries

• Services like the Internet Routing Registry (IRR) allow

ISPs to provide public routing information

• Users can cross check received advertisements against the

IRR for correctness

• Also used to prevent misconfiguration, traffic engineering ...
• Problem: ISP generally don’t like to expose how there

networks are configured

• Depth and freshness of included data is not always good
• Hard to base security decisions on sometimes unreliable

sources.

23

CMPSC443 - Introduction to Computer and Network Security Page

Problems to Solutions?

• Independent of the type, this all relates to securing the

following information for a source:

• where the destination address?
• what is the best path to that address?
• Answering these questions in practice is complex, as it

necessarily requires us to trust foreign entities or devices for which we may know little (if anything).

• This is the nasty secure distributed computation all
• ver again, only everyone on the Internet must play.
• Want more?
• Take CSE545 - Advanced Network Security
