Cloud object storage in Ceph Orit Wasserman owasserm@redhat.com Fosdem 2017 AGENDA What is cloud object storage? Ceph overview Rados Gateway architecture Questions Cloud object storage Block storage Data stored in

slide-1
SLIDE 1

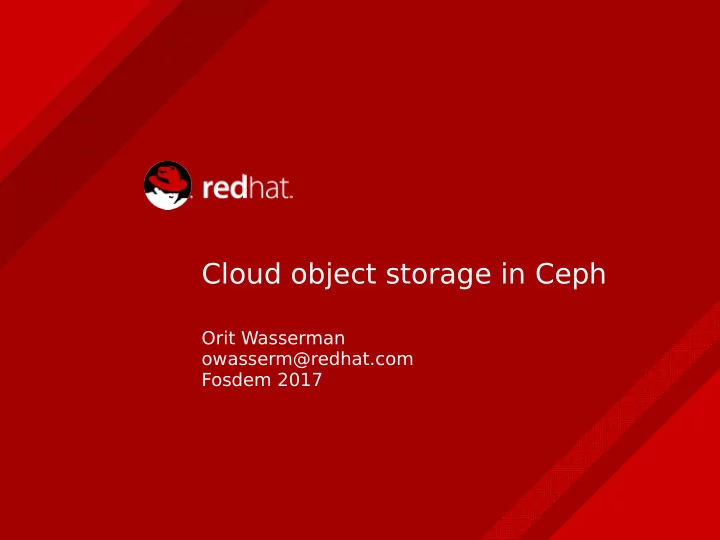

Cloud object storage in Ceph

Orit Wasserman

  • wasserm@redhat.com

Fosdem 2017

slide-2
SLIDE 2

AGENDA

  • What is cloud object storage?
  • Ceph overview
  • Rados Gateway architecture
  • Questions
slide-3
SLIDE 3

Cloud object storage

slide-4
SLIDE 4

Block storage

  • Data stored in fjxed blocks
  • No metadata
  • Fast
  • Protocols:
  • SCSI
  • FC
  • SATA
  • ISCSI
  • FCoE
slide-5
SLIDE 5

File system

  • Users
  • Authentication
  • Metadata:
  • wnership
  • Permissions/ACL
  • Creation/Modifjcation time
  • Hierarchy: Directories and

fjles

  • Files are mutable
  • Sharing semantics
  • Slower
  • Complicate
  • Protocols:
  • Local: ext4,xfs, btrfs, zfs,

NTFS, …

  • Network: NFS, SMB, AFP
slide-6
SLIDE 6

Object storage

  • Restful API (cloud)
  • Flat namespace:
  • Bucket/container
  • Objects
  • Users and tenants
  • Authentication
  • Metadata:
  • Ownership
  • ACL
  • User metadata
  • Large objects
  • Objects are immutable
  • Cloud Protocols:
  • S3
  • Swift (openstack)
  • Google Cloud storage
slide-7
SLIDE 7

S3 examples

Create bucket Get bucket

GET /{bucket}?max-keys=25 HTTP/1.1 Host: cname.domain.com GET /{bucket}?max-keys=25 HTTP/1.1 Host: cname.domain.com PUT /{bucket} HTTP/1.1 Host: cname.domain.com x-amz-acl: public-read-write Authorization: AWS {access-key}:{hash-of-header-and-secret} PUT /{bucket} HTTP/1.1 Host: cname.domain.com x-amz-acl: public-read-write Authorization: AWS {access-key}:{hash-of-header-and-secret}

slide-8
SLIDE 8

S3 examples

Delete bucket

DELETE /{bucket} HTTP/1.1 Host: cname.domain.com Authorization: AWS {access-key}:{hash-of-header-and-secret} DELETE /{bucket} HTTP/1.1 Host: cname.domain.com Authorization: AWS {access-key}:{hash-of-header-and-secret}

slide-9
SLIDE 9

S3 examples

Create object Copy object

PUT /{dest-bucket}/{dest-object} HTTP/1.1 x-amz-copy-source: {source-bucket}/{source-object} PUT /{dest-bucket}/{dest-object} HTTP/1.1 x-amz-copy-source: {source-bucket}/{source-object} PUT /{bucket}/{object} HTTP/1.1 PUT /{bucket}/{object} HTTP/1.1

slide-10
SLIDE 10

S3 examples

Read object Delete object

DELETE /{bucket}/{object} HTTP/1.1 DELETE /{bucket}/{object} HTTP/1.1 GET /{bucket}/{object} HTTP/1.1 GET /{bucket}/{object} HTTP/1.1

slide-11
SLIDE 11

Multipart upload

  • upload a single object as a set of parts
  • Improved throughput
  • Quick recovery from any network issues
  • Pause and resume object uploads
  • Begin an upload before you know the fjnal object size
slide-12
SLIDE 12

Object versioning

  • Keeps the previous copy of the object in case of overwrite or

deletion

slide-13
SLIDE 13

Ceph

slide-14
SLIDE 14

Cephalopod

slide-15
SLIDE 15

Ceph

slide-16
SLIDE 16

Ceph

  • Open source
  • Software defjned storage
  • Distributed
  • No single point of failure
  • Massively scalable
  • Replication/Erasure Coding
  • Self healing
  • Unifjed storage: object, block

and fjle

slide-17
SLIDE 17

Ceph architecture

RGW

A web services gateway for object storage, compatible with S3 and Swift

LIBRADOS

A library allowing apps to directly access RADOS (C, C++, Java, Python, Ruby, PHP)

RADOS

A software-based, reliable, autonomous, distributed object store comprised of self-healing, self-managing, intelligent storage nodes and lightweight monitors

RBD

A reliable, fully- distributed block device with cloud platform integration

CEPHFS

A distributed fjle system with POSIX semantics and scale-

  • ut metadata

management

APP HOST/VM CLIENT

slide-18
SLIDE 18

Rados

  • Reliable Autonomous Distributed Object Storage
  • Replication/Erasure coding
  • Flat object namespace within each pool
  • Difgerent placement rules
  • Strong consistency (CP system)
  • Infrastructure aware, dynamic topology
  • Hash-based placement (CRUSH)
  • Direct client to server data path
slide-19
SLIDE 19
  • Controlled Replication Under Scalable Hashing
  • Pseudo-random placement algorithm
  • Fast calculation, no lookup
  • Ensures even distribution
  • Repeatable, deterministic
  • Rule-based confjguration
  • specifjable replication
  • infrastructure topology aware
  • allows weighting

Crush

slide-20
SLIDE 20

OSD node

  • Object Storage Device
  • 10s to 1000s in a cluster
  • One per disk (or one per

SSD, RAID group…)

  • Serve stored objects to

clients

  • Intelligently peer for

replication & recovery

slide-21
SLIDE 21

Monitor node

  • Maintain cluster membership

and state

  • Provide consensus for

distributed decision-making

  • Small, odd number
  • These do not serve stored
  • bjects to clients
slide-22
SLIDE 22

Librados API

  • Effjcient key/value storage inside an object
  • Atomic single-object transactions
  • update data, attr, keys together
  • atomic compare-and-swap
  • Object-granularity snapshot infrastructure
  • Partial overwrite of existing data
  • RADOS classes (stored procedures)
  • Watch/Notify on an object
slide-23
SLIDE 23

Rados Gateway

slide-24
SLIDE 24

Rados Gateway

RGW

A web services gateway for object storage, compatible with S3 and Swift

LIBRADOS

A library allowing apps to directly access RADOS (C, C++, Java, Python, Ruby, PHP)

RADOS

A software-based, reliable, autonomous, distributed object store comprised of self-healing, self-managing, intelligent storage nodes and lightweight monitors

RBD

A reliable, fully- distributed block device with cloud platform integration

CEPHFS

A distributed fjle system with POSIX semantics and scale-

  • ut metadata

management

APP HOST/VM CLIENT

slide-25
SLIDE 25

RGW vs RADOS objects

  • RADOS
  • Limited object sizes (4M)
  • Mutable objects
  • Not indexed
  • per-pool ACLs
  • RGW
  • Large objects (TB)
  • Immutable objects
  • Sorted bucket listing
  • per object ACLs
slide-26
SLIDE 26

M M M RADOS CLUSTER

RADOSGW

LIBRADOS

socket

RADOSGW

LIBRADOS

APPLICATION APPLICATION

REST

Rados Gateway

slide-27
SLIDE 27

RESTful OBJECT STORAGE

  • Users/T

enants

  • Data
  • Buckets
  • Objects
  • Metadata
  • ACLs
  • Authentication
  • APIs
  • S3
  • Swift
  • NFS

RADOSGW

LIBRADOS

APPLICATION

S3 REST

APPLICATION

SWIFT REST RADOS CLUSTER

slide-28
SLIDE 28

RGW

RADOS BACKEND

RADOSGW

RGW-RADOS

RGW OBJCLASSES

FRONTEND REST DIALECT librados AUTH GC QUOTA

slide-29
SLIDE 29

RGW Components

  • Frontend
  • FastCGI - external web servers
  • Civetweb – embedded web server
  • Rest Dialect
  • S3
  • Swift
  • Other API (NFS)
  • Execution layer – common layer for all dialects
slide-30
SLIDE 30

RGW Components

  • RGW Rados – manages RGW data by using rados
  • bject striping
  • atomic overwrites
  • bucket index handling
  • Object classes that run on the OSDs
  • Quota - handles user or bucket quotas.
  • Authentication - handle users authentication
  • GC - Garbage collection mechanism that runs in the

background.

slide-31
SLIDE 31

RGW objects

  • Large objects
  • Fast small object access
  • Fast access to object attributes
  • Buckets can consist of a very large number of objects
slide-32
SLIDE 32

RGW objects

HEAD TAIL OBJECT

  • Head
  • Single rados object
  • Object metadata (acls, user attributes, manifest)
  • Optional start of data
  • T

ail

  • Striped data
  • 0 or more rados objects
slide-33
SLIDE 33

RGW Objects

OBJECT: foo 123_foo BUCKET: boo BUCKET ID: 123 123_28faPd3Z.1 123_28faPd3Z.2 123_28faPd.1 head head head tail 1 tail 1

slide-34
SLIDE 34

RGW bucket index

aaa abc def (v2) zzz BUCKET INDEX def (v1) Shard 1 aab bbb eee zzz fff Shard 2

slide-35
SLIDE 35

RGW object creation

  • Update bucket index
  • Create head object
  • Create tail objects
  • All those operations need to be consist
slide-36
SLIDE 36

RGW object creation

aab bbb eee zzz fff (prepare) aab bbb eee zzz fff prepare complete Write head HEAD TAIL Write tail

slide-37
SLIDE 37

RGW quota

M M M RADOS CLUSTER

RADOSGW

LIBRADOS

write() read() stats.update()

slide-38
SLIDE 38

RGW metadata cache

  • Metadata needed for each request:
  • User Info
  • Bucket Entry Point
  • Bucket Instance Info
slide-39
SLIDE 39

RGW metadata cache

M M M RADOS CLUSTER

RADOSGW

LIBRADOS LIBRADOS

RADOSGW

LIBRADOS LIBRADOS

RADOSGW

LIBRADOS

notify notifjcation notifjcation

slide-40
SLIDE 40

Multisite environment

CEPH OBJECT GATEWAY (RGW)

CEPH STORAGE CLUSTER (US-EAST-1)

CEPH OBJECT GATEWAY (RGW)

CEPH STORAGE CLUSTER (EU-WEST

  • 1)

CEPH OBJECT GATEWAY (RGW)

CEPH STORAGE CLUSTER (US-EAST-2)

ZoneGroup: us (master) Zone: us-east-1 (master) ZoneGroup: eu (secondary) Zone: eu-west-1 (master) Zonegroup: us (master) Zone: us-east-2 (secondary) Realm: Gold

slide-41
SLIDE 41

multisite

  • Implementation as part of the radosgw (in c++)
  • Asynchronous (co-routines)
  • Active/active support
  • Namespaces
  • Failover/failback
  • Backward compatibility with the sync agent
  • Meta data sync is synchronous
  • Data sync is asynchronous
slide-42
SLIDE 42

More cool features

  • Object life cycle
  • Object copy
  • Bulk operations
  • Encryption
  • Compression
  • T
  • rrents
  • Static website
  • Metadata search
  • Bucket resharding
slide-43
SLIDE 43

THANK YOU
