Classification of curves Simple, not closed Simple, closed Closed, not simple Not simple, not closed MA202 Sections 5 & 401 Chapter 11-2 Slides Interior and exterior of a simple closed curve MA202 Sections 5 & 401 Chapter 11-2

slide-1
SLIDE 1

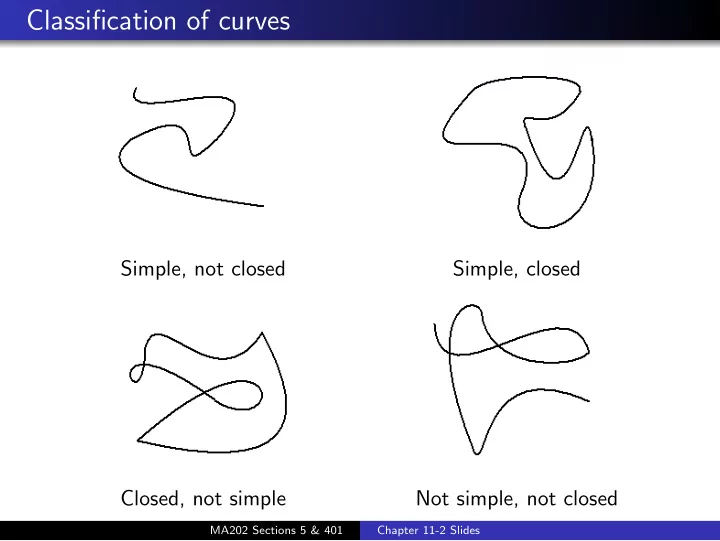

Classification of curves

Simple, not closed Simple, closed Closed, not simple Not simple, not closed

MA202 Sections 5 & 401 Chapter 11-2 Slides

slide-2
SLIDE 2

Interior and exterior of a simple closed curve

MA202 Sections 5 & 401 Chapter 11-2 Slides

slide-3
SLIDE 3

Jordan Curve Theorem

MA202 Sections 5 & 401 Chapter 11-2 Slides

slide-4
SLIDE 4

Example 11.7

Is the red dot interior or exterior to each curve?

MA202 Sections 5 & 401 Chapter 11-2 Slides

slide-5
SLIDE 5

Example 11.7 - Determining Interior Points

Is the red dot interior or exterior to each curve?

MA202 Sections 5 & 401 Chapter 11-2 Slides

slide-6
SLIDE 6

Jordan Curve Theorem

MA202 Sections 5 & 401 Chapter 11-2 Slides

slide-7
SLIDE 7

Example 11.8 - Counting Regions in the Plane

MA202 Sections 5 & 401 Chapter 11-2 Slides

slide-8
SLIDE 8

Example 11.8 - Counting Regions in the Plane

MA202 Sections 5 & 401 Chapter 11-2 Slides

slide-9
SLIDE 9

Convex Regions

MA202 Sections 5 & 401 Chapter 11-2 Slides

slide-10
SLIDE 10

Concave Regions

MA202 Sections 5 & 401 Chapter 11-2 Slides

slide-11
SLIDE 11

Classification of Polygonal Curves

Simple polygonal curve Nonsimple polygonal curve Nonsimple closed polygonal curve

MA202 Sections 5 & 401 Chapter 11-2 Slides

slide-12
SLIDE 12

Classification of Polygonal Curves

Nonconvex polygon Convex polygon Polygonal region

MA202 Sections 5 & 401 Chapter 11-2 Slides

slide-13
SLIDE 13

Names of Polygons

Triangle Quadrilateral Pentagon

MA202 Sections 5 & 401 Chapter 11-2 Slides

slide-14
SLIDE 14

Names of Polygons

Hexagon Heptagon Octagon

MA202 Sections 5 & 401 Chapter 11-2 Slides

slide-15
SLIDE 15

Names of Polygons

Nonagon Decagon 12-gon

MA202 Sections 5 & 401 Chapter 11-2 Slides

slide-16
SLIDE 16

Angles in a convex polygon

MA202 Sections 5 & 401 Chapter 11-2 Slides

slide-17
SLIDE 17

Sum of Angle Measures in a Convex Polygon

MA202 Sections 5 & 401 Chapter 11-2 Slides

slide-18
SLIDE 18

Example 11.9 - Finding the Angles in a Pentagonal Arch

Find the measures of 3x, 8x, y and z.

MA202 Sections 5 & 401 Chapter 11-2 Slides

slide-19
SLIDE 19

Sum of Interior Angle Measures of a General Polygon

MA202 Sections 5 & 401 Chapter 11-2 Slides

slide-20
SLIDE 20

Example 11.10 - Measuring the Angles in a Star

MA202 Sections 5 & 401 Chapter 11-2 Slides

slide-21
SLIDE 21

Total Turns Theorem

MA202 Sections 5 & 401 Chapter 11-2 Slides

slide-22
SLIDE 22

Example 11.11 - Finding Total Turns

MA202 Sections 5 & 401 Chapter 11-2 Slides

slide-23
SLIDE 23

Example 11.11 - Finding Total Turns

MA202 Sections 5 & 401 Chapter 11-2 Slides

slide-24
SLIDE 24

Classifying Triangles

Acute Right Obtuse

MA202 Sections 5 & 401 Chapter 11-2 Slides

slide-25
SLIDE 25

Classifying Triangles

Scalene Isosceles Equilateral

MA202 Sections 5 & 401 Chapter 11-2 Slides

slide-26
SLIDE 26

Example 11.12 - Classifying Triangles

Classify each triangle: △ABC, △ACD, △ACE, △AED, △AFE and △CDE

MA202 Sections 5 & 401 Chapter 11-2 Slides

slide-27
SLIDE 27

Example 11.12 - Classifying Triangles

MA202 Sections 5 & 401 Chapter 11-2 Slides

slide-28
SLIDE 28

Example 11.12 - Classifying Triangles

O & I R & S A & E R & S O & I O & I

MA202 Sections 5 & 401 Chapter 11-2 Slides

slide-29
SLIDE 29

Classifying Quadrilaterals

Kite Trapezoid Isosceles trapezoid

MA202 Sections 5 & 401 Chapter 11-2 Slides

slide-30
SLIDE 30

Classifying Quadrilaterals

Parrallelogram Rhombus Rectangle Square

MA202 Sections 5 & 401 Chapter 11-2 Slides

slide-31
SLIDE 31

Classifying Quadrilaterals

MA202 Sections 5 & 401 Chapter 11-2 Slides

slide-32
SLIDE 32

Equilateral, Equiangular and Regular

Equilateral Equiangular Regular

MA202 Sections 5 & 401 Chapter 11-2 Slides

slide-33
SLIDE 33

Interior, Exterior and Central Angles

MA202 Sections 5 & 401 Chapter 11-2 Slides

slide-34
SLIDE 34

Circles

MA202 Sections 5 & 401 Chapter 11-2 Slides

slide-35
SLIDE 35

Discussion Questions

Can a line cross a simple closed curve 99 times? Draw the figures that satisfy the given description:

A nonsimple closed four-sided polygonal curve A concave pentagon An equiangular quadrilateral A convex octagon

Decide if each of the following statements are true or false:

Rectangles are always squares. Squares are always rectangles. Rhombuses are never squares. Trapezoids are sometimes squares.

MA202 Sections 5 & 401 Chapter 11-2 Slides

slide-36
SLIDE 36

Homework

Homework 5 (due 3/9/10): Section 11.1 #1, 4, 11, 15, 17, 21, 45 Section 11.2 #1, 4, 6, 7, 16, 17, 18, 20, 22

MA202 Sections 5 & 401 Chapter 11-2 Slides
