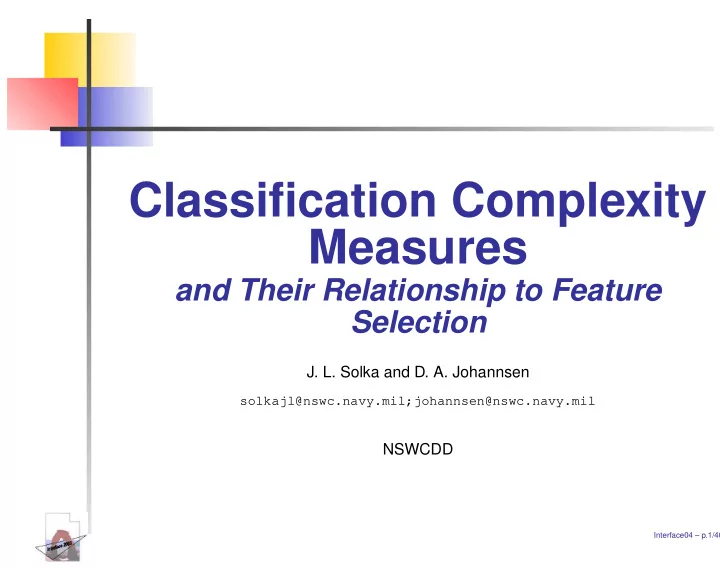

Classification Complexity Measures and Their Relationship to - - PowerPoint PPT Presentation

Classification Complexity Measures

and Their Relationship to Feature Selection

• J. L. Solka and D. A. Johannsen

solkajl@nswc.navy.mil;johannsen@nswc.navy.mil

NSWCDD

Interface04 – p.1/40

Agenda

Minimal spanning tree complexity measures. An artificial nose data set. A gene expression data set. Wrap-up and conclusions.

Interface04 – p.2/40

Acknowledgments

This work was supported by the Mathematical, Computer, and Information Sciences Division of the Office of Naval Research. We wish to acknowledge helpful discussions with Dr. David Marchette of NSWCDD and

• Dr. Carey Priebe of JHU

Interface04 – p.3/40

Classifier Complexity Measures

Single nearest neighbor cross-validated classification performance. Graph theoretic measures. Minimal spanning tree (MST) measures. Class cover catch digraph measures.

Interface04 – p.4/40

MST Methodology

Cost of an edge of a graph is the Euclidean distance between the two vertices Spanning tree is the tree that covers all vertices of the graph. A minimal spanning tree is a spanning tree of a graph, such that the sum of all of the edge costs is minimal

Interface04 – p.5/40

MST Classifier Complexity Algorithm Compute the MST of all the observations Count the number of edges that cross between disparate observations

Interface04 – p.6/40

MST Example 1

−4 −3 −2 −1 1 2 3 4 −5 −4 −3 −2 −1 1 2 3

Minimum Spanning Tree Inter−Class Edges for Two Bivariate Normal Samples

Interface04 – p.7/40

MST Example 2

−3 −2 −1 1 2 3 4 5 −6 −5 −4 −3 −2 −1 1 2 3 4

Minimum Spanning Tree Inter−Class Edges for Two Bivariate Normal Samples

Interface04 – p.8/40

Treatise

Is there a correspondence between nearest neighbor cross-validated performance and the MST complexity measure? Can one use the MST complexity measure as a surrogate for nearest neighbor classifier performance during classifier

• ptimization?

What is the effect of Minkowski p parameter choice on classifier performance? Can Minkowski p parameter and feature selection be simultaneously optimized based on some measure of classifier performance?

Interface04 – p.9/40

Artificial Nose Data Set

19 fibers x 2 wavelengths x 60 samples per time period = 2280 dimensional data Application of interest was detection of the ground water contaminant trichloethylene among various confusers.

Interface04 – p.10/40

Artificial Nose Minkowski Pseudo-Metric

• ✁

given by

(1)

Interface04 – p.11/40

Scatter Overview

Appears in conjunction with Fisher’s Linear Discriminant Select dimensions in which classes are well separated class means are well separated each class has small within class variance

Interface04 – p.12/40

Scatter Computation

Two classes,

and

, with

• ✑

and

• ✒

members (respectively) Class means:

• ✂

Class scatter matrices

Interface04 – p.13/40

Scatter Computation

Within class scatter

Between class scatter

Interface04 – p.14/40

Scatter-based Feature Selection

Univariate case:

and

• are scalars

“Good” dimensions are those with large value of

• ☛
• Multivariate case (say,
• dim’l):

and

• are

matrices

• ☛
• no longer appropriate

Chose tr

• tr

• ☎

Interface04 – p.15/40

Performance and Complexity for the Nonsmoothed Nose Data

10 20 30 40 50 60 70 80 90 100 0.25 0.3 0.35 Average Complexity (over cross validation) p 10 20 30 40 50 60 70 80 90 100 0.65 0.7 0.75 Average Performance (over cross validation)

Performance and Complexity as a Function of Minkowski p Paramater for the (Nonsmoothed) Nose Data

p=5

Interface04 – p.16/40

Performance as a Function of Scatter Selected Fibers for the Nonsmoothed Nose Data at p=5

5 10 15 20 25 30 35 40 0.5 0.6 0.7 0.8 0.9 (21 ,0.78125)

• Performance as a Function of Scatter Selected Fibers at p = 5

Number of Fibers Average Performance Over the Cross−Validation

Interface04 – p.17/40

Performance and Complexity for the Smoothed Nose Data

10 20 30 40 50 60 70 80 90 100 0.2 0.25 0.3 0.35 Average Complexity (over cross validation) p

Performance and Complexity as a Function of Minkowski p Parameter for the Smoothed Nose Data

10 20 30 40 50 60 70 80 90 100 0.6 0.7 0.8 0.9 Average Performance (over cross validation) (29,.85625)

• Interface04 – p.18/40

Performance as a Function of Scatter Selected Fibers for the Smoothed Nose Data at p=29

5 10 15 20 25 30 35 40 0.68 0.7 0.72 0.74 0.76 0.78 0.8 0.82 0.84 0.86 (37 ,0.85)

• Number of Fibers

Average Performance Over the Cross Validation

Interface04 – p.19/40

The Golub Gene Data

72 patients (observations) in 7129 dimensions (genes) ALL and AML Leukemia patients ALL T-cell and B-cell variants

Interface04 – p.20/40

Performance and Complexity for the Golub Gene Data

10 20 30 40 50 60 70 80 90 100 0.2 0.25 0.3 0.35 Average Complexity (over cross validation) p 10 20 30 40 50 60 70 80 90 100 0.6 0.7 0.8 0.9 Average Performance (over cross validation)

Performance and Complexity as a Function of Minkowski p Value

• ptimal performance at p=4

Interface04 – p.21/40

Performance as a Function of the Number of Genes for the Golub Gene Data at p=4

1000 2000 3000 4000 5000 6000 7000 8000 0.7 0.75 0.8 0.85 (372 ,0.84722)

• Performance as a Function of Scatter Selected Genes at p = 4

Number of Genes Average Performance Over the Cross−Validation

Interface04 – p.22/40

The Normalized Golub Data

Only retain those genes whose expression level is 20

• r greater across all patients

Consider an

genes by

patients data matrix Divide each column by its mean Subject each row to a standard normalizing transformation Reduces the dimensionality to roughly 1753 genes

Interface04 – p.23/40

Performance and Complexity for the Reduced Golub Gene Data

10 20 30 40 50 60 70 80 90 100 0.2 0.3 0.4 Average Complexity (over cross validation) p

Complexity and Performance vs. Minkowski p for Pruned Leukemia Data

10 20 30 40 50 60 70 80 90 100 0.6 0.8 1 Average Performance (over cross validation)

• (4, 0.8472)

Interface04 – p.24/40

Performance as a Function of the Number of Genes for the Reduced Golub Gene Data at p=4

200 400 600 800 1000 1200 1400 1600 1800 0.6 0.7 0.8 0.9 1

• (1698 ,0.86111)
• Performance as a Function of Scatter Selected Genes at p = 4

Number of Genes Average Performance Over the Cross−Validation

Interface04 – p.25/40

Simultaneous

• ☎

Optimization of Parameters Huge dimensionality prevents a classical

• ptimization approach

Subsampling used in order to reduce computational complexity. Stochastic optimization through simultaneous perturbation method of Spall Sensitivities to the formulation of an appropriate optimization criteria

Interface04 – p.26/40

The Simlutaneous Pertubation Stochastic Approximation (SPSA)Algorithm of Spall Find

• that minimizes a loss function

• ☎

subject to

• satisfying relevant constraints

So we seek

• such that

The SPSA takes the form

• ✝

• ✝

where

is a nonnegative gain sequence

Interface04 – p.27/40

Computation of

• Let

be a vector of

• independent random

variables at the

th iteration

Let

be a sequence of positive scalers For iteration

, take measurements at design levels

• ✄

• ✝

• ✝

Interface04 – p.28/40

The Standard Sp formulation for

• ✆

• ✝

• ✆

• ✝

• ✝

We note that

• nly requires two

measurements of

independent of

• Interface04 – p.29/40

Gain Selection in SPSA

The choice of gains

is crucial to the performance of SPSA For

consider

• ✞

where

Spall recommends picking

,

, and

We also set A = 0 and the choice of c is based

• n an estimate of the standard deviation of

the associated noise in the

function

Interface04 – p.30/40

Penalty Function

• ✄

• ✁

Where

• ✓

• is chosen so that penalty

function has roughly the same order of magnitude as the objective function.

−0.2 0.2 0.4 0.6 0.8 1 1.2 −0.2 0.2 0.4 0.6 0.8 1 0.02 0.04 0.06 0.08 0.1 0.12 0.14 x x2 (x−1)2+y2 (y−1)2 y

Interface04 – p.31/40

Out SPSA Flowchart

• 1. Initialize weights
• ✑

• ✁

• ✁

Note that

• ✁

• ✁

• ☎

.

• 2. Draw Bernoulli Sample
• 3. Evaluate objective function at the two points.
• 4. Adjust weights based on the gradient
• estimate. Weights are constrained to lie in

[0,1].

• 5. Iterate

Interface04 – p.32/40

Stopping Criteria

Small change in

• ✥

• ✝

• ✝

Small relative change in the objective function abs

• ✝

• ✝

• ✝

Interface04 – p.33/40

Pruned Genes Convergence Curves

Interface04 – p.34/40

Pruned Genes Convergence Curves

Interface04 – p.35/40

Relationship to the Hypergeometric Distribution

The total number of pruned genes

The number of genes selected in experiment 1

• ✓

The number of genes selected in experiment 2

The number of genes in the intersection of

and

• ✁

• ✄

• ✄

Interface04 – p.36/40

Toy Problem Results

dimension

1 2 3 4 5 6 7 8 9 10

count

73 59 53 54 59 43 47 43 48 48

500

• N(0,1) on

9 dims and N(2,1)

• n 1 dim

500

• N(0,1) on 9

dims and N(-2,1)

• n 1 dim

100 trials of 200 iterations each

1 2 3 4 5 6 7 8 9 10 5 10 15 20 25 Histogram of Dimension Count Number of Dimensions Selected Count

Interface04 – p.37/40

Pruned Gene Results

Interface04 – p.38/40

Smoothed Nose Results

• ✁

Interface04 – p.39/40

Conclusions

Presented preliminary results on the benefits of simultaneously optimizing (w,p,s) Presented results illustrating the use of MST as a classification complexity measure Our next step is to perform simultaneous (w,p,s)

• ptimization using surrogate classifier complexity measures

such as the MST criteria in conjunction with appropriate

• bjective functions and optimization methodologies
